Prism CLAYMORE Rechargeable Mobile LED Lantern

Introduction

Thank you for purchasing the Prism CLAYMORE Rechargeable Mobile LED Lantern. This manual provides essential information for the safe and efficient use of your new device. Please read it thoroughly before operation and retain it for future reference.

The CLAYMORE CLP-2000BK is a versatile LED lantern equipped with a motion sensor, designed for various outdoor and indoor lighting needs. It offers adjustable light output and extended battery life, making it an ideal companion for camping, work, or emergency situations.

Product Features

• Adjustable Light Output: Ranging from 30 lumens to 1,000 lumens for various lighting requirements.
• Motion Sensor: Enhances convenience and conserves battery life by activating light when motion is detected.
• Extended Continuous Use Time: Provides illumination for 3 to 55 hours, depending on the selected brightness mode.
• Compact and Lightweight Design: Measuring 67mm x 58mm x 36mm and weighing only 85g, it is highly portable.
• Rechargeable Lithium-ion Battery: Equipped with a built-in rechargeable battery for sustained use.

Package Contents

Ensure all items are present upon unpacking:

• Prism CLAYMORE CLP-2000BK LED Lantern
• Carrying Case
• USB-C Charging Cable (not explicitly listed but implied by USB-C port in images)

Safety Information

Please observe the following safety precautions to prevent injury or damage to the product:

• Do not look directly into the LED light when it is on, as it may cause temporary vision impairment.
• Keep the device away from water and moisture unless specified as waterproof.
• Do not attempt to disassemble, repair, or modify the device. This will void the warranty.
• Use only the provided or recommended charging cable and adapter.
• Keep out of reach of children.
• Avoid extreme temperatures and direct sunlight.

Setup

Initial Charging

Before first use, fully charge the lantern. Connect the provided USB-C cable to the lantern's USB-C port and plug the other end into a compatible USB power source (e.g., wall adapter, computer, power bank). The charging indicator light will show the charging status.

Image: Top view of the lantern, highlighting the USB-C charging port.

Mounting Options

The CLAYMORE CLP-2000BK offers versatile mounting options:

• Clip Attachment: Use the integrated clip to attach the lantern to a cap brim, pocket, or strap.
• Ceiling Mount: The clip mechanism can also be used to hang the lantern from a hook or loop.
• Pole Mount: The design allows for attachment to poles or similar structures.

Image: The lantern attached to a hard hat, demonstrating a common mounting method.

Image: The lantern hanging from a carabiner, showcasing its versatility for overhead lighting.

Operating Instructions

Power On/Off and Brightness Adjustment

Locate the power button on the device. Press and hold to turn the lantern on or off. Short presses will cycle through different brightness levels (30lm to 1000lm).

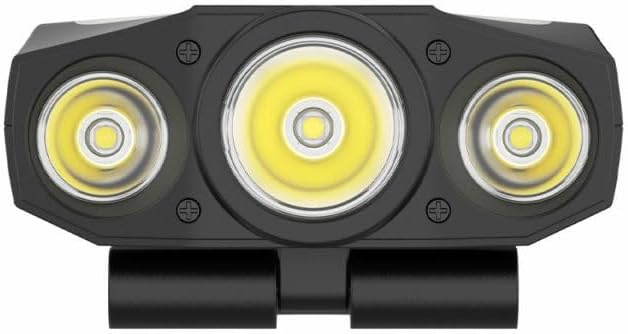

Image: The lantern with its main LED lights activated, demonstrating its illumination capability.

Motion Sensor Mode

The lantern features a motion sensor for automatic light activation. Refer to the specific button sequence in the quick start guide (if included) to activate or deactivate the motion sensor mode. When active, the light will turn on when motion is detected within its range and turn off after a period of inactivity.

Battery Indicator

The lantern may include an indicator light to show the current battery level. Consult the quick start guide for details on how to interpret the indicator (e.g., color changes, flashing patterns).

Maintenance

Cleaning

Wipe the lantern with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the surface or internal components.

Storage

When not in use for extended periods, store the lantern in its case in a cool, dry place. It is recommended to charge the battery every 3-6 months to maintain its health.

Troubleshooting

• Lantern does not turn on: Ensure the battery is charged. Connect to a power source and try again.
• Light output is dim: The battery may be low. Recharge the device.
• Motion sensor not responding: Check if the motion sensor mode is activated. Ensure there are no obstructions blocking the sensor.
• Short battery life: Ensure the lantern is fully charged before use. High brightness settings consume more power.

If you encounter issues not covered here, please contact customer support.

Specifications

Warranty and Support

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact Prism customer service through their official website or the retailer where the product was purchased.

Please have your model number (CLP-2000BK) and proof of purchase ready when contacting support.
