TEYES CC3 2K Car Radio Multimedia Video Player Navigation Stereo GPS Android 10 Headunit User Manual

1. Introduction

The TEYES CC3 2K is an advanced car multimedia player designed for Jeep Grand Cherokee WK2 models from 2013 to 2020. This head unit features a high-resolution 2000x1200 2K touch screen, Android 10 operating system, and a powerful 8-core processor, offering enhanced navigation, entertainment, and connectivity options for your vehicle. It integrates seamlessly with your car's existing systems, providing a modern and intuitive user experience.

Figure 1.1: TEYES CC3 2K Head Unit displaying its user interface with media playback and navigation elements.

2. Package Contents

Upon opening the package, verify that all the following components are present and in good condition:

• 1x Head unit (TEYES CC3 2K)
• 1x USB cable
• 1x GPS antenna
• 1x AUX cable
• 1x 4G WiFi antenna
• 1x E-book (digital instruction manual)

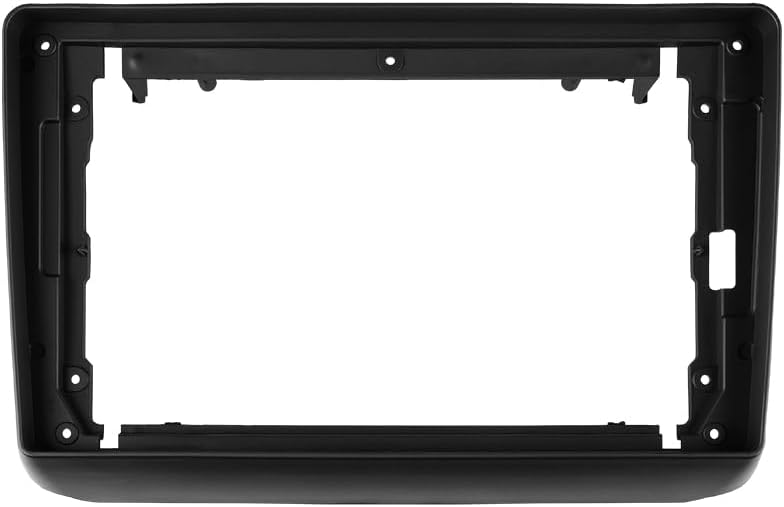

• 1x Frame (OEM Panel)
• 1x Power cable
• 1x AHD 1080p rear camera
• Audio & Video harness + RCA cables
• Screws & Screwdriver
• Cleaning cloth
• Wiring diagram

Figure 2.1: Visual representation of all items included in the TEYES CC3 2K product package.

Figure 2.2: Close-up view of the included USB 2.0 cables for data transmission and peripheral connectivity.

3. Setup and Installation

This section provides general guidelines for installing the TEYES CC3 2K head unit in your Jeep Grand Cherokee WK2 (2013-2020). Professional installation is recommended.

3.1 Pre-Installation Check

• Ensure the vehicle's battery is disconnected before starting installation.
• Verify all package contents are present.
• Review the included wiring diagram thoroughly.

3.2 Installation Steps

1. Carefully remove the original car radio and dashboard trim.
2. Connect the power cable, GPS antenna, 4G WiFi antenna, and other necessary harnesses to the TEYES CC3 2K head unit.
3. Connect the other ends of the harnesses to the corresponding ports in your vehicle.
4. If installing the AHD 1080p rear camera, route its cable to the rear of the vehicle and connect it to the head unit.
5. Test the unit's basic functions (power on, audio, touch screen responsiveness) before fully securing it.
6. Install the new frame (OEM Panel) and secure the head unit into the dashboard opening.

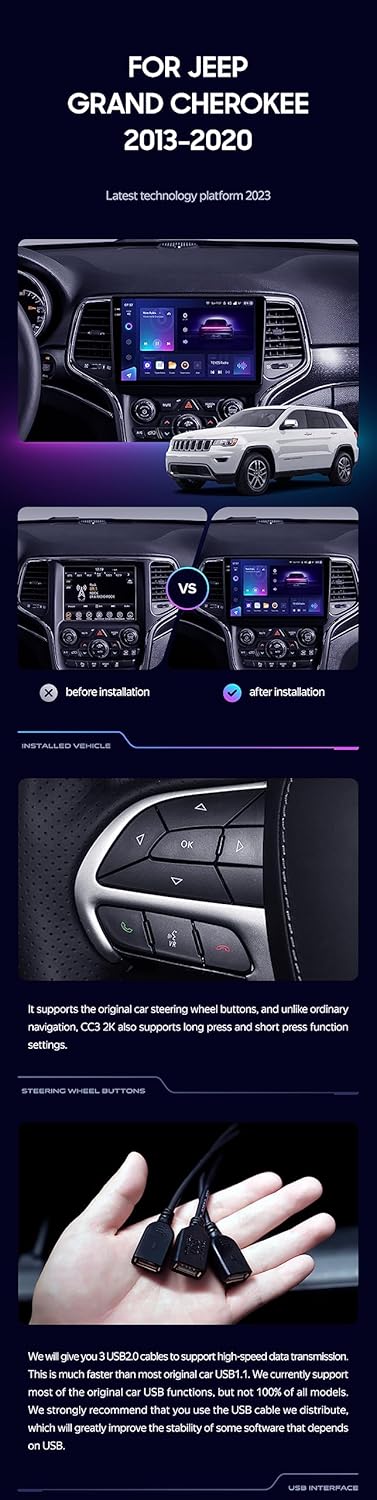

Figure 3.1: Comparison showing the vehicle's dashboard before and after the installation of the TEYES CC3 2K head unit, highlighting the integrated appearance.

3.3 Important Installation Note

Due to the slightly larger size of the CC3's back cover compared to the stock panel, it may be necessary to trim some plastic from the vehicle's dashboard opening during installation. Refer to the image below for guidance on areas that might require modification.

Figure 3.2: Illustration indicating specific areas (highlighted in red) on the vehicle's dashboard where minor plastic trimming might be required for proper fitment of the TEYES CC3 2K head unit.

4. Operating Instructions

The TEYES CC3 2K operates on Android 10, providing a familiar and intuitive interface. Below are key operational features:

4.1 Basic Operation

• Power On/Off: Press and hold the power button (if available) or turn on vehicle ignition.
• Touch Screen: Navigate the interface using touch gestures similar to a smartphone or tablet. The 2K touch screen technology ensures high responsiveness and clarity.
• Volume Control: Adjust audio volume via on-screen controls or vehicle's steering wheel buttons.

4.2 Key Features

• High Performance: Equipped with 6GB RAM and 128GB ROM, powered by an 8-core 2.0GHz processor for smooth multitasking and application performance.
• Display Quality: Features a CC3 2K In-cell Display with 157% Gamut Coverage, providing vivid and accurate colors.
• Audio System: Integrated with 2*DSP ADAU1701 + ROHM32107 for superior audio processing, including optical and coaxial digital audio output.
• Connectivity: Supports 4G internet, Bluetooth (upgraded QCC3031QFN Qualcomm module), USB, WIFI, and Hotspot for versatile connectivity options. RDS is also supported for radio.
• Navigation: Utilize pre-installed navigation software or download your preferred map applications. Supports North America map types.
• Rear View Camera: Real-time viewing of the vehicle's rear view is supported, along with video recording capabilities when connected to the included AHD 1080p rear camera.
• Software Features: Access a variety of creative 3D software such as TEYES Vision and TEYES Yahu for enhanced user experience.

4.3 Steering Wheel Control Integration

The TEYES CC3 2K supports the original car steering wheel buttons. Unlike ordinary navigation systems, the CC3 2K also supports long press and short press function settings, allowing for customized control of various functions directly from your steering wheel.

Figure 4.1: Image illustrating the integration of the TEYES CC3 2K with the vehicle's steering wheel controls, enabling convenient operation.

5. Maintenance

Proper maintenance ensures the longevity and optimal performance of your TEYES CC3 2K head unit.

• Screen Cleaning: Use the provided cleaning cloth or a soft, lint-free cloth slightly dampened with water or a screen-safe cleaner. Avoid abrasive materials or harsh chemicals.
• Software Updates: Periodically check for and install software updates provided by TEYES to ensure the system runs efficiently and has the latest features and security patches.
• Environmental Conditions: Avoid exposing the unit to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture.
• Cable Connections: Ensure all cables are securely connected. Loose connections can lead to intermittent issues.

6. Troubleshooting

This section addresses common issues you might encounter. For more complex problems, contact customer support.

• No Power:
  • Check all power cable connections.
  • Verify the vehicle's fuse related to the head unit.
  • Ensure the vehicle's ignition is on.
• No Sound:
  • Check volume levels on the head unit and vehicle.
  • Ensure audio cables are properly connected.
  • Verify audio output settings in the system menu.
• GPS Signal Loss:
  • Ensure the GPS antenna is securely connected and has a clear view of the sky.
  • Move the vehicle to an open area away from tall buildings or dense foliage.
• Touch Screen Unresponsive:
  • Restart the head unit.
  • Ensure the screen is clean and free of debris.
• Bluetooth Connectivity Issues:
  • Ensure Bluetooth is enabled on both the head unit and the device.
  • Delete previous pairings and re-pair the device.
  • Restart both devices.

7. Specifications

Detailed technical specifications for the TEYES CC3 2K head unit:

Figure 7.1: TEYES CC3 2K Head Unit showing approximate dimensions (228mm top width, 218mm bottom width, 130mm height).

8. Warranty Information

The TEYES CC3 2K head unit comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by improper installation, accidents, misuse, unauthorized repairs, or natural disasters.

For warranty claims, please retain your proof of purchase and contact TEYES customer support.

9. Customer Support

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact TEYES customer support through the official channels. You can also visit the official TEYES store on Amazon for more information and resources:
