Totnz GF-TZESD7N Electric Standing Desk User Manual

1. Introduction

Thank you for choosing the Totnz GF-TZESD7N Electric Standing Desk. This desk is designed to enhance your comfort and productivity by allowing seamless transitions between sitting and standing positions. Its robust construction and intelligent features make it an ideal solution for any modern workspace.

This manual will guide you through the assembly process, explain how to operate your desk, and provide important information regarding maintenance and troubleshooting to ensure long-term satisfaction.

The Totnz GF-TZESD7N Electric Standing Desk provides a versatile workspace, accommodating multiple monitors, a laptop, and various office accessories. It features a clean, modern design with a light wood finish and white legs, and includes a convenient side storage bag.

2. Key Features

• Enhanced Comfort & Productivity: Easily transition between sitting and standing positions to reduce back strain, improve circulation, and boost focus throughout your workday.
• High-Tech Worm Gear Motor: Equipped with a reliable worm gear, ensuring seamless, quiet, and effortless height adjustments. Made from high-strength medium carbon alloy steel for long-term performance.
• Wobble-Free Stability: Features a sturdy T-shaped structure and floor-gripping feet, maintaining stability even at maximum height.
• Spacious Workspace: Generous work surface accommodates computers, monitors, accessories, and other essentials.
• Integrated Storage: Includes a convenient storage bag to keep your workspace clean, organized, and free from clutter.
• Reliable Performance: Tested 50,000 times for lifting reliability and supports up to 176 lbs.
• Quiet Operation: Operates at approximately 50dB, ensuring a peaceful work environment.
• Advanced Safety Features: Includes a child safety lock, anti-collision function, and overheat protection for user safety.
• CARB Certified Desktop: Desktop is CARB certified, significantly reducing formaldehyde and other VOC emissions, making it safer and more skin-friendly.

This image demonstrates the wide height adjustment range of the Totnz GF-TZESD7N Electric Standing Desk, showing one person comfortably seated at the lower height and another standing at the higher height, illustrating smooth transitions from 27.5 to 46.7 inches.

A man stands comfortably at the Totnz GF-TZESD7N Electric Standing Desk, emphasizing its stable and wobble-free design, supported by sturdy T-shaped desk legs. A glass of water on the desk remains undisturbed, indicating minimal movement during height adjustments.

The image demonstrates the robust load capacity of the Totnz GF-TZESD7N Electric Standing Desk, indicating it can support and smoothly lift up to 176 pounds of equipment, including monitors, laptops, and other office essentials.

The image depicts the quiet operation of the Totnz GF-TZESD7N Electric Standing Desk, comparing its 50dB noise level to normal talking (60dB) and city traffic (80dB), ensuring a peaceful work environment.

This image highlights two key features: the anti-collision technology that prevents the desk from lowering if it encounters an obstacle, and the use of recycled wood for the desktop, emphasizing environmental responsibility.

3. Setup and Assembly

The Totnz GF-TZESD7N Electric Standing Desk is designed for easy and quick assembly. All necessary tools and clear instructions are included in the package. Please follow the step-by-step guide provided with your desk for a smooth setup.

Package Contents:

• 1 x Electric Standing Desk (components)
• Assembly Hardware
• Instruction Manual

It is recommended to have two people for assembly to ensure stability and ease of handling during the process.

A person is shown assembling the Totnz GF-TZESD7N Electric Standing Desk, illustrating the quick and straightforward assembly process designed to get your ergonomic office set up sooner.

4. Operating Instructions

Your Totnz Electric Standing Desk features an intuitive control panel for easy height adjustments and memory presets.

Height Adjustment:

• Use the Up (▲) and Down (▼) buttons on the control panel to raise or lower the desk to your desired height.
• The desk offers a smooth height adjustment range from 27.5 inches to 46.7 inches.

Memory Presets:

The desk includes four programmable memory presets to save your preferred sitting and standing heights.

1. Adjust the desk to your desired height using the Up/Down buttons.
2. Press the 'M' or 'Set' button (if available, otherwise refer to specific button labels 1, 2, 3, 4).
3. Press the desired number button (1, 2, 3, or 4) to save the current height to that preset.
4. To recall a saved height, simply press the corresponding number button.

This image illustrates the four-height memory function of the desk, showing a user transitioning between different preset heights (sitting, standing, and intermediate positions) with one-press access for personalized comfort.

Safety Functions:

• Child Safety Lock: Activates to prevent accidental adjustments by children. Refer to your desk's specific instructions for activation/deactivation.
• Anti-Collision Function: The desk will automatically stop and slightly reverse if it encounters an obstacle during height adjustment, protecting both the desk and surrounding objects.
• Overheat Protection: The motor is equipped with overheat protection to prevent damage from continuous operation. If the motor overheats, it will temporarily stop and resume operation once cooled down.

5. Maintenance

To ensure the longevity and optimal performance of your Totnz Electric Standing Desk, follow these simple maintenance guidelines:

• Cleaning: Wipe the desk surface and legs with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners that could damage the finish.
• Cable Management: Regularly check and organize cables to prevent tangles and ensure smooth desk operation.
• Weight Distribution: Distribute weight evenly on the desktop to prevent strain on the lifting mechanism. Do not exceed the maximum weight capacity of 176 lbs.
• Regular Checks: Periodically check all screws and connections to ensure they are tight and secure.

6. Troubleshooting

If you encounter any issues with your Totnz Electric Standing Desk, please refer to the following common troubleshooting tips:

• Desk Not Moving:
  • Check if the power cord is securely plugged into both the desk and the wall outlet.
  • Ensure no cables are pinched or obstructing the lifting mechanism.
  • If the motor has been running continuously, it might be in overheat protection mode. Allow it to cool down for 20-30 minutes before trying again.
• Uneven Movement:
  • Ensure the desk is placed on a flat, level surface.
  • Check that the weight on the desk is evenly distributed.
  • Perform a reset procedure (refer to your specific desk's control panel instructions, usually involves holding down certain buttons).
• Error Codes on Display:
  • Consult the specific error code meanings in the detailed instruction manual provided with your desk.
  • Often, unplugging the desk for 10-15 seconds and plugging it back in can resolve temporary errors.
• Anti-Collision Triggering Frequently:
  • Ensure there are no obstacles in the desk's path during movement.
  • Check if the anti-collision sensitivity can be adjusted (refer to your specific desk's control panel instructions).

If these steps do not resolve the issue, please contact Totnz Customer Support for further assistance.

7. Specifications

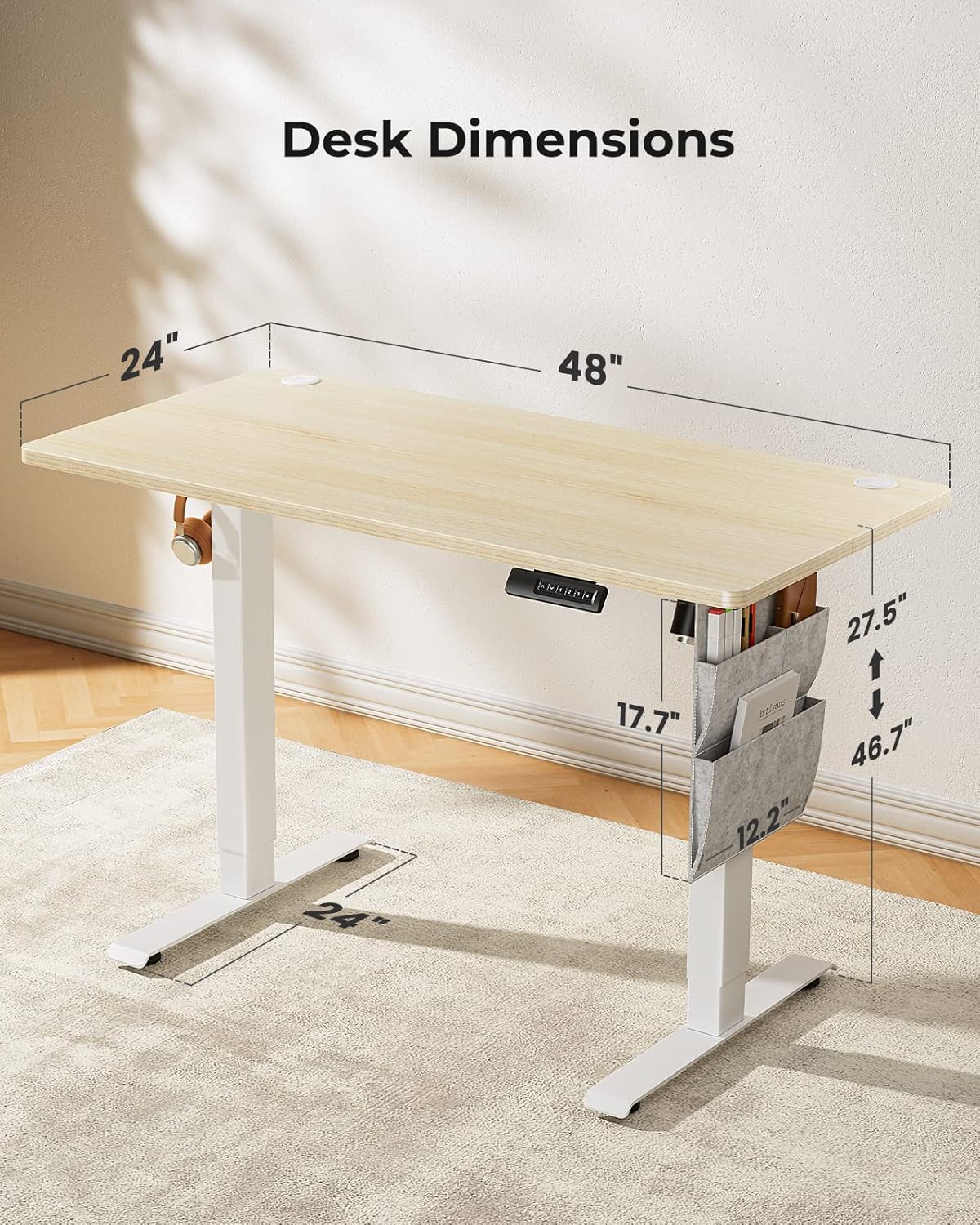

A detailed diagram illustrating the key dimensions of the Totnz GF-TZESD7N Electric Standing Desk. The desktop measures 48 inches in width and 24 inches in depth. The height is adjustable from 27.5 inches to 46.7 inches. The storage bag is 12.2 inches wide and 17.7 inches high.

8. Warranty Information

The Totnz GF-TZESD7N Electric Standing Desk comes with a 5-year warranty for non-artificial damage. This warranty ensures that your desk will remain a reliable and functional part of your workspace for years to come. Please retain your proof of purchase for warranty claims.

9. Customer Support

For any questions, concerns, or assistance with your Totnz Electric Standing Desk, please contact our dedicated customer support team. We are committed to providing the best shopping and user experience.

You can find contact information for customer support on the product's official Amazon page or through the Totnz brand store: Visit the Totnz Store
