1. Introduction
Thank you for choosing the SIBRILLE 36W LED Floor Lamp. This manual provides essential information for the safe and efficient use of your new lamp. Please read these instructions carefully before assembly and operation, and retain them for future reference.
2. Safety Instructions
- Ensure the power supply voltage matches the lamp's requirements before plugging in.
- This product is designed for indoor use only. Do not expose to water or high humidity.
- Do not attempt to disassemble or modify the lamp. This may cause damage and void the warranty.
- Keep the lamp away from heat sources and direct sunlight.
- Always unplug the lamp from the power outlet before cleaning or performing any maintenance.
- Keep out of reach of children and pets.
3. Package Contents
Verify that all components are present and in good condition:
- LED Lamp Head
- Multiple Pole Sections
- Sturdy Base
- Power Adapter
- Remote Control
- User Manual
Figure 1: All components included in the package.
4. Setup and Assembly
Follow these steps to assemble your SIBRILLE 36W LED Floor Lamp:
- Screw the Lamp Head to the Pole: Carefully screw the lamp head onto the top pole section.
- Connect Remaining Pole Sections: Continue screwing the remaining pole sections together, ensuring the wires are not pinched.
- Attach the Base: Screw the assembled pole onto the sturdy base. Ensure it is tightened securely for stability.
- Connect the Power Adapter: Plug the power adapter into the lamp's power input, then plug the adapter into a wall outlet.
Figure 2: Visual guide for lamp assembly.
Figure 3: Connecting the power adapter.
Video 1: Demonstrates the easy assembly process of the SIBRILLE floor lamp.
5. Operating Instructions
Your SIBRILLE floor lamp can be operated using the included remote control or the integrated touch panel.
5.1 Remote Control Operation
The remote control allows for comprehensive adjustment of the lamp's settings:
- Power Button: Turns the lamp On/Off.
- Brightness Adjustment: Use '+' and '-' buttons to increase or decrease brightness (5% to 100%).
- Color Temperature Adjustment: Use the sun icon buttons to cycle through color temperatures (3000K Warm to 6000K Cool White).
- Preset Modes: Dedicated buttons for various lighting scenarios (e.g., Reading, Working, Leisure, Night Light, Breastfeeding).
- Timer: Set a 1-hour timer for automatic shut-off.
Figure 4: Remote control layout and functions.
5.2 Touch Control Operation
The lamp features a touch-sensitive panel on the pole for basic controls:
- Power Button: Tap to turn On/Off.
- Brightness/Color Temperature: Long press the light icon to cycle through brightness levels or color temperatures. Release when desired setting is reached.
Figure 5: Touch control panel on the lamp pole.
Video 2: Demonstrates the remote and touch control functions, including dimming and color temperature adjustments.
6. Features
- Rotatable Lamp Head: The lamp head can be rotated up to 350 degrees, allowing you to direct light precisely where needed, whether for direct illumination or indirect ambient lighting.
- Magnetic Remote Control: The remote control is magnetic and can be conveniently attached to the lamp pole or any other metal surface, preventing it from getting lost.
- Stepless Dimming and Color Temperature: Adjust brightness from 5% to 100% and color temperature from 3000K (warm) to 6000K (cool white) to suit any mood or activity.
- Sturdy and Stable Base: The lamp features a heavy, 10-inch diameter metal base weighing 4.6 lbs, ensuring excellent stability and preventing accidental tipping.

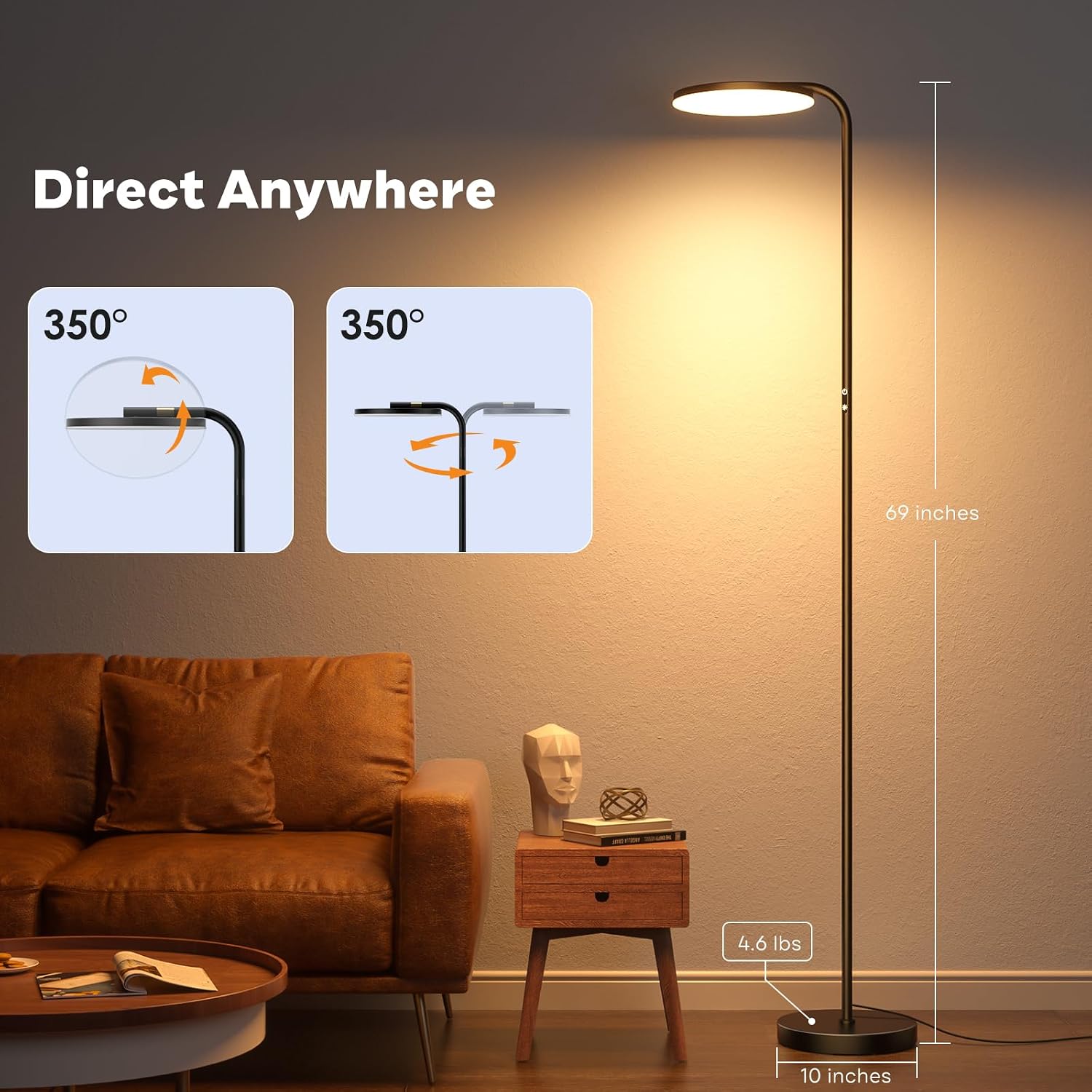

Figure 6: The lamp head offers 350-degree rotation.
Figure 7: Magnetic remote for easy storage.
Figure 8: Stepless dimming and color temperature range.
Figure 9: The stable and weighted base.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | MF18823A |
| Wattage | 36 Watts |
| Light Source Type | LED |
| Color Temperature | 3000K - 6000K (Stepless) |
| Brightness | 5% - 100% (Stepless) |
| Control Method | Remote Control, Touch Control |
| Material | Metal |
| Base Material | Metal |
| Item Weight | 11.05 Pounds |
| Product Dimensions | 9.84 x 17.12 x 68.89 inches |
| Indoor/Outdoor Usage | Indoor |
8. Maintenance
- Cleaning: Use a soft, dry cloth to wipe the lamp. Do not use abrasive cleaners or solvents, as they may damage the finish.
- Storage: If storing the lamp for an extended period, disassemble it and store it in its original packaging in a dry, cool place.
- Bulb Replacement: The LED light source is integrated and not user-replaceable. If the light source fails, please contact customer support.
9. Troubleshooting
| Issue | Possible Solution |
|---|---|
| Lamp does not turn on. | 1. Ensure the power adapter is securely plugged into both the lamp and the wall outlet. 2. Check if the wall outlet is functioning by plugging in another device. 3. Verify the remote control batteries are correctly inserted and not depleted. |
| Remote control is not responding. | 1. Replace the remote control batteries (2 AAA batteries, not included). 2. Ensure there are no obstructions between the remote and the lamp. 3. Re-pair the remote control with the lamp (refer to pairing instructions in the full manual if available). |
| Brightness or color temperature cannot be adjusted. | 1. Ensure the remote control batteries are functional. 2. Try using the touch control panel on the lamp pole. |
| Lamp flickers or changes settings unexpectedly. | 1. Ensure the power connection is stable. 2. Interference from other electronic devices might be a factor; try relocating the lamp or other devices. 3. If the issue persists, contact customer support. |
10. Warranty and Support
SIBRILLE products are designed for quality and reliability. For warranty information, technical support, or any questions regarding your SIBRILLE 36W LED Floor Lamp, please refer to the contact details provided in your product packaging or visit the official SIBRILLE website.
Please have your model number (MF18823A) and purchase information ready when contacting support.
