VEPRAG Universal TV Remote Control Instruction Manual

1. Introduction

Thank you for choosing the VEPRAG Universal TV Remote Control. This remote is designed to simplify your home entertainment experience by providing compatibility with a wide range of smart TV brands, including Samsung, Sony, Sharp, Vizio, Philips, Toshiba, Sanyo, TCL, Hisense, Insignia, and Panasonic. Its backlit buttons ensure visibility in low-light conditions, and its lightweight design offers comfortable handling. Please read this manual carefully to ensure proper setup and operation.

2. Product Overview

The VEPRAG Universal TV Remote features a comprehensive set of controls for your smart TV. Key features include:

• Wide Compatibility: Works with numerous smart TV brands.
• Backlit Buttons: Fluorescent buttons provide enhanced visibility in dark environments.
• Ergonomic Design: Lightweight and compact for easy handling.
• Dedicated App Buttons: Quick access to popular streaming services (e.g., Netflix).

Figure 1: Front view of the VEPRAG Universal TV Remote Control, highlighting its button layout and compact design.

3. Setup

3.1 Battery Installation

The remote requires two (2) AAA batteries (not included). To install:

1. Open the battery compartment cover on the back of the remote.
2. Insert the AAA batteries, ensuring correct polarity (+ and -) as indicated inside the compartment.
3. Close the battery compartment cover securely.

3.2 Programming the Remote

There are two primary methods to program your VEPRAG Universal TV Remote:

Method 1: Brand Search (Recommended for quick setup)

1. Ensure your TV is powered on.
2. Press and hold the corresponding brand button on the remote (e.g., SAMSUNG, SONY, PHILIPS) for 5 seconds.
3. The LED indicator on the remote will flash three times, indicating that the setting is complete.
4. Test the remote's functions (e.g., Power, Volume). If it works, programming is successful.

Method 2: Set by Code (For specific models or if Brand Search fails)

1. Locate your TV brand's 3-digit code in the provided code list (refer to the included instruction manual or online resources).
2. Press and hold the corresponding brand button on the remote for 3 seconds. The LED indicator will flash three times.
3. Release the button.
4. Input the 3-digit code using the number buttons on the remote.
5. If the code is correct, the LED light will turn off. If the code is incorrect, the LED light will remain on, indicating an error. Repeat the process with another code if necessary.
6. Test the remote's functions.

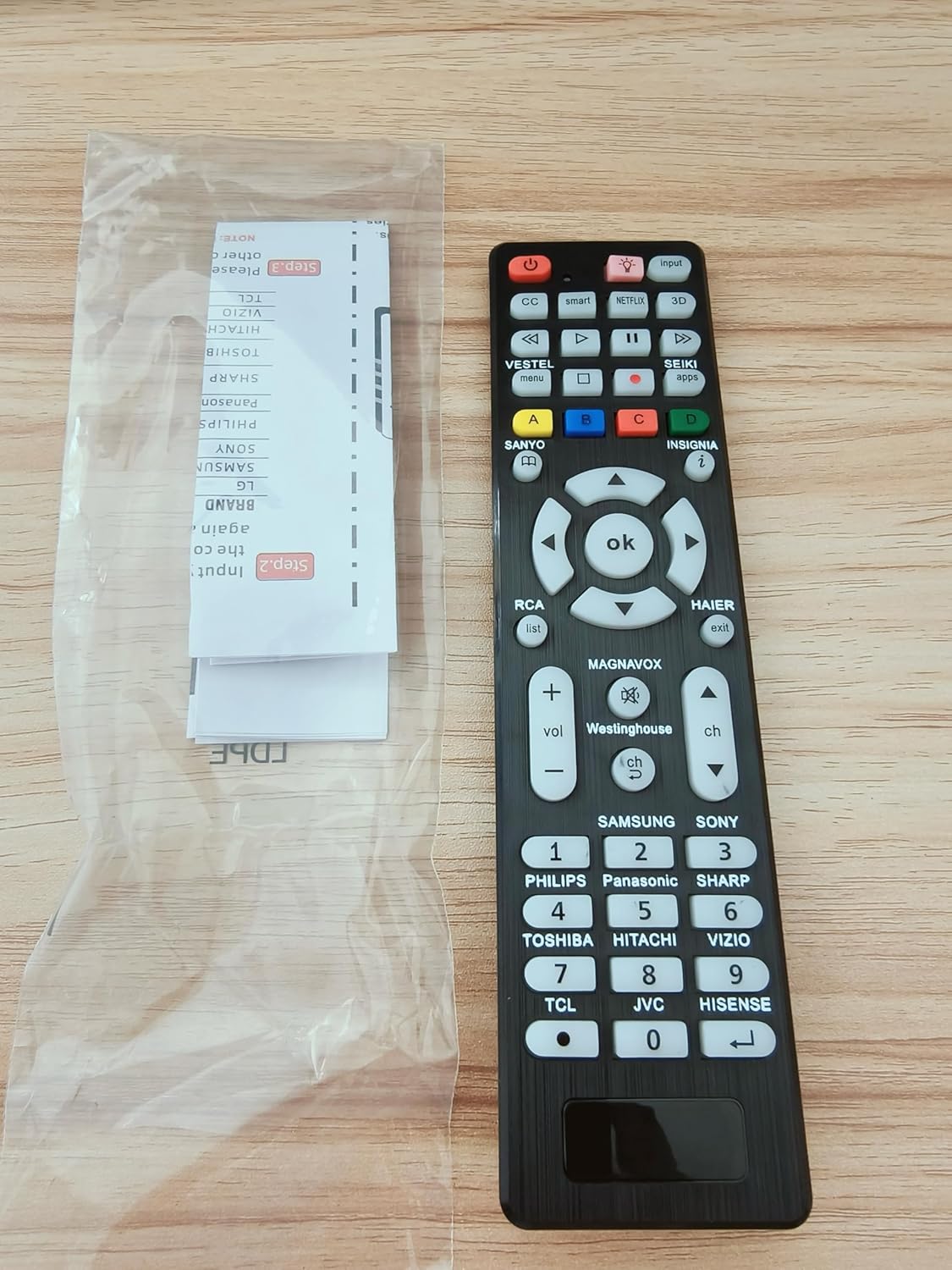

Figure 2: The VEPRAG Universal TV Remote alongside its instruction sheet, illustrating the programming steps.

4. Operating Instructions

Once programmed, your VEPRAG Universal TV Remote functions similarly to your original TV remote. Here are some common operations:

• Power Button (●): Turns the TV on or off.
• Volume Buttons (Vol +/-): Adjusts the volume level.
• Channel Buttons (Ch +/-): Changes TV channels.
• Input Button: Cycles through available input sources (HDMI, AV, etc.). This button can often serve as a "Home" button for smart TVs by navigating to the input selection screen.
• Navigation Pad (OK, Up, Down, Left, Right): Used to navigate menus and select options.
• Smart/Netflix/3D Buttons: Direct access to smart TV features, Netflix, or 3D mode if supported by your TV.
• CC (Closed Caption) Button: Toggles closed captions on/off.
• Menu Button: Opens the TV's main menu.
• Apps Button: Provides access to installed applications on your smart TV.
• Colored Buttons (A, B, C, D): Functionality varies by TV brand and model; typically used for specific menu options or interactive features.

5. Maintenance

To ensure the longevity and optimal performance of your remote control:

• Keep the remote dry and away from moisture.
• Clean the remote with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• If the remote will not be used for an extended period, remove the batteries to prevent leakage.
• Replace batteries when the remote's response becomes sluggish or the LED indicator does not light up consistently.

6. Troubleshooting

7. Specifications

8. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact the seller directly. Keep your purchase receipt for any warranty claims.
