1. Introduction
Thank you for choosing the EUGAD 1043BY-1 Bar Stool. This manual provides essential information for the safe assembly, operation, and maintenance of your new bar stool. Please read these instructions carefully before use and retain them for future reference.
The EUGAD 1043BY-1 is a stylish and comfortable bar stool featuring a velvet upholstered seat and backrest, supported by a sturdy metal frame. It is designed for use in various settings such as kitchen islands, bars, bistros, or as a counter stool.
2. Safety Information
- Maximum Weight Capacity: The recommended maximum weight for this bar stool is 120 kg (264 lbs). Do not exceed this limit to prevent damage or injury.
- Ensure all screws and bolts are securely tightened before use. Periodically check and re-tighten fasteners to maintain stability.
- Do not stand on the stool. Use it only for sitting.
- Keep children away from the assembly area. Small parts can be a choking hazard.
- Avoid placing the stool on uneven surfaces to prevent tipping. The adjustable feet can help compensate for minor irregularities.
- Do not use abrasive cleaners or harsh chemicals on the velvet fabric or metal frame.
3. Package Contents
Before beginning assembly, please verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Seat with Backrest (Velvet Upholstered)
- Metal Frame (Legs and Footrest)
- Assembly Hardware (Screws, Washers, Allen Key)
- Instruction Manual
4. Setup (Assembly Instructions)
Assembly of the EUGAD 1043BY-1 Bar Stool is designed to be straightforward. Illustrated instructions and all necessary accessories are included to facilitate quick assembly.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches.
- Attach the Seat to the Frame: Align the pre-drilled holes on the underside of the seat with the corresponding holes on the top of the metal frame. Insert the provided screws and washers.
- Secure the Backrest: Ensure the backrest is properly aligned with the seat and frame. Fasten it using the designated screws.
- Tighten All Fasteners: Using the included Allen key, gradually tighten all screws. Do not overtighten initially; ensure the stool is level before final tightening.
- Adjust Feet: If your floor is slightly uneven, adjust the leveling feet at the bottom of the stool legs to ensure stability.

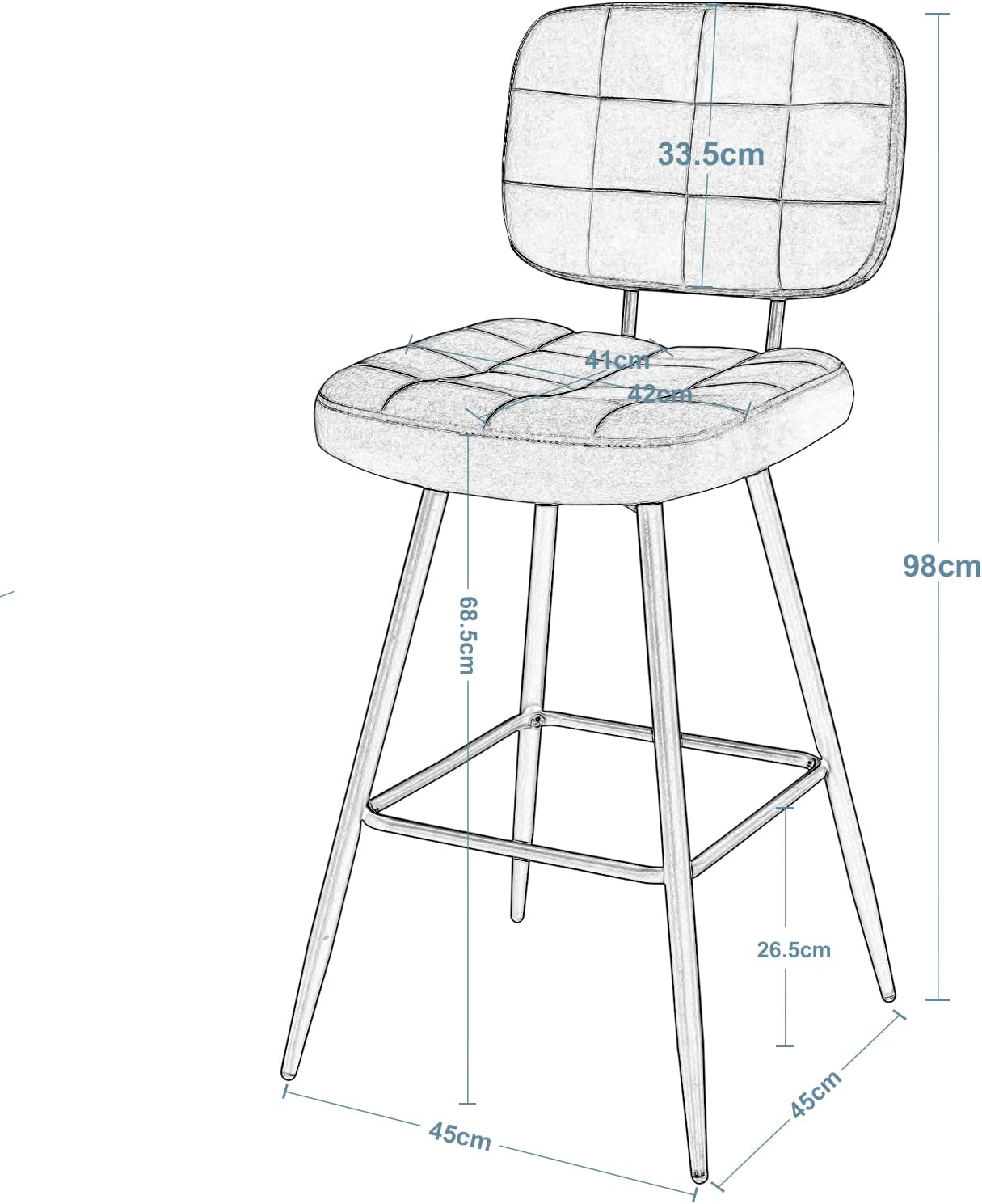

Figure 4.1: Dimensions of the Bar Stool. Please refer to this diagram for accurate measurements during assembly.
Figure 4.2: Key components and features of the bar stool for assembly reference.
5. Operating (Usage)
Once assembled, your EUGAD 1043BY-1 Bar Stool is ready for use. Its design focuses on comfort and stability.
- Comfortable Seating: The 42x41 cm velvet upholstered seat is generously padded for comfort. The wide backrest is designed to conform to the natural curve of the human body, providing ergonomic support.
- Footrest: The integrated footrest allows for ergonomic foot positioning, enhancing comfort during extended sitting periods.
- Stability: The lacquered iron frame ensures robustness and stability, supporting up to 120 kg. The adjustable feet help maintain balance on slightly uneven floors.
- Versatile Placement: With a seat height of 68.5 cm, this stool is suitable for various counter heights, making it ideal for kitchen islands, home bars, or bistro tables.
Figure 5.1: Ergonomic design for back support.
Figure 5.2: Detail of the large velvet seat for enhanced comfort.
6. Maintenance
Proper care will extend the life and appearance of your bar stool.
- Cleaning Velvet: For general cleaning, gently vacuum the velvet fabric with an upholstery attachment. For spills, blot immediately with a clean, dry cloth. For stubborn stains, use a mild fabric cleaner specifically designed for velvet, testing on an inconspicuous area first.
- Cleaning Metal Frame: Wipe the metal frame with a soft, damp cloth. Avoid abrasive cleaners or scouring pads that could scratch the finish.
- Fastener Check: Periodically (e.g., every 3-6 months) check all screws and bolts and re-tighten them as necessary. Regular use can cause fasteners to loosen over time.
- Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause the velvet fabric to fade.
7. Troubleshooting
If you encounter any issues with your bar stool, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Stool feels wobbly or unstable. | Loose fasteners; uneven floor. | Check and tighten all screws and bolts. Adjust the leveling feet on the bottom of the legs. |
| Seat appears misaligned after assembly. | Improper alignment during assembly; holes not perfectly matched. | Loosen the seat attachment screws slightly, adjust the seat position, then re-tighten evenly. Ensure the stool is on a flat surface during this adjustment. |
| Squeaking noises during use. | Loose connections; friction between parts. | Tighten all fasteners. If squeaking persists, disassemble and reassemble, ensuring all parts are correctly seated. |
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | 1043BY-1 |
| Brand | EUGAD |
| Color | Dark Grey |
| Material | Velvet (Seat), Metal (Frame) |
| Overall Dimensions (L x W x H) | 41 x 42 x 98 cm (16.1 x 16.5 x 38.6 inches) |
| Seat Height | 68.5 cm (27 inches) |
| Product Weight | 7.1 kg (15.6 lbs) |
| Maximum Weight Capacity | 120 kg (264 lbs) |
| Features | Backrest, Footrest, Adjustable Feet |
9. Warranty and Support
EUGAD products are manufactured with quality and durability in mind. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.
For technical support, missing parts, or any questions regarding your EUGAD 1043BY-1 Bar Stool, please contact the retailer or EUGAD customer service through their official channels. Contact information can typically be found on the product packaging or the retailer's website.
