GIANTOOL Turbo Nozzle and Nozzle Tips for Pressure Washers

Introduction

This manual provides instructions for the safe and effective use of your GIANTOOL Turbo Nozzle and accompanying 7-piece Nozzle Tip Set. Please read this manual thoroughly before operation to ensure proper usage and to maximize the lifespan of your product.

Product Overview

The GIANTOOL Pressure Washer Nozzle Kit includes a high-performance turbo nozzle and a set of seven color-coded nozzle tips, designed for various cleaning tasks. This kit is engineered for durability and ease of use with standard pressure washers.

Image 1: The GIANTOOL Turbo Nozzle and the complete set of 7 color-coded quick-connect nozzle tips, along with 1/4" and 3/8" quick connectors.

Included Components:

• Pressure Washer Turbo Nozzle (Max 5000 PSI)
• 7 Power Washer Nozzle Tips (Red 0°, Pink Soap, Blue Rinse, Orange 15°, Green 25°, White 40°, Black 65°)
• 1/4" Quick Connect Plug
• 3/8" Quick Connect Plug
• 3/8" Female to 1/4" Quick Connect Adapter
• Replacement Seal Rings

Key Features:

• Sealed Design: Features integrated seals that eliminate the need for Teflon tape, ensuring quick, leak-free connections.
• Durable Construction: The turbo nozzle is constructed from full brass alloy with a rubber exterior and a ceramic core, complemented by stainless steel quick couplings for enhanced longevity.
• Wide Compatibility: Equipped with both 1/4" and 3/8" quick-connect fittings, making it suitable for most high-pressure washer guns.
• Powerful Cleaning: The turbo nozzle delivers a 0° concentrated water flow that rotates 360°, significantly expanding cleaning coverage and efficiency for tough dirt.
• High Pressure Rating: Designed to withstand a maximum operating water pressure of up to 5000 PSI.

Image 2: Comparison illustrating the sealed design of GIANTOOL nozzles, which prevents leaks without the need for Teflon tape, versus traditional methods.

Image 3: A close-up view of the leak-proof sealing mechanism, highlighting the rubber ring for direct, secure installation.

Image 4: A visual representation of the durable pure copper material used in the construction of the GIANTOOL turbo nozzle.

Setup Instructions

1. Safety First: Ensure your pressure washer is turned off and completely depressurized before attempting to connect or disconnect any accessories.
2. Select Quick Connect: Identify the appropriate quick-connect size for your pressure washer wand (1/4" or 3/8"). Use the provided adapter if necessary (3/8" Female to 1/4" Quick Connect).
3. Attach Quick Connect: Insert the chosen quick-connect plug into the end of your pressure washer wand until it clicks securely into place.
4. Attach Nozzle: Insert the desired nozzle (either the turbo nozzle or one of the 7-piece tips) into the quick-connect fitting on the wand. Pull back on the collar of the quick-connect and push the nozzle in firmly until it locks. Release the collar to secure.
5. Verify Connection: Gently tug on the nozzle to ensure it is securely attached before starting the pressure washer.

Image 5: Illustration of the wide compatibility of the nozzles, showing how 1/4" and 3/8" quick-connect fittings attach to various pressure washer wands.

Image 6: A visual guide demonstrating the fast and easy installation of the 1/4" and 3/8" quick-connect plugs.

Operating Instructions

Always wear appropriate personal protective equipment, including eye protection, when operating a pressure washer. Do not direct the spray at people, animals, or electrical components.

Using the Turbo Nozzle:

The turbo nozzle is ideal for heavy-duty cleaning tasks on durable surfaces. Its 0° concentrated stream rotates 360° to effectively remove stubborn dirt and grime from areas such as concrete, brick, driveways, garage floors, and ships. Maintain a consistent distance from the surface to prevent damage.

Image 7: Visual representation of the turbo nozzle's 360° rotating pinpoint stream, demonstrating its powerful cleaning action.

Image 8: A before-and-after comparison showing the effectiveness of the turbo nozzle on a dirty surface.

Using the 7-Piece Nozzle Tips:

Each color-coded tip provides a different spray pattern for specific cleaning applications. Always select the appropriate tip for the task to avoid damaging surfaces.

• Red Tip (0°): Produces a highly concentrated, pinpoint stream for cleaning high areas or extremely tough, localized stains on very durable surfaces. Use with extreme caution.
• Orange Tip (15°): Creates a narrow, powerful spray for removing stubborn dirt and grime from hard surfaces like concrete and metal.
• Green Tip (25°): Provides a medium-fan spray, suitable for general cleaning of wood decks, fences, painted surfaces, and lawn equipment.
• White Tip (40°): Delivers a wide-fan spray for cleaning delicate surfaces such as windows, vehicles, and stucco, or for light rinsing.
• Black Tip (65°): Offers the widest fan spray at low pressure, primarily used for applying detergents or for very gentle rinsing.
• Pink Tip (Soap): Specifically designed for applying soap or cleaning solutions at low pressure.
• Blue Tip (Rinse): Used for rinsing surfaces after detergent application or for general light rinsing.

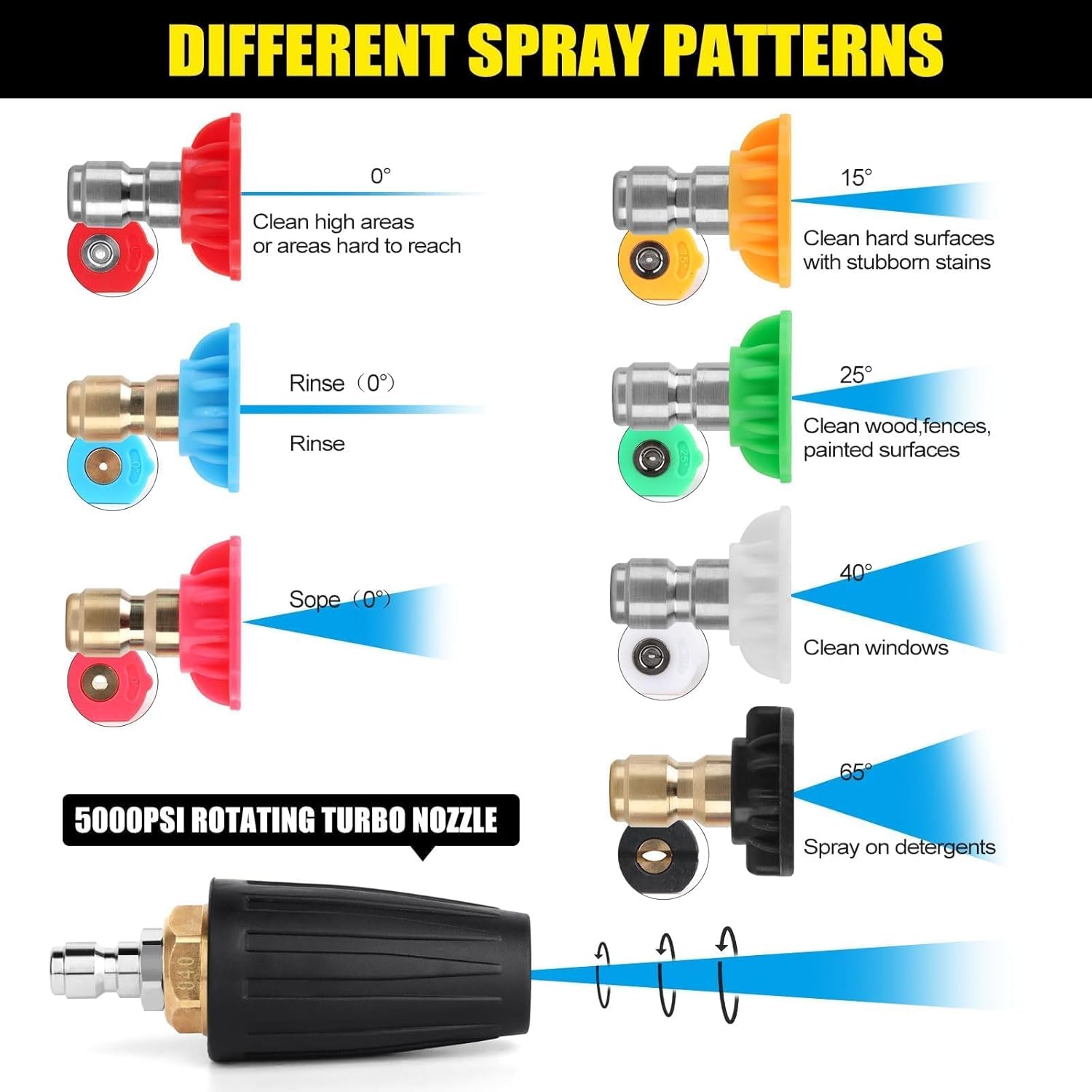

Image 9: Visual guide to the different spray patterns produced by each color-coded nozzle tip, indicating their specific uses.

Image 10: Examples of various cleaning applications for the different nozzle tips, including concrete, cars, and wood surfaces.

Maintenance

Regular maintenance ensures optimal performance and extends the life of your nozzles.

• After Each Use: Flush all nozzles with clean water to remove any chemical residues or debris.
• Inspection: Periodically inspect the nozzle tips and the turbo nozzle for any signs of wear, damage, or blockages.
• Clean Orifice: If a nozzle tip becomes clogged, use a small wire or the included nozzle cleaning tool (if applicable) to clear the orifice.
• O-Ring Check: Inspect the O-rings on the quick-connect fittings for cracks or wear. Replace damaged O-rings with new ones to prevent leaks.
• Storage: Store all nozzles in a clean, dry place away from direct sunlight and extreme temperatures.

Troubleshooting

If you encounter issues, refer to the following common troubleshooting steps:

• Nozzle Not Rotating (Turbo Nozzle):
  • Debris: The internal rotating mechanism may be obstructed by debris. Disconnect the nozzle, flush it with water, and gently tap it to dislodge any particles.
  • Pressure: Ensure your pressure washer is delivering sufficient and consistent water pressure within the nozzle's operating range (up to 5000 PSI). Insufficient pressure may prevent rotation.
  • Wear: Over time, the internal ceramic components can wear. If cleaning does not resolve the issue, the nozzle may need replacement.
• Leaks from Connections:
  • Secure Connection: Verify that all quick-connect fittings are fully seated and locked into place.
  • O-Rings: Inspect the rubber O-rings on the quick-connect plugs for damage, cracks, or displacement. Replace any worn or damaged O-rings with new ones.
  • Compatibility: Confirm that the quick-connect sizes (1/4" or 3/8") match your pressure washer equipment.
• Reduced Spray Power:
  • Clogged Nozzle: The nozzle orifice may be partially or fully clogged. Disconnect and clean the nozzle as described in the Maintenance section.
  • Pressure Washer Issue: Ensure your pressure washer itself is functioning correctly and producing its rated pressure. Check the water supply and pump.

Specifications

Warranty and Support

Specific warranty information for this product is not provided in this manual. For details regarding warranty coverage, returns, or technical support, please refer to the product packaging or contact GIANTOOL customer service directly through their official website or the retailer where the product was purchased.
