1. Introduction
The Haier Wine Bank 60 Series 5 wine cooler is designed to provide optimal storage conditions for your valuable wine collection. Proper storage helps preserve the characteristics and structure of a bottle, ensuring a more satisfying experience when it's time to open it. This model is a single-zone wine cooler, allowing you to set the ideal temperature for both white and red wines within a range of 0°C to 20°C.
This manual provides essential information for the safe and efficient use of your Haier wine cooler. Please read it thoroughly before installation and operation, and keep it for future reference.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury.
- Ensure the appliance is properly grounded.
- Do not operate the appliance with a damaged power cord or plug.
- Keep ventilation openings clear of obstructions.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- This appliance is intended for household use only.
- Do not allow children to play with or inside the appliance.
- Unplug the appliance before cleaning or performing maintenance.
- Do not touch cold surfaces with wet or damp hands, as skin may stick to these surfaces.
3. Setup
3.1 Unpacking
Carefully remove all packaging materials, including foam and adhesive tape. Inspect the appliance for any damage. Keep packaging materials out of reach of children.
3.2 Placement
This is a freestanding appliance. Place the wine cooler on a flat, stable surface away from direct sunlight and heat sources (e.g., oven, radiator). Ensure adequate air circulation around the unit. Allow at least 10 cm of space at the back and sides for proper ventilation.
3.3 Leveling
Adjust the leveling feet at the bottom of the appliance to ensure it is perfectly level. This is crucial for proper door sealing and efficient operation.
3.4 Power Connection
Before plugging in, allow the appliance to stand upright for at least 2-4 hours. This allows the refrigerant to settle. Connect the power cord to a dedicated, grounded electrical outlet. Do not use extension cords or adapter plugs.
3.5 Initial Cleaning
Before storing wine, clean the interior of the wine cooler with a damp cloth and a mild detergent. Wipe dry thoroughly.

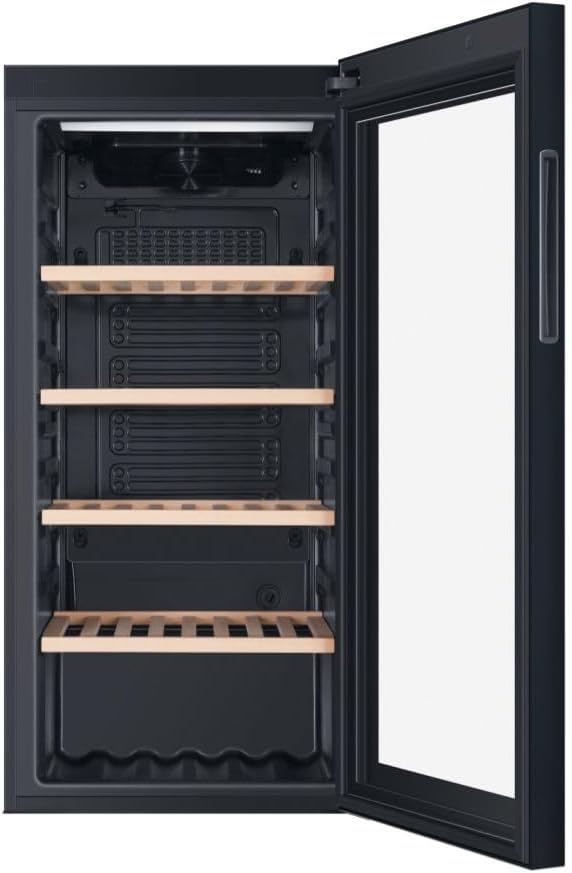

Figure 3.1: Interior view of the Haier Wine Bank 60 Series 5 wine cooler with the door open, displaying the empty wooden shelves ready for wine storage.
4. Operating Instructions
4.1 Temperature Control
Your Haier Wine Bank 60 Series 5 features a single temperature zone with an integrated display and button controls. The temperature can be set between 0°C and 20°C. Use the UP and DOWN buttons on the control panel to adjust the desired temperature. The display will show the set temperature, then revert to showing the actual internal temperature.
4.2 Loading Bottles
The wine cooler has a capacity for 117 standard 750ml wine bottles. The wooden shelves are designed to cradle bottles securely. For optimal air circulation and temperature stability, avoid overcrowding the shelves. Ensure bottles are placed horizontally to keep corks moist.

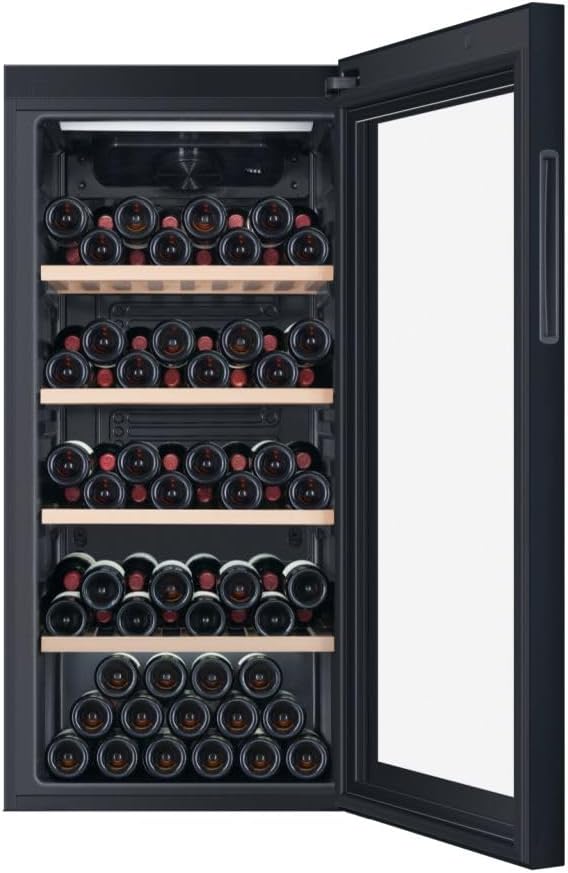

Figure 4.1: Interior view of the Haier Wine Bank 60 Series 5 wine cooler with the door open, demonstrating how wine bottles are stored horizontally on the wooden shelves.

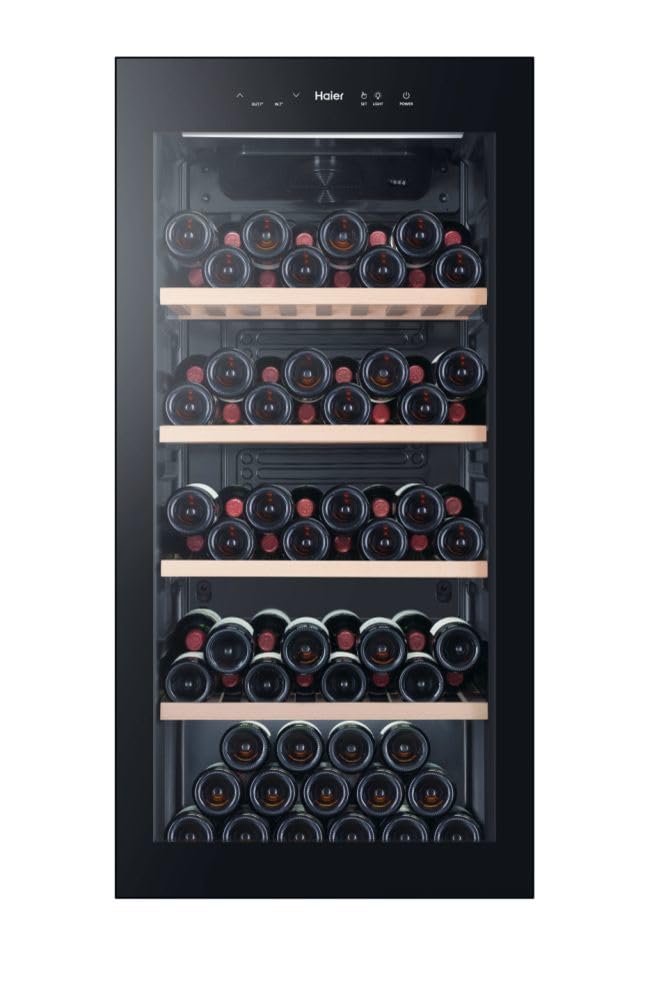

Figure 4.2: A diagram illustrating the dimensions of a standard 750ml wine bottle (300mm height, 76mm diameter) and the overall 117 bottle capacity layout within the Haier wine cooler.
4.3 Internal Light
The wine cooler is equipped with an internal light to illuminate your collection. This light can typically be turned on or off via a dedicated button on the control panel.
4.4 UV Protection
The glass door features UV protection to shield your wine from harmful ultraviolet rays, which can degrade wine quality over time.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your wine cooler.
5.1 Cleaning the Interior
Unplug the appliance before cleaning. Clean the interior with a solution of mild detergent and warm water. Avoid abrasive cleaners or solvents. Rinse thoroughly and dry with a soft cloth. The wooden shelves can be removed for easier cleaning.
5.2 Cleaning the Exterior
Wipe the exterior surfaces with a soft, damp cloth. For the glass door, use a glass cleaner. Do not spray water directly onto the control panel or electrical components.
5.3 Power Outage
In case of a power outage, minimize opening the door to maintain the internal temperature. The wine cooler is designed to hold its temperature for several hours if the door remains closed.
6. Troubleshooting
Before contacting service, check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not operate. | Not plugged in; circuit breaker tripped; power outage. | Ensure plug is secure; check circuit breaker; verify power supply. |
| Temperature is not cold enough. | Door not closed properly; frequent door openings; warm ambient temperature; ventilation blocked. | Check door seal; reduce door openings; ensure proper ventilation; adjust thermostat setting. |
| Vibrations. | Appliance not level. | Adjust leveling feet. |
| Noise. | Normal operation sounds (compressor, fan); loose parts. | These sounds are normal. If unusual, check for loose items inside. |
| Door does not close properly. | Appliance not level; gasket dirty or damaged; shelves out of position. | Level the appliance; clean or replace gasket; reposition shelves. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | WS120GA |
| Appliance Placement | Freestanding |
| Color | Black (Exterior and Interior) |
| Number of Shelves | 4 wooden shelves |
| Door Hinge | Left (not reversible) |
| UV Protection | Yes, anti-UV glass door |
| Bottle Capacity | 117 bottles |
| Product Type | Compressor wine cooler |
| Temperature Zones | 1 |
| Temperature Range (Zone 1) | 0 - 20 °C |
| Noise Emission | 38 dB (Class C) |
| Net Wine Cooler Capacity | 220 L |
| Thermostat | Yes |
| Internal Light | Yes |
| Display | Yes, built-in |
| Control Type | Buttons |
| Dimensions (W x D x H) | 65.5 cm x 69.5 cm x 133.5 cm |
| Energy Efficiency Class | G |
Figure 7.1: Energy efficiency label for the Haier Wine Bank 60 Series 5 wine cooler, indicating a Class G rating.
8. Warranty & Support
For detailed warranty information, please refer to the warranty card included with your product or visit the official Haier website. Keep your proof of purchase for any warranty claims.
If you encounter issues not covered in the troubleshooting section, or require professional assistance, please contact Haier customer support. Contact details can typically be found on the Haier website or in your product documentation.
