EUGAD 4L Automatic Pet Feeder Instruction Manual

Introduction

Thank you for choosing the EUGAD 4L Automatic Pet Feeder. This device is designed to provide scheduled and portion-controlled meals for your pets, ensuring they receive consistent nutrition even when you are away. Please read this manual thoroughly before use to ensure proper operation and maintenance.

Product Overview

The EUGAD 4L Automatic Pet Feeder features a large capacity food tank, programmable feeding schedules, and a dual power system for reliability. It is suitable for cats and dogs of various sizes.

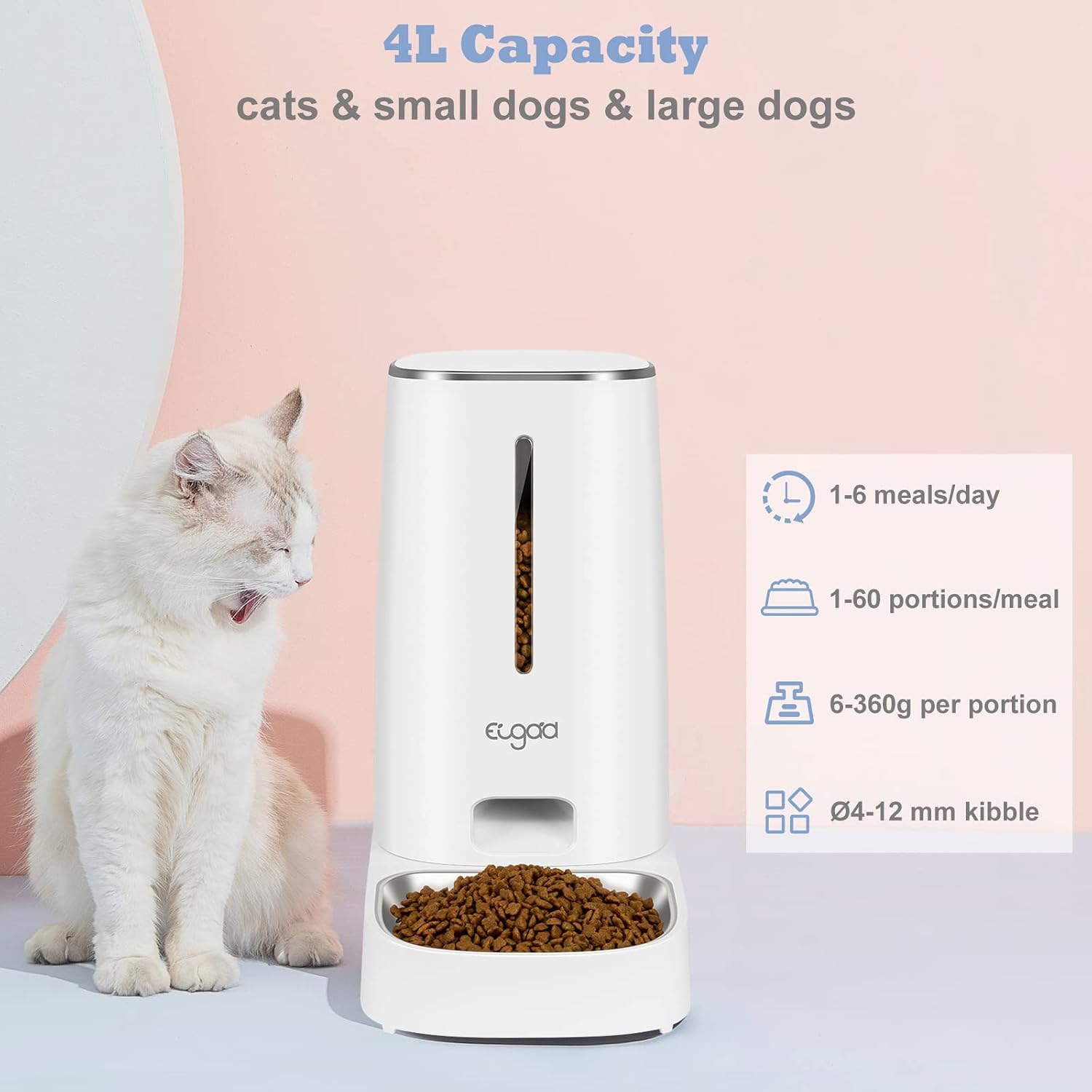

Image: The EUGAD 4L Automatic Pet Feeder, highlighting its 4-liter capacity suitable for cats and small to large dogs. It can dispense 1-6 meals per day, with 1-60 portions per meal, totaling 6-360g per meal, for kibble sizes between 4-12mm.

Key Features:

• 4L Food Capacity: Holds 2-3kg of dry food, suitable for kibble diameters of 4-12mm.
• Programmable Feeding: Schedule 1-6 meals per day, with 1-60 portions per meal (6-360g per meal).
• Dual Power System: Operates via 5V/DC/1A adapter (2m cable) or 4 AA batteries (not included) for backup.
• Anti-Blocking Mechanism: Motor reverses to prevent food jams.
• Removable & Washable Components: Food bucket, stainless steel bowls, and bowl holder are detachable for easy cleaning.
• Food Freshness: Equipped with a desiccant box and silicone sealing lid to keep food dry and fresh.
• Transparent Window: Allows easy monitoring of food levels.
• Pet-Safe Design: Features a safety lock and a 7° inclined stainless steel bowl for comfortable feeding.
• Durable Power Cord: Tear-proof nylon braided sheath protects the power cord.

Package Contents

Please check the package contents upon unboxing:

• EUGAD Automatic Pet Feeder Unit
• Stainless Steel Food Bowl
• Bowl Holder
• Power Adapter (5V/DC/1A)
• USB-C Power Cable (2 meters)
• Desiccant Pack
• Instruction Manual (in 5 languages)

Safety Instructions

• Do not immerse the main unit in water or any other liquid.
• This appliance is for indoor use only.
• Keep out of reach of children and pets when not in use or during cleaning.
• Use only dry pet food with a diameter between 4-12mm. Do not use wet food, canned food, or treats larger than specified.
• Ensure the power adapter is securely connected and the power cord is not damaged.
• If using batteries, ensure they are inserted correctly according to polarity markings.
• Replace the desiccant pack every 60 days for optimal food freshness.
• Do not attempt to repair or modify the device yourself. Contact customer support if issues arise.

Setup

1. Unpacking and Assembly

1. Carefully remove all components from the packaging.
2. Place the feeder on a flat, stable surface.
3. Insert the stainless steel bowl into the bowl holder, then attach the bowl holder to the main unit.

Image: Exploded view of the feeder components (food bucket, stainless steel bowl, bowl holder) demonstrating their detachable and washable nature.

2. Power Supply

• AC Power: Connect the USB-C power cable to the feeder's port and plug the adapter into a wall outlet.
• Battery Backup: For backup power, open the battery compartment at the bottom of the unit and insert 4 AA batteries (not included), ensuring correct polarity. The DC power takes priority if both are connected.

Image: The dual power system of the feeder, illustrating the USB-C port for the 2-meter power cable and the battery compartment for 4 AA batteries (not included).

Image: Details of the tear-proof power cord with nylon braided sheath and the SUS 304 stainless steel bowl, emphasizing durability and hygiene.

3. Filling the Food Tank

1. Open the lid of the food tank.
2. Pour dry pet food into the tank. Ensure the kibble size is between 4-12mm to prevent jamming.
3. Close the lid securely to maintain food freshness. The silicone seal helps block air.

Image: The desiccant box located under the lid to keep food dry and fresh, along with the transparent window for monitoring food levels.

4. Desiccant Placement

Place the provided desiccant pack into the designated desiccant box under the lid. This helps absorb moisture and keep the food fresh. Replace the desiccant pack every 60 days.

Operating Instructions

The control panel allows you to program feeding schedules and manually dispense food. Refer to the specific buttons on your device for exact functions (e.g., SET, UP, DOWN, FEED).

1. Setting the Current Time

• Press and hold the "SET" button until the hour display flashes.
• Use the "UP" and "DOWN" buttons to adjust the hour.
• Press "SET" again to move to the minute display and adjust using "UP" and "DOWN".
• Press "SET" to confirm and exit time setting.

2. Programming Meals

You can program up to 6 meals per day. Each meal can have 1-60 portions.

1. Press the "SET" button repeatedly to cycle through Meal 1 to Meal 6 settings.
2. When a meal number flashes, press "SET" to enter its time setting. Adjust the hour and minute using "UP" and "DOWN" buttons, confirming each with "SET".
3. After setting the time, the portion display will flash. Use "UP" and "DOWN" to select the number of portions (1-60) for this meal.
4. Press "SET" to confirm the portions and move to the next meal setting or exit programming.
5. To disable a meal, set its portion to 0.

3. Manual Feeding

Press the "FEED" button once to dispense one portion of food immediately. You can press it multiple times for additional portions.

4. Safety Lock

The feeder is equipped with a safety lock on the lid to prevent pets from opening it. Ensure the lid is securely locked after filling the food tank.

Image: The safety lock feature on the feeder's lid, designed to prevent pets from accessing the food, and the ergonomic 7-degree inclined angle of the feeding bowl for pet comfort.

Maintenance

1. Cleaning

Regular cleaning is essential for your pet's health and the feeder's longevity.

1. Unplug the feeder and remove any batteries.
2. Remove the food bucket, stainless steel bowl, and bowl holder. These parts are washable.
3. Wash the removable parts with mild soap and water. Rinse thoroughly and dry completely before reassembling.
4. Wipe the main unit with a damp cloth. Do not immerse the main unit in water.
5. Ensure all parts are completely dry before adding food and re-powering the unit.

Image: The feeder's components (food bucket, stainless steel bowl, bowl holder) are designed to be easily detached and washed, promoting hygiene and preventing mold or odors.

2. Desiccant Replacement

Replace the desiccant pack in the lid every 60 days to maintain optimal food freshness and prevent moisture buildup.

Troubleshooting

Image: Illustration of the anti-blocking feature, where the motor reverses to clear food jams, and a visual representation of the feeder dispensing dry food suitable for 4-12mm kibble.

Specifications

Image: Detailed dimensions of the EUGAD Automatic Pet Feeder and its stainless steel food bowl.

Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact your retailer. EUGAD provides instruction manuals in multiple languages to assist users.

For further assistance, please visit the EUGAD Brand Store or contact their customer service directly.
