AJAZZ AK871 75% Mechanical Gaming Keyboard User Manual

Introduction

This manual provides detailed instructions for the setup, operation, and maintenance of your AJAZZ AK871 75% Mechanical Gaming Keyboard. Designed for versatility, this non-backlit keyboard features dual-mode connectivity (Bluetooth 5.0 and 2.4G wireless), hot-swappable MX switches, and a compact TKL layout, making it suitable for PC, Windows, and Mac users.

Package Contents

• 1x AJAZZ AK871 Mechanical Keyboard
• 1x USB-C to USB-A Cable
• 1x 2.4G Wireless Receiver (stored in keyboard)
• 1x Keycap/Switch Puller
• Extra Switches (for replacement)
• Extra Keycaps (for customization)
• 1x User Manual

Image: The AJAZZ AK871 keyboard shown with its included USB cable, keycap/switch puller, and extra keycaps/switches.

Product Overview

The AK871 features a compact 75% TKL layout with 87 keys, saving desktop space while retaining essential functionality. It includes a detachable magnetic upper cover for aesthetic versatility and protection. The keyboard is equipped with hot-swappable 3-pin switches, allowing for easy customization of your typing experience.

Image: Overview of the AJAZZ AK871's key features including compact 80% layout, BT/2.4G dual mode, full keys hot-swappable, magnetic keyboard cover, 19 keys anti-ghosting, three-color ABS keycaps, and Win/Mac system compatibility.

Image: The compact TKL 80% layout of the AK871 keyboard, highlighting its 87-key design for space efficiency.

Setup

Battery Installation

The keyboard operates on two AAA batteries (not included). Locate the battery compartment on the underside of the keyboard, insert the batteries, and close the cover. Ensure correct polarity.

Image: Close-up of the keyboard's underside showing the battery compartment for two AAA batteries.

Connecting the Keyboard

The AK871 supports three connection modes: wired USB-C, 2.4G wireless, and Bluetooth 5.0 (up to 3 devices).

1. Wired Mode: Connect the provided USB-C to USB-A cable from the keyboard to your computer's USB port. The keyboard will automatically switch to wired mode.
2. 2.4G Wireless Mode: Locate the 2.4G wireless receiver stored magnetically on the underside of the keyboard. Plug the receiver into your computer's USB port. Switch the mode toggle on the keyboard's underside to '2.4G'. The keyboard should connect automatically.
3. Bluetooth Mode: Switch the mode toggle on the keyboard's underside to 'BT'. Press and hold 'Fn + W', 'Fn + E', or 'Fn + R' for 3-5 seconds to enter pairing mode for BT1, BT2, or BT3 respectively. The corresponding key will flash, indicating it's ready to pair. On your device, search for 'AK871' in Bluetooth settings and connect.

Image: Illustrates the dual-mode connection options: low-latency Bluetooth 5.0 and convenient 2.4GHz wireless.

Image: Shows the keyboard's ability to connect up to 3 devices simultaneously via Bluetooth (BT1, BT2, BT3) and 2.4G wireless (RF), with instructions for switching modes using Fn+Q, Fn+W, Fn+E.

Operating Instructions

Function Keys

The AK871 keyboard utilizes the 'Fn' key in combination with other keys to access various functions. Refer to the user manual for a complete list of key combinations for multimedia control, backlight adjustments, and system switching.

System Compatibility

The keyboard is compatible with Windows (7/8/10/11) and Mac OS. Use the switch on the underside of the keyboard to select the appropriate operating system mode (Win/Mac).

Image: The keyboard connected to a PC, demonstrating its wide compatibility with Windows and Mac operating systems, with Fn+A to switch to Mac and Fn+S to switch to Win.

Software Customization

For advanced customization, including key remapping, macro creation, and detailed lighting control, download the official AJAZZ software from their website. The software allows for multiple profiles and per-key adjustments.

Maintenance

Hot-Swappable Switches and Keycaps

The AK871 features a hot-swappable PCB compatible with most 3-pin mechanical switches. This allows you to easily replace switches without soldering, customizing your typing feel or replacing faulty switches. Keycaps can also be easily removed and replaced.

1. Removing Keycaps: Use the provided keycap puller to gently lift keycaps off the switches.
2. Removing Switches: Use the provided switch puller to grip the top and bottom of the switch, then gently pull upwards until it detaches from the PCB.
3. Installing Switches: Align the pins of the new switch with the holes on the PCB and press down firmly until it clicks into place. Ensure pins are not bent.
4. Installing Keycaps: Align the keycap with the switch stem and press down gently until it is secure.

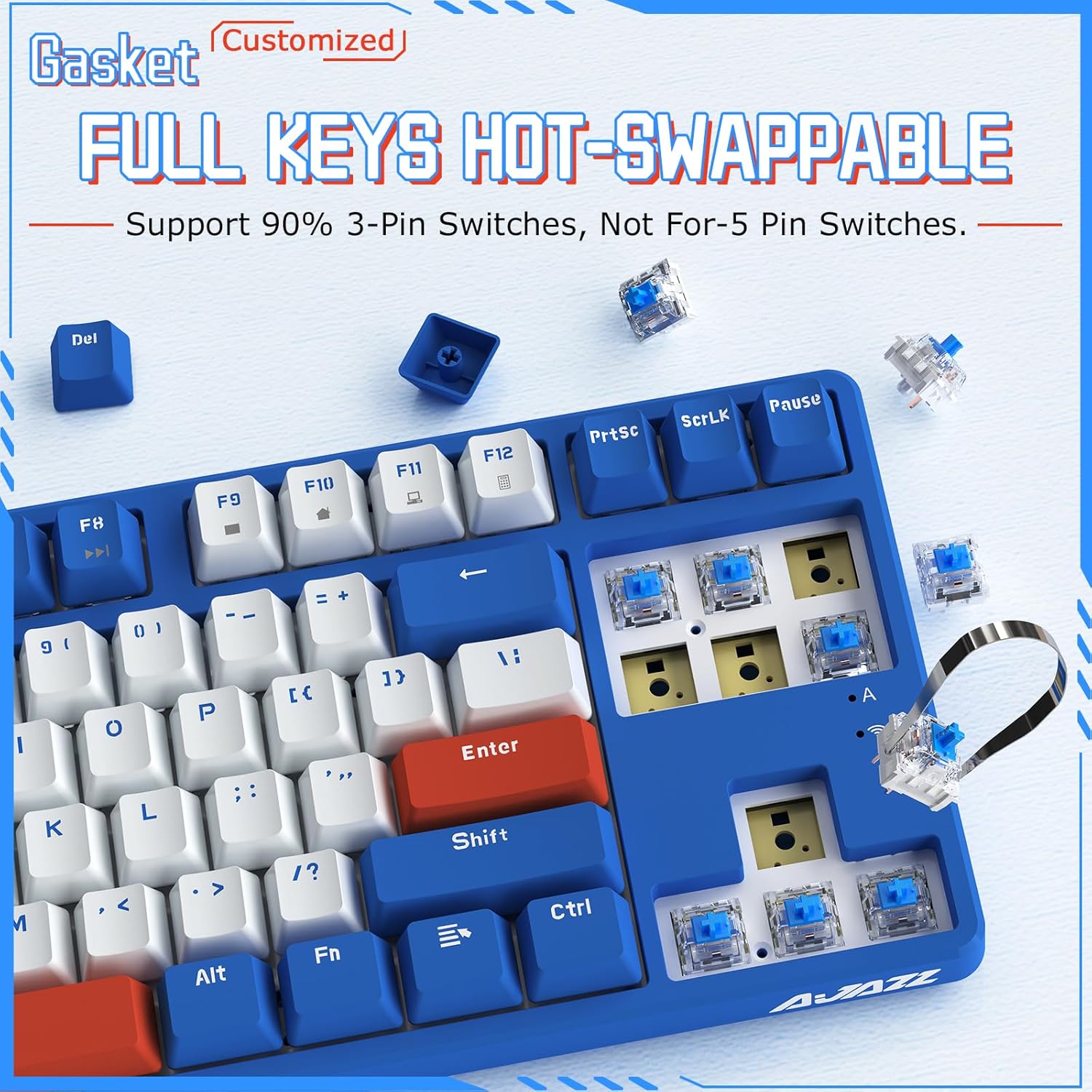

Image: Demonstrates the hot-swappable nature of the AK871, showing switches being removed and replaced, compatible with 90% of 3-pin switches.

Cleaning Tips

Regularly clean your keyboard to prevent dust and debris buildup. Use a soft brush or compressed air to remove loose particles. For deeper cleaning, remove keycaps and gently wipe them with a damp cloth. Ensure the keyboard is completely dry before reassembling or use.

Troubleshooting

• Keyboard not responding: Ensure the USB cable is securely connected or the wireless receiver is properly plugged in. Check the battery level if using wireless modes. Try switching between wired/wireless/Bluetooth modes.
• Bluetooth connection issues: Ensure the keyboard is in pairing mode (flashing indicator). Remove the keyboard from your device's Bluetooth list and attempt to re-pair. Ensure your device's Bluetooth is enabled.
• Keys not registering: Check if any switches are loose or damaged. Use the switch puller to reseat or replace faulty switches.
• Intermittent connectivity: Ensure the keyboard is within range of the wireless receiver or Bluetooth device. Avoid sources of interference.

Specifications

Warranty and Support

For warranty information and technical support, please refer to the documentation included in your package or visit the official Ajazz website. Keep your proof of purchase for any warranty claims.
