1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your PCCOOLER Master IE200 E-ATX Tempered Glass Mesh Case IE200S. Designed for high-performance computing, this case combines robust construction with optimized airflow and aesthetic appeal. Please read this manual thoroughly before beginning any installation to ensure proper setup and safe usage.
2. Safety Information
- Always disconnect the power supply from the wall outlet before performing any installation, maintenance, or cleaning.
- Handle the tempered glass side panel with extreme care. Tempered glass is fragile and can shatter if dropped or struck with force.
- Be aware of sharp edges inside the case during installation to prevent injury.
- Keep the case away from water, moisture, and extreme temperatures.
- Ensure proper grounding to prevent electrical hazards.
3. Package Contents
Verify that all components listed below are present in your package:
- PCCOOLER Master IE200 E-ATX Tempered Glass Mesh Case IE200S
- User Manual (this document)
- Accessory Kit (screws, zip ties, various mounting brackets)
4. Specifications
| Feature | Description |
|---|---|
| Brand | PCCOOLER |
| Model Name | IE200 |
| Motherboard Compatibility | E-ATX |
| Case Type | Mid Tower |
| Expansion Slots | 7+3 (Supports GPU vertical installation) |
| USB 2.0 Ports | 2 |
| USB 3.0 Ports | 1 |
| Item Weight | 21.3 pounds |
| Product Dimensions (LxWxH) | 17 x 8.86 x 19.49 inches |
| Color | Black |
| Material | Tempered Glass |
| Power Supply Mounting Type | Bottom Mount |
| Cooling Method | Air |
| Fan Size Support | Up to 9 fans, 360mm AIO on Front/Top |
5. Setup and Installation
5.1. Case Overview
The PCCOOLER Master IE200 features a tempered glass side panel for showcasing your build and mesh panels for optimal airflow. The case is designed for E-ATX motherboards and supports extensive cooling solutions.
Figure 1: Front-side view of the PCCOOLER Master IE200 case, showcasing the tempered glass side panel and mesh front.
5.2. Accessing the Interior
The tempered glass side panel features an 'oven door handle' design for convenient access to the interior components. Gently pull the handle to open the side panel.

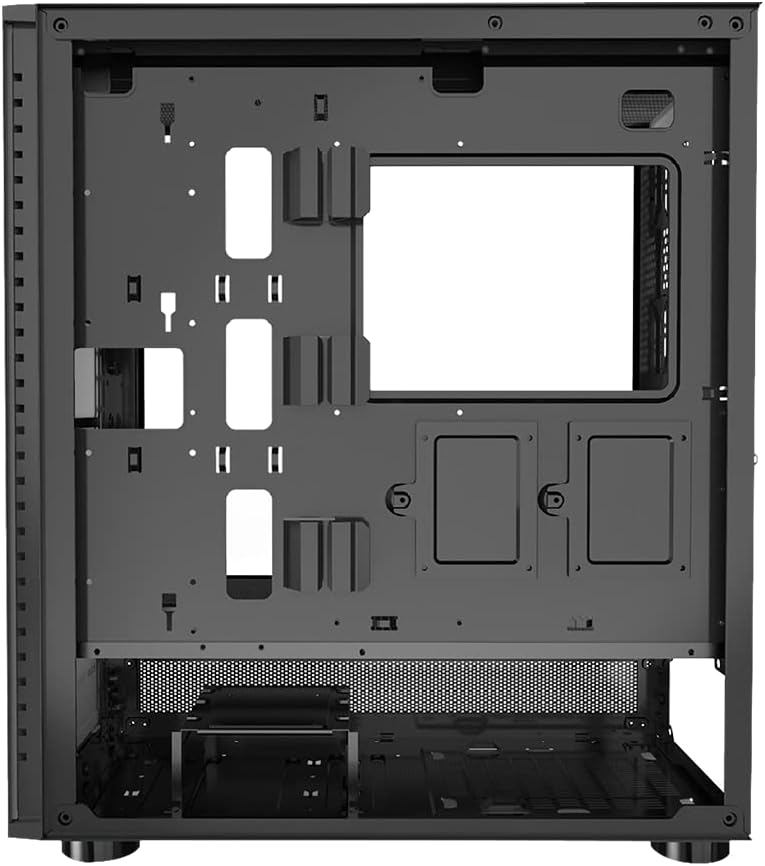

Figure 2: Interior view of the PCCOOLER Master IE200 case, illustrating the spacious layout for component installation.
5.3. Motherboard Installation
The case supports E-ATX motherboards. Align your motherboard with the standoffs on the motherboard tray and secure it using the provided screws from the accessory kit.
5.4. Power Supply Installation
The power supply unit (PSU) is mounted at the bottom of the case. Secure your ATX PSU using the provided screws.
5.5. Cooling System Installation
The IE200 case supports up to 9 fans and 360mm AIO liquid cooling radiators on both the front and top panels. This design facilitates vertical airflow for strong heat dissipation.
Figure 3: Front view of the case with the mesh panel detached, showing the fan mounting locations.
5.6. GPU Installation
The case offers 7+3 expansion slots, supporting both standard horizontal and vertical GPU installations. Utilize the provided brackets for vertical GPU mounting if desired.
5.7. Front Panel Connections
Connect the front panel I/O cables (USB 2.0, USB 3.0, audio, power, reset, RGB control) to their corresponding headers on your motherboard. The front panel includes 2x USB 2.0 ports and 1x USB 3.0 port.
Figure 4: Internal view showing the front panel I/O connections and cable routing options.
5.8. Cable Management
Utilize the cable routing cutouts and tie-down points on the motherboard tray to manage cables effectively. Proper cable management improves airflow and aesthetics.
Figure 5: Rear interior view, illustrating the space and features for cable management.
6. Operating Instructions
6.1. Power On/Off
Press the power button located on the front I/O panel to turn your system on or off. A short press typically initiates power-on or sleep mode, while a long press (4-5 seconds) forces a shutdown.
6.2. RGB Lighting Control
If your fans or other components feature RGB lighting, use the dedicated RGB control button on the front I/O panel to cycle through lighting modes or connect to your motherboard's RGB software for advanced customization.
7. Maintenance
7.1. Cleaning Dust Filters
Regularly clean the mesh panels and any removable dust filters to maintain optimal airflow and prevent dust buildup inside the case. Dust filters can typically be removed, cleaned with water or compressed air, and reinstalled.
7.2. Tempered Glass Care
Clean the tempered glass panel with a soft, lint-free cloth and a non-abrasive glass cleaner. Avoid harsh chemicals or abrasive materials that could scratch or damage the glass.
8. Troubleshooting
8.1. No Power
- Ensure the power supply is properly connected to the wall outlet and the motherboard.
- Check that the power switch on the PSU is in the 'ON' position.
- Verify that the front panel power button cable is correctly connected to the motherboard header.
8.2. Overheating
- Ensure all case fans are spinning and properly oriented for optimal airflow (intake/exhaust).
- Clean any dust filters and internal components to prevent airflow obstruction.
- Verify that CPU and GPU coolers are correctly installed and making proper contact.
9. Warranty and Support
For warranty information, technical support, or further assistance, please refer to the official PCCOOLER website or contact their customer service department. Keep your proof of purchase for warranty claims.
