1. Introduction
This manual provides essential information for the safe and effective use of your GIANTOOL Pressure Washer Turbo Nozzle. Please read these instructions carefully before installation and operation. Retain this manual for future reference.
2. Safety Information
WARNING: Always wear appropriate personal protective equipment (PPE) including eye protection when operating a pressure washer and its accessories.
- Ensure the pressure washer is turned off and depressurized before connecting or disconnecting the turbo nozzle.
- Never point the pressure washer nozzle at people, pets, or electrical equipment.
- Verify all connections are secure to prevent leaks and accidental disconnections under high pressure.
- Do not exceed the maximum rated pressure of 5000 PSI for this nozzle.
- Keep children and bystanders away from the work area.
3. Product Overview and Components
The GIANTOOL Turbo Nozzle is designed for powerful and efficient cleaning, featuring a 360° rotating spray pattern. It includes quick connect plugs for versatile compatibility.
Figure 1: Exploded View of Turbo Nozzle Components. This image displays the internal and external parts of the turbo nozzle, including the stainless steel quick connect plug, rubber wear-resistant exterior, brass alloy body, ceramic core, and sealing O-ring.
Key components include:
- Stainless Steel Quick Connect Plug: Available in 1/4" and 3/8" sizes for broad compatibility.
- Rubber Wear-Resistant Exterior: Provides durability and protection.
- Brass Alloy Body: Ensures long service life.
- Ceramic Core: Heat and corrosion resistant, crucial for the rotating spray mechanism.
- Sealing O-ring: Prevents leakage at the connection point.

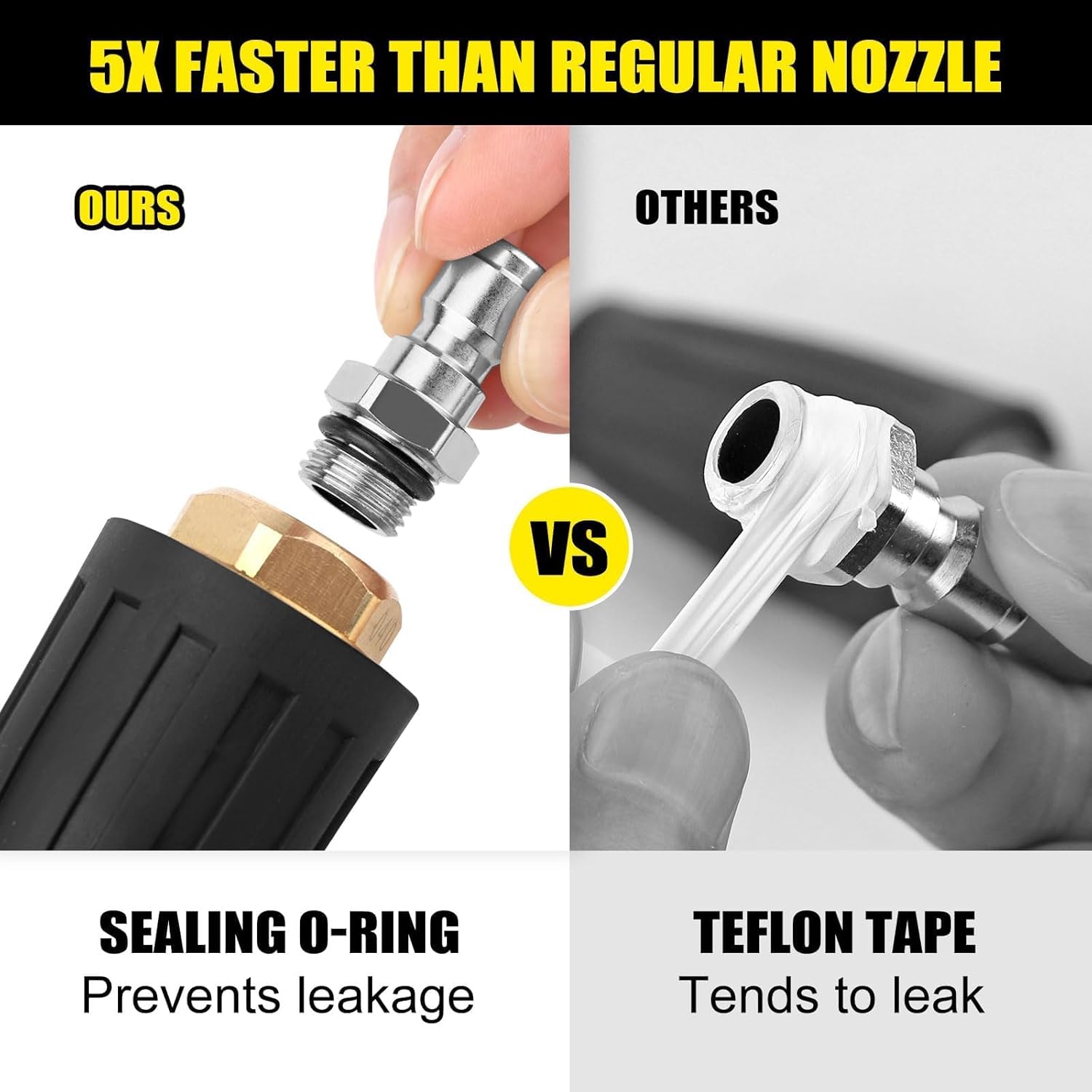

Figure 2: Sealing Mechanism. This image highlights the integrated O-ring seal of the GIANTOOL nozzle, designed to prevent leaks, in contrast to traditional Teflon tape applications.
4. Specifications
| Feature | Detail |
|---|---|
| Brand | GIANTOOL |
| Model Number | 8/3in connector |
| Material | Ceramic (core), Brass Alloy (body), Rubber (exterior) |
| Maximum Operating Pressure | 5000 PSI |
| Inlet Connection Type | 1/4" and 3/8" Quick Connect (National Pipe Tapered) |
| Gallons Per Minute (GPM) | 4.0 GPM |
| Product Dimensions (L x W x H) | 2 x 2 x 4 inches |
| Item Weight | 9.9 ounces |
Figure 3: Product Dimensions. This image illustrates the physical dimensions of the turbo nozzle (4.7" length, 1" width) and the 1/4" and 3/8" quick connect plugs (0.5" width).
5. Setup and Installation
Follow these steps to properly connect the turbo nozzle to your pressure washer wand:
- Ensure Safety: Turn off your pressure washer and release any residual pressure in the system.
- Select Connector: Choose the appropriate quick connect plug (1/4" or 3/8") for your pressure washer wand.
- Attach Connector: Thread the selected quick connect plug onto the end of your pressure washer wand. Ensure it is tightened securely.
- Connect Nozzle: Insert the GIANTOOL Turbo Nozzle into the quick connect fitting on your wand. Pull back the collar on the quick connect fitting, push the nozzle in firmly, and then release the collar to lock it in place. Tug gently on the nozzle to confirm it is securely attached.
Figure 4: Nozzle and Connectors. This image shows the GIANTOOL turbo nozzle alongside the 1/4" and 3/8" quick connect plugs, ready for attachment to a pressure washer wand.
6. Operating Instructions
The turbo nozzle creates a powerful, rotating jet stream for efficient cleaning of tough dirt and grime.
- Start Pressure Washer: Turn on your pressure washer according to its manufacturer's instructions.
- Test Spray: Before directing the spray onto your cleaning surface, test the spray pattern in a safe area to familiarize yourself with its power and coverage.
- Cleaning Technique: Hold the wand at an appropriate distance from the surface. Move the nozzle in a steady, sweeping motion. The rotating jet will effectively loosen and remove stubborn dirt.
- Surface Compatibility: This nozzle is ideal for hard, durable surfaces such as concrete, brick, metal, and vinyl. Exercise caution on softer or painted surfaces, maintaining a greater distance to avoid damage.
Figure 5: Turbo Nozzle in Operation. This image demonstrates the turbo nozzle actively cleaning a concrete surface, highlighting its powerful 360° rotating jet stream.
6.1 Wide Applications
The GIANTOOL Turbo Nozzle is suitable for a variety of cleaning tasks, including:
- Removing stubborn dirt, grime, and rust.
- Cleaning soiled bricks, concrete, and metal surfaces.
- Washing cars, boats, and other vehicles.
- Cleaning dirty garage floors and driveways.
- Stripping paint from wood exteriors (use with caution and appropriate distance).
Figure 6: Diverse Cleaning Applications. This collage showcases the turbo nozzle being used for cleaning various surfaces such as car wheels, roof tiles, concrete steps, wooden decks, and paved pathways.
7. Maintenance
Proper maintenance ensures the longevity and optimal performance of your turbo nozzle.
- After Each Use: Flush the nozzle with clean water to remove any debris or chemical residue.
- Inspect for Damage: Regularly check the nozzle for any signs of wear, cracks, or blockages. Inspect the O-ring for deterioration.
- Storage: Store the nozzle in a clean, dry place away from extreme temperatures.
- Cleaning the Orifice: If the spray pattern becomes inconsistent or weak, the orifice may be partially blocked. Use a small wire or needle to carefully clear any obstructions.
8. Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Nozzle stops spinning or has an inconsistent spray pattern. | Debris blocking the ceramic core or orifice. | Turn off pressure washer, disconnect nozzle, and carefully clear any obstructions from the orifice using a small wire. Flush with clean water. |
| Water leaks from the connection point. | Loose connection or damaged O-ring. | Ensure the quick connect is fully engaged and secure. Inspect the O-ring for wear and replace if necessary. |
| Low pressure or weak spray. | Insufficient water supply to the pressure washer, or a blockage in the pressure washer system. | Check water supply to the pressure washer. Refer to your pressure washer's manual for troubleshooting low pressure issues. |
9. Warranty and Support
GIANTOOL products are manufactured to high-quality standards. For any questions, concerns, or support regarding your turbo nozzle, please contact GIANTOOL customer service through the retailer where the product was purchased. Please have your purchase details and model number (8/3in connector) available when contacting support.
