AUTDER AD-380 Portable Air Compressor User Manual

1. Introduction

Thank you for choosing the AUTDER AD-380 Portable Air Compressor. This device is designed for convenient and efficient inflation of various items, featuring cordless operation, a digital pressure gauge, and an auto-stop function. Please read this manual thoroughly before use to ensure safe and optimal performance.

2. Package Contents

The AUTDER AD-380 air compressor comes with the following basic accessories:

• Main Unit (AUTDER AD-380 Portable Air Compressor)
• High-Pressure Hose with Quick Connector
• 21V 2000mAh Lithium-Ion Battery
• AC Power Adapter (110V-240V wall plug)
• 12V DC Car Cigarette Lighter Power Cable
• Inflator Accessories (various nozzles for cars, bikes, balls, etc.)
• Tire Cap
• Instruction Manual
• Storage Bag
• Cosmetic Box

Figure 2.1: All components included with the AUTDER AD-380 Portable Air Compressor.

3. Product Features

• Maximum Pressure: Up to 180 PSI (12.4 bar / 1241 kPa / 12.6 kg/cm²).
• Power Options: 21V 2000mAh rechargeable battery for cordless use, or 12V DC car power cable for direct power.
• Digital Display: Clear LCD screen shows real-time pressure and allows setting target pressure. Supports PSI, bar, kPa, and kg/cm² units.
• Auto-Stop Function: Automatically stops inflation once the preset pressure is reached.
• Wide Compatibility: Suitable for passenger cars, SUVs, motorcycles, bicycles, electric bicycles, sports balls, and small inflatable toys. Not suitable for large trucks, agricultural machinery, or commercial large tires.
• Compact & Portable: Weighs approximately 1.36 kg (main unit) and comes with a storage bag for easy transport.
• Integrated LED Light: Features constant, flashing, and SOS modes for visibility during night use or emergencies.
• Efficient Cooling: Internal cooling fan and ventilation structure prevent overheating during continuous use.

Figure 3.1: The AUTDER AD-380 is versatile for various inflation needs.

Figure 3.2: Internal components and features of the air compressor.

4. Setup

4.1 Charging the Battery

1. Ensure the 21V 2000mAh battery is properly inserted into the main unit.
2. Connect the AC power adapter to a standard household outlet (110V-240V).
3. Connect the other end of the AC power adapter to the charging port on the battery or main unit.
4. Allow the battery to fully charge before first use.

Note: The 12V car cable is for power supply during operation or emergencies, not for charging the battery. Always use the included AC adapter for battery charging.

Figure 4.1: Charging the battery and connecting to 12V DC power.

4.2 Attaching the Hose and Adapters

1. Select the appropriate nozzle adapter for the item you wish to inflate (e.g., car tire, bicycle, ball).
2. Attach the selected adapter to the high-pressure hose.
3. Connect the high-pressure hose to the air compressor unit.

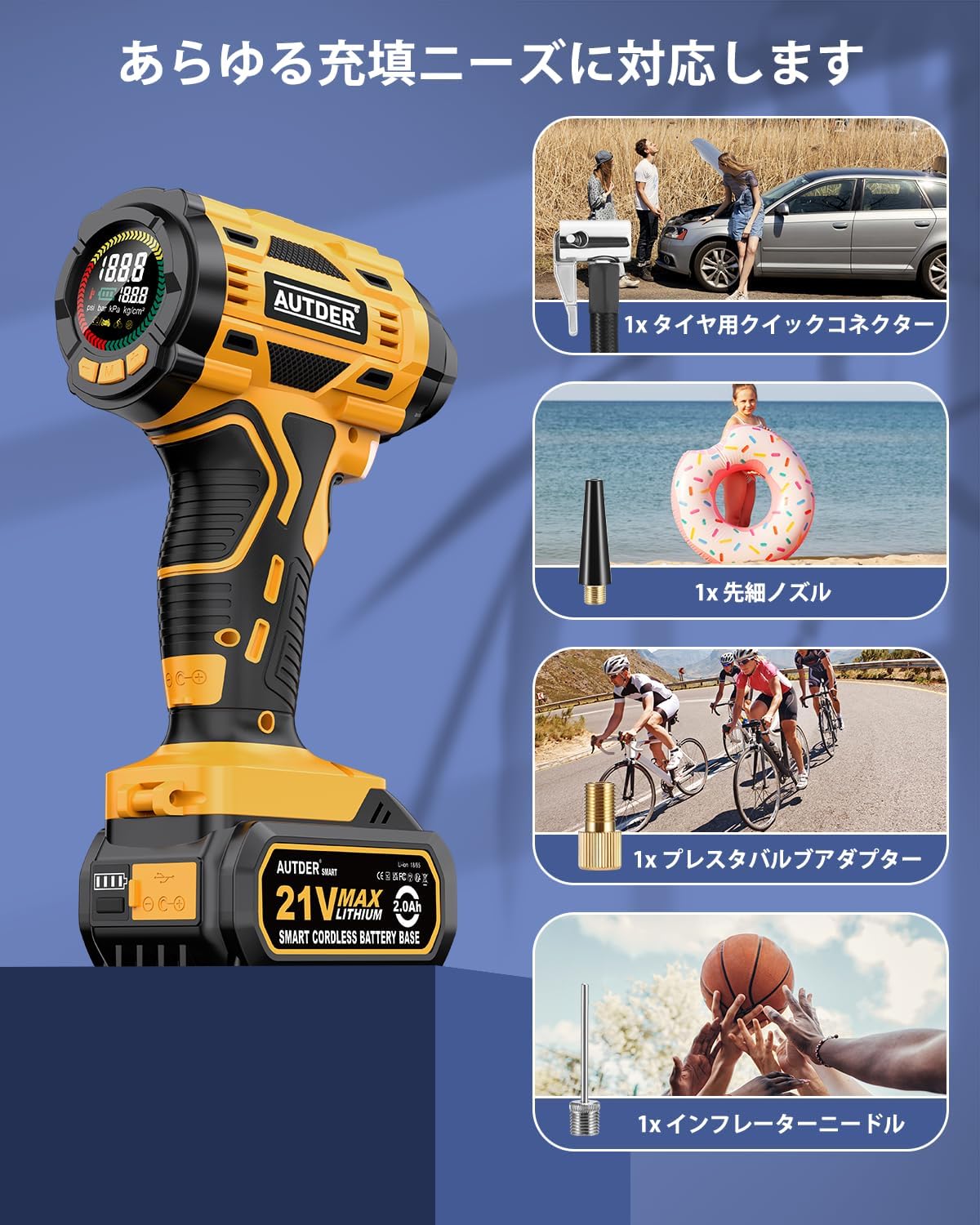

Figure 4.2: Various nozzle adapters for different applications.

5. Operating Instructions

5.1 Powering On and Setting Pressure

1. Press the power button to turn on the device. The digital display will illuminate.
2. Use the 'UNIT' button to cycle through pressure units (PSI, bar, kPa, kg/cm²).
3. Use the '+' and '-' buttons to set your desired target pressure. For car tires, refer to the recommended pressure found on the driver's side door jamb or in your vehicle's manual.

5.2 Inflation Process

1. Securely attach the selected nozzle adapter to the valve stem of the item you are inflating. Ensure a tight seal to prevent air leakage.
2. Press the trigger to start inflation. The device will display the real-time pressure.
3. The compressor will automatically stop once the preset target pressure is reached.
4. Once inflation is complete, release the trigger and carefully detach the nozzle from the valve stem.

Figure 5.1: Inflating a car tire with the auto-stop function.

5.3 Using the LED Light

The built-in LED light can be activated by pressing the 'LIGHT' button. It has three modes:

• Constant On: For general illumination in dark environments.
• Flashing: For increased visibility.
• SOS Mode: For emergency signaling.

Figure 5.2: The LED light provides illumination for night use.

5.4 Video Demonstrations

6. Maintenance

• Keep the device clean and free from dust and debris.
• Store the air compressor and its accessories in the provided storage bag when not in use.
• Avoid long-term storage in humid environments to prevent damage to electronic components.
• Ensure the battery is charged periodically, even if not in use, to maintain its lifespan.

7. Troubleshooting

If you encounter issues with your AUTDER AD-380, please check the following:

• Device not turning on: Ensure the battery is fully charged and properly inserted, or that the 12V DC cable is securely connected to a working power source.
• No inflation: Check that the hose and nozzle adapter are securely attached to both the compressor and the item's valve stem. Ensure the target pressure is set above the current pressure.
• Slow inflation: Verify that the power source (battery or 12V DC) is providing sufficient power. Ensure there are no leaks in the hose or connections.
• Overheating: If the device feels excessively hot, stop operation and allow it to cool down. The internal cooling system should manage heat during normal use.

For further assistance, please contact customer support.

8. Specifications

9. Safety Information

• Always use the included AC adapter for charging the battery.
• The 12V car cable is intended for power supply during operation or emergencies, not for charging the battery.
• Avoid long-term storage of the device in humid places.
• Ensure the battery is securely attached when inflating.
• Do not over-inflate items beyond their recommended pressure.
• Keep out of reach of children.

10. Warranty and Support

The AUTDER AD-380 Portable Air Compressor comes with a 1-year free warranty from the date of purchase.

For warranty claims, technical support, or any questions regarding your product, please refer to the contact information provided with your purchase or visit the official AUTDER website.
