Introduction
This manual provides detailed instructions for the setup, operation, and maintenance of your Bestol replacement remote control. This remote is specifically designed to be compatible with various SILO Smart LCD LED HDTV models, including SL3220V1, SL5020V12, and SL7520VF. No programming is required; simply insert batteries for immediate use.

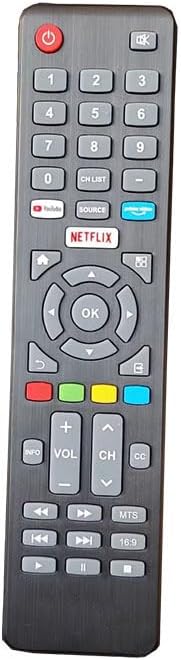

Image: The Bestol replacement remote control, showing its full button layout. This remote is designed for direct compatibility with specified SILO TV models.
Setup Instructions
1. Battery Installation
Your Bestol remote control requires two (2) AAA alkaline batteries (not included). Follow these steps to install them:
- Locate the battery compartment on the back of the remote control.
- Slide the battery compartment cover downwards or in the direction indicated by an arrow to open it.
- Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Slide the battery compartment cover back into place until it clicks securely.
2. Initial Use
This remote control is pre-programmed for the compatible SILO TV models. No additional programming or pairing steps are required. Once batteries are installed, the remote is ready for immediate use with your SILO SL3220V1, SL5020V12, or SL7520VF Smart LCD LED HDTV.
Operating the Remote Control
Point the remote control directly at your television's infrared receiver. Ensure there are no obstructions between the remote and the TV.
Key Functions:
- Power Button (●): Turns the TV on or off.
- Number Buttons (0-9): Directly select TV channels.
- CH LIST: Displays the channel list.
- SOURCE: Selects input sources (HDMI, AV, etc.).
- Volume Up/Down (VOL +/-): Adjusts the sound volume.
- Channel Up/Down (CH +/-): Changes TV channels.
- Mute Button: Mutes or unmutes the TV sound.
- Navigation Pad (Up, Down, Left, Right, OK): Navigates menus and confirms selections.
- Back/Return Button: Returns to the previous screen or menu.
- Home Button: Accesses the TV's main smart hub or home screen.
- Netflix, YouTube, Source Buttons: Direct access to streaming services or input selection.
- Color Buttons (Red, Green, Yellow, Blue): Functionality varies depending on the TV menu or application.
- Media Control Buttons (Play, Pause, Stop, Rewind, Fast Forward): Controls media playback.
- INFO: Displays information about the current program.
- CC (Closed Caption): Toggles closed captions on/off.
- 16:9: Adjusts the aspect ratio.
Maintenance
Battery Replacement:
Replace batteries when the remote control's response becomes sluggish or stops working. Always replace both batteries at the same time with new AAA alkaline batteries. Do not mix old and new batteries, or different types of batteries.
Cleaning:
Wipe the remote control with a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as they may damage the remote's surface or internal components.
Storage:
If the remote control will not be used for an extended period, remove the batteries to prevent leakage and potential damage.
Troubleshooting
- Remote not responding:
- Ensure the batteries are correctly installed with the correct polarity (+/-).
- Replace old batteries with new AAA alkaline batteries.
- Check for any obstructions between the remote control and the TV's infrared sensor.
- Ensure you are pointing the remote directly at the TV.
- Specific buttons not working:
- This remote is designed for specific SILO models. Verify your TV model (SL3220V1, SL5020V12, SL7520VF) is listed as compatible.
- Clean the remote control, especially around the unresponsive buttons, to remove any dirt or debris.
- TV not turning on/off:
- Confirm the TV is plugged into a working power outlet.
- Try using the power button directly on the TV, if available, to rule out a TV issue.
If problems persist after following these steps, please refer to the Support section.
Specifications
| Brand | Bestol |
| Compatible Devices | SILO SL3220V1, SILO SL5020V12, SILO SL7520VF Smart LCD LED HDTVs |
| Connectivity Technology | Infrared (IR) |
| Power Source | Battery Powered |
| Battery Type | 2 x AAA Alkaline Batteries (not included) |
| Item Weight | Approximately 2.89 ounces (81.9 grams) |
| Package Dimensions | 7.87 x 1.89 x 0.83 inches (20 x 4.8 x 2.1 cm) |
| Special Feature | Ergonomic design |
Warranty and Support
Warranty Information:
Specific warranty details for this product may vary. Please refer to the product packaging or your purchase documentation for information regarding warranty coverage. For any warranty claims, retain your proof of purchase.
Customer Support:
For technical assistance, troubleshooting not covered in this manual, or general inquiries, please contact Bestol customer support. Contact information can typically be found on the product packaging or the retailer's website where the product was purchased.
