CROWN PRO-BF04
CROWN 30" Under Cabinet Range Hood
Model: PRO-BF04
1. Important Safety Information
Please read all instructions carefully before installation and operation to prevent injury or damage to the appliance. Keep this manual for future reference.
- Always disconnect power before servicing or cleaning the unit.
- Ensure proper grounding to reduce the risk of electric shock.
- Do not operate the range hood with damaged cord or plug.
- Install the range hood according to the specified clearances from the cooking surface.
- Clean grease filters regularly to prevent grease fires.
2. What's in the Box
Upon unpacking, verify that all components are present and undamaged:
- CROWN 30" Under Cabinet Range Hood Unit
- Oil Collector
- Manual (this document)
- Vent Converter
Image: Top view of the CROWN range hood, illustrating the primary vent opening and mounting points.
3. Setup and Installation
The CROWN PRO-BF04 range hood is designed for under-cabinet mounting and offers versatile venting options.
3.1 Dimensions and Clearance
Ensure adequate space for installation. The product dimensions are approximately 20.08"D x 27.72"W x 5.51"H.

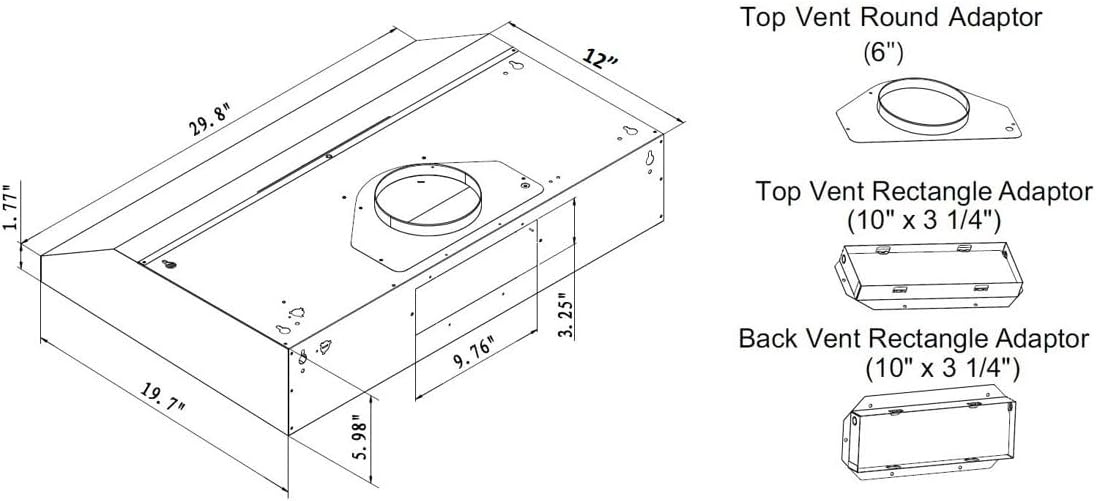

Image: Detailed dimensional diagram of the range hood, including top, back, and side views, and available vent adapters.
3.2 Venting Options
This model supports multiple venting configurations:
- Top Vent: Available with a 6" round outlet or a 10" x 3 1/4" rectangular outlet.
- Rear Vent: A 10" x 3 1/4" rectangular outlet is also available.
Select the appropriate vent converter and ductwork for your kitchen setup. Ensure all duct connections are sealed properly to maximize efficiency.
3.3 Electrical Connection
The unit operates on 120 Volts / 60Hz. It is designed for simple plug-in operation, eliminating the need for complex hardwiring. Ensure the power outlet is easily accessible and properly grounded.
4. Operating Instructions
The CROWN range hood is equipped with user-friendly controls for efficient kitchen ventilation.
Image: Front view of the CROWN range hood, highlighting the control panel and integrated LED lighting.
4.1 Power and Speed Control
The range hood features three-level speed control push buttons. Press the desired button to select the fan speed:
- Low Speed: For light cooking and simmering.
- Medium Speed: For general cooking and moderate smoke.
- High Speed: For heavy cooking, frying, and strong odors.
The maximum exhaust airflow is 800 CFM, ensuring powerful ventilation. The noise level ranges from 1.5 to 4.5 sones depending on the selected speed.
4.2 LED Lighting
The unit includes two 20W LED light bulbs to illuminate your cooktop. Press the light button on the control panel to turn the lights on or off.
Image: Underside view of the range hood, revealing the dual fan motors responsible for powerful suction.
5. Maintenance and Cleaning
Regular maintenance ensures optimal performance and longevity of your range hood.
5.1 Cleaning Baffle Filters
The stainless steel baffle filters are designed for easy removal and cleaning. They are dishwasher-safe for convenient maintenance.
- To remove: Locate the latches on the filters, push them in, and pull the filter down.
- Cleaning: Place filters in the dishwasher or wash by hand with warm, soapy water. Rinse thoroughly and allow to dry completely before reinstalling.
- Reinstallation: Align the filter with the slots and push it up until the latches click into place.
Image: Demonstration of cleaning the baffle filters, showing both dishwasher and hand-washing methods.
5.2 Cleaning the Oil Collection Tray
The fan blades are coated with Teflon to help separate grease, which is then deposited into a removable grease collection tray. This tray should be emptied and cleaned regularly.
- To remove: Gently slide out the oil collection tray located at the rear of the filter area.
- Cleaning: Wash the tray with warm, soapy water. Rinse and dry thoroughly.
- Reinstallation: Slide the tray back into its designated slot until secure.
Image: Illustration of the long stainless steel oil tray and washable baffle filters, highlighting their easy-to-clean design.
5.3 Exterior Cleaning
Wipe the exterior stainless steel surfaces with a soft cloth and a non-abrasive stainless steel cleaner. Avoid using harsh chemicals or abrasive pads that could scratch the finish.
6. Troubleshooting
If you encounter issues with your range hood, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Range hood does not turn on | No power supply; Loose connection; Control panel issue | Check if the unit is plugged in; Verify circuit breaker; Ensure all connections are secure; Contact customer support if issue persists. |
| Low suction power | Clogged grease filters; Restricted ductwork; Incorrect fan speed | Clean or replace grease filters; Check ductwork for obstructions or kinks; Select a higher fan speed. |
| Excessive noise | Loose components; Improper installation; Motor issue | Check for loose screws or parts; Ensure proper installation and secure mounting; Contact customer support if motor noise is unusual. |
| Lights not working | Burned out LED bulbs; Electrical connection issue | Check if LED bulbs need replacement (refer to specifications for type); Verify electrical connections to the lights. |
If the problem persists after attempting these solutions, please contact customer support for further assistance.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | CROWN |
| Model Number | PRO-BF04 |
| Material | Stainless Steel |
| Finish Type | Brushed |
| Color | Stainless |
| Product Dimensions (D x W x H) | 20.08" x 27.72" x 5.51" |
| Item Weight | 32 Pounds |
| Air Flow Capacity | 800 Cubic Feet Per Minute (CFM) |
| Noise Level | 1.5 to 4.5 Sones |
| Mounting Type | Under Cabinet Mount |
| Controls Type | Push Button |
| Number of Speeds | 3 |
| Voltage | 120 Volts |
| Light Source Type | LED (2 x 20W) |
| Filter Type | Baffle (Dishwasher Safe) |
| Ventilation Type | Exhaust |
| Included Components | Oil Collector, Manual, Vent Converter |
| Special Features | Grease Filter, Rust Proof, Noise Reduction, LED Lighting, Built-In Oil Collector |
| Manufacturer | AFG Corp |
8. Warranty and Support
CROWN stands behind the quality of its products. This range hood comes with a comprehensive warranty to ensure your peace of mind.
- Motor Warranty: 5-year limited warranty on the motor.
- Parts Warranty: 1-year limited warranty on all other parts.
For warranty claims, technical support, or any inquiries regarding your CROWN range hood, please contact the manufacturer or your point of purchase. Please have your model number (PRO-BF04) and purchase date available when contacting support.
