Introduction
This user manual provides essential information for the safe and efficient operation, assembly, and maintenance of your JANSNO X50 Electric Bike. The JANSNO X50 is designed for adults, featuring a powerful 750W brushless motor, a long-lasting 48V 14Ah battery, 20-inch fat tires, and a Shi-Mano 7-speed gear system, capable of reaching speeds up to 26 MPH. It is suitable for various terrains including snow, beach, and mountain trails, as well as city commuting.
Figure 1: JANSNO X50 Electric Bike overview.
Safety Guidelines
Your safety is paramount. Please read and understand all safety instructions before operating the JANSNO X50 Electric Bike.
- Always wear a certified helmet and appropriate safety gear when riding.
- Familiarize yourself with local traffic laws and regulations regarding electric bicycles.
- Perform a pre-ride inspection before each use, checking brakes, tire pressure, battery level, and all connections.
- Avoid riding in adverse weather conditions, such as heavy rain, snow, or ice, which can reduce traction and visibility.
- Do not operate the bike under the influence of alcohol or drugs.
- Ensure the battery is securely locked in place before riding.
- Be aware of your surroundings and other road users, including pedestrians and vehicles.
- Do not exceed the maximum weight recommendation of 120 Kilograms.
Product Components
The JANSNO X50 Electric Bike comes with several key components. Understanding each part is crucial for assembly and operation.

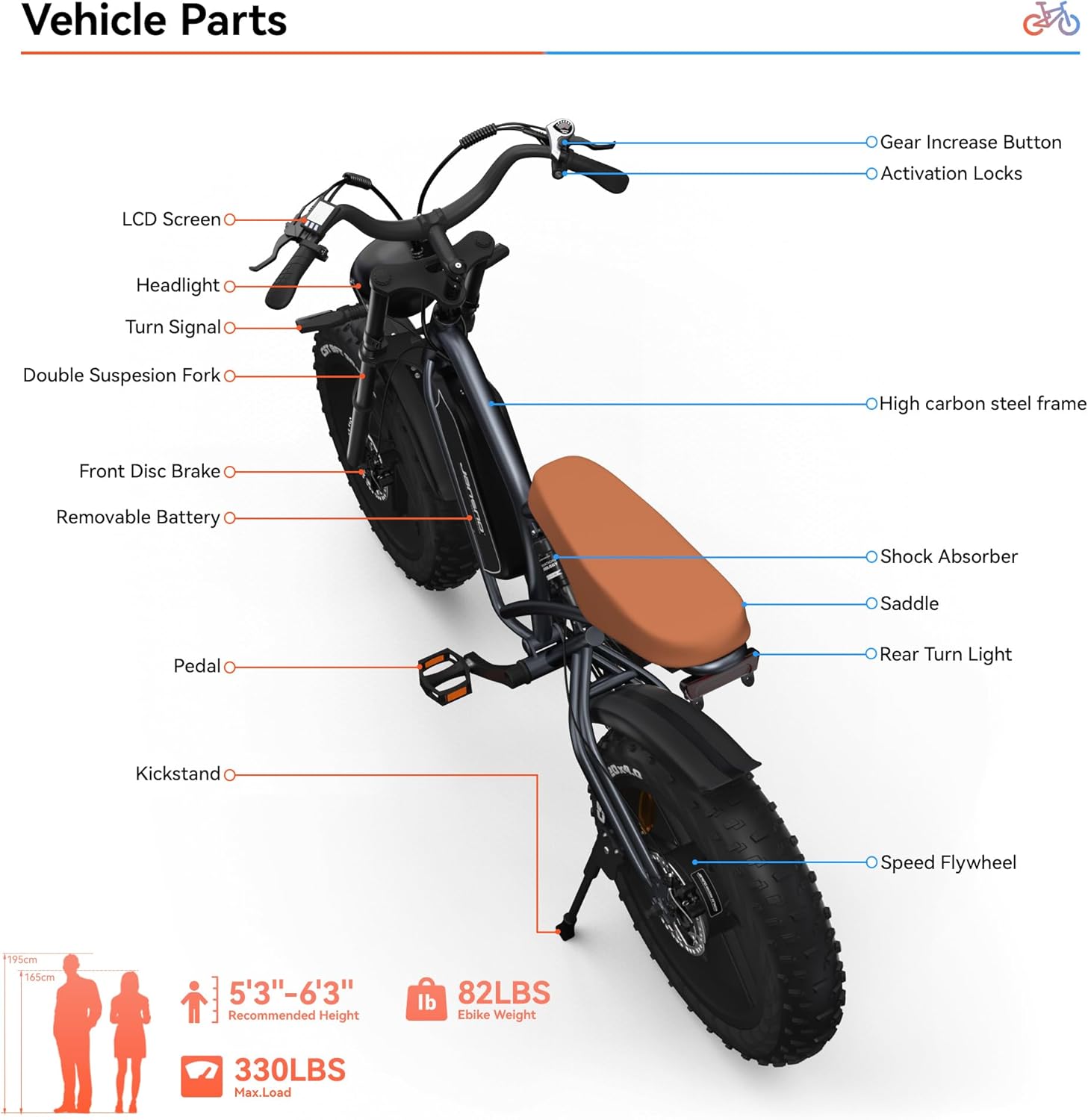

Figure 2: Diagram illustrating key vehicle parts of the JANSNO X50 Electric Bike.
Key Parts:
- 750W Brushless Motor: Provides powerful assistance for various terrains.
- 48V 14Ah Battery: Long-lasting power source, removable for convenient charging.
- 20-inch Fat Tires: Designed for stability and traction on diverse surfaces like snow, beach, and gravel.
- Shi-Mano 7-Speed Gear System: Allows for smooth and precise shifting to adapt to different riding conditions.
- Dual Suspension: Enhances rider comfort by absorbing shocks from uneven terrain.
- Integrated Turn Signal Lights: Improves visibility and safety by clearly indicating turns.
- Intelligent LCD Display: Shows speed, battery level, distance, and power adjustment.
- Disc Brakes: Provide reliable stopping power.
- Padded Seat: Designed for comfortable long-distance rides.
- Adjustable Handlebars: Allows for optimal riding posture.
- Included Components: Kickstand, Charger, Lock, Tool Kit.
Setup and Assembly
Your JANSNO X50 Electric Bike comes partially assembled. Follow these steps for complete assembly. A tool kit is included to assist with the process.
Assembly Video Guide:
For a visual guide to the assembly process, please refer to the official JANSNO Electric Bike X50 assembly video below:
Video 1: JANSNO Electric Bike X50 assembly guide. This video demonstrates the unboxing, front wheel installation, handlebar setup, headlight attachment, pedal installation, and battery insertion.
Step-by-Step Assembly:
- Unboxing and Inspection: Carefully remove all components from the packaging. Inspect for any damage during transit. Ensure all parts listed in the packing list are present.
- Front Wheel Installation:
- Align the front wheel with the front fork, ensuring the disc brake rotor slides correctly into the brake caliper.
- Insert the quick-release skewer or axle through the wheel hub and secure it with the provided nuts/levers. Tighten firmly.
Figure 3: Close-up of the 20-inch fat tire and disc brake system, highlighting its suitability for various terrains.
- Handlebar Attachment:
- Attach the handlebars to the stem, ensuring proper alignment.
- Tighten the stem bolts securely using the included tools.
- Headlight Installation:
- Mount the headlight to the designated bracket on the front fork or handlebars.
- Connect the headlight cable to the corresponding port on the bike's wiring harness.
- Pedal Installation:
- Identify the left (L) and right (R) pedals. The left pedal has a reverse thread.
- Thread the pedals into the crank arms by hand first to avoid cross-threading, then tighten securely with a wrench.
- Battery Insertion:
- Carefully slide the 48V 14Ah battery into its compartment on the bike frame.
- Ensure it clicks into place and is securely locked using the provided key.
Figure 4: Illustration of the high-capacity battery cells integrated into the bike frame.
- Seat Adjustment: Adjust the seat height for comfortable riding posture.
- Final Checks: Double-check all bolts and connections for tightness. Ensure brakes are functioning correctly and tires are inflated to the recommended pressure.
Operating Your JANSNO X50
Intelligent LCD Display:
The intelligent LCD display provides real-time information about your ride. Familiarize yourself with its functions:
Figure 5: Overview of the intelligent LCD display showing speed, battery, and distance.
- Speed: Displays current riding speed (km/h or mph).
- Battery: Indicates remaining battery charge.
- Distance (ODO): Shows total accumulated mileage.
- Power Adjustment: Buttons to increase or reduce power assistance levels.
Riding Modes:
The JANSNO X50 offers three distinct riding modes to suit your preference and terrain:
Figure 6: Visual representation of the three riding modes.
- Human Riding Mode:
Turn off the power or set the gear to 0. This mode allows you to ride the bike purely with pedal power, similar to a traditional bicycle.
- Start The Electric Mode:
Turn on the power supply and twist the throttle (1-5 files) for pure electric riding without pedaling. This mode provides full motor power.
- Intelligent Power-assisted Mode (Pedelec):
Turn on the power and select your desired assist level (1-5). The motor will provide assistance as you pedal, making riding easier, especially on inclines or for longer distances. The level of assistance can be adjusted via the LCD display.
Gear Shifting:
Utilize the Shi-Mano 7-speed gear system for optimal pedaling efficiency. Shift gears smoothly by using the trigger shifter on the handlebars. Downshift for climbing hills and upshift for higher speeds on flat terrain.
Maintenance
Regular maintenance ensures the longevity and safe operation of your JANSNO X50 Electric Bike.
- Battery Care:
- Charge the battery fully before the first use and after every ride.
- Do not overcharge or completely drain the battery.
- Store the battery in a cool, dry place when not in use, and charge it periodically if stored for long periods.
- Use only the charger provided with your bike. Charging time is approximately 6 hours.
- Tires:
- Check tire pressure before each ride. Maintain recommended PSI for optimal performance and safety.
- Inspect tires for wear, cuts, or punctures regularly.
- Brakes:
- Regularly check brake pads for wear and replace them when necessary.
- Ensure brake levers are firm and responsive. Adjust cable tension if needed.
- Chain and Drivetrain:
- Keep the chain clean and lubricated to ensure smooth gear changes and prevent rust.
- Inspect gears and derailleur for proper alignment and function.
- General Cleaning: Clean the bike regularly with a damp cloth. Avoid high-pressure washing directly on electrical components.
- Fasteners: Periodically check all nuts, bolts, and quick releases to ensure they are tight and secure.
Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike not turning on. | Battery not charged, battery not properly inserted, power switch off. | Charge battery, ensure battery is fully inserted and locked, turn on power switch. |
| Motor not assisting. | Low battery, incorrect riding mode, loose motor connection, brake lever engaged. | Charge battery, select electric or power-assisted mode, check motor cable connections, ensure brake levers are fully released. |
| Brakes feel weak. | Worn brake pads, loose brake cable, air in hydraulic system (if applicable). | Inspect and replace brake pads, adjust brake cable tension, consult a professional for hydraulic brake issues. |
| Unusual noises from drivetrain. | Dry or dirty chain, misaligned derailleur, loose components. | Clean and lubricate chain, check derailleur alignment, inspect all drivetrain components for tightness. |
If you encounter issues not listed here or cannot resolve a problem, please contact JANSNO customer support.
Technical Specifications
| Feature | Specification |
|---|---|
| Bike Type | Electric Bike |
| Age Range (Description) | Adult |
| Brand | JANSNO |
| Number of Speeds | 7 |
| Color | Grey |
| Wheel Size | 20 Inches |
| Frame Material | Chromoly Steel |
| Suspension Type | Dual |
| Special Feature | Standard model |
| Included Components | Kickstand, Charger, Lock, Tool Kit |
| Size | 20inch. |
| Brake Style | Disc |
| Wheel Width | 4 Inches |
| Specific Uses For Product | Commuting, Trail Riding, Light Off-Roading |
| Item Weight | 42 Kilograms |
| Theme | Electric Bike for Off-road Adventures and City Riding |
| Style | Modern |
| Model Name | Jansno X50 |
| Power Source | Electric motor (rechargeable battery) |
| Wattage | 750 watts |
| Wheel Material | Carbon Steel |
| Year | 2023 |
| Lithium Battery Energy Content | 672 Watt Hours |
| Seat Material Type | Plastic |
| Warranty Type | warranty |
| EU Spare Part Availability Duration | 5 Years |
| Maximum Weight Recommendation | 120 Kilograms |
| Assembly Required | No |
| Bicycle Gear Shifter Type | Trigger |
| Is Autographed | No |
| Number of Handles | 1 |
| Skill Level | Beginner |
| Fender Material | Plastic |
| UPC | 768469569062 |
| Bicycle Drivetrain Type | Derailleur |
| Electric Assist Type | Pedelec |
| Manufacturer | Jansno |
| Battery Life | 4.2 Hours |
Warranty Information
The JANSNO X50 Electric Bike comes with a 1-Year Warranty from the manufacturer. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the documentation included with your product or contact JANSNO customer support.
EU Spare Part Availability Duration: 5 Years.
Customer Support
For any questions, technical assistance, or warranty inquiries, please contact JANSNO customer support through their official website or the contact information provided in your product packaging.
Please note: Specific contact details are not provided in this manual. Refer to your product's packaging or the manufacturer's official website for the most up-to-date support information.
