1. Product Overview
The Fernco QC-4.75 Qwik Cap is designed to provide a quick, easy, and reliable way to cap pipe ends. This specialty cap is leak-proof, water-tight, and suitable for direct application over Schedule 40 PVC plastic sockets and hubs. It can be used for both permanent and temporary projects, including capping pipe ends, testing pipes, and sealing clean-outs. The cap is built from high-quality PVC for durability and can be used in above-ground or underground installations.

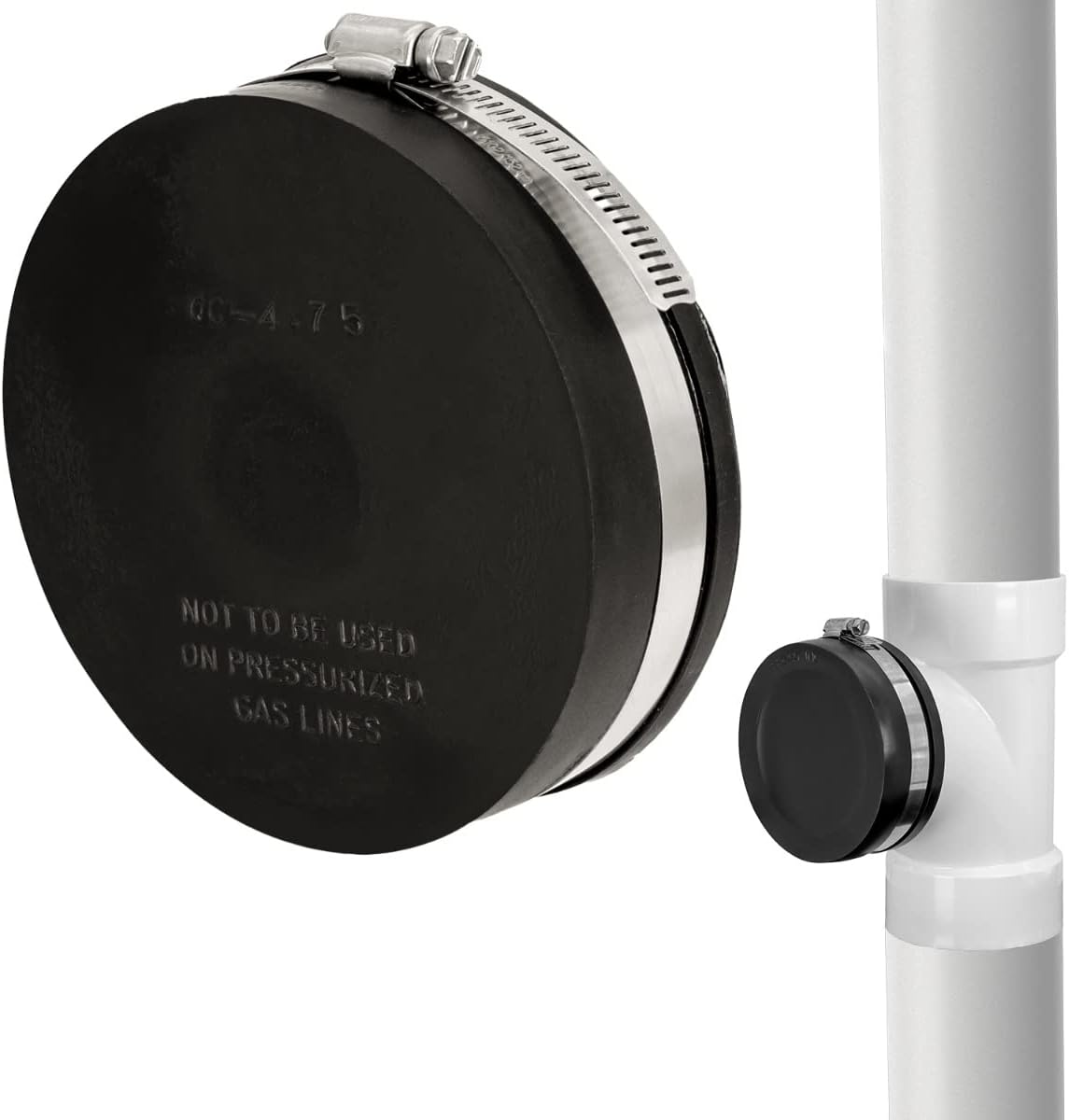

Image 1.1: Main view of the Fernco QC-4.75 Qwik Cap, highlighting its design and important safety warning.
2. Key Features
- Unmatched Quality & Performance: The Fernco QC-4.75 QwikCap is constructed from the highest quality PVC, ensuring long-lasting performance and durability.
- Flexible Fit: Designed to fit directly over 4" Schedule 40 PVC sockets. It has an internal diameter (ID) of 4.82" and accommodates pipe outside diameters (OD) between 4.32" - 5.05".
- Versatile Application: Suitable for permanent or temporary use, above or below ground. It can cap pipe ends, clean-outs, or be used for test pipe purposes. Also compatible with 4" Durion, 4" Ductile, 4" Orangeburg, 4" AC, 5" SS, and 4" Corrugated pipe.
- No-Mess Installation: Installation is straightforward, requiring no messy primers, glues, or their associated odors.
- Compliance & Durability: Conforms to ASTM D 5926, C 1173 CSA B602, and is UPC Approved. Features 300 stainless steel clamps that are corrosion-resistant and rustproof.
- Proudly Manufactured: This product is proudly manufactured in the United States.
3. Safety Information
WARNING: The Fernco QC-4.75 Qwik Cap is NOT TO BE USED ON PRESSURIZED GAS LINES. This product is designed for drain, waste, and vent piping applications with a maximum working pressure of 4.3 PSI. Misuse can lead to serious hazards.
4. Installation Guide
Follow these steps for proper installation of your Fernco QC-4.75 Qwik Cap:
- Measure Pipe: Before installation, accurately measure the outside diameter (OD) of the pipe socket you intend to cap. Ensure it falls within the cap's compatible range of 4.32" - 5.05" OD. The cap's internal diameter (ID) is 4.82".
- Prepare Pipe: Ensure the pipe end and socket are clean and free from debris. No primers or glues are required for installation.
- Position Cap: Slide the Qwik Cap directly over the Schedule 40 PVC pipe socket or hub. Ensure the cap is fully seated over the pipe end.
- Tighten Clamp: Use a screwdriver, nut driver, or torque wrench to tighten the 300 series stainless steel clamp. Tighten until the cap is securely fastened and a water-tight seal is achieved. Do not overtighten.

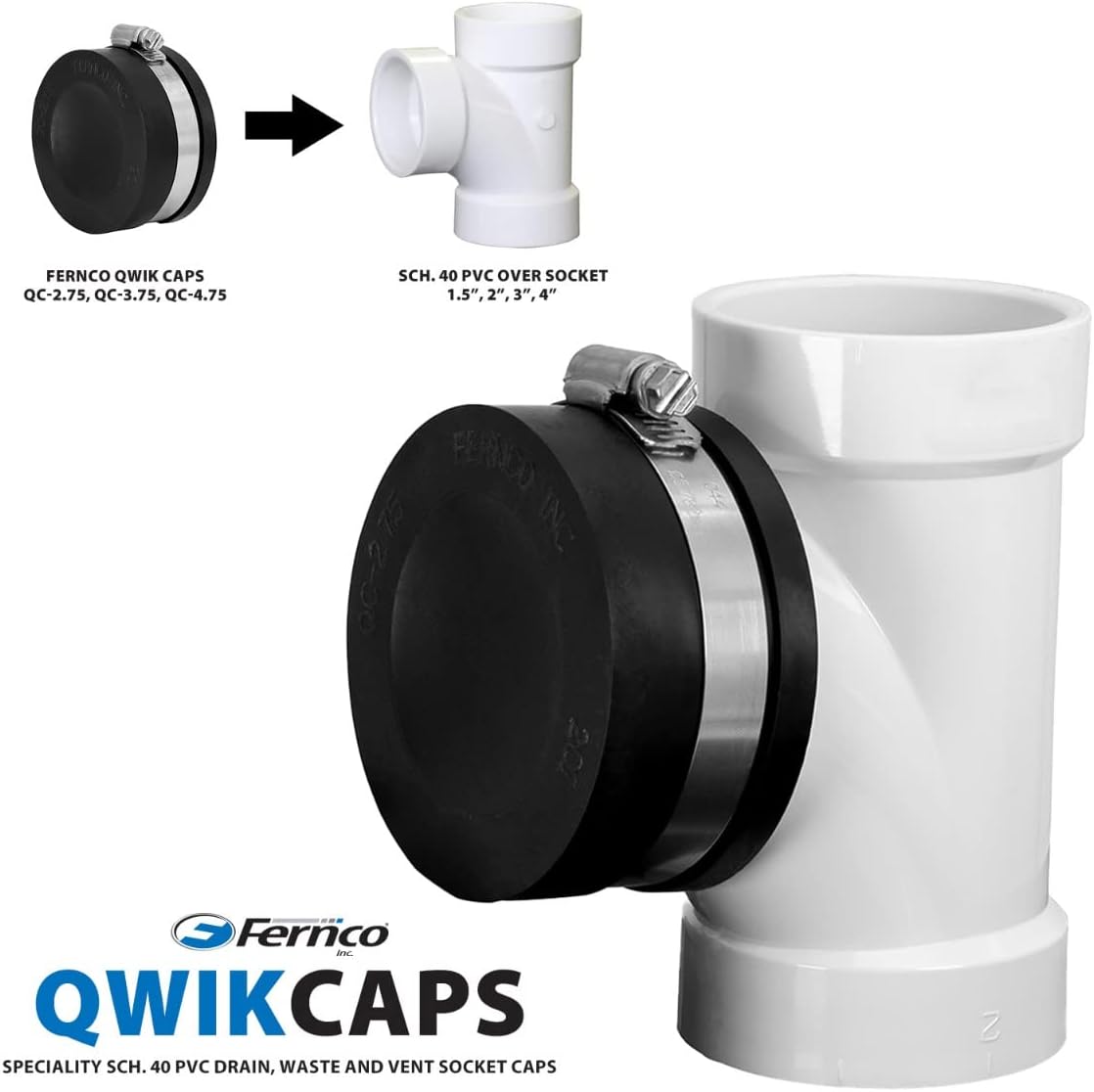

Image 4.1: Visual guide demonstrating how the Qwik Cap fits over a PVC socket.
Image 4.2: An example of a Qwik Cap securely installed on a pipe.
5. Usage and Applications
The Fernco QC-4.75 Qwik Cap is versatile and can be used for various plumbing applications:
- Permanent Capping: Provides a durable, leak-proof seal for permanently capping pipe ends and clean-outs.
- Temporary Sealing: Ideal for temporary sealing during pipe testing or construction phases.
- Pipe Compatibility: While primarily designed for 4" Schedule 40 PVC sockets, it also fits 4" Durion, 4" Ductile, 4" Orangeburg, 4" AC, 5" SS, and 4" Corrugated pipe.
- Environmental Use: Suitable for both above-ground and underground installations.
- Pressure Rating: Maximum working pressure is 4.3 PSI.
Image 5.1: Different QwikCap sizes demonstrating versatility across various pipe types.
6. Maintenance
The Fernco QC-4.75 Qwik Cap requires minimal maintenance due to its durable PVC construction and corrosion-resistant stainless steel clamp.
- Periodic Inspection: Periodically inspect the cap and clamp for any signs of damage, wear, or loosening.
- Cleanliness: Ensure the area around the cap remains free of excessive dirt or debris, especially in underground applications.
- Clamp Tightness: If any leaks are detected or the cap appears loose, re-tighten the stainless steel clamp with a suitable tool, ensuring a snug fit without overtightening.
7. Troubleshooting
Most issues with the Qwik Cap can be resolved with simple checks:
- Leakage Around Cap:
- Ensure the clamp is sufficiently tightened.
- Verify that the correct cap size (QC-4.75) is used for the pipe's outside diameter (4.32" - 5.05").
- Check for any damage to the cap or the pipe surface that might prevent a proper seal.
- Cap Does Not Fit:
- Re-measure the outside diameter of your pipe socket. The QC-4.75 is designed for pipes with an OD between 4.32" and 5.05".
- Confirm you are attempting to cap a Schedule 40 PVC socket or one of the other compatible pipe types listed in Section 5.
8. Specifications
| Attribute | Detail |
|---|---|
| Model Number | QC-4.75 |
| Material | Polyvinyl Chloride (PVC) |
| Color | Black |
| Item Dimensions (L x W x H) | 5.59 x 5.28 x 1.63 inches |
| Item Weight | 8.8 ounces |
| Connector Type | Cap, Slip Hub |
| Internal Diameter (ID) | 4.82 inches |
| Fits Pipe OD Range | 4.32" - 5.05" |
| Exterior Finish | Black PVC |
| Number of Pieces | 1 |
| Manufacturer | Fernco Inc. |
| UPC | 018578004108 |
| Maximum Working Pressure | 4.3 PSI |
| Compliance | ASTM D 5926, C 1173 CSA B602, UPC Approved |
9. Warranty and Support
While specific warranty details are not provided in this manual, Fernco is known for its quality and reliable performance, with products proudly manufactured in the United States. For any product inquiries, technical support, or warranty claims, please contact Fernco directly through their official channels or visit the Fernco Store on Amazon.
