FJSaDobo 2-Piece Air Filter Instruction Manual

1. Product Overview

This manual provides instructions for the FJSaDobo 2-piece air filter, designed for optimal engine performance in compatible lawn mowers and engines. The package includes two air filter units.

This air filter is a replacement for OEM part numbers: 593260, 798339, 334404, 798452, 4247, 5432, 5432K, 102 851, 71-33370, 798452, 72053A, and 872053A.

Image 1.1: The FJSaDobo air filter, highlighting its strong paper filter element for efficient filtration.

2. Compatibility

This air filter is compatible with a wide range of lawn mowers and engines, including but not limited to:

• Troy-Bilt Walk-Behind Mower Models: TB110, TB115, TB200, TB230, TB240, TB320, TB330, TB370, TB280ES, TB390ES, TB380ES, TB410XP, TB130XP.
• Briggs & Stratton Engines: 500, 500E, 550E, 500EX, 550EX, 625E, 675, 625EX, 675EX, 675EXI, 725EXI X3, 09P000, 09P702 9/10 O.
• Specific Engine Series: 675exi series engines model 103M02 and 725exi series engines model 104M02.
• Most 550e-550ex series BS engines.

Image 2.1: The air filter highlighting its compatibility with various Troy-Bilt walk-behind mower models.

3. Setup and Installation

Proper installation of the air filter is essential for maintaining engine health and performance. Follow these general steps for replacement:

1. Locate the Air Filter Housing: On most lawn mowers, the air filter housing is typically a plastic cover located on the side or top of the engine.
2. Remove the Cover: Unclip or unscrew the fasteners holding the air filter cover in place and carefully remove it.
3. Remove the Old Filter: Take out the old, dirty air filter. Note its orientation for correct installation of the new filter.
4. Clean the Housing: Wipe away any dirt, dust, or debris from inside the air filter housing to prevent contamination of the new filter.
5. Install the New Filter: Insert the new FJSaDobo air filter into the housing, ensuring it fits snugly and is oriented correctly.
6. Replace the Cover: Securely reattach the air filter cover, ensuring all clips or screws are tightened to prevent air leaks.

Image 3.1: The air filter shown installed within an engine's air filter compartment.

4. Operation

Once the air filter is correctly installed, the engine can be operated as usual. The new air filter will ensure clean air intake, which is crucial for efficient combustion and preventing wear on internal engine components. No specific operational adjustments are typically required after air filter replacement.

5. Maintenance

Regular inspection and timely replacement of your air filter are vital for the longevity and performance of your lawn mower engine.

• Inspection Frequency: Check the air filter every 25 hours of operation or at least once per mowing season, more frequently in dusty conditions.
• Signs of Replacement: Replace the air filter when it appears visibly dirty, clogged with debris, or if engine performance noticeably declines (e.g., loss of power, increased fuel consumption).
• Cleaning: Do not attempt to clean paper air filters by washing or using compressed air, as this can damage the filter media and reduce its effectiveness. Always replace with a new filter.

Image 5.1: A close-up of the air filter's pleated paper element, showing the filtration material.

6. Troubleshooting

If you experience issues after replacing your air filter, consider the following:

• Engine Runs Poorly: Double-check that the air filter is installed correctly and that the air filter housing cover is securely fastened. An improperly sealed housing can allow unfiltered air into the engine.
• Filter Does Not Fit: Verify that the air filter's dimensions match your equipment's requirements. Refer to the compatibility list in Section 2 or consult your equipment's owner's manual.

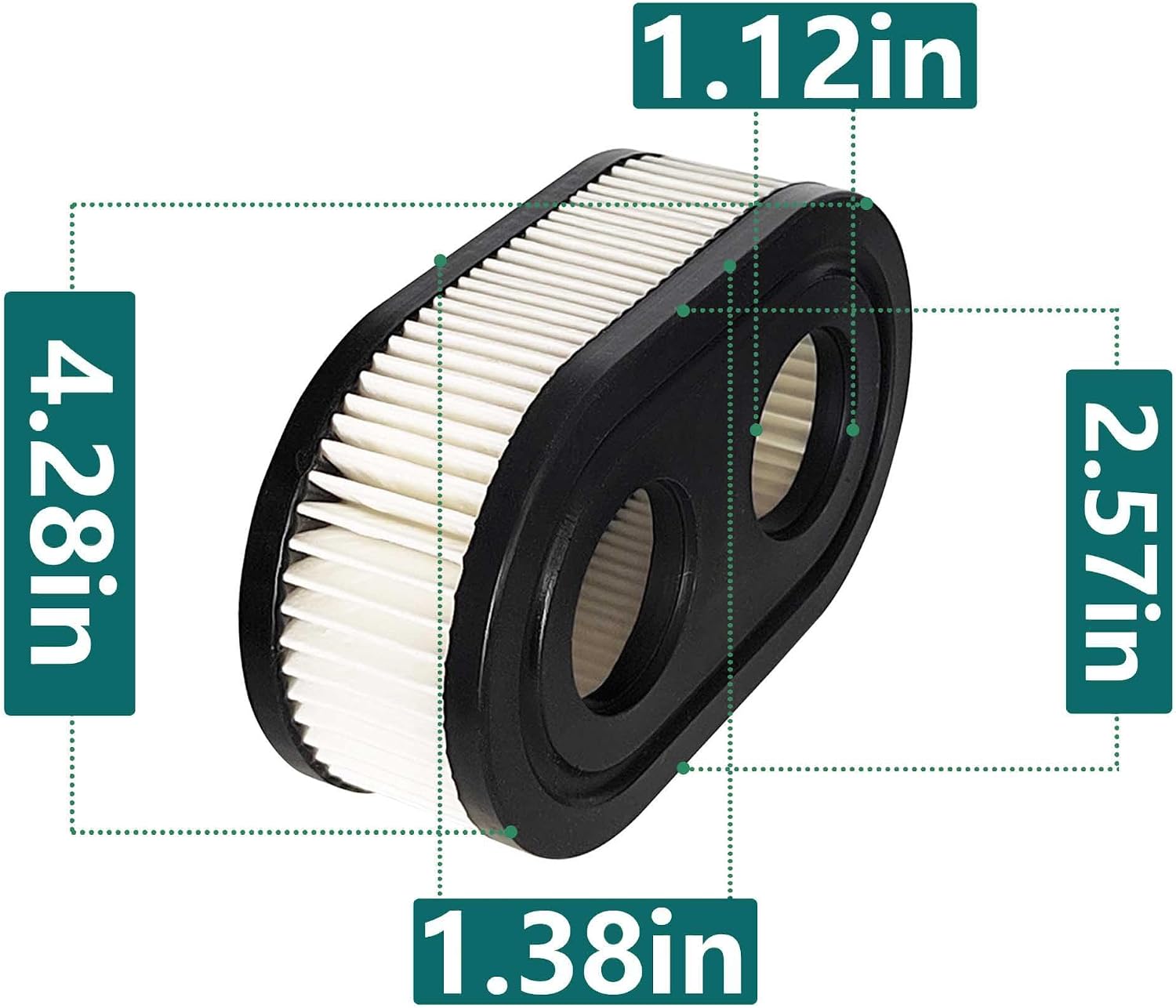

Image 6.1: The dimensions of the air filter, useful for verifying fit.

7. Specifications

8. Warranty Information

This FJSaDobo air filter comes with a 3-month manufacturer warranty. Please retain your proof of purchase for any warranty claims.

9. Support

For further assistance, questions, or to explore other products, please visit the official FJSaDobo store:

Visit the FJSaDobo Store on Amazon
