Introduction
This manual provides essential instructions for the safe and effective use of your Cosco Three Step Max Steel Work Platform and Newborn 930-GTD Drip-Free Smooth Hex Rod Cradle Caulking Gun. Please read all instructions carefully before assembly, operation, or maintenance. Keep this manual for future reference.
Important Safety Information
Always follow basic safety precautions to reduce the risk of injury. Failure to follow these instructions may result in serious injury or property damage.
- Read and understand all instructions before use.
- Keep children and pets away from the work area.
- Wear appropriate personal protective equipment (PPE) such as safety glasses and gloves.
- Inspect products for damage before each use. Do not use if damaged.
- Use products only for their intended purpose.
Cosco Three Step Max Steel Work Platform
1. Setup and Unfolding
The Cosco Three Step Max Steel Work Platform is designed for easy setup. Ensure the platform is placed on a firm, level surface before unfolding.
- Grasp the top handle and the top step.
- Pull the front and back sections apart until the platform is fully extended and locked into place. Ensure all four legs are firmly on the ground.
- Verify that the locking mechanism (if present) is engaged to prevent accidental folding.
Image: The Cosco Three Step Max Steel Work Platform shown fully unfolded and stable, ready for use.
2. Operating Instructions
- Weight Capacity: Do not exceed the maximum weight capacity specified for this platform. Refer to product labeling for specific limits.
- Standing Position: Always stand on the center of the steps or platform. Avoid leaning too far to one side.
- Stability: Ensure the platform is stable before stepping onto it. Do not use on uneven or slippery surfaces.
- Extended Grip Handle: Utilize the extended grip handle for added stability and balance while working.
- Utility Tray: The deluxe molded utility tray can hold small tools or supplies. Do not overload the tray.
Image: A person safely using the Cosco Three Step Max Steel Work Platform to reach a higher area for painting, demonstrating proper use of the platform and handle.
3. Maintenance and Storage
- Cleaning: Wipe down the platform with a damp cloth and mild detergent. Avoid abrasive cleaners.
- Inspection: Regularly inspect all components, including steps, legs, and hinges, for wear or damage.
- Storage: Fold the platform for compact storage. Store in a dry place away from extreme temperatures.
Image: The Cosco Three Step Max Steel Work Platform shown folded and stored compactly in a garage setting, demonstrating its space-saving design.
4. Specifications (Work Platform)
| Feature | Detail |
|---|---|
| Material | Alloy Steel |
| Steps | 3 Steps |
| Features | Large platform top step, extended grip handle, deluxe molded utility tray |
| Assembly Required | No |
Newborn 930-GTD Drip-Free Smooth Hex Rod Cradle Caulking Gun
1. Setup and Cartridge Loading
Proper preparation of the caulk cartridge is crucial for effective application.
- Prepare Cartridge: Use the built-in spout cutter to cut the tip of the caulk cartridge at a 45-degree angle to the desired bead size.
- Puncture Seal: Use the built-in seal puncture tool (rod) to break the inner seal of the cartridge. Ensure the seal is fully punctured to allow caulk flow.
- Load Cartridge: Pull the plunger rod all the way back. Insert the caulk cartridge into the half-barrel frame, nozzle first. Push the plunger rod forward until it makes contact with the back of the cartridge.
Image: The Newborn 930-GTD Drip-Free Smooth Hex Rod Cradle Caulking Gun, showcasing its design and features.
Image: A caulk cartridge being inserted into the Newborn 930-GTD Caulking Gun, demonstrating the loading process.

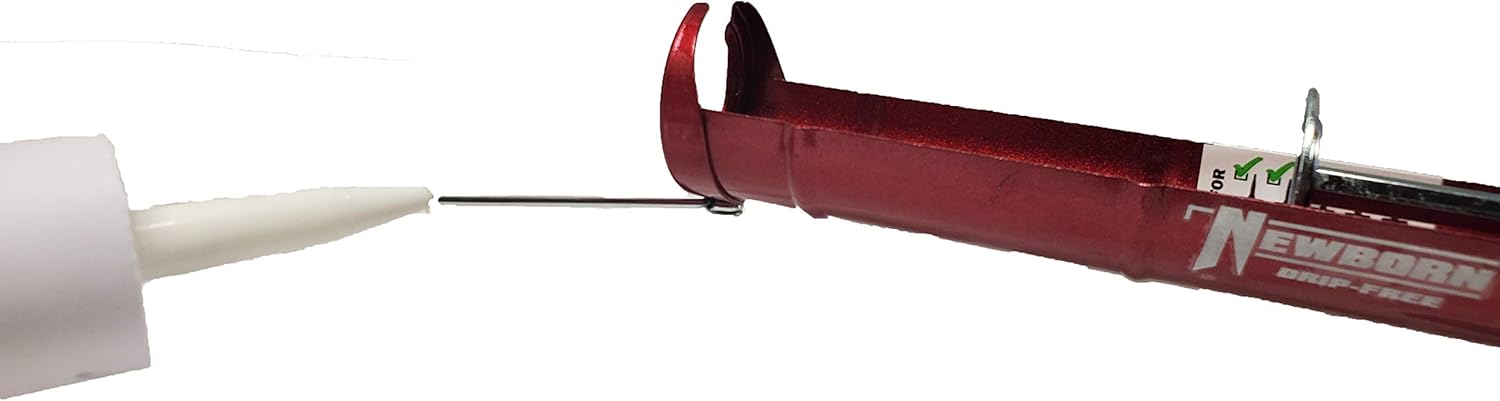

Image: Close-up view of the Newborn 930-GTD Caulking Gun showing the integrated spout cutter and puncture tool in use, preparing a caulk cartridge.
2. Operating Instructions
- Dispensing: Squeeze the trigger repeatedly to dispense caulk. Apply steady pressure and move the gun along the seam at a consistent speed for an even bead.
- Drip-Free Feature: The smooth pressure rod automatically retracts after each trigger pull, relieving pressure on the cartridge to help prevent dripping.
- Comfort Grip: The padded handle and trigger are designed for comfort during extended use.
- Hanging Hook: Use the hook on the back of the gun to hang it on a ladder or other convenient location when not in immediate use.
3. Maintenance and Storage
- Cleaning: After use, remove the caulk cartridge. Clean any excess caulk from the gun frame and rod, especially if using water-based sealants. For cured caulk, gentle scraping may be required.
- Storage: Store the caulking gun in a clean, dry place. Ensure the plunger rod is fully retracted to relieve spring tension for long-term storage.
4. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No caulk dispenses | Inner seal not fully punctured; nozzle clogged; cartridge empty. | Ensure seal is fully punctured. Clear nozzle. Replace cartridge. |
| Caulk continues to drip | Plunger rod not fully retracting; material too thin. | Check for obstructions preventing rod retraction. Ensure proper material viscosity for the gun. |
| Difficult to dispense caulk | Material too thick; nozzle cut too small; old/hardened caulk. | Use appropriate caulk for 10:1 thrust ratio. Cut nozzle opening larger. Replace old caulk. |
5. Specifications (Caulking Gun)
| Feature | Detail |
|---|---|
| Frame Type | Steel half-barrel (cradle) |
| Cartridge Size | 1/10-gallon |
| Thrust Ratio | 10:1 (for low viscosity materials) |
| Features | Drip-free smooth pressure rod, padded handle and trigger, built-in seal puncture tool, built-in spout cutter, hanging hook |
Warranty and Support
For warranty information or technical support, please refer to the manufacturer's website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
- Cosco Customer Service: Visit Cosco Products Contact Page
- Newborn Brothers Customer Service: Visit Newborn Caulkguns Contact Page
