FASDUNT High Pressure Handheld Shower Head User Manual

1. Introduction

Thank you for choosing the FASDUNT High Pressure Handheld Shower Head. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new shower head. Please read this manual thoroughly before use and retain it for future reference.

2. Safety Information

• Ensure all connections are tight to prevent leaks.
• Do not use abrasive cleaners or harsh chemicals on the shower head, as this may damage the finish.
• Always check water temperature before use to prevent scalding.
• Keep out of reach of children when not in use.

3. Package Contents

Verify that all components are present in the package:

• 1 x Handheld Shower Head
• 1 x 80-inch Stainless Steel Shower Hose
• 1 x Teflon Tape
• 1 x Water Flow Restrictor (pre-installed)
• 1 x Adjustable Mount Holder

Image showing the complete package contents: handheld shower head, 80-inch hose, Teflon tape, water flow restrictor, and adjustable mount holder.

4. Setup and Installation

The FASDUNT shower head is designed for easy, hand-tightened installation. No special tools are required.

Installation Steps:

1. Ensure your existing shower arm is clean and free of debris.
2. Wrap the threads of your shower arm with the provided Teflon tape (clockwise direction, 3-5 wraps).
3. Screw the adjustable mount holder onto the shower arm and hand-tighten.
4. Connect one end of the 80-inch stainless steel hose to the adjustable mount holder and hand-tighten. Ensure the pre-installed rubber washer is in place.
5. Connect the other end of the hose to the handheld shower head and hand-tighten. Ensure the pre-installed rubber washer is in place.
6. Place the handheld shower head into the adjustable mount holder.
7. Turn on the water supply and check for any leaks. If leaks occur, tighten connections slightly.

Water Flow Restrictor:

The shower head comes with a pre-installed water flow restrictor. If you desire higher water pressure, this restrictor can be removed. Refer to the diagram below for visual guidance on installation and restrictor removal.

Diagram illustrating the easy hand-tightening installation process and the option to remove the water flow restrictor for increased pressure.

5. Operating Instructions

Your FASDUNT shower head offers multiple spray modes and a unique power wash feature for a customized showering experience.

Spray Modes:

The shower head features 8 adjustable spray modes. Rotate the dial on the shower head to select your desired mode:

• Water Saving: Reduced flow for conservation.
• Rain: Gentle, full-body coverage.
• Rain + Misty: Combination for a soothing experience.
• Misty: Fine, soft mist.
• Misty + Massage: Mist combined with pulsating massage.
• Massage: Pulsating stream for muscle relaxation.
• Wide Fan: Broad, flat spray for rinsing large areas.
• Point Jet: Concentrated, powerful stream for stubborn grime.

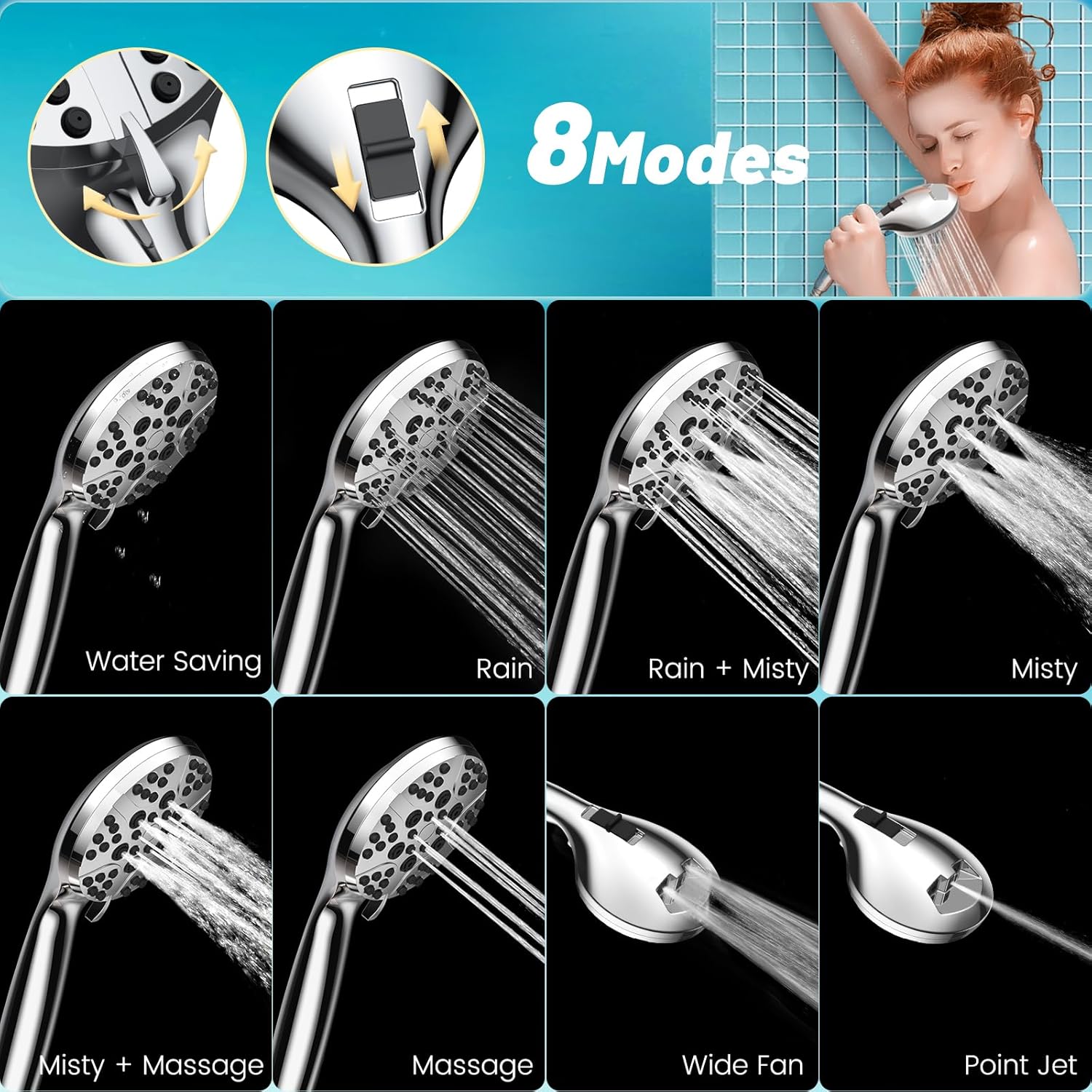

Visual representation of the 8 distinct spray modes available on the shower head.

Built-in 2-Mode Power Wash:

Utilize the integrated 3-way flow switch to activate the specialized power wash modes:

• Point Jet: Instantly flushes away stubborn grime with a focused, high-pressure stream.
• Wide Fan: Quickly rinses large areas with a broad, powerful spray.

Illustration of the 2-mode power wash feature, including Point Jet and Wide Fan, controlled by a 3-way flow switch.

The shower head is designed to provide high pressure even with low water flow, suitable for various water pressure systems.

6. Maintenance

Regular cleaning will ensure optimal performance and longevity of your shower head.

Cleaning the Nozzles:

The FASDUNT shower head features self-cleaning silicone nozzles. To remove mineral buildup or clogs, simply rub the silicone nozzles with your finger or a soft cloth. This dislodges deposits and restores full spray performance.

Close-up view of the self-cleaning silicone nozzles, demonstrating how easy it is to clean them by hand.

Cleaning the Shower Head and Hose:

Wipe the chrome-plated surfaces of the shower head and stainless steel hose with a soft, damp cloth. For tougher stains, use a mild soap solution and rinse thoroughly. Avoid using abrasive cleaners, steel wool, or harsh chemicals, as these can damage the finish.

The 80-inch stainless steel hose is designed to be anti-rust, anti-twist, and anti-leaking, ensuring durability and ease of use.

Image highlighting the durable 80-inch extra long stainless steel hose and premium brass components, designed for anti-rust, anti-twist, and anti-leaking performance.

7. Troubleshooting

8. Specifications

• Brand: FASDUNT
• Model Number: KB3
• Part Number: KB4
• Material: Chrome plated ABS, Stainless Steel Hose, Brass Ball Joint
• Color: Silver
• Style: Modern
• Finish Type: Polished
• Shape: Round
• Mounting Type: Wall Mounted
• Number of Settings: 8 (Mist, Massage, Rain, etc.)
• Item Weight: 671 g
• Product Dimensions: 25.48 x 11.51 x 12.7 cm
• Batteries Required: No
• Included Components: Handheld Shower Head, Hose, Mount, Teflon Tape, Restrictor

9. Warranty and Support

Specific warranty information for this product is not provided in the available data. For details regarding warranty coverage, returns, or technical support, please contact the FASDUNT customer service or refer to the seller's policy where the product was purchased.

You may also visit the FASDUNT brand store for more information: FASDUNT Store
