1. Introduction
This manual provides essential instructions for the safe assembly, operation, and maintenance of your tectake 3x3m Gazebo. Please read this manual thoroughly before use and retain it for future reference.
2. Safety Information
Important Safety Warning:
This gazebo is designed for temporary outdoor use and does not provide protection in storms or very severe weather conditions. In such cases, the gazebo should not be used and must be disassembled or secured indoors to prevent damage or injury. Failure to follow this warning may result in damage to the product or personal injury.
- Ensure all components are securely fastened during assembly and use.
- Do not use the gazebo near open flames or heat sources.
- Always anchor the gazebo securely using the provided guy ropes and pegs. Consider additional weights in windy conditions.
- Keep children and pets away from the assembly area.
- Regularly inspect the gazebo for any signs of wear or damage. Do not use if damaged.
3. Package Contents
Verify that all components listed below are present before beginning assembly:
- Gazebo frame (powder-coated steel)
- Roof tarpaulin (waterproof, UV protection)
- 3 removable side panels with windows
- 4 guy ropes
- 8 pegs
- Assembly instructions (this manual)

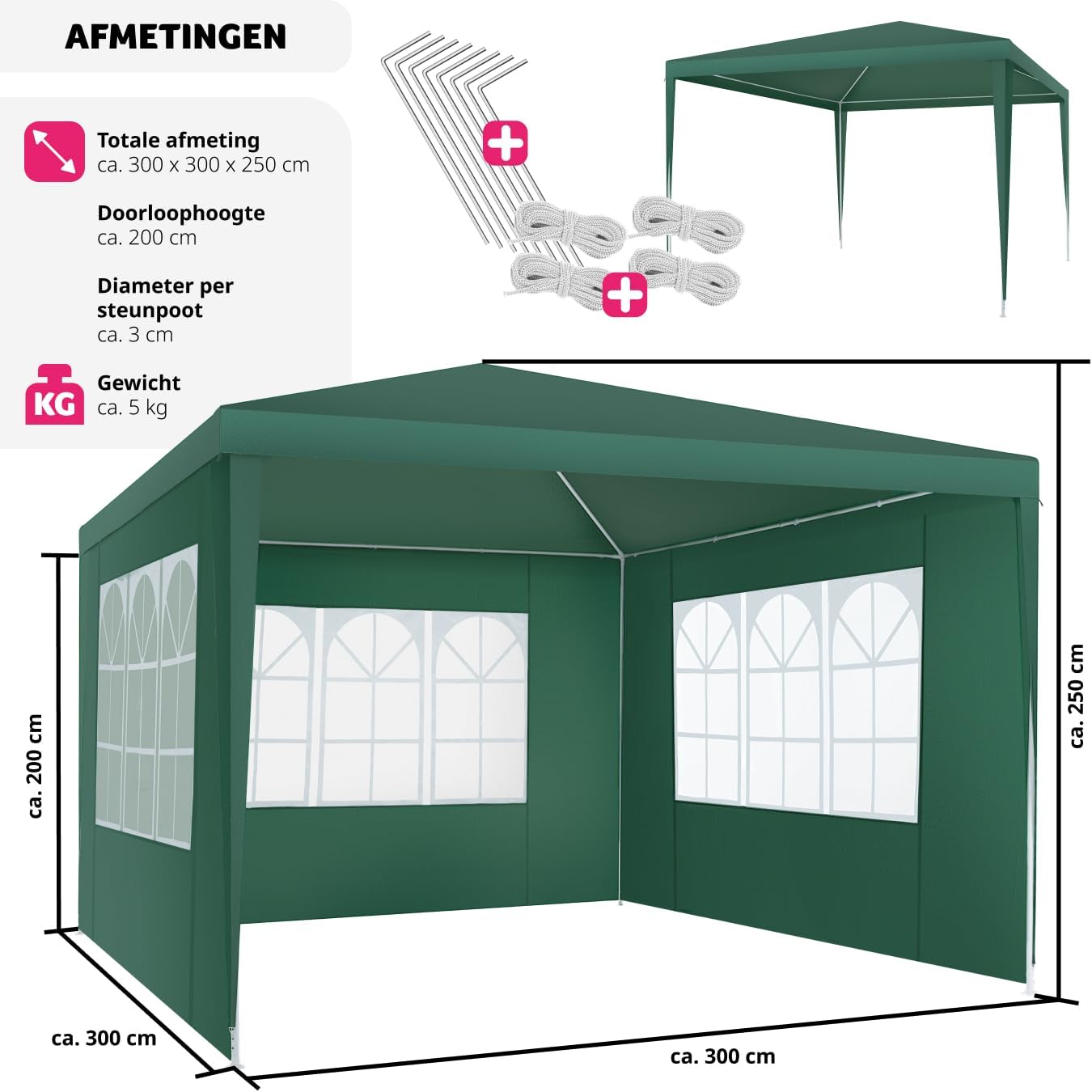

Figure 1: Overview of gazebo dimensions and included parts.
4. Setup and Assembly
The tectake Gazebo features a practical plug-in system for quick and tool-free assembly. It is recommended that two people assemble the gazebo.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Verify all package contents are present.
- Assemble Frame: Connect the powder-coated steel frame poles according to the assembly diagram (refer to Figure 1 for general structure). The poles are designed to fit together easily. Ensure all connections are fully inserted and secure.
- Attach Roof Tarpaulin: Drape the roof tarpaulin over the assembled frame. Ensure the tarpaulin is correctly oriented and evenly distributed. Secure the tarpaulin to the frame using any integrated fasteners (e.g., Velcro straps, ties).
- Install Side Panels (Optional): The three side panels can be attached using the integrated Velcro fasteners. Align the panels with the frame legs and press the Velcro strips firmly to secure them. The large windows should face outwards.
- Anchor the Gazebo: Once the frame and roof are assembled, position the gazebo in your desired location. Use the provided guy ropes and pegs to securely anchor each leg and corner to the ground. For enhanced stability, especially in light winds, consider using additional weights on the gazebo legs.
Figure 2: Details of frame connections, fabric attachment, and ground anchoring.
Figure 3: Fully assembled gazebo with side panels.
5. Operating Instructions
- Side Panel Usage: The three side panels can be easily attached or removed using the Velcro fasteners to adapt to changing weather conditions or privacy needs.
- Weather Protection: The roof tarpaulin is waterproof and offers UV protection (30+). However, it is not designed for heavy rain, strong winds, or storms. Refer to the Safety Information section.
- Disassembly: To disassemble, reverse the assembly steps. Ensure all components are clean and dry before storing.
6. Maintenance
- Cleaning: The tarpaulin and frame are easy to clean. Use a damp cloth and mild soap to wipe down surfaces. Avoid harsh chemicals or abrasive cleaners.
- Storage: When not in use, especially during off-season or anticipated severe weather, disassemble the gazebo and store all components in a dry, protected area to prolong its lifespan.
- Inspection: Periodically check all frame connections, fabric, guy ropes, and pegs for wear, damage, or corrosion. Replace any damaged parts immediately.
7. Troubleshooting
- Gazebo Instability: Ensure all frame poles are fully connected and the gazebo is properly anchored with all guy ropes and pegs. Consider adding sandbags or weights to the legs for extra stability in windy conditions.
- Water Pooling on Roof: Ensure the roof tarpaulin is taut and correctly positioned to allow water runoff. Adjust frame connections if necessary to maintain proper tension.
- Difficulty with Side Panels: Check that Velcro fasteners are clean and properly aligned. Ensure the panels are not snagged or twisted.
- Damage from Weather: As stated in the safety information, the gazebo is not designed for severe weather. If damage occurs due to strong winds, heavy rain, or storms, assess the extent of the damage. Replacement parts may be available from the manufacturer or retailer.
8. Specifications
| Feature | Specification |
|---|---|
| Total Dimensions (L x W x H) | Approx. 300 x 300 x 250 cm (3L x 3W x 2.5H Meters) |
| Passage Height | Approx. 200 cm |
| Leg Diameter | Approx. 3 cm |
| Tarpaulin Thickness | 95 g/m² |
| UV Protection | 30+ |
| Weight | Approx. 5.2 kg |
| Material (Frame) | Powder-coated steel, Alloy Steel |
| Material (Tarpaulin) | Polyethylene |
| Water Resistance Level | Waterproof |
| Model Number | 404813 |
9. Warranty Information
Specific warranty details for the tectake 3x3m Gazebo are not provided in this manual. Please refer to the purchase documentation or contact your retailer for information regarding warranty coverage and terms.
10. Support
For technical assistance, missing parts, or further inquiries, please contact the retailer from whom you purchased this product or visit the official tectake website for support resources.
