AFX Montclair 30'' LED Semi-Flush Mount Instruction Manual

1. Product Overview

The AFX Montclair 30'' LED Semi-Flush Mount is a lighting fixture designed for ceiling installation. It features a LumaFuse laminated fabric/acrylic shade, engineered for durability and ease of cleaning. A stepped white bottom acrylic diffuser is integrated to ensure even light distribution. This model is available in various sizes and shade colors.

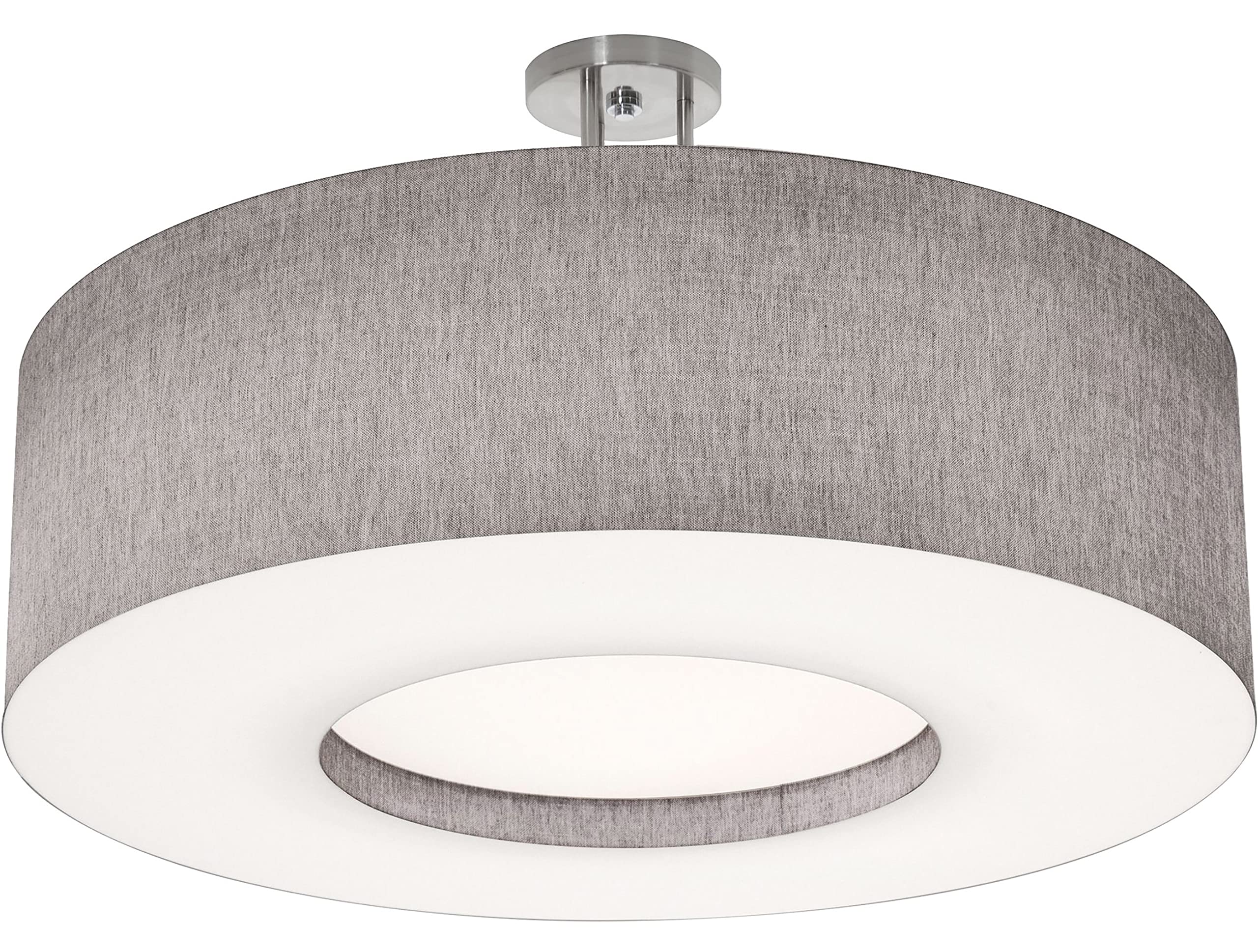

Image 1.1: AFX Montclair 30'' LED Semi-Flush Mount, showcasing the grey shade and satin nickel finish.

2. Safety Information

WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these instructions:

• Turn off power at the circuit breaker or fuse box before installation or servicing.
• Consult a qualified electrician if you are unsure about the installation process.
• Ensure all electrical connections are made in accordance with local codes and ordinances.
• Do not install this fixture in wet locations.
• This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

3. What's in the Box

Verify that all components are present before beginning installation:

• Semi-Flush Mount Fixture (including integrated LED light source)
• Shade (Grey)
• Mounting Hardware (screws, wire nuts, etc.)
• Installation Instructions

4. Setup and Installation

This fixture is designed for flush mount installation and requires assembly. Professional installation is recommended.

4.1 Pre-Installation

1. Turn off power at the main circuit breaker.
2. Unpack all components and inspect for any damage.
3. Review the included wiring diagram.

4.2 Mounting the Fixture

1. Attach the mounting bracket to the junction box using the provided screws.
2. Make electrical connections: connect the fixture's black wire to the supply's black wire, white to white, and ground to ground. Secure with wire nuts.
3. Carefully tuck all wires into the junction box.
4. Align the fixture base with the mounting bracket and secure it with the decorative nuts or screws.

4.3 Attaching the Shade and Diffuser

1. Place the grey fabric shade onto the fixture according to the specific instructions provided in the packaging.
2. Install the white acrylic diffuser into the bottom of the shade, ensuring it is securely seated.

Image 1.2: Detail view of the LumaFuse laminated fabric shade and the stepped white acrylic diffuser.

5. Operating Instructions

This LED fixture is designed for dimmable operation and offers adjustable color temperature.

5.1 Dimming Functionality

The fixture supports two dimming protocols:

• 0-10V Dimming: Compatible with 0-10V dimmers (120-277V systems). Connect the purple and gray dimming wires to the corresponding dimmer wires.
• TRIAC/ELV Dimming: Compatible with standard TRIAC or ELV (Electronic Low Voltage) dimmers (120V systems). Ensure your dimmer is rated for LED loads.

Consult your dimmer's instructions for proper wiring and operation.

5.2 5-in-1 CCT (Correlated Color Temperature) Adjustment

The integrated LED offers 5 selectable Correlated Color Temperatures. Refer to the specific instructions included with your fixture for details on how to select the desired CCT setting. This typically involves a switch located on the fixture body or driver before final installation.

6. Maintenance

Regular maintenance ensures optimal performance and longevity of your fixture.

• Cleaning: Turn off power before cleaning. Wipe the exterior surfaces with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or shade material. The LumaFuse shade is designed for easy cleaning.
• LED Light Source: The LED light source is integrated and non-removable. It is designed for long-term operation and does not require bulb replacement.

7. Troubleshooting

If the fixture does not operate correctly, refer to the following common issues:

• Light does not turn on:
  • Check that the power supply is on at the circuit breaker.
  • Verify all wire connections are secure.
  • Ensure the wall switch is in the 'ON' position.
• Light flickers or dims improperly:
  • Confirm that the dimmer switch is compatible with LED fixtures and the correct dimming protocol (0-10V or TRIAC/ELV) is used.
  • Check for loose wiring connections.

If issues persist, contact customer support.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact AFX customer service directly. Keep your proof of purchase for warranty claims.

Manufacturer: AFX
