Introduction
Thank you for choosing the Creekstone 620 GPH Submersible Pond Pump. This pump is designed to provide efficient water circulation for your pond, featuring an inline flow control valve, a removable filter, and a stable stand with suction cup feet. It includes two adapters for versatile water features: a sprinkler head and a waterfall head. Please read this manual thoroughly before installation and operation to ensure proper use and longevity of your pump.
Safety Information
- Electrical Safety: Always disconnect the pump from the power supply before handling, installing, or performing any maintenance. Ensure the power outlet is a grounded, GFCI-protected receptacle. Do not operate the pump if the power cord is damaged.
- Water Temperature: Do not use this pump with water temperatures exceeding 95°F (35°C).
- Submersion: This pump is designed for submersible use only. Ensure it is fully submerged in water during operation to prevent overheating.
- Children and Pets: Keep children and pets away from the pond and pump area during operation and maintenance.
- Intended Use: This pump is intended for use in ponds and water features. Do not use it for flammable liquids, corrosive chemicals, or in swimming pools.
Package Contents
Verify that all components are present before beginning installation:
- Creekstone 620 GPH Submersible Pond Pump
- Inline Flow Control Valve
- Removable Filter
- Removable Stand with Suction Cup Feet
- Sprinkler Head Adapter
- Waterfall Head Adapter
- Various connection fittings (as shown in image)
Image 1: Included adapters and fittings for the Creekstone 620 GPH Submersible Pond Pump. These components allow for customization of water flow and feature types.
Setup
- Assemble the Pump: Attach the removable stand to the bottom of the pump. The suction cup feet will help secure the pump to the pond's surface.
- Connect Output:
- For Sprinkler/Fountain: Connect the desired sprinkler head adapter to the pump's outlet. Ensure a tight fit.
- For Waterfall/Filter System: Connect the waterfall head adapter or appropriate tubing (not included) to the pump's outlet. Use the inline flow control valve if precise flow adjustment is needed.
- Position the Pump: Place the assembled pump in the desired location within your pond, ensuring it is fully submerged. The suction cups on the stand will help keep it stable.
- Connect to Power: Route the power cord safely to a grounded, GFCI-protected electrical outlet. Do not plug in the pump yet.

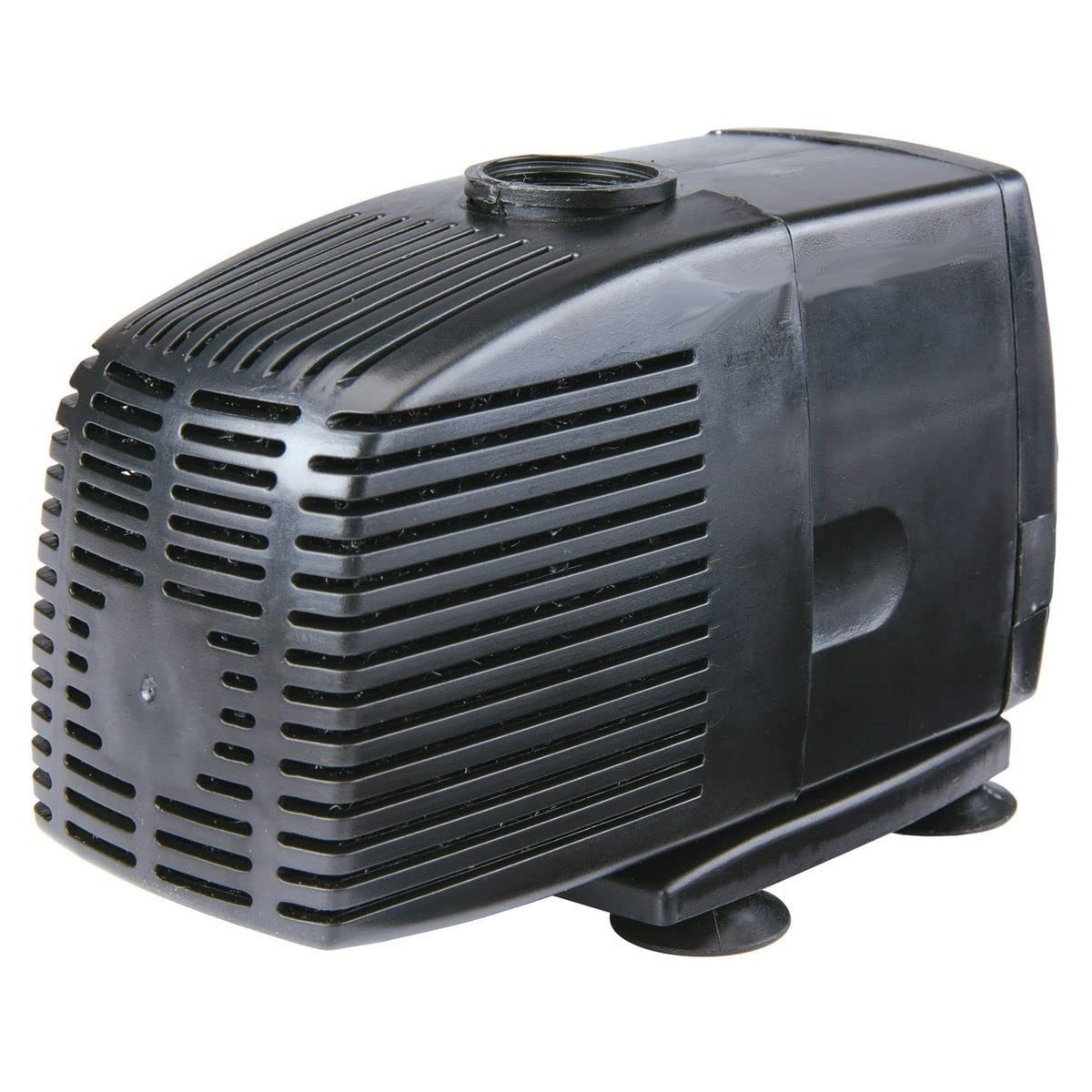

Image 2: The Creekstone 620 GPH Submersible Pond Pump, ready for assembly and placement in a pond.
Operating Instructions
- Initial Start-up: Once the pump is fully submerged and all connections are secure, plug the pump into the GFCI-protected outlet. The pump should start circulating water immediately.
- Adjusting Flow: If you are using the inline flow control valve, rotate the valve to increase or decrease the water flow rate to achieve your desired effect for the sprinkler or waterfall.
- Continuous Operation: The pump is designed for continuous operation. Monitor water levels to ensure the pump remains fully submerged.
Maintenance
Regular maintenance ensures optimal performance and extends the life of your pump.
- Filter Cleaning:
- Disconnect the pump from the power supply.
- Carefully remove the pump from the pond.
- Locate and remove the filter cover. The filter is designed for easy removal.
- Rinse the filter thoroughly under clean running water to remove debris. For stubborn buildup, a soft brush may be used.
- Reinsert the clean filter and secure the cover.
- Return the pump to the pond and reconnect power.
- Impeller Cleaning: Periodically inspect the impeller for blockages from debris like leaves or algae. Disconnect power, remove the filter, and gently clear any obstructions.
- Winter Storage: In freezing climates, remove the pump from the pond before the first freeze. Clean it thoroughly, dry it, and store it in a frost-free location.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not run | No power; clogged impeller; damaged motor. | Check power connection and GFCI. Disconnect power and clean impeller. If motor is damaged, contact support. |
| Low water flow | Clogged filter; partially closed flow control valve; low water level. | Clean the filter. Open the flow control valve fully. Ensure pump is fully submerged. |
| Pump is noisy | Debris in impeller; pump not stable. | Disconnect power and clean impeller. Ensure pump is securely placed on its stand with suction cups. |
Specifications
- Model: Creekstone 620 GPH Submersible Pond Pump
- Flow Rate: Up to 620 Gallons Per Hour (GPH)
- Power Source: Electric
- Material: Plastic, Polypropylene (PP)
- Style: Submersible
- Color: Black
- UPC: 792363633147
- ASIN: B0C3B1FF95
Warranty and Support
This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the packaging or contact the retailer where the product was purchased. For technical support or assistance with troubleshooting, please contact the manufacturer's customer service department.
Please retain your proof of purchase for warranty claims.
