1. Introduction and Product Overview
Thank you for choosing the tectake Ergonomic Office Chair, Model 404781. This chair is designed to provide comfort and support for extended periods of sitting, featuring a thick double-layer padding, high backrest, adjustable gas lift, and a tilt function. The durable faux leather surface ensures longevity and ease of maintenance. This manual provides essential information for safe assembly, operation, and care of your new office chair.
Image 1.1: The tectake Ergonomic Office Chair in a modern office environment.
2. Safety Instructions
- Read all instructions before assembly and use.
- Ensure all components are present and undamaged before assembly. Do not use if any parts are missing or damaged.
- Do not stand on the chair. Use it only for sitting.
- Do not exceed the maximum weight capacity (refer to specifications).
- Keep children and pets away from the chair during assembly.
- Periodically check all screws and fasteners to ensure they remain tight.
- Avoid exposing the chair to direct sunlight or extreme temperatures to prevent material degradation.
3. Package Contents
Please verify that all the following components are included in your package:
- Backrest
- Seat cushion
- Armrests (2x)
- Star base
- Casters (5x)
- Gas lift cylinder
- Gas lift cover
- Mechanism plate
- Assembly hardware (screws, washers, Allen key)
4. Setup and Assembly
Follow these steps to assemble your tectake office chair. It is recommended to assemble the chair on a soft, clean surface to prevent damage.
- Attach Casters to Star Base: Insert each of the five casters into the holes at the end of each leg of the star base. Push firmly until they click into place.
- Insert Gas Lift: Place the gas lift cylinder into the central hole of the star base. Cover the gas lift with the plastic cover.
- Attach Mechanism Plate to Seat: Align the mechanism plate with the pre-drilled holes on the underside of the seat cushion. Ensure the front of the mechanism plate faces the front of the seat. Secure with screws and washers using the provided Allen key.
- Attach Armrests to Seat: Attach the armrests to the sides of the seat cushion using the designated screws. Do not fully tighten yet.
- Attach Backrest to Armrests and Seat: Align the backrest with the armrests and the rear of the seat. Secure the backrest to the armrests and the seat using the remaining screws. Once all screws are in place, tighten all armrest and backrest screws evenly.
- Connect Seat Assembly to Gas Lift: Carefully place the assembled seat and backrest onto the gas lift cylinder, ensuring the central hole of the mechanism plate aligns with the top of the gas lift.
Image 4.1: Dimensional diagram of the office chair, illustrating key components and measurements for assembly reference.
5. Operating Instructions
Your tectake office chair offers several adjustment features to customize your seating experience:
- Height Adjustment: To raise the chair, lift the lever located under the right side of the seat while taking your weight off the seat. To lower the chair, lift the lever while remaining seated. Release the lever to lock the height.
- Tilt Function: The chair features a continuous tilt mechanism. To activate the tilt, pull the lever outwards. To lock the chair in an upright position, push the lever inwards.
- Tilt Tension Adjustment: The round knob located under the seat (usually at the front) allows you to adjust the tension of the tilt mechanism. Turn clockwise to increase tension (making it harder to tilt) or counter-clockwise to decrease tension (making it easier to tilt).

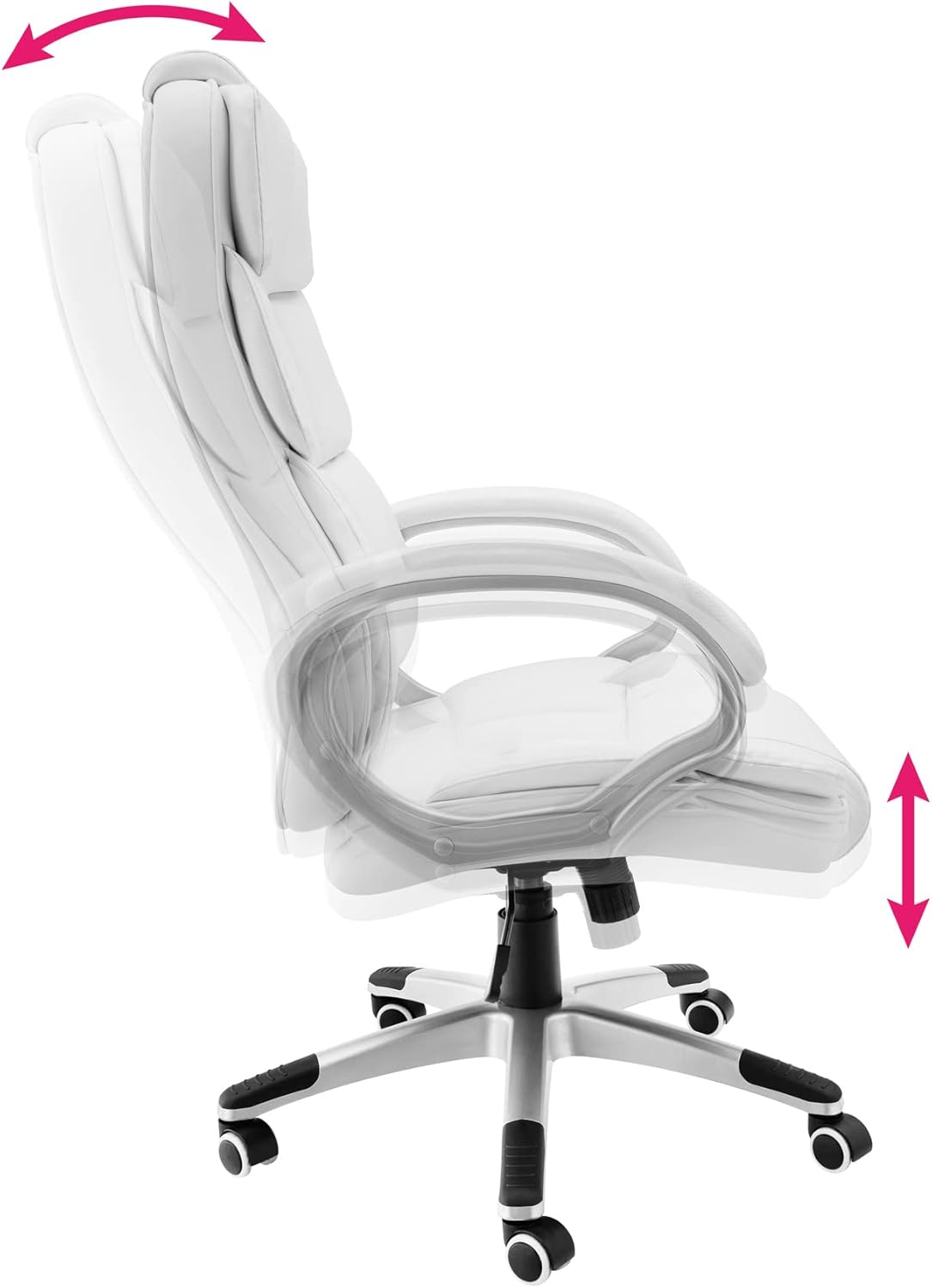

Image 5.1: Illustration of the chair's height and tilt adjustment capabilities.
Image 5.2: Detail of the control lever for height adjustment and tilt lock/unlock.
6. Maintenance
Proper maintenance will extend the life and appearance of your office chair:
- Cleaning: Wipe the faux leather surfaces with a soft, damp cloth. For stubborn stains, use a mild soap solution and then wipe with a clean, damp cloth. Avoid harsh chemicals or abrasive cleaners.
- Hardware Check: Periodically (e.g., every 3-6 months) check all screws and bolts to ensure they are tight. Retighten as necessary to maintain stability and safety.
- Caster Care: Keep the casters free of hair, dust, and debris to ensure smooth movement. Clean them regularly with a brush or vacuum cleaner.
- Gas Lift: The gas lift is a sealed unit and requires no maintenance. If it fails to function, contact customer support.
7. Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair is wobbly or unstable | Loose screws or bolts | Check and tighten all assembly screws, especially those connecting the armrests, backrest, and mechanism plate. |
| Chair does not adjust height | Gas lift malfunction or lever not engaged | Ensure the lever is fully engaged. If the gas lift is faulty, it may need replacement. Contact customer support. |
| Chair squeaks when moving | Loose connections or friction between parts | Tighten all screws. Apply a small amount of silicone lubricant to moving parts or contact points if necessary. |
| Casters do not roll smoothly | Debris in casters | Remove any hair, dust, or debris from the caster wheels. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | tectake |
| Model Number | 404781 |
| Color | Black |
| Material | Faux Leather (Polyurethane), Leather, Polychlorure de vinyle (Frame) |
| Overall Dimensions (L x W x H) | 71 x 70 x 123 cm (28 x 27.6 x 48.4 inches) |
| Adjustable Height Range | Approx. 115-123 cm (45.3-48.4 inches) |
| Seat Height Range | Approx. 47-55 cm (18.5-21.7 inches) |
| Seat Dimensions (W x D) | Approx. 55 x 52 cm (21.7 x 20.5 inches) |
| Backrest Height | Approx. 68.5-76.5 cm (27-30.1 inches) |
| Armrest Height | Approx. 68.5-76.5 cm (27-30.1 inches) |
| Weight | 17.8 Kilograms (39.2 lbs) |
| Special Features | Armrests, Ergonomic Design, Rolling Casters, Tilt Function |
9. Warranty and Support
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. If you require technical assistance or have questions regarding your tectake office chair, please contact tectake customer support through their official website or the retailer where the product was purchased.
