1. Introduction
This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your Adoolla 14000 BTU Portable Air Conditioner. Please read this manual thoroughly before using the appliance and retain it for future reference.
The Adoolla 14000 BTU Portable Air Conditioner is designed to provide cooling, dehumidification, and fan functions for rooms up to 750 square feet. It features a dual motor design for enhanced cooling efficiency and includes multiple operating modes to suit various environmental conditions.
2. Safety Information
To reduce the risk of fire, electric shock, or injury when using your air conditioner, follow these basic precautions:
- Read all instructions before using the appliance.
- Ensure the power supply matches the voltage specified on the rating label.
- Do not operate the air conditioner with a damaged cord or plug.
- Do not insert fingers or foreign objects into the air inlet or outlet.
- Keep the appliance away from flammable materials and open flames.
- Always unplug the unit before cleaning or servicing.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Package Contents
Verify that all items listed below are included in your package:
- 1x Portable Air Conditioner Unit
- 1x LED Remote Control
- 1x Exhaust Hose
- 1x Window Vent Installation Kit (window slider kit)
- 1x Drain Hose
4. Product Overview
Familiarize yourself with the main components of your portable air conditioner.
Control Panel and Remote Control
The unit can be operated using the integrated touch panel or the included remote control. The control panel features buttons for power, mode selection, fan speed, timer, and temperature adjustment. The remote control provides convenient access to all functions from a distance.
5. Installation
Follow these steps to properly install your portable air conditioner for optimal performance.
Window Kit Installation
- Measure your window opening to ensure it is compatible with the window vent installation kit. The kit is designed for double/single-hung windows and sliding windows with heights between 20.47 inches and 39.9 inches.
- Assemble the window slider kit by connecting the extension pieces as needed to fit your window frame securely.
- Place the assembled window kit into the window opening and extend it to fit snugly. Close the window against the kit to hold it in place.
- Attach one end of the exhaust hose to the air conditioner unit and the other end to the opening in the window kit. Ensure both connections are secure to prevent air leakage.
6. Operating Instructions
Your portable air conditioner offers multiple operating modes to provide comfort.
Operating Modes
- Cooling Mode: Provides powerful cooling for the room. Set your desired temperature between 64°F and 90°F.
- Dehumidification Mode (Dry): Reduces humidity in the air, removing up to 80 pints per day.
- Fan Mode: Circulates air without cooling. Choose between High, Low, or Auto fan speeds.
- ECO Mode: Optimizes energy consumption while maintaining comfort.
- Sleep Mode: Operates quietly with reduced fan speed and gradual temperature adjustments for comfortable sleep.
Using the Remote Control
Point the remote control directly at the receiver on the air conditioner unit. The remote allows you to power on/off, select modes, adjust temperature, set fan speed, and activate the timer or sleep function.
7. Maintenance
Regular maintenance ensures the longevity and efficiency of your air conditioner.
Cleaning the Air Filter
The air filter should be cleaned regularly (e.g., every two weeks, depending on usage) to maintain air quality and cooling performance. A dirty filter can restrict airflow and reduce efficiency.
- Unplug the air conditioner from the power outlet.
- Locate the air filter panel, typically on the rear or side of the unit.
- Remove the filter.
- Clean the filter with a vacuum cleaner or wash it with warm, soapy water. Rinse thoroughly and allow it to air dry completely before reinserting.
- Reinstall the dry filter and close the panel.
Draining Water

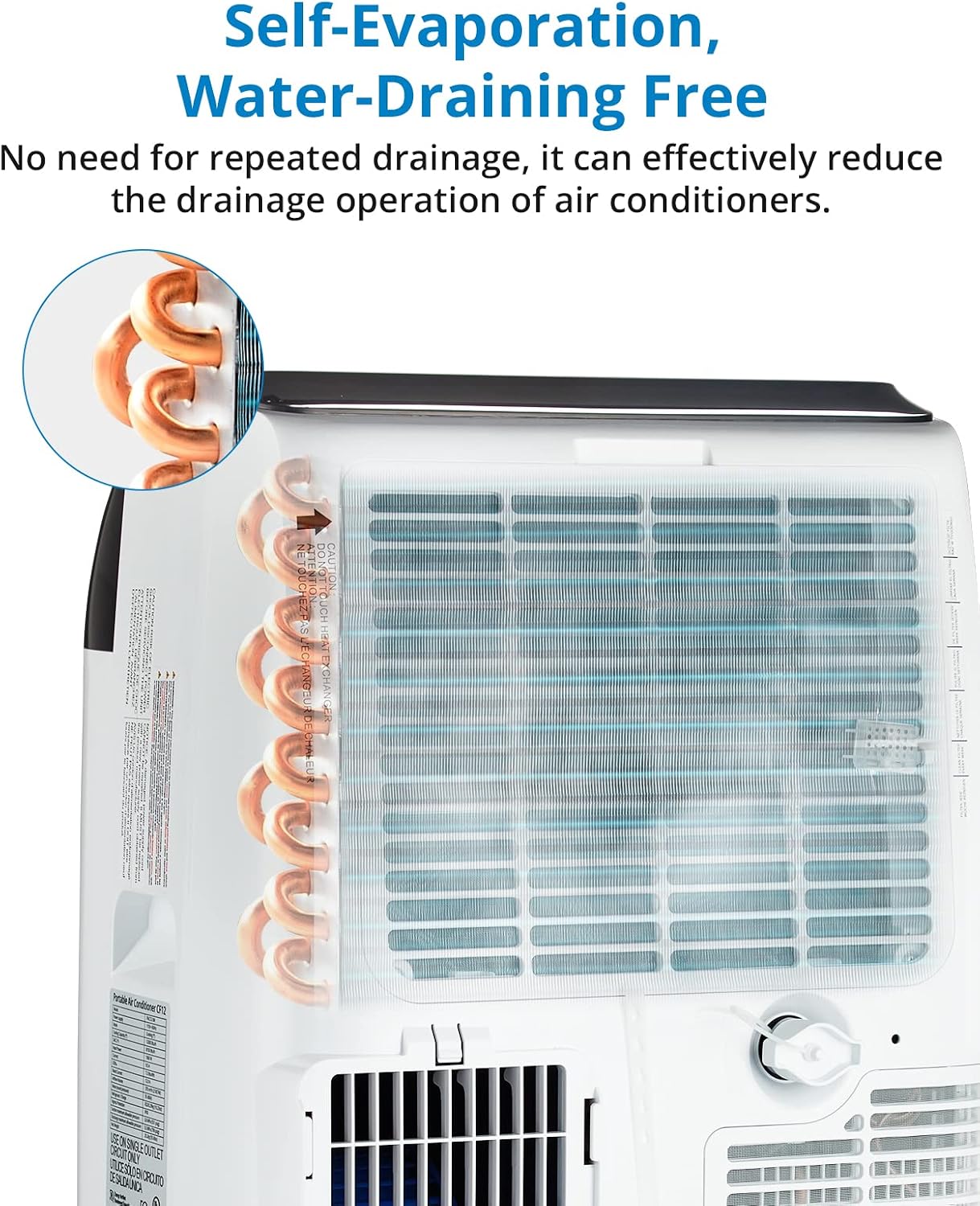

This unit features a self-evaporation system that minimizes the need for manual draining. However, in high humidity conditions, the internal water tank may fill up. When this occurs, the unit will stop operating and display an error code (e.g., 'FL' for full tank).
- Unplug the air conditioner.
- Locate the drain port at the bottom rear of the unit.
- Place a shallow pan or tray beneath the drain port.
- Remove the drain plug to allow water to flow out.
- Once drained, replace the drain plug securely.
8. Troubleshooting
Refer to this section for solutions to common issues you may encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | No power supply; Power cord not plugged in; Fuse blown or circuit breaker tripped. | Ensure unit is plugged into a working outlet; Check household fuse/circuit breaker. |
| Unit does not cool effectively | Dirty air filter; Room too large; Doors/windows open; Exhaust hose not properly installed; Temperature setting too high. | Clean air filter; Ensure room size is within capacity (750 sq ft); Close all doors/windows; Check exhaust hose connection; Lower the set temperature. |
| Unit is noisy | Unit not on a level surface; Air filter dirty. | Place unit on a flat, stable surface; Clean air filter. |
| Water leakage | Drain plug loose; Unit tilted. | Ensure drain plug is securely in place; Place unit on a level surface. |
| Error code displayed | Specific internal issue; Water tank full (e.g., 'FL'). | Refer to specific error code in a more detailed manual (if available) or contact customer support. For 'FL', drain the water tank. |
If the problem persists after attempting these solutions, please contact customer support.
9. Specifications
| Feature | Specification |
|---|---|
| Model Number | 14000 btu |
| Cooling Capacity | 14000 BTU |
| Coverage Area | Up to 750 Square Feet |
| Product Dimensions (D x W x H) | 16.4" x 14" x 27.5" |
| Item Weight | 64.8 pounds |
| Voltage | 115V |
| Noise Level | 54 dB (as low as 48 dB in Sleep Mode) |
| Dehumidification Capacity | 80 Pints/Day |
| Special Feature | 4 Way Swing |
| Warranty | 1 year manufacturer |
10. Warranty and Support
Adoolla provides the following support for your product:
- Warranty: 1-year manufacturer warranty.
- Returns: 30-day unreasonable return policy.
- Maintenance: 12 months free maintenance.
- Parts: Parts replacement available.
- Technical Support: Your inquiries will be responded to within 24 hours.
For warranty claims, technical assistance, or any other support needs, please refer to the contact information provided with your purchase or visit the official Adoolla website.
