1. Introduction
This manual provides essential information for the safe and efficient operation of your Mabe RMF032PYMXX 89 Liter Mini-Refrigerator. Please read these instructions carefully before using the appliance and retain them for future reference. This mini-refrigerator is designed for energy saving and optimal food preservation, making it ideal for small spaces.
2. Safety Information
Important Safety Instructions:
- Ensure the appliance is properly grounded.
- Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Do not damage the refrigerant circuit.
- This appliance uses R600a refrigerant, which is flammable. Handle with care.
- Unplug the appliance before cleaning or performing maintenance.
- Do not allow children to play with the appliance.
3. Unpacking and Installation (Setup)
3.1 Unpacking
- Remove all packaging materials, including foam and adhesive tape.
- Inspect the refrigerator for any damage. Report any damage to your retailer immediately.
- Keep packaging materials out of reach of children.
3.2 Placement
- Place the refrigerator on a firm, level surface.
- Allow at least 10 cm (4 inches) of space around the back and sides of the appliance for proper ventilation.
- Avoid placing the refrigerator in direct sunlight or near heat sources (e.g., stoves, heaters).
- This is a freestanding unit. Do not embed it into cabinetry without ensuring adequate ventilation.
3.3 Electrical Connection
- Ensure the voltage (120 Volts) matches your household power supply.
- Plug the appliance into an exclusive, grounded wall outlet. Do not use extension cords or adapter plugs.
- Allow the refrigerator to stand upright for at least 2-4 hours before plugging it in to allow the refrigerant to settle.
3.4 Dimensions

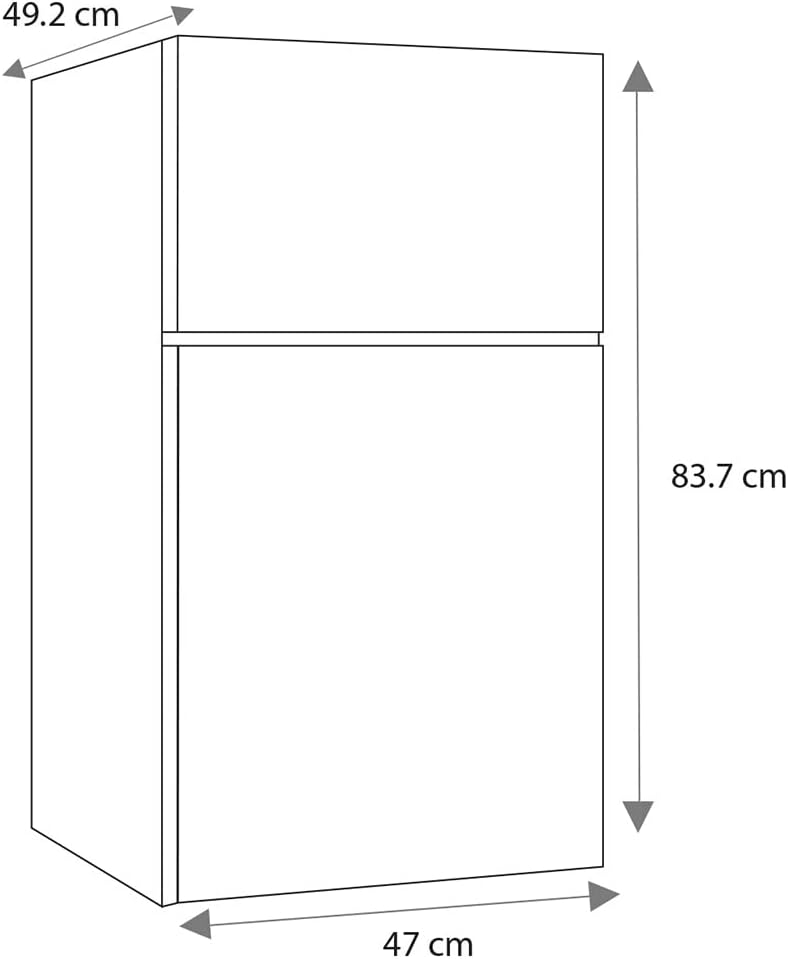

The following diagram illustrates the approximate dimensions of the mini-refrigerator for planning placement:
Note: The overall product dimensions are approximately 55 cm (depth) x 55 cm (width) x 87 cm (height), with a weight of 22 kg. Please refer to the diagram for specific measurements of the main body.
4. Operating Instructions
4.1 Temperature Control
Your mini-refrigerator is equipped with an adjustable thermostat to control the internal temperature. The thermostat dial is typically located inside the refrigerator compartment, near the freezer section.
- Turn the dial to a higher number for colder temperatures and a lower number for warmer temperatures.
- The recommended setting for general use is usually in the middle range.
- Adjust the temperature based on the amount of food stored and ambient room temperature.
4.2 Initial Operation
- After plugging in, allow the refrigerator to cool for 2-3 hours before placing food inside.
- Avoid overloading the refrigerator, as this can hinder proper air circulation and cooling efficiency.
4.3 Internal Freezer Compartment
This model includes a small internal freezer compartment for short-term storage of frozen items. It is not designed for long-term freezing or making large quantities of ice.
4.4 Shelving and Storage
The refrigerator features adjustable shelves and door bins for flexible storage. Arrange items to allow for optimal airflow.
5. Maintenance and Cleaning
5.1 Cleaning the Interior
- Unplug the refrigerator before cleaning.
- Wash the interior with a solution of mild detergent and warm water.
- Wipe dry thoroughly with a soft cloth.
- Removable shelves and drawers can be washed separately.
5.2 Cleaning the Exterior
- Clean the exterior with a soft cloth dampened with mild detergent.
- For stainless steel finishes, use a specialized stainless steel cleaner.
- Do not use abrasive cleaners or harsh chemicals.
5.3 Defrosting
This appliance features an automatic defrost system for the refrigerator compartment. The freezer compartment may require manual defrosting if ice buildup becomes excessive. To manually defrost:
- Unplug the unit.
- Remove all food items from the freezer.
- Leave the freezer door open to allow ice to melt naturally.
- Wipe away melted water and dry the compartment thoroughly before restarting.
6. Troubleshooting
Before contacting customer service, please check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate. | Not plugged in; circuit breaker tripped; power outage. | Check power connection; reset circuit breaker; check household power. |
| Temperature is not cold enough. | Thermostat set too warm; door opened too frequently; warm food placed inside; poor ventilation. | Adjust thermostat to a colder setting; ensure door is closed properly; allow hot food to cool before storing; ensure adequate space around the unit. |
| Unusual noises. | Appliance not level; items rattling inside; normal compressor operation. | Adjust leveling feet; rearrange items; gurgling/humming sounds are normal. |
| Water on floor. | Drain tube blocked or dislodged. | Clear the drain tube; ensure it is correctly positioned. |
7. Specifications
- Brand: Mabe
- Model Number: RMF032PYMXX
- Color: Gray
- Capacity: 89 Liters
- Product Dimensions (Overall): 55 cm (Depth) x 55 cm (Width) x 87 cm (Height)
- Product Weight: 22 kg
- Voltage: 120 Volts
- Annual Energy Consumption: 250 Kilowatts
- Special Features: Energy Efficiency (Home Energy Saver Technology)
- Installation Type: Freestanding
- Number of Doors: 1 (with internal freezer compartment door)
- Defrost System: Automatic (refrigerator compartment)
- Refrigerant: R600a
8. Warranty and Support
For warranty information, please refer to the warranty card included with your product or contact Mabe customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
For technical support, spare parts, or service inquiries, please visit the official Mabe website or contact their customer support line. Ensure you have your model number (RMF032PYMXX) and serial number ready when contacting support.
You can also visit the Mabe Brand Store on Amazon for additional product information and support resources.
