MoNiBloom Folding Transport Wheelchair

1. Introduction

Thank you for choosing the MoNiBloom Folding Transport Wheelchair. This manual provides essential information for the safe and effective use, assembly, operation, and maintenance of your wheelchair. Please read this manual thoroughly before initial use and retain it for future reference.

Important Safety Information

• Always ensure all components are securely fastened before use.
• Do not exceed the maximum weight capacity of 300 pounds (136 kg).
• Engage the parking brakes when transferring in or out of the wheelchair.
• This wheelchair is designed for transport with an attendant. It is not intended for self-propulsion by the user.
• Avoid using the wheelchair on uneven terrain, steep inclines, or stairs.

2. Product Features

The MoNiBloom Folding Transport Wheelchair is designed for ease of use and durability, featuring:

• Chrome Moly Steel Frame: Stronger and lighter than traditional steel, providing enhanced durability.
• Detachable Armrests: Allow for easier transfers and closer access to tables or desks.
• Adjustable Swing-Away Footrests: Customizable for user comfort and support, and fully removable for transport or storage.
• Durable PU Solid Wheels: 8-inch front wheels and 12-inch rear wheels designed for wear resistance and a smooth ride.
• Dual Cross Brace: Increases stability and adds strength to the frame.
• Safe Braking System: Manual parking brakes for secure stops and transfers.
• Folding Design: Allows for quick and compact storage and transport.
• Padded Armrests: For user comfort.
• Seat Belt: For added user security.

3. Setup and Assembly

The MoNiBloom Transport Wheelchair requires minimal assembly. Follow these steps to prepare your wheelchair for use:

3.1 Unfolding the Wheelchair

1. Place the folded wheelchair on a flat, stable surface.
2. Grasp the push handles and gently pull them apart to begin unfolding the frame.
3. Push down firmly on the seat rails until the seat is fully open and flat. Ensure the cross braces are fully extended and locked.

Image: The MoNiBloom Folding Transport Wheelchair in its fully unfolded state, showing overall dimensions.

3.2 Attaching and Adjusting Footrests

1. Align the footrest pins with the receiving tubes on the front frame of the wheelchair.
2. Push the footrests firmly into place until they click securely.
3. To adjust the footrest height, locate the adjustment pin on the footrest hanger. Press the pin and slide the footrest up or down to the desired height. Release the pin to lock it in place.
4. To swing the footrests away, lift the lever on the side of the footrest hanger and pivot the footrest outwards. To remove, swing them out and lift upwards.

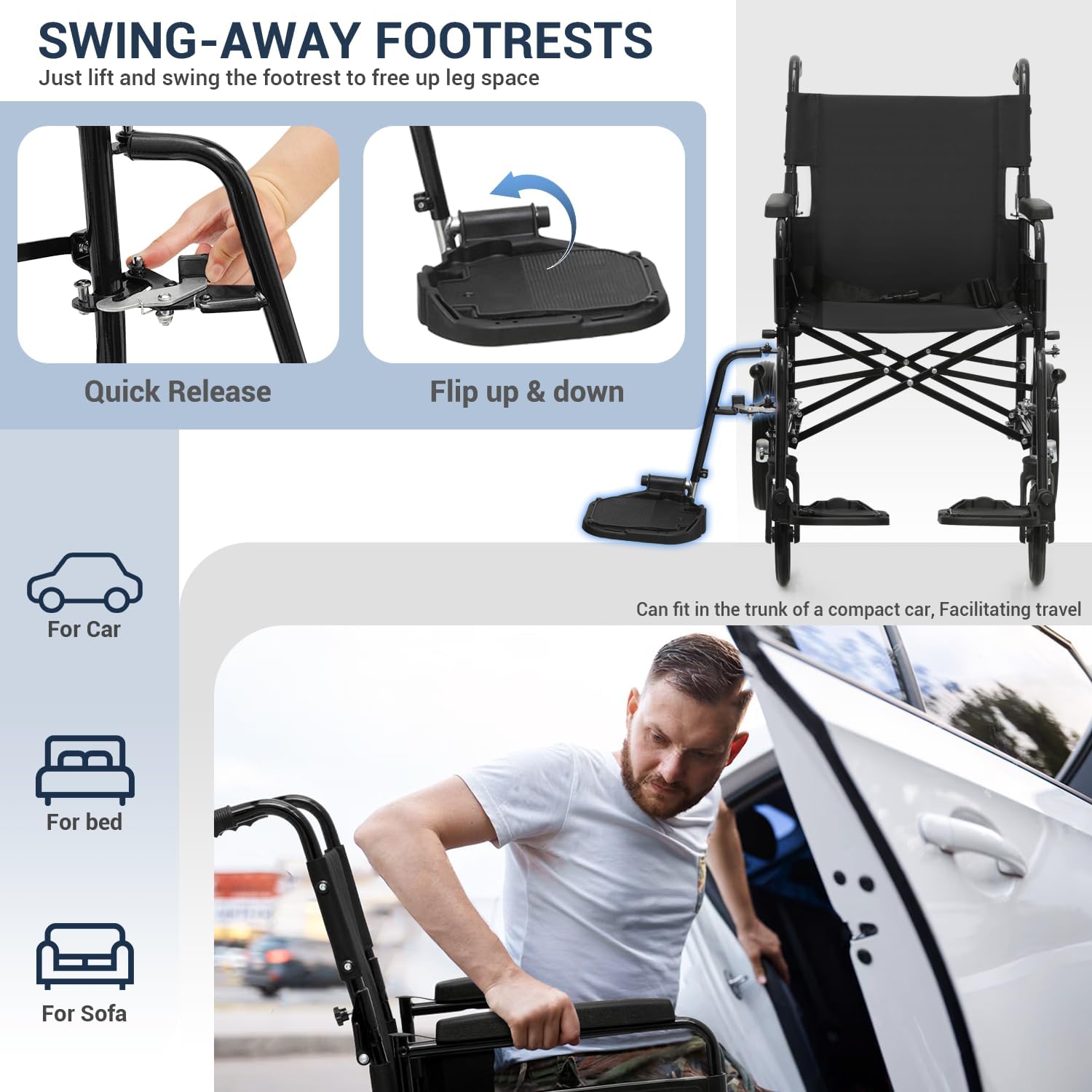

Image: Close-up of the swing-away footrests, illustrating the quick release and flip-up/down functions.

3.3 Attaching/Detaching Armrests

The armrests are designed to be detachable for easier transfers. To attach, align the armrest posts with the receptacles on the frame and push down until they lock. To detach, press the release buttons (if present) or lift the armrests straight up from their posts.

Image: Illustration of the detachable armrest, showing how it can be removed for convenience.

4. Operating Instructions

4.1 Using the Parking Brakes

The wheelchair is equipped with manual parking brakes located near the rear wheels. To engage the brakes, push the brake levers down firmly until they lock the wheels. To release, pull the levers upwards. Always engage the parking brakes when the wheelchair is stationary, especially during transfers.

Image: Close-up of the parking brake levers, demonstrating the push-to-lock and pull-to-release action.

4.2 Folding for Transport and Storage

To fold the wheelchair for compact storage or transport:

1. Ensure the user is safely out of the wheelchair.
2. Remove the footrests by swinging them out and lifting them off.
3. Lift the center of the seat fabric upwards. The frame will begin to collapse inwards.
4. Continue lifting the seat until the wheelchair is fully folded. You may also use the foot pedal folding control if available.
5. For even more compact storage, the backrest can be folded down by releasing the backrest locks (if applicable) and pushing it forward.

Image: The wheelchair shown in its unfolded state next to its compact, folded state, illustrating the ease of storage.

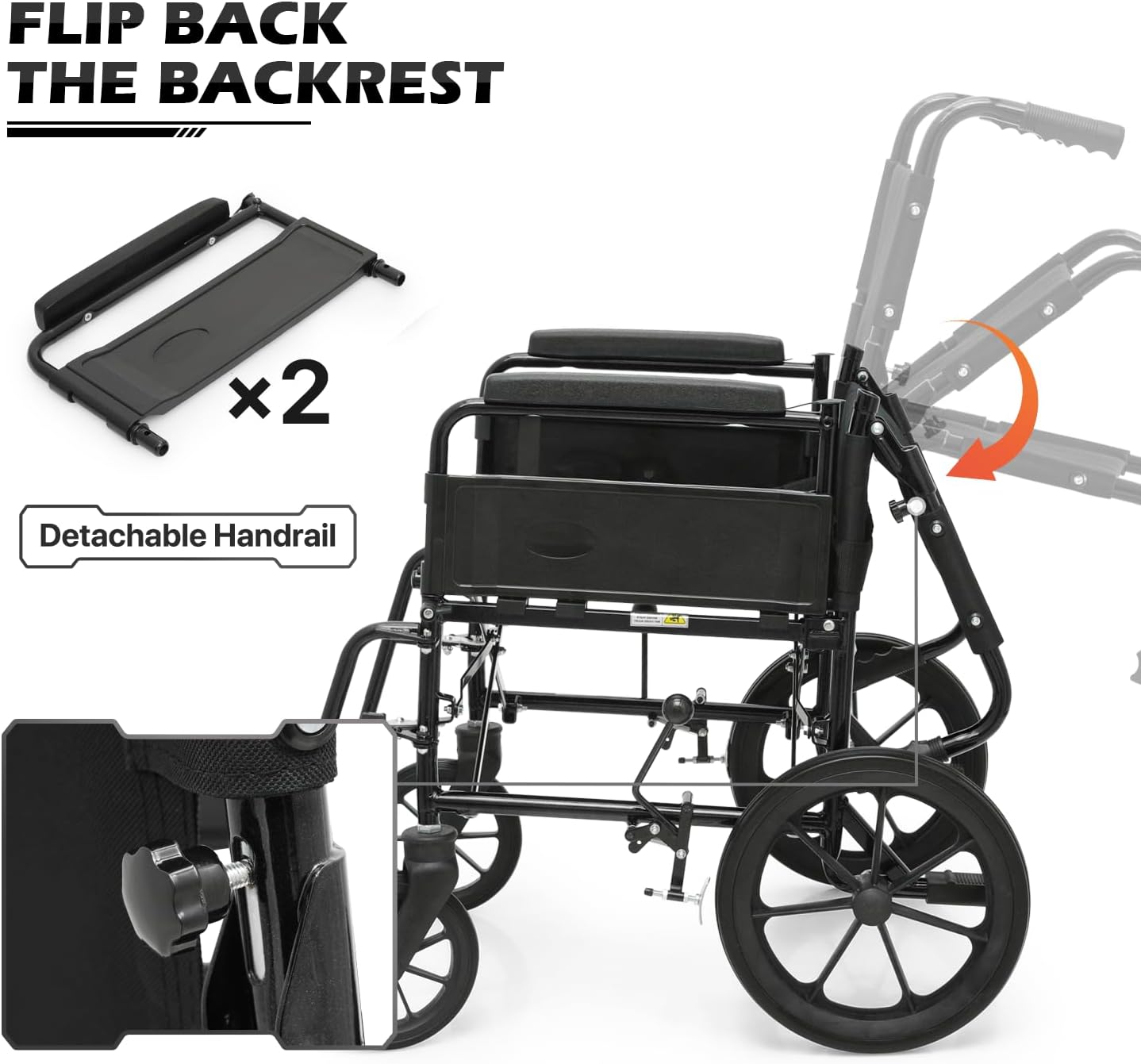

Image: The backrest shown flipping back, indicating its ability to fold for more compact storage.

4.3 Product Overview Video

Watch this video for a visual guide on the features and operation of the MoNiBloom Transport Wheelchair.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your wheelchair.

5.1 Cleaning

• Wipe the frame with a damp cloth and mild soap. Dry thoroughly.
• Clean upholstery with a mild detergent and water. Avoid harsh chemicals.
• Keep wheels and casters free of debris and hair.

5.2 Regular Checks

• Inspect brakes regularly to ensure they engage and hold securely.
• Check all nuts, bolts, and fasteners for tightness. Tighten as needed.
• Examine tires for wear and tear.
• Ensure footrests and armrests attach and detach smoothly.

5.3 Storage

Store the wheelchair in a dry, cool place away from direct sunlight and extreme temperatures.

6. Troubleshooting

If you encounter any issues, refer to the following common problems and solutions:

• Wheelchair does not roll smoothly: Check for debris in wheels or casters. Ensure brakes are fully disengaged.
• Brakes do not hold: Inspect brake pads for wear. Ensure brake levers are fully engaged. Adjust if necessary (consult a professional if unsure).
• Difficulty folding/unfolding: Ensure no obstructions are present. Lubricate moving parts if stiff.
• Loose components: Periodically check and tighten all nuts and bolts. Do not overtighten.

For issues not resolved by these steps, please contact customer support.

7. Specifications

8. Warranty Information

MoNiBloom products are manufactured to high-quality standards. For specific warranty details regarding your transport wheelchair, please refer to the warranty card included with your purchase or contact MoNiBloom customer support. Keep your proof of purchase for any warranty claims.

9. Customer Support

If you have any questions, require assistance with assembly, operation, or maintenance, or need to report a problem, please contact MoNiBloom customer support. Contact information can typically be found on the product packaging or the official MoNiBloom website.
