1. Introduction
Thank you for choosing the classy leaves Black Outdoor Wall Light Fixture. This manual provides essential information for the safe installation, operation, and maintenance of your new outdoor lighting product. Please read these instructions thoroughly before beginning installation and retain them for future reference.
This outdoor wall sconce is designed to provide reliable illumination and enhance the aesthetic of your outdoor spaces, including porches, patios, garages, and entryways. It features a durable metal frame with a textured black finish and clear glass panels, offering a classic yet modern design.
2. Safety Information
- Electrical Safety: Always turn off the main power supply at the circuit breaker before installing, servicing, or cleaning the fixture. Failure to do so may result in electric shock, injury, or death.
- Qualified Electrician: If you are unsure about electrical wiring or installation procedures, consult a qualified electrician.
- Grounding: Ensure the fixture is properly grounded to avoid potential electrical hazards.
- Bulb Type: Use only E26 base Type T bulbs with a maximum wattage of 60W. Do not exceed the recommended wattage.
- UL Listed: This product is UL listed, ensuring it meets specific safety standards.
- Outdoor Use: This fixture is designed for outdoor use only and is suitable for dry or wet locations.
- Handling: Handle glass components with care to prevent breakage and injury.
3. Package Contents
Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, contact customer service.
- 1 x classy leaves Black Outdoor Wall Light Fixture
- 1 x Complete Accessories Kit (mounting hardware, wire connectors)
- 1 x Instruction Manual (this document)
4. Setup and Installation
This fixture is designed for wall-mount installation. Follow these steps carefully:
- Turn Off Power: Before starting, ensure the power to the installation area is turned off at the circuit breaker.
- Prepare Mounting Surface: Ensure the wall surface is clean, dry, and structurally sound to support the fixture.
- Install Mounting Plate: Attach the mounting plate (from the accessories kit) to the junction box on your wall using the provided screws. Ensure it is securely fastened.
- Wire Connections: Connect the fixture's wires to your household electrical wires. Match black to black (live), white to white (neutral), and green or bare copper to green or bare copper (ground). Secure connections with wire connectors.
- Mount Fixture: Carefully align the fixture with the mounting plate and secure it using the provided screws or nuts. Ensure no wires are pinched during this step.
- Install Bulb: Insert one E26 base Type T bulb (not included) into the socket. Do not exceed 60W.
- Restore Power: Once the installation is complete and all connections are secure, restore power at the circuit breaker.
Figure 1: Product Dimensions and Technical Details. The fixture measures 6.8" L x 8.7" W x 11.8" H. The canopy is 4.3" W x 6.3" L. Input Voltage: AC 110V, Bulb Wattage: Type T, Max 60W, Bulb Base: E26, Number of Bulbs: 1 (Bulb Sold Separately).
Figure 2: Example of the classy leaves outdoor wall light installed on a home exterior.
5. Operating Instructions
Once installed and powered, the classy leaves Black Outdoor Wall Light Fixture operates like any standard wall-mounted light. It is controlled by the wall switch to which it is wired.
- Turning On/Off: Use the connected wall switch to turn the light fixture on or off.
- Dimmability: This fixture is fully dimmable when used with a compatible dimmer switch (not included) and a dimmable E26 base bulb.
- Bulb Type: The fixture accommodates one E26 base Type T bulb, with a maximum wattage of 60W. Compatible bulb types include incandescent, LED, or CFL, provided they have an E26 base and do not exceed the wattage limit.
Figure 3: The light fixture providing illumination at night.
6. Maintenance
Regular maintenance will help preserve the appearance and functionality of your outdoor wall light fixture.
- Cleaning: Ensure the power is off before cleaning. Wipe the fixture with a soft, damp cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or glass.
- Glass Care: Clean glass panels gently with a glass cleaner if necessary.
- Weather Resistance: The fixture is constructed from premium metal materials designed to withstand exposure to sun, rain, water spray, and snow. Periodically inspect for any signs of wear or damage, especially after severe weather conditions.
- Bulb Replacement: Turn off power before replacing the bulb. Allow the old bulb to cool completely before removing. Install a new E26 base Type T bulb (max 60W).

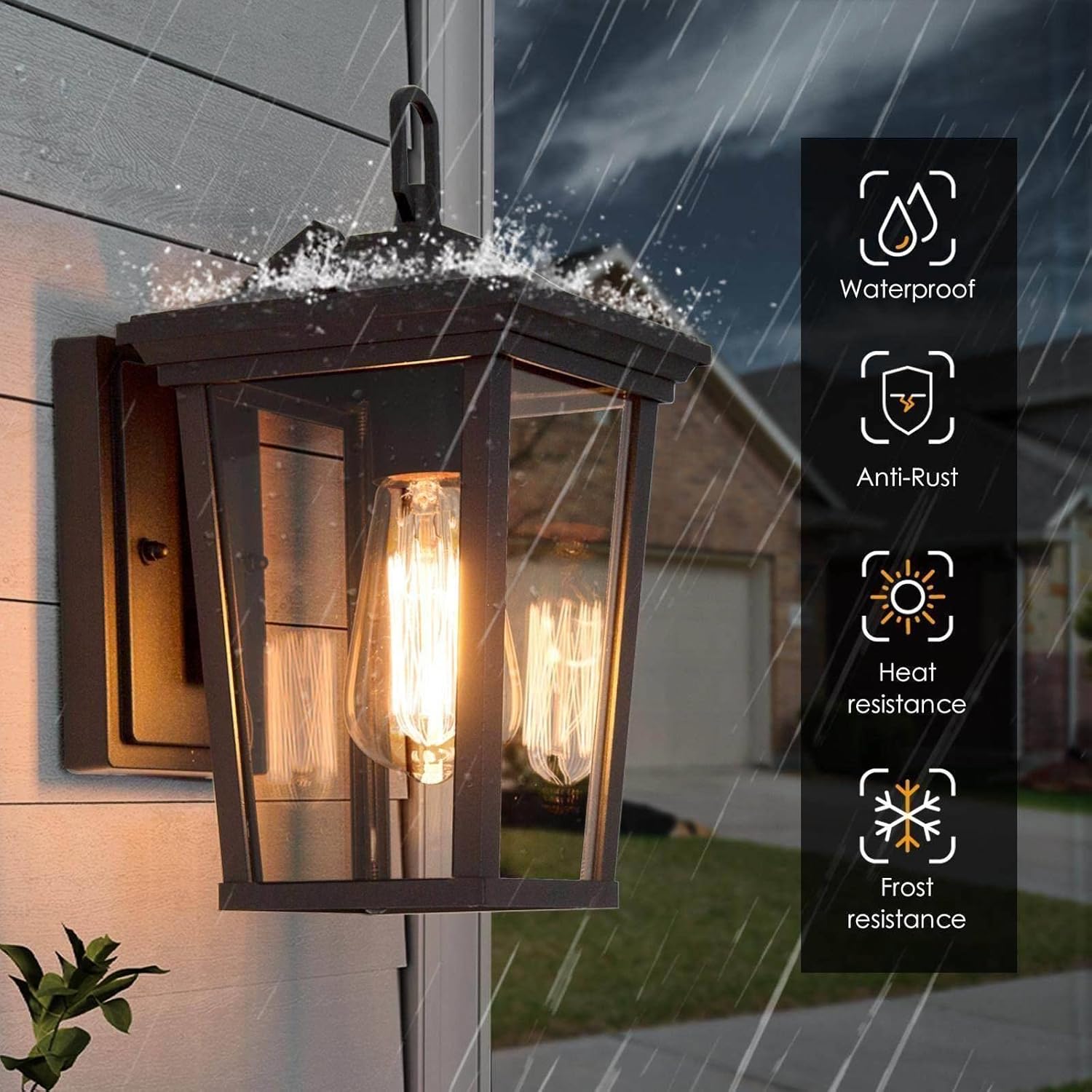

Figure 4: The fixture's weather-resistant properties, including waterproof and anti-rust features.
7. Troubleshooting
If you encounter issues with your light fixture, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture Loose wire connections Faulty bulb Faulty wall switch | Check circuit breaker Verify all wire connections are secure (power off first) Replace bulb Test or replace wall switch |
| Light flickers | Loose bulb Incorrect bulb type Loose wire connections Incompatible dimmer switch | Tighten bulb Ensure bulb is E26 base, max 60W Check wire connections (power off first) Ensure dimmer switch is compatible with bulb type |
| Glass panels are dirty or foggy | Accumulation of dirt or moisture | Clean glass panels with a soft cloth and glass cleaner (power off first) |
If the problem persists after attempting these solutions, please contact customer service.
8. Specifications
| Brand | classy leaves |
| Model Name | Black Outdoor Wall Lights |
| Product Dimensions | 6.3"L x 8.7"W x 11.8"H |
| Color | Textured Black |
| Material | Glass, Metal |
| Style | Modern; Farmhouse |
| Light Fixture Form | Wall Mount |
| Indoor/Outdoor Usage | Outdoor use only |
| Power Source | AC |
| Voltage | 120 Volts |
| Bulb Base | E26 |
| Max Wattage | 60 Watts |
| Number of Light Sources | 1 |
| Special Features | Water Resistant, Waterproof |
| Certification | UL listed |
| Item Weight | 3.3 Pounds |
| Assembly Required | Yes |
9. Warranty and Support
Warranty Information: All products purchased from classy leaves come with a 30-day replacement parts policy to ensure a fully working item. Additionally, all products are covered under a 2-year warranty when purchased on Amazon. This warranty covers defects in materials and workmanship under normal use.
Customer Support: If you have any questions, concerns, or require assistance with your classy leaves Black Outdoor Wall Light Fixture, please do not hesitate to contact our customer service team. We are committed to providing 24-hour high-quality customer service to ensure your satisfaction.
For support, please refer to the contact information provided with your purchase or visit the classy leaves store on Amazon.
