Mont Alpi Premium 4-Burner Built-in Gas Grill Head (MABi400-BSS) Instruction Manual

Important Safety Information

Read all instructions thoroughly before assembling or operating this grill. Failure to follow these instructions could result in fire, explosion, or burn hazard, which could cause property damage, personal injury, or death.

• Outdoor Use Only: This grill is designed for outdoor use only. Do not operate indoors or in an enclosed area.
• Clearance: Maintain a minimum clearance of 36 inches (91 cm) from the back and sides of the grill to any combustible materials.
• Gas Leaks: Always perform a leak test on all gas connections before initial use and after any gas cylinder change. Use a soap and water solution; never use a flame.
• Ventilation: Ensure adequate ventilation around the grill. Do not block airflow to the combustion and ventilation openings.
• Children and Pets: Keep children and pets away from the grill at all times, especially during operation and while cooling down.
• Hot Surfaces: The grill surfaces become extremely hot during operation. Use heat-resistant gloves and appropriate tools.
• Propane Cylinder: Use only a 20 lb (9 kg) propane cylinder (not included) with an OPD (Overfill Protection Device) and a Type 1 connection. Always store propane cylinders outdoors in a well-ventilated area.
• Grease Fires: Clean the grease tray regularly to prevent grease fires. If a grease fire occurs, turn off the gas supply and keep the lid open until the fire extinguishes. Do not use water.

Product Overview

The Mont Alpi Premium 4-Burner Built-in Gas Grill Head (MABi400-BSS) is constructed from durable 304 stainless steel, designed for integration into an outdoor kitchen island. It features four main burners, an infrared rear burner, and a rotisserie kit for versatile cooking.

Key Features:

• 4 tubular stainless steel high-efficiency main burners.
• Rear height-adjustable ceramic infrared rotisserie burner.
• Total heat output: 63,000 BTUs.
• Cooking area: 504 square inches (28" x 18").
• Stainless steel warming rack and 8mm stainless steel cooking grids.
• Double-lined grill hood with integrated temperature gauge.
• Two cooking surface halogen lights.
• On/off red/blue changing control knob lights.
• Electronic ignition (requires 1 AA battery, not included).
• Easy-access full front pull-out grease tray.
• Integrated bottle opener.

Image: Overview of the grill's key features, highlighting the infrared rear burner, temperature gauge, sear plates, LED illuminated control knobs, and heavy-duty burners.

Included Accessories

The following accessories are included with your Mont Alpi Built-in Gas Grill Head:

• Heavy-Duty Rotisserie Kit: 110V, 4-watt electric motor, capable of holding up to 25 lbs of meat.
• Propane Hose and Regulator: For immediate connection to a standard propane tank.
• Water-Resistant Outdoor Weather Cover: To protect the grill head from the elements.

Image: The Mont Alpi 4-Burner Built-in Grill shown with the rotisserie kit installed and the weather cover.

Setup and Installation

1. Unpacking and Inspection:

• Carefully remove all packaging materials.
• Inspect the grill for any shipping damage. Contact your retailer immediately if damage is found.
• Ensure all components listed in the packing list are present.

2. Built-in Installation:

This grill is designed for built-in installation into a non-combustible outdoor kitchen island. Necessary brackets for installation are included.

• Refer to the provided dimension diagram for precise cutout requirements for your island.
• Ensure the installation area provides adequate ventilation for the grill and gas connections.
• Secure the grill head using the provided brackets according to your island's construction.

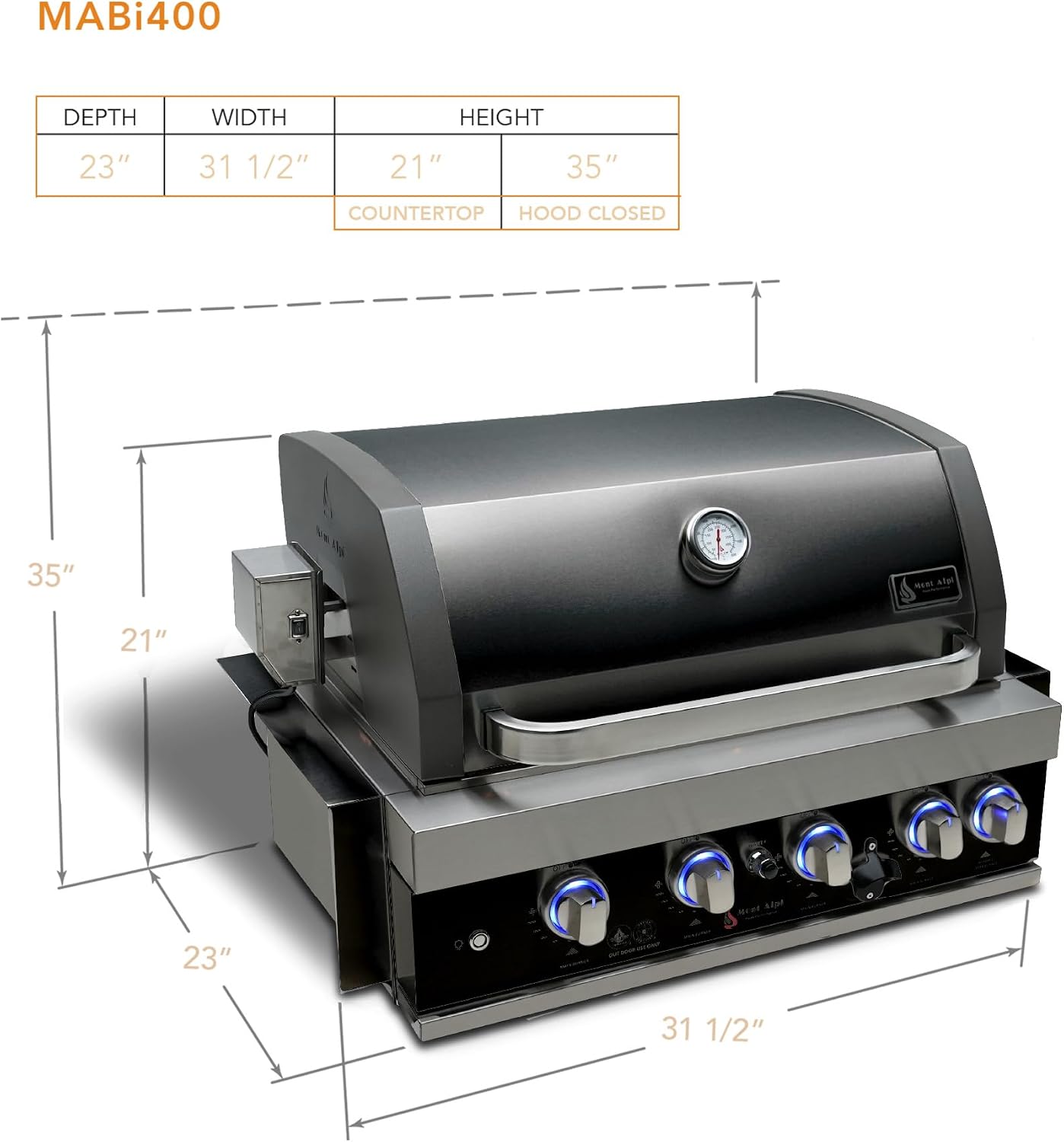

Image: Detailed dimension diagram for the Mont Alpi MABi400 grill, indicating measurements for depth, width, and height with the hood closed and open.

3. Gas Connection (Propane):

• Connect the included propane hose and regulator to a standard 20 lb (9 kg) propane cylinder.
• Ensure all connections are tight.
• Perform a leak test: Apply a soap and water solution to all gas connections. Bubbles indicate a leak. Tighten connections or replace parts as necessary. Do not operate the grill if a leak is detected.

4. Natural Gas Conversion (Optional):

This grill is convertible to natural gas. A natural gas conversion kit is sold separately. All Mont Alpi grills come with both propane and natural gas orifices installed. To convert:

• Turn off the gas supply and disconnect the propane hose.
• Remove the propane orifices from each burner.
• Install the natural gas hose and regulator from the conversion kit (sold separately).
• Perform a thorough leak test after conversion.

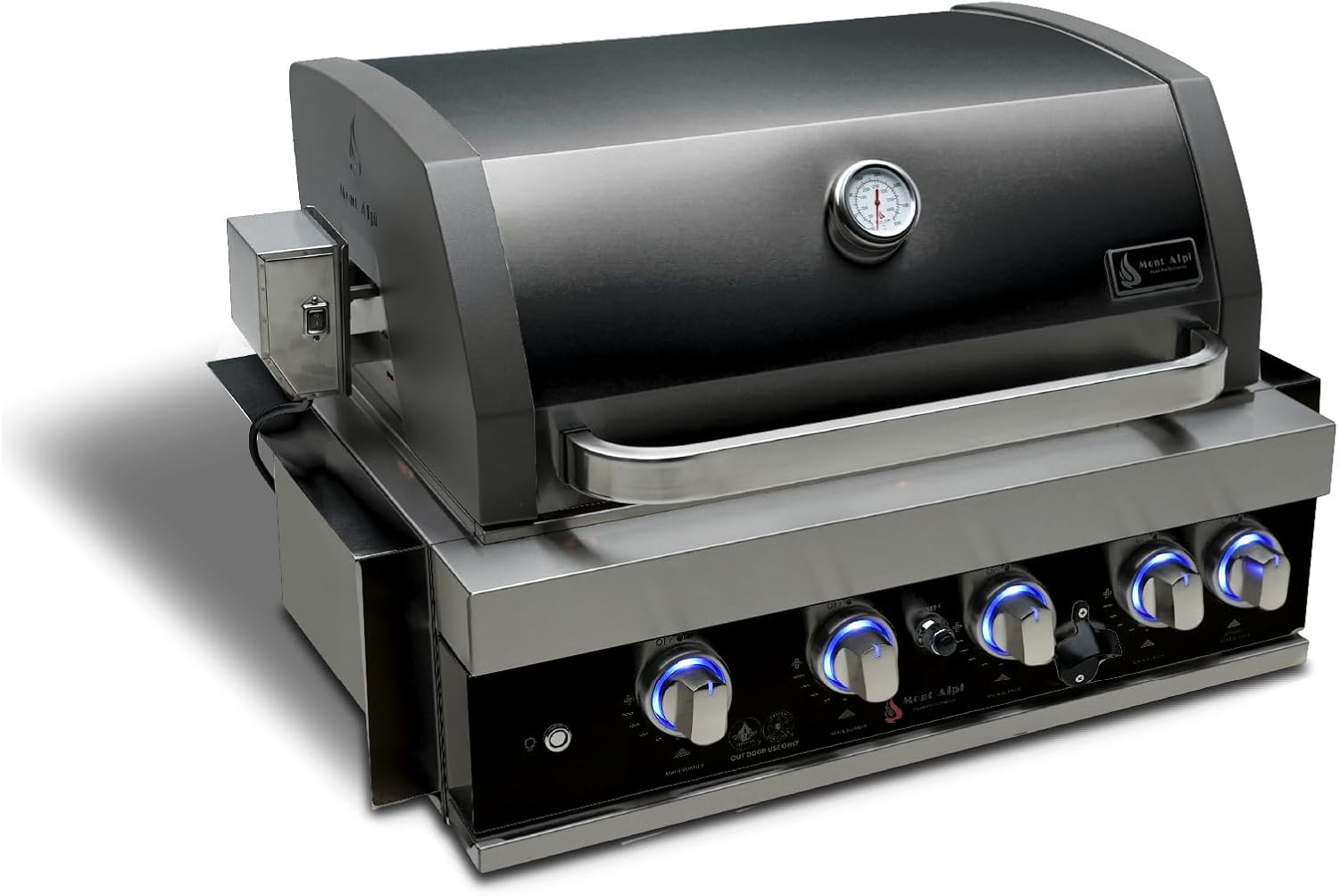

Image: The Mont Alpi 4-Burner Grill, illustrating the components involved in converting from propane to natural gas.

5. Electronic Ignition Battery:

• Install one AA battery (not included) into the electronic ignition module.

6. Rotisserie Kit Assembly:

• Assemble the rotisserie spit and forks according to the separate rotisserie kit instructions.
• Mount the rotisserie motor onto the designated bracket on the grill.

Operating Instructions

1. Pre-Use Checks:

• Ensure the grease tray is clean and properly inserted.
• Check all gas connections for leaks.
• Open the grill hood before lighting any burners.

2. Lighting the Main Burners:

• Open the lid.
• Turn on the gas supply at the propane cylinder or natural gas valve.
• Push and turn a control knob counter-clockwise to the HIGH position.
• Press and hold the electronic ignition button until the burner ignites. You should hear a clicking sound.
• If the burner does not light within 5 seconds, turn the knob to OFF, wait 5 minutes, and repeat the process.
• Once lit, adjust the flame to the desired cooking temperature.

3. Lighting the Infrared Rear Burner:

• Open the lid.
• Turn on the gas supply.
• Push and turn the infrared burner control knob counter-clockwise to the HIGH position.
• Press and hold the electronic ignition button until the burner ignites.
• The infrared burner is primarily for rotisserie cooking and operates at a high temperature.

4. Using the Rotisserie:

• Prepare food on the rotisserie spit, ensuring it is balanced.
• Insert the spit into the rotisserie motor and support bracket.
• Plug in the rotisserie motor and turn it on.
• Light the infrared rear burner as described above.
• Monitor cooking progress and internal food temperature.

5. Using Cooking Surface Lights and Knob Lights:

• The grill features two halogen lights for illuminating the cooking surface. Activate them using the dedicated switch.
• Control knobs illuminate red when on and blue when off, providing visual indication of burner status.

Image: Close-up view of the Mont Alpi grill's control panel, showing the LED illuminated knobs and internal cooking lights.

6. Shutting Down the Grill:

• Turn all burner control knobs to the OFF position.
• Turn off the gas supply at the propane cylinder or natural gas valve.

Maintenance

Regular maintenance ensures optimal performance and longevity of your grill.

1. Cleaning the Cooking Grids:

• After each use, while the grill is still warm, brush the cooking grids with a brass-bristle grill brush.
• For stubborn residue, remove grids and wash with warm, soapy water. Rinse thoroughly and dry.

2. Cleaning the Grease Tray:

• The full front pull-out grease tray should be cleaned after every few uses, or more frequently depending on cooking frequency and food type.
• Allow the grill to cool completely. Remove the tray and scrape out accumulated grease and food particles. Wash with warm, soapy water, rinse, and dry.
• Failure to clean the grease tray can lead to grease fires.

3. Stainless Steel Care:

• Clean stainless steel surfaces with a mild detergent and warm water. Wipe with the grain of the stainless steel.
• Avoid abrasive cleaners, steel wool, or harsh chemicals, which can scratch or damage the finish.
• For best results, use a stainless steel cleaner and polish.

4. Burner Inspection:

• Periodically inspect the burner ports for blockages (e.g., spider webs, food debris). Use a wire brush or pipe cleaner to clear any obstructions.
• Ensure the flame tamers/heat plates are clean and free of excessive grease buildup.

5. Weather Cover:

• Always use the provided water-resistant outdoor weather cover when the grill is not in use to protect it from environmental elements.

Troubleshooting

This section addresses common issues you might encounter with your grill.

If you encounter issues not listed here or if solutions do not resolve the problem, please contact Mont Alpi customer support.

Specifications

Warranty Information

Mont Alpi offers a 15 Year Limited Warranty on this product. This warranty covers defects in materials and workmanship under normal use and service. Specific limitations and exclusions may apply. Please retain your proof of purchase for warranty claims.

For detailed warranty terms and conditions, please refer to the official Mont Alpi warranty documentation or contact customer support.

Customer Support

If you have any questions, require assistance with setup or operation, or need to make a warranty claim, please contact Mont Alpi customer support.

Refer to the Mont Alpi website or your purchase documentation for the most current contact information.
