Introduction
Thank you for choosing Barrina Outdoor Solar Spot Lights. This manual provides detailed instructions for the proper installation, operation, and maintenance of your solar lights to ensure optimal performance and longevity. These RGB solar lights offer multiple color options and are designed for various outdoor lighting applications.
Product Components
The Barrina Outdoor Solar Spot Lights package includes the following items:
- 2 x Barrina RGB Solar Outdoor Lights
- 1 x Instruction Manual
- Ground Spikes (included with lights for installation)
- 2 x AA Batteries (pre-installed)
Setup and Installation
Proper installation is crucial for the performance of your solar lights. Follow these steps for setup:

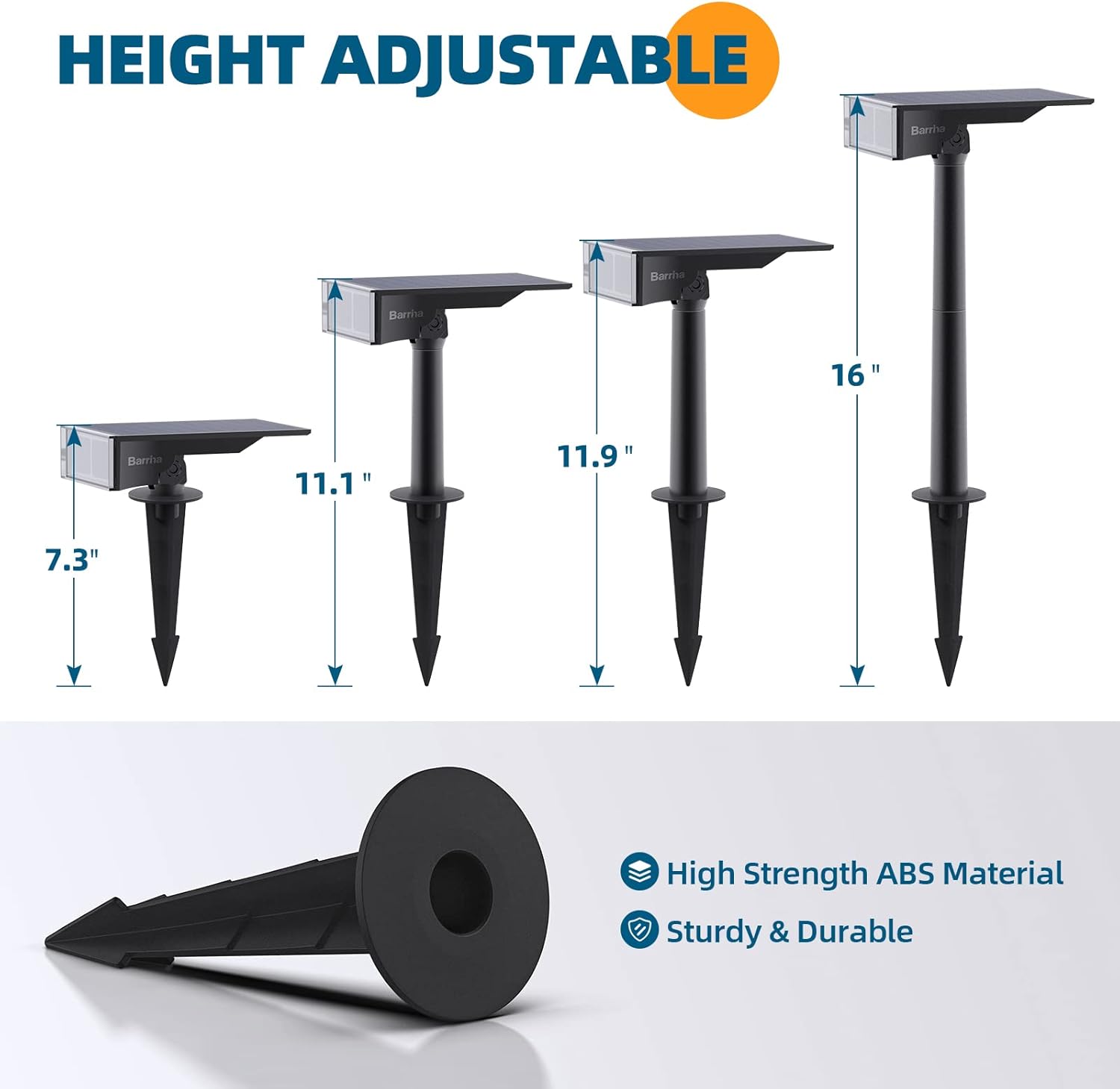

- Assemble the Light: Attach the light head to the ground spike. You can adjust the height by using the provided extension pieces according to your needs. The lights are made of high-strength ABS material for durability.
- Select Installation Location: Choose a location that receives direct sunlight for at least 6-8 hours daily. Avoid shaded areas or locations near other strong light sources (like streetlights) as these can interfere with the light's automatic on/off function.
- Insert into Ground: Firmly stick the assembled solar light into the lawn or garden soil using the ground spike. Ensure the solar panel is facing upwards to maximize sun exposure. The sawtooth-shaped ground stakes provide stable installation.
- Adjust Solar Panel Angle: The solar panel and light head are 135° vertically adjustable. Adjust the solar panel to an angle that receives optimal direct sunlight throughout the day.
Operating Instructions
Your Barrina solar spot lights are designed for ease of use with automatic functions and customizable lighting modes.
Power On/Off and Automatic Operation
- Initial Activation: Before first use, press the power button located on the light to turn it on. The light will then begin charging during the day.
- Automatic Function: Once activated, the light will automatically charge during daylight hours and illuminate automatically when darkness is detected.
Color Changing Modes
The Barrina RGB solar lights offer multiple color options:
- Fixed Colors: There are 7 fixed colors available. Press the power button repeatedly to cycle through these colors.
- Color Cycling Mode: To activate the color cycling mode, press the power button 8 times. The light will then continuously cycle through all available colors.
Product Video: Color Changing Outdoor Solar Spot Light
Video: This video demonstrates the Barrina Color Changing Outdoor Solar Spot Light, showcasing its features including solar charging, IP65 waterproofing, easy installation, adjustable angle, and various color modes in an outdoor setting.
Product Video: Barrina Colorful Solar Spot Lights
Video: A short video highlighting the vibrant color-changing capabilities of the Barrina solar spot lights as they illuminate various plants and pathways at night.
Maintenance
To ensure the longevity and optimal performance of your solar lights, follow these maintenance guidelines:
- Clean Solar Panel: Regularly wipe the solar panel with a soft, damp cloth to remove dust, dirt, or debris. A clean panel ensures efficient charging.
- Clear Obstructions: Ensure no leaves, branches, or other objects are blocking the solar panel from direct sunlight.
- Battery Replacement: The lights use 2 AA batteries (included). If the light output diminishes significantly over time, consider replacing the rechargeable AA batteries.
- Weather Resistance: The lights are IP65 waterproof, designed to withstand various weather conditions including rain, heat, and frost. They function perfectly in environments between 14°F and 104°F. No special weather-related maintenance is typically required beyond ensuring the solar panel is clear.
Troubleshooting
If your Barrina solar spot lights are not functioning as expected, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on at night. |
|
|
| Light duration is short. |
|
|
| Color changing mode not working. |
|
|
Specifications
| Feature | Detail |
|---|---|
| Brand | Barrina |
| Model Name | TYN RGB 2 |
| Color | Multicolor (7 fixed colors + color cycling) |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Light Fixture Form | Spotlight |
| Indoor/Outdoor Usage | Outdoor |
| Power Source | Solar Powered |
| Special Feature | Cordless, Auto On/Off, 135° Adjustable Angle |
| Control Method | Push Button |
| Number of Light Sources | 24 LEDs per light |
| Product Dimensions | 5.9\"L x 3.93\"W x 4.72\"H |
| Item Weight | 1.19 pounds (per light) |
| Batteries | 2 AA batteries required (included), Lithium Ion cell type |
| Water Resistance Level | IP65 Waterproof |
| Working Temperature Range | 14°F to 104°F |
Warranty and Support
The Barrina Outdoor Solar Spot Lights come with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product is free from defects in material and workmanship under normal use.
For warranty claims, technical support, or any inquiries regarding your product, please contact Barrina customer service through the retailer where the product was purchased or visit the official Barrina website for contact information.
