1. Introduction
Thank you for choosing the ZenStyle 8 Cube Bookshelf, Model 0589. This manual provides essential information for the safe and correct assembly, operation, and care of your new bookshelf. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

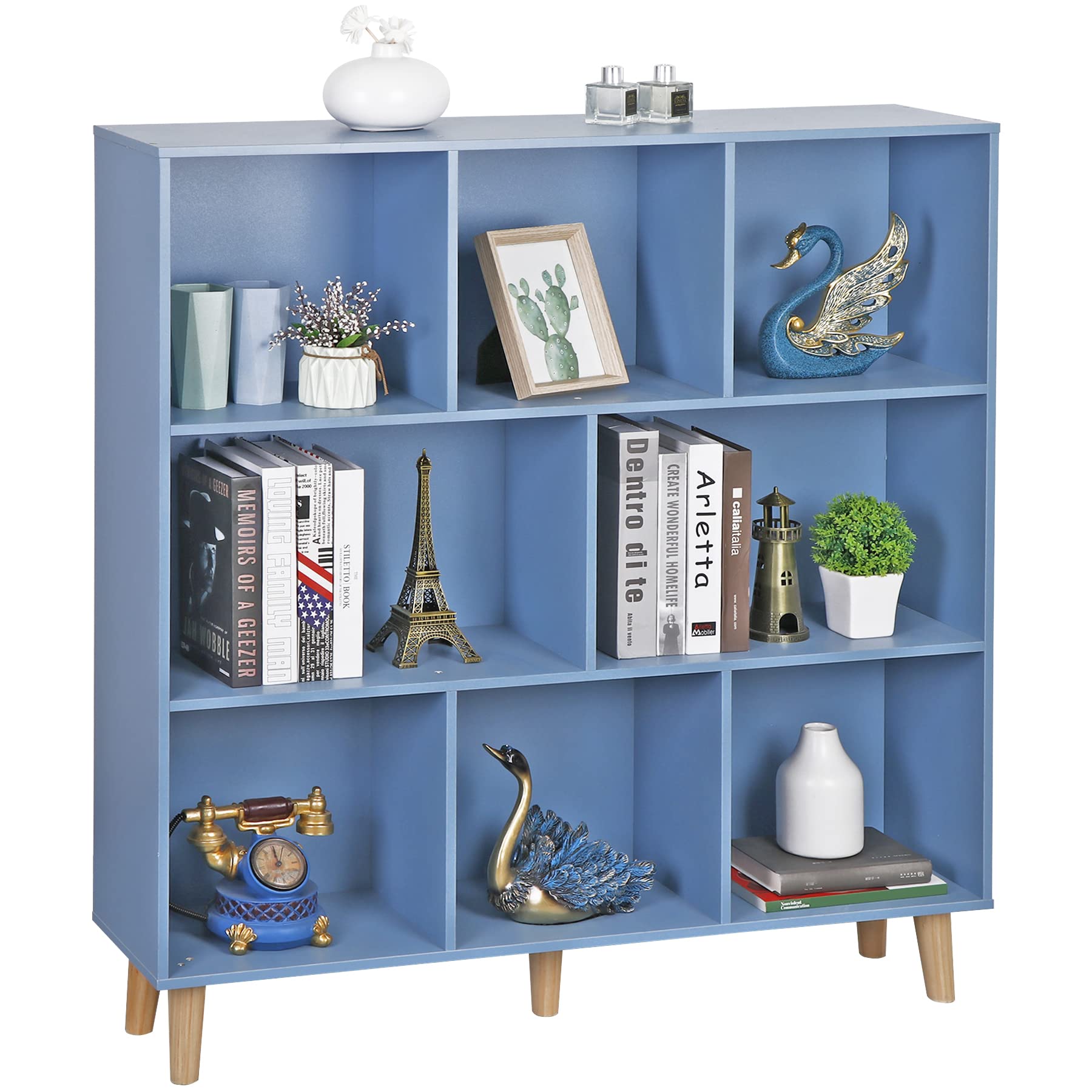

Image 1.1: The ZenStyle 8 Cube Bookshelf, Model 0589, showcasing its design and storage capacity.
2. Safety Information
Please observe the following safety precautions to prevent injury or damage to the product.
- Always assemble the product on a soft, clean surface to prevent scratches.
- Ensure all hardware is securely tightened before use. Periodically check and re-tighten as necessary.
- Do not overload the shelves. Each cube can support up to 22 lbs (10 kg), and the top panel can support up to 44 lbs (20 kg).
- Keep small parts and packaging materials away from children during assembly.
- Do not stand or climb on the bookshelf.
- If any parts are missing or damaged, do not proceed with assembly. Contact customer support immediately.
3. Package Contents
Verify that all components and hardware are present before beginning assembly.
3.1 Parts List
- Top Panel (1)
- Bottom Panel (1)
- Side Panels (2)
- Horizontal Dividers (3)
- Vertical Dividers (4)
- Backboards (8)
- Pine Wood Legs (4)
3.2 Hardware List
- Cam Locks
- Cam Dowels
- Wood Dowels
- Screws for Backboards
- Leg Attachment Screws
- Allen Wrench (1)
4. Assembly Instructions
Assembly typically takes less than 30 minutes with two people. Follow these steps carefully.
4.1 Before You Begin
- Clear a spacious area for assembly.
- Lay out all parts and hardware and compare them with the lists above.
- You will need a Phillips head screwdriver (not included).
4.2 Step-by-Step Assembly
- Attach Cam Dowels: Insert cam dowels into the pre-drilled holes on the side panels, horizontal dividers, and vertical dividers.
- Assemble Frame: Connect the side panels to the bottom panel using cam locks. Ensure the cam dowels align with the cam lock holes and turn the cam locks clockwise to secure.
- Insert Dividers: Carefully slide the horizontal and vertical dividers into their designated slots, securing them with cam locks as you go. Ensure all connections are tight.
- Attach Top Panel: Place the top panel onto the assembled frame, aligning the cam dowels and securing with cam locks.
- Install Backboards: Align the backboards with the rear of each cube section and secure them using the provided small screws. This enhances stability and prevents items from falling out.
- Attach Legs: Turn the bookshelf upright. Attach the four pine wood legs to the bottom panel using the leg attachment screws. Use the Allen wrench provided to tighten them securely.
Image 4.1: Illustration of key construction details including firm joints and solid wooden legs.
Image 4.2: A close-up view demonstrating the solid wooden leg and the interior finish of a storage cube.
5. Usage and Operation
The ZenStyle 8 Cube Bookshelf is designed for versatile storage and display in various rooms.
- Placement: Position the bookshelf on a flat, stable surface to ensure balance.
- Storage: Utilize the 8 cubes to organize books, decorative items, storage boxes, toys, or office supplies. The open design allows for easy access.
- Weight Distribution: Distribute weight evenly across the shelves to maintain stability. Place heavier items on lower shelves.
Image 5.1: The bookshelf integrated into a living room, demonstrating its functional and aesthetic use.
6. Maintenance and Care
Proper care will extend the life and appearance of your bookshelf.
- Cleaning: Wipe the shelves clean with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
- Dusting: Regularly dust the surface with a dry, soft cloth.
- Liquid Spills: Immediately wipe up any liquid spills to prevent staining or damage to the engineered wood.
- Hardware Check: Periodically check all screws and cam locks to ensure they remain tight. Re-tighten if necessary.
- Sunlight Exposure: Avoid prolonged exposure to direct sunlight to prevent fading or discoloration.
7. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bookshelf is wobbly or unstable. | Loose hardware; uneven floor. | Ensure all cam locks and screws are fully tightened. Move to a level surface or use shims under the legs if necessary. |
| Parts do not fit together. | Incorrect orientation of parts; dowels not fully inserted. | Review assembly steps and diagrams. Ensure parts are oriented correctly and dowels are fully seated before tightening cam locks. |
| Missing hardware or damaged parts. | Packaging error; shipping damage. | Do not proceed with assembly. Contact ZenStyle customer support for replacement parts. |
8. Specifications
Detailed product specifications for the ZenStyle 8 Cube Bookshelf, Model 0589.
| Feature | Detail |
|---|---|
| Model Number | 0589 |
| Overall Dimensions (L x W x H) | 39.4" x 9.4" x 42.3" (100 cm x 24 cm x 107.4 cm) |
| Small Cube Dimensions (L x W x H) | 12.4" x 11.8" x 8.8" (31.5 cm x 30 cm x 22.4 cm) |
| Large Cube Dimensions (L x W x H) | 18.8" x 11.8" x 8.8" (47.8 cm x 30 cm x 22.4 cm) |
| Material | Particle Board, MDF, Pine Wood Legs |
| Net Weight | 39.57 lbs (17.95 kg) |
| Weight Capacity (per cube) | 22 lbs (10 kg) |
| Weight Capacity (top panel) | 44 lbs (20 kg) |
| Assembly Required | Yes |
| Color | Blue |
Image 8.1: Dimensional diagram of the ZenStyle 8 Cube Bookshelf.
9. Warranty and Support
ZenStyle products are manufactured with quality and care. For any questions, missing parts, or concerns regarding your ZenStyle 8 Cube Bookshelf, Model 0589, please contact our customer support team. Please have your model number and purchase information ready when contacting support.
For support, please visit the official ZenStyle website or contact your retailer.
