VASAGLE LTV46B50 TV Cabinet Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your VASAGLE LTV46B50 TV Cabinet. Please read this manual carefully before beginning assembly or use to ensure proper installation and safe operation. Keep this manual for future reference.

Image 1: The VASAGLE LTV46B50 TV Cabinet, showcasing its rustic design with sliding barn doors and open shelving.

2. Safety Instructions

• For safety reasons, children are prohibited from climbing or playing on the TV cabinet.
• Always secure the TV cabinet to the wall using the provided anti-tip protection kit to prevent accidental tipping and ensure safe use.
• Do not exceed the maximum weight limits specified in the 'Specifications' section. Overloading can cause instability and damage.
• Place the TV cabinet on a flat, stable, and level surface to prevent wobbling or tipping.
• Keep all small parts and packaging materials away from children and pets to avoid choking hazards.
• During assembly, ensure all connections are secure and tightened according to the instructions.

Image 2: Diagram illustrating the installation of the anti-tip protection kit, showing how to secure the cabinet to the wall.

3. Package Contents

Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• 1 x VASAGLE LTV46B50 TV Cabinet (main components)
• 1 x Accessory Package (screws, dowels, connectors, etc.)
• 1 x Anti-tip Protection Kit
• 1 x Instruction Manual (this document)

4. Setup and Assembly

Detailed step-by-step instructions are provided in the included assembly guide. Please follow these instructions carefully. Necessary tools are typically included in the accessory package or are standard household tools.

4.1 Pre-Assembly Checklist

• Clear a spacious area for assembly.
• Lay out all parts and hardware, comparing them against the parts list in the separate assembly guide.
• Ensure you have the necessary tools (e.g., screwdriver, hammer if required).

4.2 Assembly Steps

1. Follow the numerical sequence of steps in the dedicated assembly instruction booklet.
2. Attach the adjustable feet to the base of the cabinet. These feet can be adjusted to compensate for uneven floors.
3. Install the sliding door mechanism and doors as instructed. Ensure the doors slide smoothly.
4. Once the main structure is assembled, install the anti-tip protection kit by securing the cabinet to a wall stud or using appropriate wall anchors.

Image 3: Close-up view of the adjustable feet, which allow for leveling the cabinet on uneven surfaces.

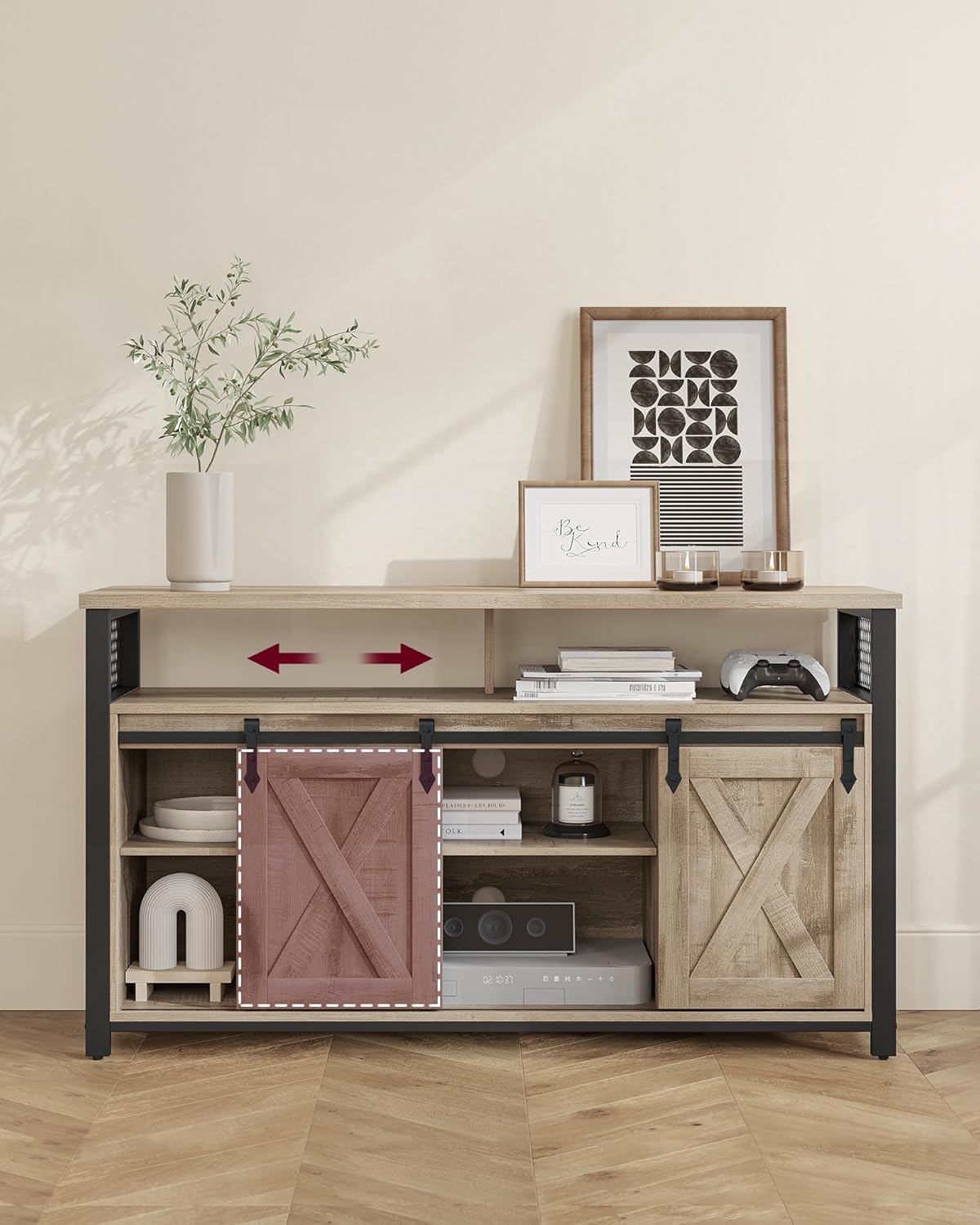

Image 4: Detail of the sliding door mechanism, showing the smooth track and hardware for the barn-style doors.

5. Operating Instructions

The VASAGLE LTV46B50 TV Cabinet is designed for versatile media storage and display.

5.1 Placing Your Television

• The spacious top surface is designed to accommodate televisions up to 60 inches.
• Ensure the television's base is fully supported by the cabinet surface and does not overhang.

5.2 Storage and Organization

• Open Compartments: Utilize the open compartment below the TV surface and the two central open compartments for media players, gaming consoles, soundbars, or decorative items.
• Sliding Doors: The two sliding barn-style doors allow you to conceal or display items in the side compartments. Slide the doors smoothly along the track to access or cover the storage areas.
• Adjustable Shelves: The shelves within the cabinet are adjustable, allowing you to customize the storage space to fit items of various heights. Refer to the assembly guide for instructions on adjusting shelf height.

5.3 Cable Management

• Two cable management holes are located on the rear panel of the central compartments.
• Route your device cables through these holes to maintain a tidy and organized entertainment area, preventing tangles and clutter.

Image 5: Detail showing the cable management holes on the back panel and the adjustable shelf pegs for customizing storage space.

6. Maintenance

Proper care will extend the life and appearance of your TV cabinet.

• Cleaning: The surface of the cabinet is resistant and smooth. Clean regularly by wiping with a soft, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, which can damage the finish.
• Dusting: Dust the cabinet with a dry, soft cloth.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
• Protection: Avoid placing hot items directly on the surface. Use coasters or protective pads for drinks and other objects.

7. Troubleshooting

If you encounter any issues with your TV cabinet, refer to the following common solutions:

• Cabinet Wobbles:
  • Ensure the cabinet is placed on a level surface.
  • Adjust the leveling feet at the bottom of the cabinet until it is stable.
  • Check that all assembly screws are fully tightened.
• Sliding Doors are Stiff or Jammed:
  • Inspect the sliding track for any obstructions or debris. Clean if necessary.
  • Ensure the doors are correctly seated on the track rollers.
  • Verify that the cabinet itself is level, as an uneven surface can affect door movement.
• Missing or Damaged Parts:
  • Refer to the package contents list and contact customer support with details of the missing or damaged part.

8. Specifications

Image 6: Visual representation of the TV cabinet's dimensions and examples of compatible TV sizes (32", 43", 55", 60").

9. Warranty and Support

Specific warranty details for the VASAGLE LTV46B50 TV Cabinet are not provided within this manual. For warranty information, product support, or to report missing/damaged parts, please contact the manufacturer, VASAGLE, or your retailer directly. Please have your model number (LTV46B50) and purchase information ready when contacting support.
