SANLIV Waterfall Bathroom Faucet Instruction Manual

Introduction

Thank you for choosing the SANLIV Waterfall Bathroom Faucet. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new faucet. Please read these instructions thoroughly before beginning installation and retain them for future reference.

This single-handle faucet features a unique waterfall spout design, an oil rubbed bronze finish, and includes a matching pop-up drain assembly. It is designed for compatibility with both 1-hole and 3-hole bathroom sinks, offering versatility and a modern aesthetic.

Product Overview and Components

The SANLIV Waterfall Bathroom Faucet is constructed from high-quality brass with an oil rubbed bronze finish, ensuring durability and a timeless appearance. The design provides a visually pleasing waterfall flow, enhancing your bathroom experience.

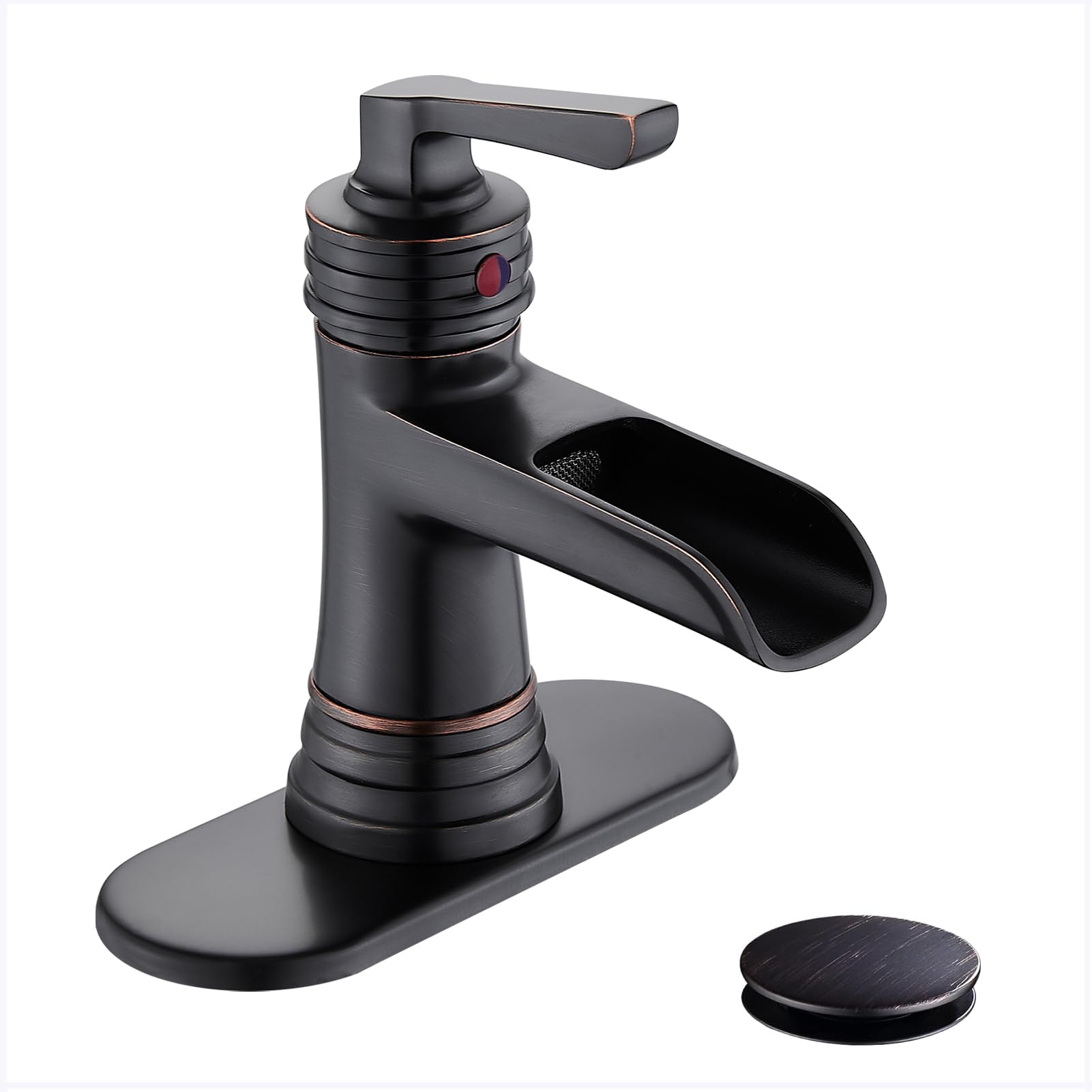

Figure 1: SANLIV Waterfall Bathroom Faucet in an installed setting.

Key features include:

• Waterfall Spout: Delivers a gentle, laminar water flow.
• Single Lever Handle: Allows for easy control of water temperature and flow.
• Oil Rubbed Bronze Finish: Provides a durable, corrosion-resistant, and easy-to-clean surface.
• Ceramic Disc Cartridge: Ensures leak-free operation and smooth handle movement, tested for 500,000 cycles.
• Pop-Up Drain Assembly: Included for convenient sink drainage.
• Deck Plate: Accommodates 1-hole or 3-hole sink installations.

Figure 2: Included components: faucet, pop-up drain assembly, water supply lines, deck plate, and installation wrench.

Safety Information

Please observe the following safety precautions during installation and use:

• Always turn off the main water supply before beginning any plumbing work.
• Wear appropriate personal protective equipment, such as safety glasses and gloves.
• Ensure all connections are secure to prevent leaks. Do not overtighten.
• If you are unsure about any step of the installation process, consult a qualified plumber.
• Keep small parts away from children.

Setup (Installation)

This faucet is designed for easy DIY installation, typically completed within 20 minutes. A special installation wrench is included to assist with the process.

Required Tools (Not Included):

• Adjustable wrench
• Phillips screwdriver
• Plumber's putty or silicone sealant
• Teflon tape (thread seal tape)

Installation Steps:

1. Prepare the Sink: Ensure the sink hole is clean and free of debris. The required hole size is 0.99-1.60 inches (25-40mm). The maximum countertop thickness supported is 2.36 inches (60mm).


Figure 3: Product dimensions and installation requirements for pre-drilled holes.

2. Install Deck Plate (for 3-hole sinks): If your sink has three holes, place the deck plate over the center hole, ensuring the gasket is properly seated underneath.
3. Mount the Faucet: Insert the faucet body through the center hole (or deck plate hole). Secure it from underneath the sink using the provided mounting hardware. Hand-tighten first, then use the included wrench for final tightening.
4. Connect Water Supply Lines: Attach the hot and cold water supply lines to the corresponding inlets on the faucet body. Use Teflon tape on the threads and tighten securely with an adjustable wrench. Connect the other ends to your hot and cold water stops.
5. Install Pop-Up Drain: Follow the separate instructions provided with the pop-up drain assembly. Ensure a watertight seal using plumber's putty or silicone sealant around the drain flange.
6. Test for Leaks: Once all connections are made, slowly turn on the main water supply. Check all connections for any signs of leakage. If leaks occur, tighten the connections as needed.

Operating Instructions

The SANLIV Waterfall Bathroom Faucet features a single lever handle for intuitive control of water flow and temperature.

Figure 4: Single lever handle for easy temperature and flow adjustment.

• Turning On/Off: Lift the handle upwards to turn on the water. Push the handle downwards to turn off the water.
• Adjusting Water Flow: The further you lift the handle, the greater the water flow.
• Adjusting Temperature: Move the handle to the left for hot water and to the right for cold water. The center position provides mixed water.
• Waterfall Spout: The wide spout creates a gentle, splash-free waterfall effect.
• Pop-Up Drain: Press the top of the drain stopper to close it and fill the sink. Press again to open it and allow water to drain.

Maintenance

Proper care will ensure the longevity and appearance of your SANLIV faucet.

• Cleaning the Finish: Clean the oil rubbed bronze finish with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
• Cleaning the Spout: Periodically check the waterfall spout for any mineral buildup. Clean with a soft brush and a mild cleaning solution if necessary.
• Ceramic Disc Cartridge: The durable ceramic disc cartridge is designed for maintenance-free, leak-free operation. No regular lubrication is required.
• Drain Maintenance: Regularly clean the pop-up drain assembly to prevent clogs and ensure proper function.

Troubleshooting

If you encounter issues with your faucet, refer to the following common problems and solutions:

If these solutions do not resolve the issue, please contact SANLIV customer support.

Specifications

Warranty and Support

For warranty information or technical assistance, please contact SANLIV customer support through the retailer where the product was purchased or visit the official SANLIV website. Please have your model number (SANLIV-28332-ORB) and purchase date available when contacting support.
