1. Product Overview
This manual provides instructions for the Generico 100-tooth timing belt, designed as a replacement part for various sewing machine models. This timing belt ensures the synchronized movement of internal components, crucial for the proper operation of your sewing machine.

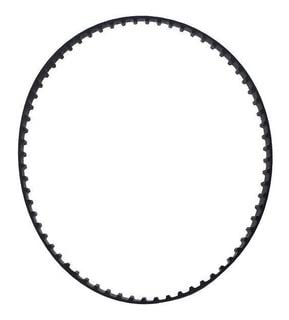

Image 1.1: Generico 100-Tooth Timing Belt. This image displays the black rubber timing belt with visible teeth, indicating its design for precise mechanical synchronization within a sewing machine.
1.1. Compatibility
This 100-tooth timing belt is compatible with the following sewing machine models:
- Pfaff Hobby: 301, 303, 307, 309, 340, 521, 540, 541, 721, 741, 750
- Pfaff Varimatic: 576, 577
- Gritzner: 344 Zick Zack, 716 Excellent, 720 Dorina, 730 Dorina, 754, 4222, 4224
1.2. Safety Information
Always disconnect the sewing machine from the power supply before attempting any installation, maintenance, or repair. If you are unsure about any step, consult a qualified technician to avoid damage to the machine or personal injury.
2. Installation
Replacing a timing belt requires careful attention to detail. The following steps provide a general guide. Specific procedures may vary depending on your sewing machine model. Refer to your sewing machine's original service manual for detailed instructions.
- Disconnect Power: Ensure the sewing machine is unplugged from the electrical outlet.
- Access Belt Compartment: Carefully open the casing or access panels of your sewing machine to expose the motor and belt mechanism. This often involves removing screws.
- Remove Old Belt: Loosen any tensioning mechanisms if present. Carefully remove the old timing belt from the pulleys. Note the orientation and path of the old belt.
- Install New Belt: Place the new 100-tooth timing belt onto the pulleys, ensuring it is correctly seated in the grooves. Maintain proper tension; the belt should be snug but not overly tight.
- Test Movement: Manually turn the handwheel a few rotations to ensure the belt moves smoothly and all components are synchronized.
- Reassemble: Replace all access panels and screws.
- Final Test: Plug in the machine and perform a test run at a slow speed to confirm proper operation.
Note: Incorrect installation can lead to machine malfunction or further damage. If you are not confident in performing this replacement, seek professional assistance.
3. Operating Considerations
Once correctly installed, the timing belt operates as an integral part of your sewing machine's mechanism. Proper installation ensures the machine's needle bar and hook assembly remain synchronized, which is essential for forming consistent stitches.
- Smooth Operation: A correctly installed belt should result in smooth, consistent machine operation without unusual noises or vibrations.
- Stitch Quality: If stitch quality deteriorates after belt replacement, re-check the belt tension and ensure it is properly seated.
4. Maintenance
The Generico 100-tooth timing belt is designed for durability. Regular maintenance of your sewing machine will contribute to the longevity of the belt and other components.
- Keep Clean: Periodically clean the area around the belt and pulleys to prevent lint and debris buildup, which can cause premature wear.
- Inspect for Wear: During routine machine maintenance, visually inspect the belt for any signs of cracking, fraying, or missing teeth. Replace the belt if any damage is observed.
- Avoid Over-Tensioning: Ensure the belt is not excessively tight, as this can put undue stress on the motor and pulleys, leading to premature failure.
5. Troubleshooting
If you experience issues after replacing the timing belt, consider the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine not moving or moving sluggishly | Belt too loose or improperly seated; motor issue; other mechanical obstruction. | Check belt tension and seating. Ensure no obstructions. Consult a technician if motor issues are suspected. |
| Skipped stitches or poor stitch quality | Incorrect belt tension; timing issues; needle or thread problems. | Verify belt tension and machine timing. Check needle condition and thread path. |
| Unusual noise (e.g., squealing, grinding) | Belt rubbing; worn belt; foreign object in mechanism; dry bearings. | Inspect belt path for rubbing. Check belt for wear. Clean mechanism. Lubricate as per machine's manual. |
If problems persist after attempting these solutions, it is recommended to consult a professional sewing machine technician.
6. Specifications
- Product Type: Timing Belt
- Number of Teeth: 100
- Brand: Generico
- Color: Black
- Manufacturer: SingerCT
- ASIN: B0BZT1N293
7. Warranty and Support
Information regarding specific warranty terms for this Generico timing belt is not provided in the product details. For warranty inquiries or technical support, please contact the seller directly through the platform where the purchase was made.
Always retain your proof of purchase for any warranty claims.
