Product Overview
The Feit Electric S9.5/1200/850/SOL/BZ Security Light is designed to provide enhanced safety and illumination for outdoor residential and commercial areas. This dual-head LED floodlight features a built-in photocell sensor for dusk-to-dawn operation and a motion sensor for activation upon detecting movement. It is powered by an integrated solar panel, offering an energy-efficient and convenient lighting solution.
Image: The Feit Electric Dual Head Solar Motion Security Floodlight, shown with its retail packaging, highlighting its key features and design.
Key Features
- Dual Head Design: Allows for customizable lighting angles and broader illumination coverage.
- Advanced Motion Sensor: Detects movement up to 50 feet away, enhancing security.
- Dusk-to-Dawn Functionality: Automatically turns the light on at dusk and off at dawn for energy efficiency.
- Integrated Solar Panel: Harnesses solar energy, reducing reliance on external power sources.
- Energy-Efficient LED Lighting: Provides 1200 lumens of 5000K Daylight white light with a long lifespan of 50,000 hours.
- Durable Construction: Features corrosion-resistant housing and shatter-resistant polycarbonate lens, rated IP65 for wet locations.
Image: The floodlight illuminating an outdoor area with 5000K Daylight, demonstrating its bright and clear light output.
Package Contents
Verify that all components are present before beginning installation.
- 1 x LED Motion-Sensing Security Floodlight
- 1 x Compact Solar Panel (with wall mount and ground stake)
- Mounting Hardware (screws, wall anchors)
Image: All components included in the package, such as the floodlight, solar panel, mounting screws, and wall anchors.
Specifications
| Attribute | Value |
|---|---|
| Brand | Feit Electric |
| Model Name | Solar Security Floodlight |
| Part Number | S9.5/1200/850/SOL/BZ |
| Brightness | 1200 Lumens |
| Color Temperature | 5000K Daylight |
| Power Source | Solar Powered |
| Motion Sensor Range | Up to 50 ft |
| Lifespan | 50,000 Hours |
| Material | Plastic (Housing), Aluminum (Shade) |
| Water Resistance Level | Waterproof (IP65) |
| Product Dimensions | 8.8"L x 7.5"W x 5.3"H |
| Item Weight | 1.2 Pounds |

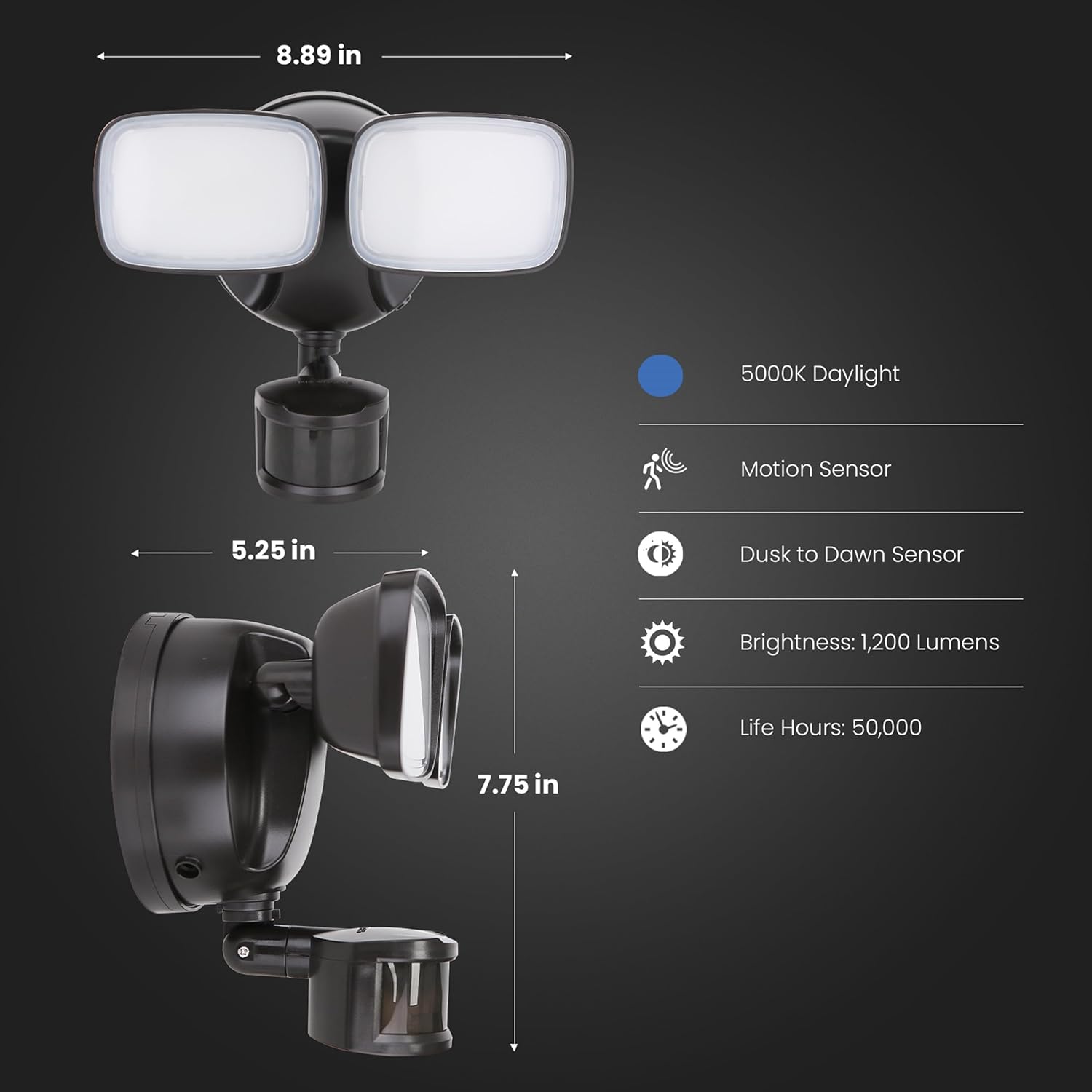

Image: Detailed dimensions of the floodlight and a summary of key specifications including brightness, color temperature, and lifespan.
Setup and Installation
Mounting Considerations
Choose a mounting location that receives ample direct sunlight throughout the day for optimal solar panel charging. The floodlight can be wall-mounted, and the solar panel can be mounted separately on a wall or with a ground stake for versatile placement.
- Ensure the mounting surface is stable and can support the weight of the fixture.
- Position the solar panel to maximize sun exposure, ideally facing south.
- The dual heads are adjustable, allowing you to direct light precisely where needed.

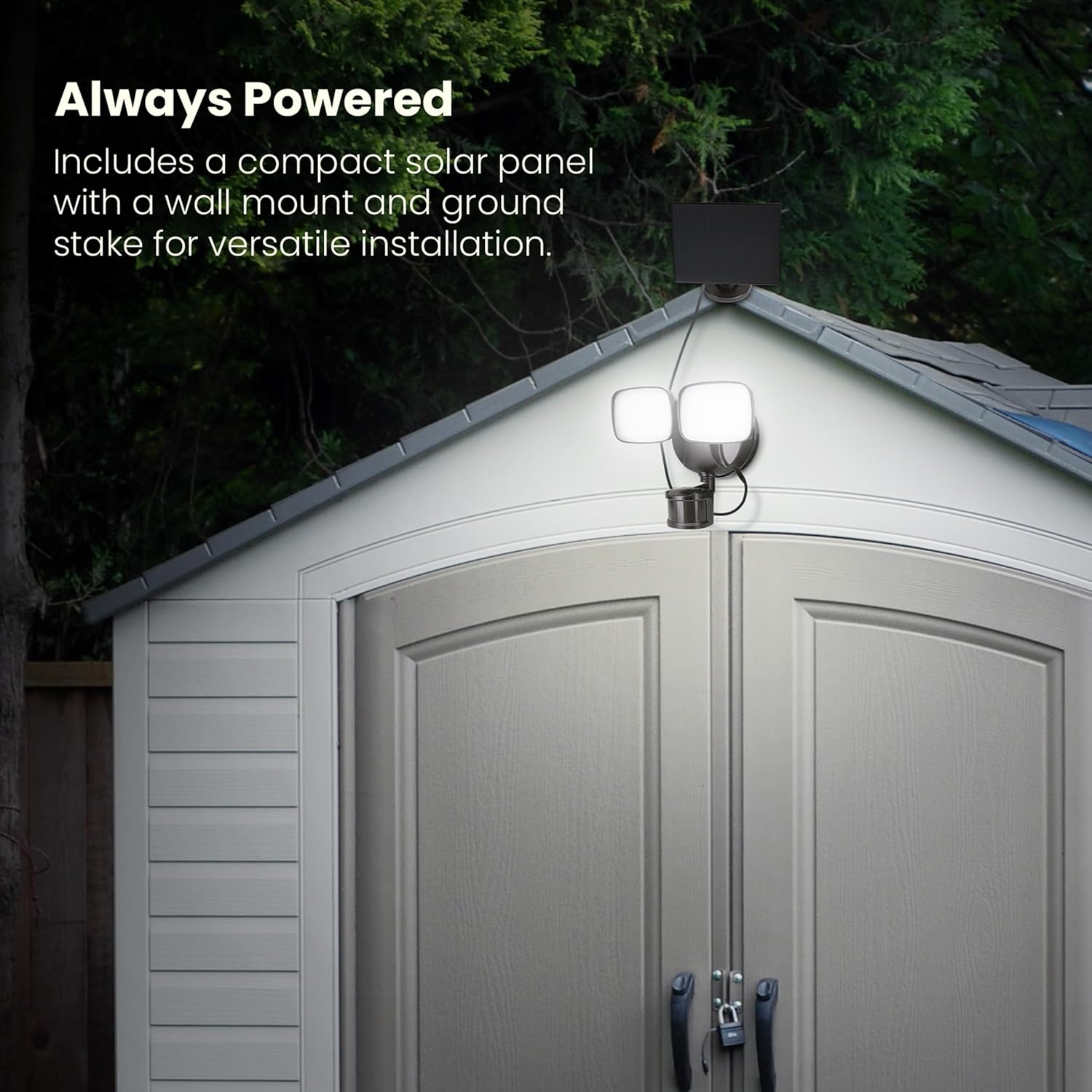

Image: The floodlight installed on a shed with its solar panel mounted above, demonstrating a typical installation scenario.
Image: An illustration showing how the dual heads of the floodlight can be adjusted to direct light in specific areas.
Wiring and Mounting Plate
The floodlight features a hands-free wiring mounting back plate for easier installation. Follow local electrical codes and safety guidelines during installation.
Image: A view of the floodlight's mounting back plate, designed for simplified wiring during installation.
Operating Instructions
Motion Sensor Functionality
The integrated motion sensor detects movement up to 50 feet away, activating the floodlight when motion is detected within its range. This feature provides on-demand illumination for security and convenience.
Image: A visual representation of the floodlight's motion detection range, showing activation when a person enters the detection zone.
Dusk-to-Dawn Operation
The built-in photocell sensor automatically turns the floodlight on when ambient light levels drop (dusk) and turns it off when daylight returns (dawn). This ensures continuous illumination during nighttime hours without manual intervention.
Image: A split image illustrating the floodlight's automatic activation at dusk and deactivation at dawn, demonstrating the dusk-to-dawn sensor.
Maintenance
To ensure optimal performance and longevity of your Feit Electric Floodlight, follow these maintenance guidelines:
- Cleaning: Periodically wipe the solar panel and light heads with a soft, damp cloth to remove dust, dirt, and debris. Ensure the solar panel is clean for efficient charging.
- Inspection: Regularly check for any loose connections or physical damage to the fixture and solar panel.
- Environmental Durability: The floodlight is designed to withstand various weather conditions, featuring a durable plastic housing and shatter-resistant polycarbonate lens, rated IP65 for wet locations.
Image: The floodlight shown enduring rainfall, highlighting its robust construction and weather resistance.
Troubleshooting
If you encounter issues with your floodlight, refer to the following common problems and solutions:
- Light does not turn on at night:
- Ensure the solar panel is receiving adequate direct sunlight during the day.
- Check for any obstructions blocking the solar panel or the photocell sensor.
- Verify that the light is fully charged. Allow 1-2 days of full sunlight charging before first use.
- Motion sensor is not detecting:
- Confirm the motion sensor is clean and free from debris.
- Ensure the sensor's range is not obstructed by objects or foliage.
- Check the angle of the sensor to ensure it covers the desired area.
- Light stays on during the day:
- The photocell sensor may be obstructed or in a shaded area, preventing it from detecting daylight. Relocate or clear obstructions.
Warranty and Support
This Feit Electric product comes with a 5-year limited warranty. For detailed warranty information, please refer to the official Feit Electric website or contact customer support.
For 24/7 customer support or further assistance, please visit the Feit Electric help center:
Visit Feit Electric Help Center
Image: Information on how to access 24/7 customer support via the Feit Electric website.
