VASAGLE 5-Tier Bookshelf ULBC121B01 Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the assembly, safe use, and maintenance of your new VASAGLE 5-Tier Bookshelf. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Image 1.1: The VASAGLE 5-Tier Bookshelf, showcasing its rustic brown shelves and black metal frame, suitable for various home environments.

2. Safety Information

• Anti-Tip Kit: Always secure the bookshelf to the wall using the included anti-tip kit to prevent accidental tipping, especially in households with children or pets.
• Weight Capacity: Each shelf has a maximum static load capacity of 66 lb (30 kg). Do not exceed this weight limit to ensure stability and prevent damage.
• Children's Safety: Children are not permitted to climb on or play with the bookshelf. Ensure the unit is stable and items are placed securely to avoid hazards.
• Placement: Place the bookshelf on a flat, level surface. Adjustable feet are provided to help stabilize the unit on slightly uneven floors.

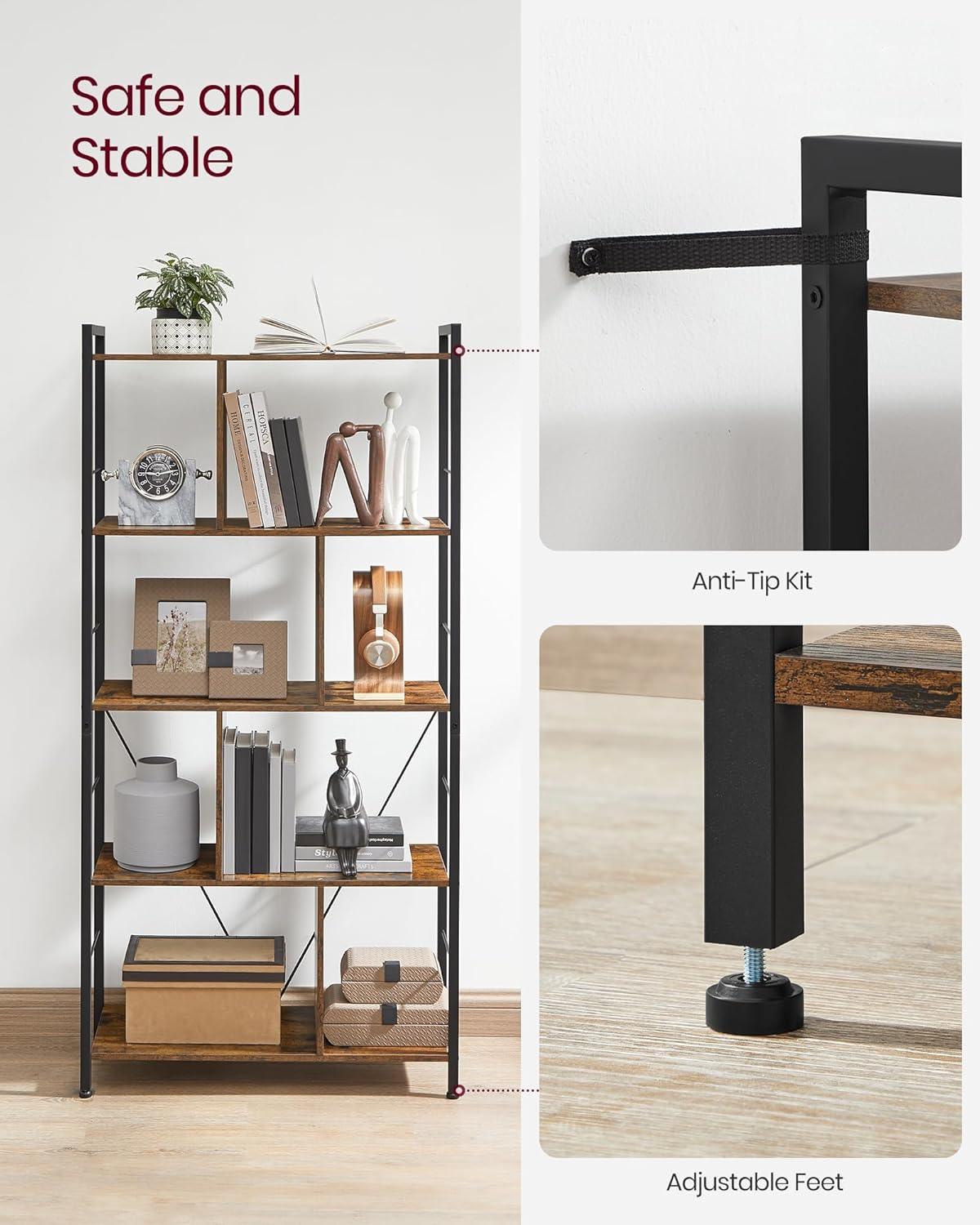

Image 2.1: Detail of the anti-tip kit for wall attachment and adjustable feet for stability on uneven surfaces.

3. Package Contents

Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• 1 x Bookshelf Frame and Shelves
• 1 x Assembly Bag (containing screws, connectors, and tools)
• 1 x Anti-Tip Kit
• 1 x Instruction Manual

4. Assembly Instructions

Assembly is straightforward with numbered parts and clear instructions. It is recommended to assemble the unit on a soft, clean surface to prevent scratches.

1. Unpack and Identify Parts: Carefully unpack all components and lay them out. Refer to the parts list in the included instruction manual to identify each piece (e.g., shelves A, B, C, D; frame parts E, F, G, H).
2. Assemble Frame Sections: Connect the vertical metal frame sections using the provided screws. Ensure all connections are snug but do not overtighten initially.
3. Attach Shelves: Secure the particleboard shelves to the metal frame. The shelves are designed to fit into specific positions. Ensure the correct orientation for each shelf.
4. Install Side Bars (Optional/Decorative): The bookshelf features versatile side bars. These can be installed to prevent items from falling or used for hanging small items.
5. Tighten All Screws: Once all parts are in place, systematically tighten all screws to ensure the bookshelf is stable and secure.
6. Attach Anti-Tip Kit: For safety, attach the anti-tip kit to the top rear of the bookshelf and secure it to a wall stud or appropriate wall anchor.
7. Adjust Feet: Use the adjustable feet at the bottom of the frame to level the bookshelf on uneven floors.

Image 4.1: The versatile side bars provide additional security for items and can be used for decorative purposes.

Image 4.2: The solid construction with a steel frame and particleboard ensures durability and stability.

5. Usage and Operating

The VASAGLE 5-Tier Bookshelf is designed for versatile storage and display. Its open compartments allow for easy access and organization of various items.

• Display: Utilize the open shelves to display books, decorative items, plants, and collectibles.
• Storage: Organize office supplies, media, or personal belongings in the designated compartments.
• Versatility: Suitable for living rooms, home offices, bedrooms, or any area requiring additional storage and a touch of industrial design.

Image 5.1: The open shelf design allows for easy access and visibility of stored items.

6. Maintenance

To maintain the appearance and longevity of your bookshelf, follow these simple care instructions:

• Cleaning: Wipe with a damp cloth to remove dust and dirt. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Spills: Promptly wipe up any spills to prevent staining or damage to the particleboard.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
• Sunlight Exposure: Avoid prolonged direct sunlight exposure to prevent fading or discoloration of the rustic brown finish.

7. Troubleshooting

If you encounter any issues with your bookshelf, refer to the following common solutions:

• Bookshelf is Wobbly:
  • Ensure all screws are fully tightened.
  • Adjust the leveling feet at the bottom of the frame to stabilize the unit on uneven floors.
  • Verify the anti-tip kit is correctly installed and securely fastened to the wall.
• Missing Parts:
  • Double-check the packaging and all corners of the box. Small parts can sometimes be overlooked.
  • If parts are genuinely missing, contact VASAGLE customer support with your model number and a description of the missing items.

8. Specifications

Image 8.1: Dimensional diagram of the bookshelf for planning placement.

9. Warranty and Support

For warranty information, product support, or to order replacement parts, please contact VASAGLE customer service directly. Refer to the contact details provided in your purchase documentation or on the official VASAGLE website.

Please have your model number (ULBC121B01) and purchase date available when contacting support.
