BIGBIG WON C1S Wired Gaming Controller User Manual

1. Introduction

This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your BIGBIG WON C1S Wired Gaming Controller. Please read this manual carefully before using the product to ensure optimal performance and longevity.

The BIGBIG WON C1S is a versatile wired gaming controller designed for multi-platform compatibility, offering advanced features such as 6-axis gyro, customizable macro and turbo functions, dual vibration, and RGB lighting. Its transparent design allows for a unique visual experience.

2. Setup Guide

2.1 Package Contents

BIGBIG WON C1S Wired Gaming Controller
1.8m Ultra-Soft Type-C Cable
User Manual

2.2 Connecting the Controller

The C1S controller connects via a wired USB Type-C cable. Ensure the cable is securely connected to both the controller and your gaming device.

Connect the USB Type-C end of the provided cable to the controller's port.
Connect the standard USB-A end of the cable to an available USB port on your PC, Nintendo Switch dock, or PS4 (requires R90 converter, sold separately).
The controller's RGB lighting will illuminate upon successful connection.

2.3 Platform Compatibility

PC: Compatible with Windows 7/8/10/11. Plug and play functionality.
Nintendo Switch: Connect directly to the Switch dock. Supports one-key wake-up for the console.
PS4: Requires a BIGBIG WON R90 converter (sold separately) for compatibility.
Mobile Devices: Compatible with iOS MFi and Android HID Model devices.

BIGBIG WON C1S controller connected to a PC and Nintendo Switch

Image: The BIGBIG WON C1S controller connected to various platforms, including a PC and a Nintendo Switch, demonstrating its multi-platform compatibility.

3. Operating Instructions

3.1 Controller Layout

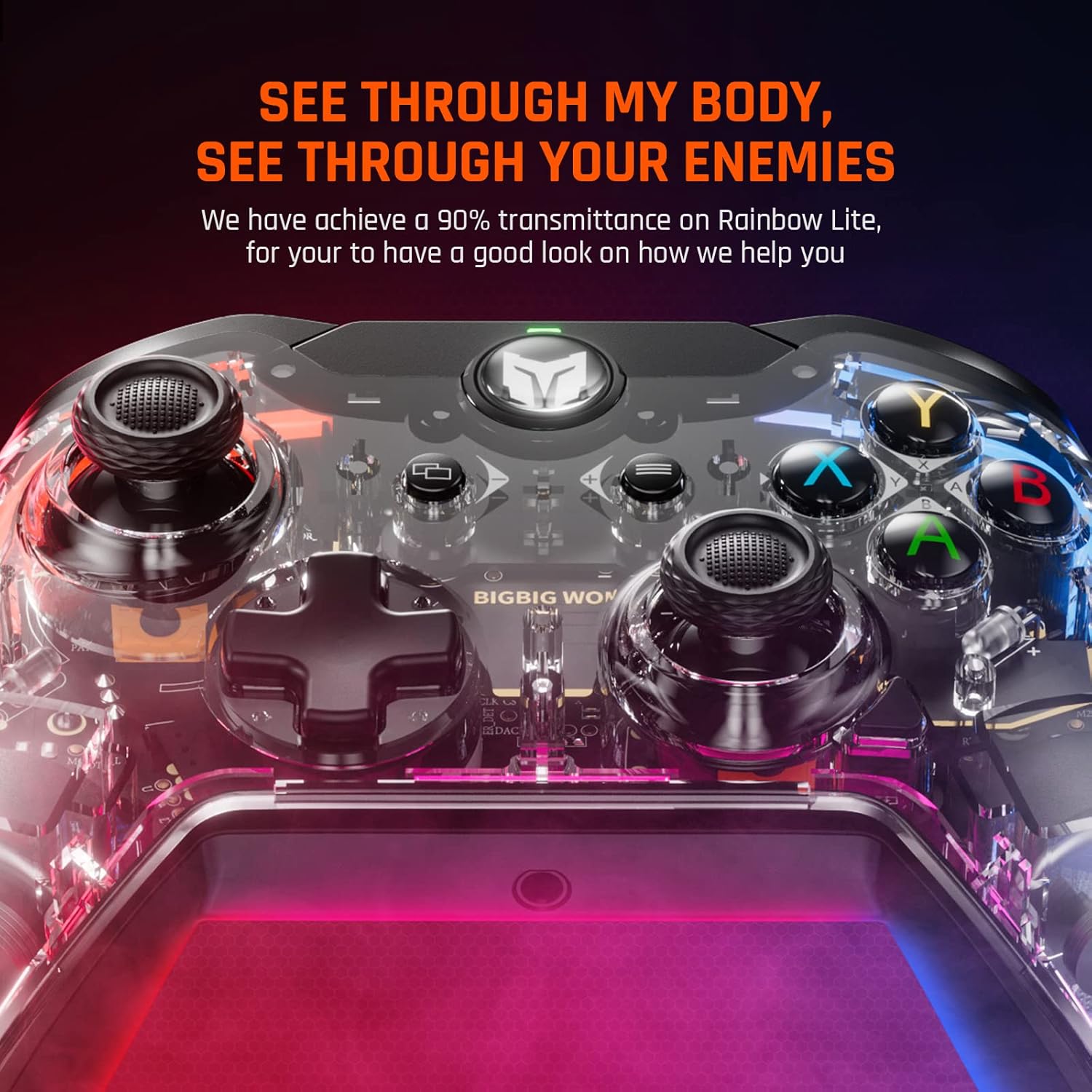

Front view of the BIGBIG WON C1S controller showing transparent casing and buttons

Image: Front view of the BIGBIG WON C1S controller, highlighting its transparent casing and illuminated internal components, along with the main buttons and joysticks.

The C1S controller features a standard layout with two analog sticks, a D-pad, A/B/X/Y face buttons, L/R shoulder buttons, ZL/ZR triggers, and additional customizable back buttons (M1/M2).

3.2 Key Features and Functions

6-Axis Gyro Sensor: Provides motion control capabilities, enhancing gameplay immersion and allowing for quick, responsive actions in compatible games.
Customizable M1/M2 Back Buttons: These two remappable buttons on the back of the controller can be programmed for single or multiple key functions (A/B/X/Y/L/ZL/R/ZR/L3/R3/D-pad keys). This allows for advanced game techniques and personalized control schemes.

Rear view of the BIGBIG WON C1S controller showing M1 and M2 remappable back buttons

Image: Rear view of the BIGBIG WON C1S controller, illustrating the placement of the M1 and M2 remappable back buttons for custom configurations.

Adjustable Turbo Function: Supports both Auto TURBO and Manual TURBO modes. You can set TURBO with A/B/X/Y/L/R/ZL/ZR buttons. There are three adjustable speeds: 5 shots/s, 12 shots/s, and 20 shots/s.
Dual Vibration Motors: Built-in motors provide haptic feedback with four adjustable levels: None, Weak, Medium, and Strong. This enhances game immersion by providing tactile responses to in-game events.
One Key Wake-up: Allows you to quickly wake up your connected console with a single button press.
RGB Lighting: The controller features customizable RGB lighting effects, allowing you to personalize its appearance and create a dynamic gaming atmosphere.

Three BIGBIG WON C1S controllers displaying different RGB lighting effects

Image: Three BIGBIG WON C1S controllers showcasing various RGB lighting effects, demonstrating the customizable illumination feature.

Linear and Hair Triggers: The triggers can function as linear triggers for precise control in racing games or as hair triggers for rapid fire in FPS games, adapting to different gaming needs.

Diagram illustrating the difference between linear and hair trigger responses on the BIGBIG WON C1S controller

Image: A visual representation explaining the functionality of linear triggers versus hair triggers, showing how the C1S controller can switch between these modes for different game genres.

Zero Deadzone Joysticks: Equipped with an optimized joystick algorithm, the controller offers precise accuracy with zero deadzone, ensuring responsive and natural motion control.

Close-up of the BIGBIG WON C1S joystick with glowing rings, indicating zero deadzone accuracy

Image: A close-up of the controller's joystick, emphasizing its precision and zero deadzone capability with glowing visual effects.

3.3 Mobile Application for Customization

The dedicated mobile application allows users to easily configure mapping settings, adjust turbo speeds, and customize other controller functions for different games or scenarios. A dedicated button on the controller facilitates fast switching between configurations.

A hand holding the BIGBIG WON C1S controller next to a smartphone displaying the mobile app for settings

Image: A user interacting with the BIGBIG WON mobile application on a smartphone to customize controller settings, with the C1S controller visible.

4. Maintenance

4.1 Cleaning

Use a soft, dry cloth to wipe the surface of the controller.
For stubborn dirt, slightly dampen the cloth with water or a mild cleaning solution. Avoid harsh chemicals or abrasive materials.
Do not allow liquids to enter the controller's openings.
Clean the transparent casing gently to maintain its clarity.

4.2 Storage

Store the controller in a cool, dry place away from direct sunlight and extreme temperatures.
Avoid placing heavy objects on the controller.
When not in use, coil the 1.8m Ultra-Soft Type-C cable neatly to prevent kinks or damage.

Close-up of the anti-slip grips on the BIGBIG WON C1S controller

Image: A close-up view of the anti-slip textured grips on the controller, designed for enhanced handling during gameplay.

5. Troubleshooting

5.1 Connection Issues

Controller not recognized: Ensure the USB Type-C cable is fully inserted into both the controller and the device. Try a different USB port or restart your device.
No response on PS4: Confirm that you are using the BIGBIG WON R90 converter for PS4 compatibility.

5.2 Button/Joystick Malfunction

Buttons not responding: Check if any custom mappings are active via the mobile app that might be interfering. Reset controller settings if necessary.
Joystick drift or inaccuracy: The C1S features zero deadzone joysticks. If you experience issues, ensure the controller firmware is up to date via the mobile app.
Trigger issues (e.g., ZL button): If a trigger button (e.g., ZL/L2) does not maintain a consistent signal when held down, this may indicate a hardware issue. Please contact customer support for assistance.

5.3 Vibration Issues

No vibration: Check the vibration intensity settings. Ensure it is not set to 'None'.
Weak/Strong vibration: Adjust the vibration intensity through the controller's settings or the mobile application.

6. Specifications

Model Number	C1S
Connection Type	Wired (USB Type-C)
Cable Length	1.8 meters (Ultra-Soft E-Sport Grade Cable)
Supported Platforms	Windows 7/8/10/11, Nintendo Switch, iOS MFi, Android HID Model, PS4 (with R90 converter)
Special Features	6-Axis Gyro, Macro Function (M1/M2), Turbo Function (3 speeds), Dual Vibration (4 levels), One Key Wake-up, RGB Lighting, Linear/Hair Triggers, Zero Deadzone Joysticks, 3.5mm Audio Jack
Product Dimensions	0.39 x 0.39 x 1 inches
Item Weight	11.7 ounces
Manufacturer	BIGBIG WON

International certification logos including FC, CE, RoHS

Image: Various international certification logos, indicating compliance with quality and safety standards.

7. Warranty Information

For detailed warranty information, please refer to the official BIGBIG WON website or the warranty card included with your product. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase.

Keep your purchase receipt as proof of purchase for any warranty claims.

8. Customer Support

If you encounter any issues not covered in this manual or require further assistance, please contact BIGBIG WON customer support through their official website. Provide your product model (C1S) and a detailed description of the issue for efficient service.

Official Website: https://dwz.cn/fdJI2Z9U
