Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Nespresso De'Longhi CitiZ Platinum EN220.T capsule coffee machine. Please read these instructions carefully before first use and keep them for future reference to ensure optimal performance and longevity of your appliance.
Important Safety Instructions
- Read all instructions thoroughly before operating the appliance.
- Do not immerse the appliance, power cord, or plug in water or any other liquid.
- Keep the appliance out of reach of children and individuals with reduced physical, sensory, or mental capabilities.
- Always unplug the appliance from the electrical outlet when not in use, before cleaning, and before assembling or disassembling parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact Nespresso Customer Service for repair.
- Use only Nespresso OriginalLine capsules with this machine.
- Avoid contact with hot surfaces. The coffee outlet and hot water dispenser can become very hot during and after operation.
- Do not use the appliance outdoors or in damp conditions.
- Ensure the water tank is filled with fresh, potable water before each use.
- Never open the brewing lever during the brewing process.

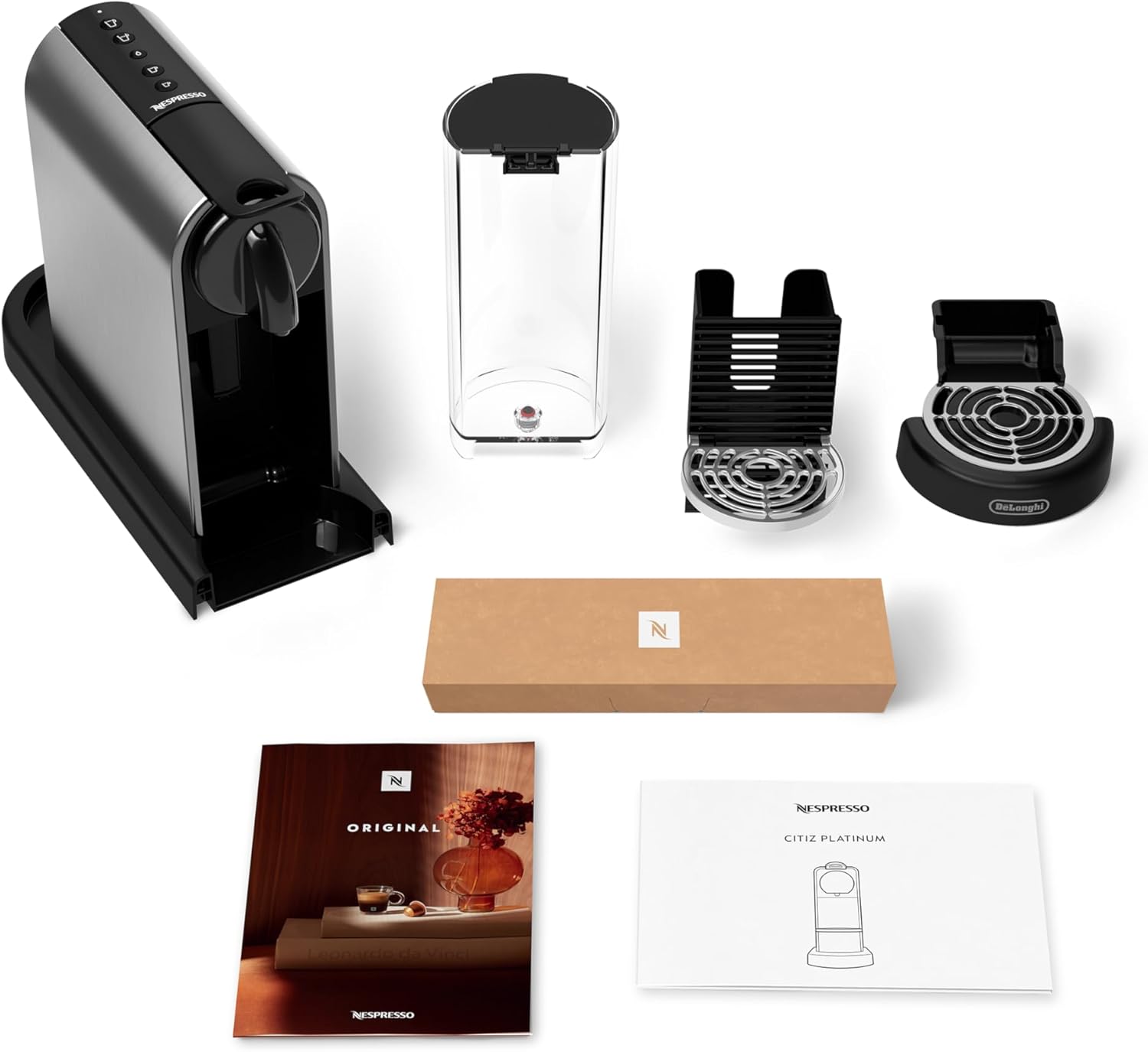

Package Contents
Verify that all components are present and undamaged in the packaging:
- Nespresso De'Longhi CitiZ Platinum EN220.T Coffee Machine
- Removable Water Tank
- Drip Tray and Grid
- Used Capsule Container
- Welcome Kit of Nespresso Capsules (typically 7 capsules)
- Instruction Manual (this document)
Product Overview
Familiarize yourself with the main parts of your coffee machine for easier operation:
- Water Tank: Transparent reservoir located at the back, holds water for brewing.
- Capsule Insertion Slot: Top opening where Nespresso capsules are placed.
- Brewing Lever: Handle used to open and close the brewing chamber.
- Coffee Buttons: Illuminated buttons for selecting Espresso, Lungo, Americano, and Americano XL.
- Hot Water Button: Dedicated button for dispensing hot water.
- Coffee Outlet: Spout from which coffee and hot water are dispensed.
- Drip Tray: Removable tray that collects excess liquid and supports your cup.
- Used Capsule Container: Integrated bin that stores used capsules after brewing.
Initial Setup
Follow these steps before using your machine for the first time:
- Unpack: Carefully remove the machine from its packaging and place it on a stable, flat, and heat-resistant surface near an electrical outlet.
- Clean Components: Wash the water tank, drip tray, and used capsule container with fresh drinking water. Dry them thoroughly.
- Fill Water Tank: Fill the water tank with fresh, potable water up to the MAX level and place it securely back on the machine.
- Plug In: Connect the power cord to a grounded electrical outlet.
- Power On: Press any coffee button to turn on the machine. The buttons will blink as the machine heats up (approximately 25 seconds). They will glow steadily when the machine is ready for use.
- First Rinse: To prime the pump and rinse the system, place a container (at least 200 ml capacity) under the coffee outlet. Press the Lungo button. Allow the water to flow through. Repeat this process 2-3 times to ensure the system is clean and primed.
Operating Instructions
Making Coffee (Espresso, Lungo, Americano, Americano XL)
- Ensure the water tank is filled with fresh water and the machine is powered on and ready (buttons glowing steadily).
- Lift the brewing lever completely upwards.
- Insert a Nespresso OriginalLine capsule into the capsule insertion slot.
- Close the brewing lever firmly downwards.
- Place a suitable cup under the coffee outlet.
- Press the desired coffee button:
- Espresso (40 ml): For a short, intense coffee.
- Lungo (110 ml): For a longer coffee.
- Americano (25 ml coffee + 125 ml hot water): Press the Americano button. The machine will first brew 25 ml of coffee, then automatically dispense 125 ml of hot water.
- Americano XL (40 ml coffee + 160 ml hot water): Press the Americano XL button. The machine will first brew 40 ml of coffee, then automatically dispense 160 ml of hot water.
- The machine will stop automatically when the selected volume is reached.
- After brewing, lift the lever to eject the used capsule into the container. Close the lever.
Dispensing Hot Water
- Ensure the water tank is filled and the machine is powered on and ready.
- Place a cup (up to 200 ml capacity) under the coffee outlet.
- Press the dedicated hot water button. The machine will dispense hot water. Press the button again to stop manually if a smaller volume is desired.
Care and Maintenance
Daily Cleaning
- Drip Tray and Used Capsule Container: Empty and rinse these components daily with warm water.
- Water Tank: Rinse the water tank with fresh water daily. Refill with fresh, potable water.
- Machine Exterior: Wipe the machine's exterior with a damp, soft cloth. Do not use abrasive cleaning agents, solvents, or immerse the machine in water.
Descaling
Regular descaling is crucial for maintaining optimal coffee quality and extending the lifespan of your machine. The machine features a descaling alert, which will illuminate when descaling is required.
- In soft water areas, it is recommended to descale at least once a year.
- In hard water areas, descaling should be performed twice a year.
- Use only the Nespresso descaling kit. Follow the specific instructions provided with the descaling kit and in the machine's full user manual (available for download on nespresso.com).
Troubleshooting
If you encounter issues with your machine, refer to the table below for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No coffee flow or very slow flow. | Water tank empty, air in the system, or machine needs descaling. | Fill the water tank. Run a Lungo cycle without a capsule to prime the pump. Perform descaling if the alert is active. |
| Coffee is not hot enough. | Cups are cold. | Pre-heat cups with hot water (using the hot water function) or by running a Lungo cycle without a capsule into the cup. |
| Water leaking from the machine. | Water tank not correctly positioned, or drip tray is full. | Ensure the water tank is firmly in place. Empty and correctly reposition the drip tray. |
| Used capsule not ejecting. | Brewing lever not fully lifted. | Lift the brewing lever completely until the capsule drops into the used capsule container. |
| Machine does not turn on. | No power supply. | Check the power cord connection to both the machine and the wall outlet. Ensure the outlet is functional. |
Specifications
Key technical specifications for your Nespresso De'Longhi CitiZ Platinum EN220.T:
| Feature | Detail |
|---|---|
| Brand | Nespresso |
| Model Number | EN220.T |
| Color | Titanium |
| Product Dimensions (L x W x H) | 27.7 x 13 x 38.9 cm (10.9 x 5.1 x 15.3 inches) |
| Water Tank Capacity | Approx. 1 Liter (200 Milliliters for hot water function) |
| Power | 1260 Watts |
| Pressure | 19 Bar |
| Material | Titanium Stainless Steel |
| Special Features | Removable Water Tank, Descaling Alert, Eco-mode (auto-off after 9 mins), 4 programmable cup sizes |
| Item Weight | 4 Kilograms (approx. 8.8 pounds) |
| Country of Origin | China |
Warranty and Support
For technical assistance, spare parts, or warranty inquiries, please contact Nespresso Customer Service. It is helpful to have your 19-digit serial number (found under the machine) and customer number ready when contacting support.
- Technical Service: Contact Nespresso technical service for assistance with machine malfunctions or operational issues.
- Spare Parts: Spare parts are available for current machine models. Inquire with customer service for availability and ordering.
- Full User Manual: A comprehensive user manual can be downloaded from the official Nespresso website (nespresso.com). Navigate to the support section and select your specific machine model (EN220.T).
