Hofstein Salmi LED Ceiling Light Instruction Manual

1. Safety Instructions

Please read these instructions carefully before installation and use. Keep this manual for future reference.

• Electrical Safety: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Always disconnect power at the main circuit breaker before installation, maintenance, or cleaning.
• Indoor Use Only: This product has an IP20 rating, indicating it is protected against solid objects larger than 12.5mm but has no protection against water. It is designed for indoor use only.
• Handling: Handle the light fixture with care to avoid damage. Do not apply excessive force.
• Light Source: The LED light source in this luminaire is not replaceable. When the light source reaches its end of life, the entire luminaire shall be replaced.
• Cleaning: Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.

2. Package Contents

Verify that all components are present and undamaged before proceeding with installation.

• Hofstein Salmi LED Ceiling Light Fixture
• Remote Control
• Mounting Hardware (screws, wall anchors)
• Instruction Manual

3. Product Overview

The Hofstein Salmi LED Ceiling Light is a modern, rectangular fixture designed for various indoor spaces. It features integrated LED technology, offering adjustable brightness and color temperature via a remote control.

Key Features:

• Dimensions: 80 cm (Length) x 20 cm (Width) x 8 cm (Height)
• Materials: Wood, MDF, Metal, Plastic (diffuser)
• Light Source: 1 x 24 Watt Integrated LED
• Luminous Flux: 1500 Lumens
• Color Temperature (CCT): 2700K (Warm White) to 6500K (Cool White)
• Dimmable: Yes, via included remote control
• Voltage: 230 Volt
• Protection Rating: IP20

The Hofstein Salmi LED Ceiling Light, a rectangular fixture with a wood-look frame and white diffuser, shown with its remote control.

4. Setup and Installation

Important: Ensure power is disconnected at the main circuit breaker before beginning installation.

1. Unpack: Carefully remove all components from the packaging. Inspect for any damage.
2. Prepare Tools: You will need a drill, screwdriver, wire strippers, and potentially a voltage tester.
3. Mark Drilling Points: Hold the mounting bracket (located on the back of the fixture) against the ceiling at the desired installation location. Use a pencil to mark the drilling points.
4. Drill Holes: Drill holes at the marked points. Insert appropriate wall anchors if necessary.
5. Mount Bracket: Secure the mounting bracket to the ceiling using the provided screws.
6. Electrical Connection: Connect the household electrical wires to the terminals on the light fixture. Ensure correct polarity (Live, Neutral, Earth). If unsure, consult a qualified electrician.
7. Attach Fixture: Carefully align the light fixture with the mounted bracket and secure it in place. Ensure all connections are firm and the fixture is stable.

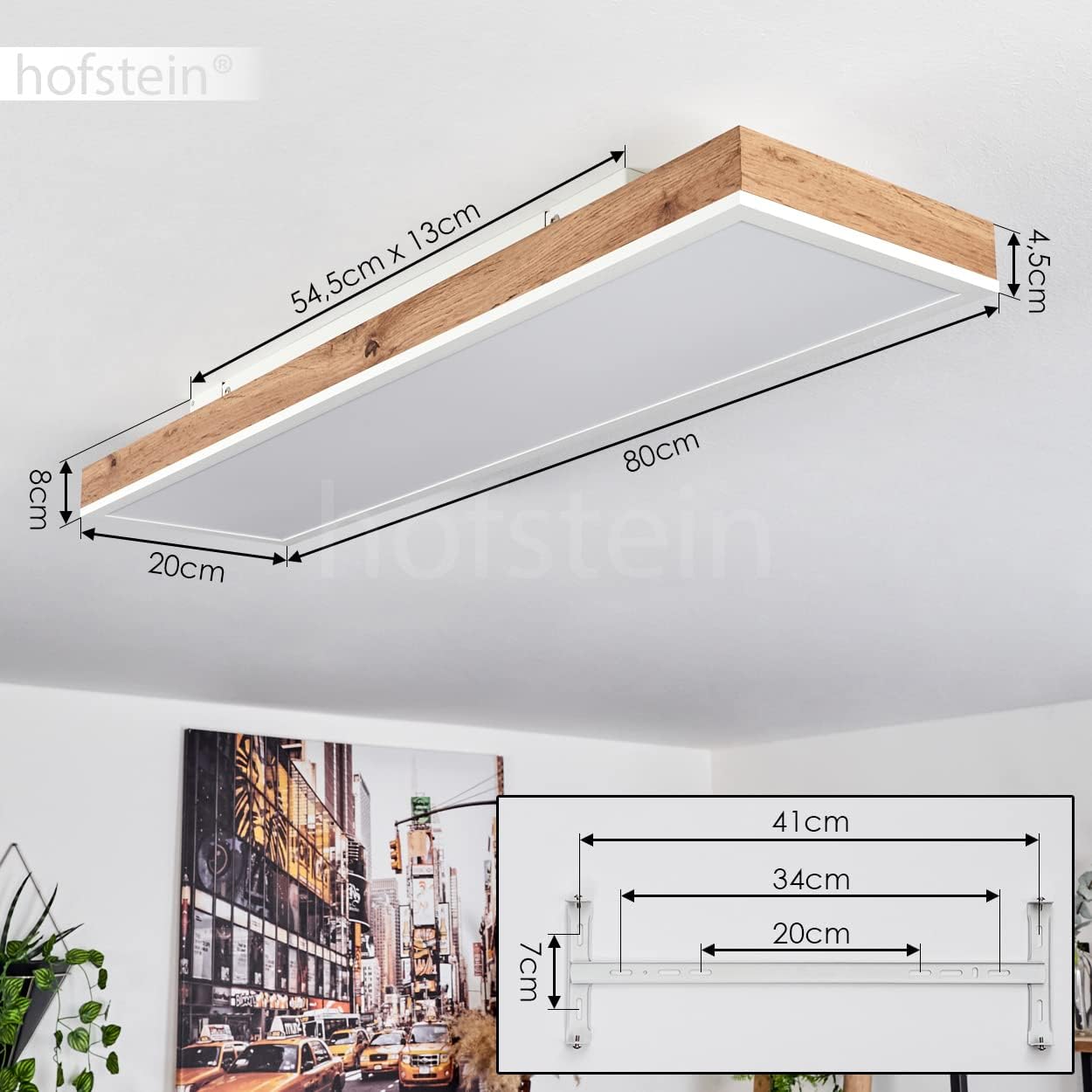

Technical diagram showing the dimensions of the Hofstein Salmi LED Ceiling Light: 80 cm length, 20 cm width, and 8 cm height, with mounting plate details.

The rear view of the Hofstein Salmi LED Ceiling Light, illustrating the mounting mechanism and electrical connection points.

5. Operating Instructions

The Hofstein Salmi LED Ceiling Light is operated using the included remote control.

Remote Control Functions:

• ON/OFF Button: Press to turn the light on or off.
• Brightness Adjustment: Use the '+' and '-' buttons to increase or decrease the light intensity (dimming function).
• Color Temperature Adjustment: Use the 'Warm' and 'Cool' buttons (or similar icons) to cycle through or adjust the color temperature from warm white (2700K) to cool white (6500K).
• Preset Modes: Some remotes may include preset buttons for specific color temperatures or brightness levels (e.g., 'Night Light', 'Reading', 'Work').

The Hofstein Salmi LED Ceiling Light installed in a room, demonstrating various light settings from warm white to cool white and different brightness levels, controlled by the included remote.

Detailed view of the Hofstein Salmi LED Ceiling Light's adjustable light settings, illustrating the range of color temperatures (Kelvin) and brightness (Lumen) available, with the remote control visible.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your ceiling light.

• Cleaning: Disconnect power before cleaning. Wipe the fixture with a soft, dry, or slightly damp cloth. Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the finish or electrical components.
• Light Source: The integrated LED light source is not designed to be replaced by the user. Attempting to replace the LEDs may damage the fixture and void any warranty.
• Inspection: Periodically check the fixture for any signs of damage or loose connections. If any issues are found, disconnect power and consult a qualified technician.

7. Troubleshooting

If you encounter issues with your Hofstein Salmi LED Ceiling Light, refer to the following common problems and solutions:

• Light Does Not Turn On:
  • Check if the power supply is connected and the circuit breaker is on.
  • Ensure the remote control batteries are not depleted and are inserted correctly.
  • Verify that the electrical connections are secure.
• Remote Control Not Working:
  • Replace the batteries in the remote control.
  • Ensure there are no obstructions between the remote and the light fixture.
  • Try pairing the remote again if applicable (refer to specific remote instructions if provided separately).
• Light Flickers or Changes Brightness Unexpectedly:
  • Check for stable power supply.
  • Ensure no other devices are interfering with the remote signal.
  • If the issue persists, consult a qualified electrician.

For problems not listed here, please contact Hofstein customer support.

8. Specifications

Energy efficiency label for the Hofstein Salmi LED Ceiling Light, indicating its energy class.

9. Warranty and Support

For warranty information, please refer to the terms and conditions provided at the point of purchase or contact your retailer. Hofstein is committed to providing quality products and customer satisfaction.

If you require technical assistance, have questions about installation, or need to report a defect, please contact Hofstein customer support through their official channels or the retailer from whom you purchased the product.

Hofstein Customer Service: For contact details, please visit the Hofstein brand store or website.
