boAt Partypal 50 and Stone 352 Bluetooth Speakers User Manual
Model Numbers: Partypal 50, Stone 352
1. Introduction
This manual provides detailed instructions for the safe and efficient operation of your boAt Partypal 50 and boAt Stone 352 Bluetooth speakers. Please read this manual thoroughly before using the devices and retain it for future reference.
1.1 Product Overview
The boAt Partypal 50 is a 20W RMS stereo Bluetooth speaker featuring dynamic RGB LEDs, multiple connectivity options (Bluetooth v5.1, AUX, USB, FM), and an IPX5 water-resistant build. It is designed for a powerful audio experience.

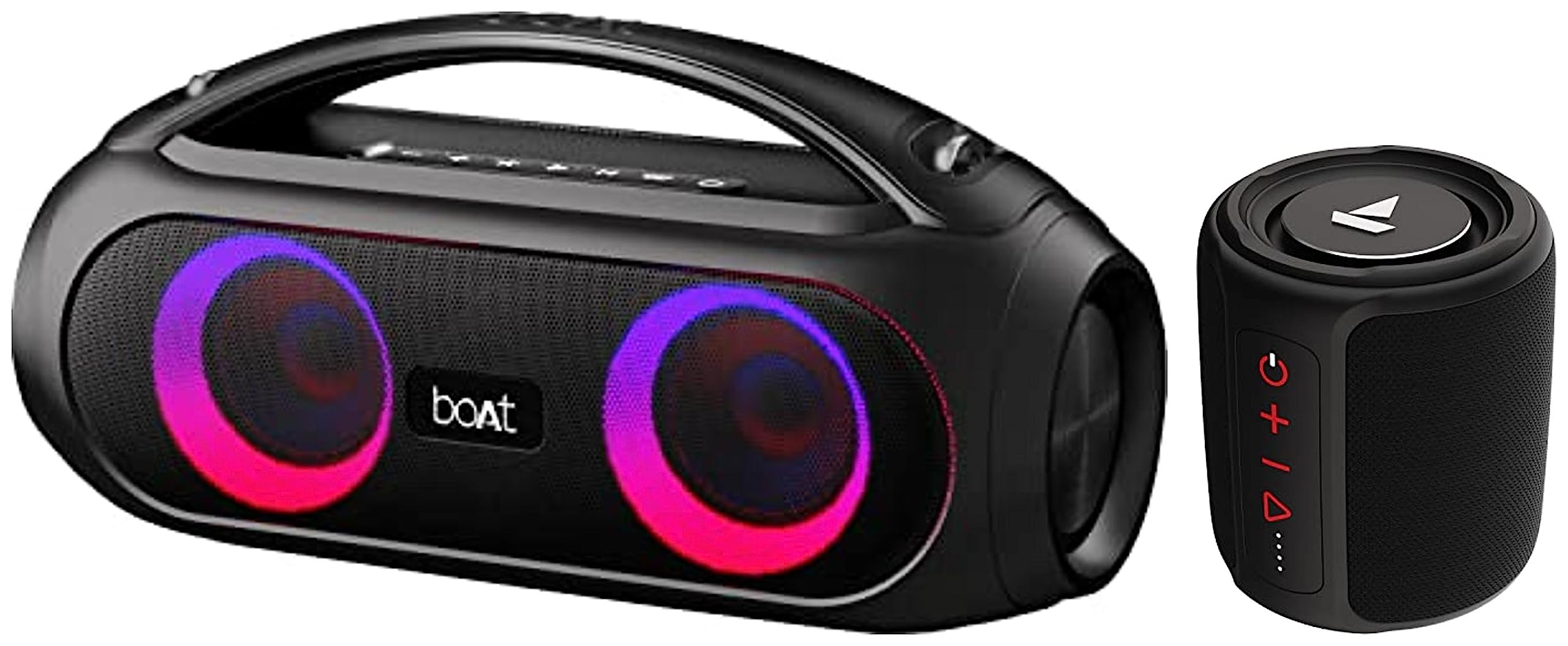

Image: The boAt Partypal 50 speaker, showcasing its design and front-facing speakers with RGB lighting.
The boAt Stone 352 is a 10W RMS stereo portable wireless speaker with IPX7 water resistance and True Wireless Stereo (TWS) functionality, allowing two Stone 352 units to connect for enhanced sound. It offers up to 12 hours of playtime.
Image: The boAt Stone 352 speaker, a compact cylindrical design with side controls.
2. Setup
2.1 Charging the Speaker
Before initial use, fully charge your speaker. Use a compatible USB charger.
- Partypal 50: Charging time is approximately 4.5 hours.
- Stone 352: Charging time is approximately 1.5-2 hours.
2.2 Powering On/Off
To power on or off the speaker, press and hold the power button for a few seconds until you hear an audible prompt or see the LED indicator light up/turn off.
2.3 Bluetooth Pairing
Follow these steps to pair your speaker with a Bluetooth-enabled device:
- Ensure the speaker is charged and powered on.
- The speaker will automatically enter Bluetooth pairing mode, indicated by a flashing LED light.
- On your device (smartphone, tablet, etc.), enable Bluetooth and search for available devices.
- Select "boAt Partypal 50" or "boAt Stone 352" from the list of devices.
- Once paired, the speaker will indicate a successful connection, and the LED light will become solid.
The Bluetooth range for both speakers is approximately 10 meters.
3. Operating Instructions
3.1 Connectivity Modes (Partypal 50)
The Partypal 50 supports multiple connectivity options:
- Bluetooth v5.1: For wireless audio streaming from compatible devices.
- AUX: Connect external audio sources using a 3.5mm audio cable.
- USB: Play audio files directly from a USB drive.
- FM Radio: Tune into FM radio stations.
Use the mode button on the speaker to switch between these modes.
3.2 Playback Controls
Both speakers feature integrated controls for managing audio playback:
- Play/Pause: Press the play/pause button.
- Volume Up/Down: Press the volume + or - buttons.
- Next/Previous Track: Long press the volume + or - buttons (functionality may vary by model).
3.3 True Wireless Stereo (TWS) Functionality (Stone 352)
The Stone 352 supports TWS, allowing you to connect two Stone 352 speakers for a stereo sound experience.
- Ensure both Stone 352 speakers are powered on and not connected to any other Bluetooth device.
- On one speaker (this will be the primary speaker), press and hold the TWS button (refer to your speaker's button layout for exact location).
- The speakers will attempt to pair with each other. A successful connection will be indicated by an audible prompt.
- Once paired, connect your device to the primary Stone 352 speaker via Bluetooth. Audio will now play through both speakers in stereo.
Image: A boAt Stone 352 speaker demonstrating its 10W stereo sound capability.
3.4 RGB LEDs (Partypal 50)
The Partypal 50 features dynamic RGB LEDs. These lights can be controlled or toggled on/off using a dedicated button on the speaker (refer to your speaker's button layout).
Image: The boAt Partypal 50 speaker with its RGB LEDs illuminated, setting a vibrant atmosphere.
4. Maintenance
4.1 Cleaning
Wipe the speaker with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the surface.
4.2 Water Resistance
- Partypal 50: Features IPX5 water resistance, protecting against splashes and light rain. Do not submerge the speaker in water.
- Stone 352: Features IPX7 water resistance, allowing it to be submerged in water up to 1 meter for 30 minutes. Ensure all ports are securely closed before exposure to water.
Note: Water resistance is not a permanent condition and may decrease as a result of normal wear.
Image: The boAt Stone 352 speaker being splashed with water, illustrating its IPX7 water resistance.
4.3 Storage
Store the speaker in a cool, dry place away from extreme temperatures and direct sunlight when not in use for extended periods.
5. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Speaker does not power on | Low battery | Charge the speaker fully. |
| Cannot pair via Bluetooth | Speaker not in pairing mode; device Bluetooth off; too far from speaker | Ensure speaker is in pairing mode. Turn device Bluetooth off and on. Move device closer to speaker (within 10m). Forget previous pairings on device. |
| No sound | Volume too low; incorrect input mode; device not playing audio | Increase speaker and device volume. Check if the correct input mode (Bluetooth, AUX, USB, FM) is selected. Ensure audio is playing on the connected device. |
| TWS pairing failed (Stone 352) | Speakers already paired to another device; TWS mode not activated correctly | Disconnect both speakers from any Bluetooth devices. Re-attempt TWS pairing procedure. |
6. Specifications
boAt Partypal 50
| Feature | Detail |
|---|---|
| Speaker Maximum Output Power | 20 Watts RMS |
| Connectivity Technology | Auxiliary, Bluetooth v5.1, USB, FM |
| Audio Output Mode | Stereo |
| Water Resistance | IPX5 |
| Battery Charge Time | 4.5 Hours |
| Bluetooth Range | 10 Metres |
| Control Method | Touch |
| Frequency Response | 70Hz-18KHz |
boAt Stone 352
| Feature | Detail |
|---|---|
| Speaker Maximum Output Power | 10 Watts RMS |
| Connectivity Technology | Bluetooth, Wireless |
| Audio Output Mode | Stereo |
| Water Resistance | IPX7 |
| Battery Average Life | Up to 12 hours (at 60% volume) |
| Battery Charge Time | 1.5-2 Hours |
| Bluetooth Range | 10 Metres |
| True Wireless Stereo (TWS) | Supported |
7. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the official boAt website or contact their customer support. Keep your purchase receipt for warranty claims.
