1. Introduction
This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your A4tech FX60H QWERTY Gaming Keyboard. Please read these instructions carefully to ensure optimal performance and longevity of your device.
The A4tech FX60H is a wired QWERTY keyboard featuring 12 multimedia navigation keys, two integrated USB ports, and a vibrant neon backlight. Its slim design with X-key scissor switches offers a comfortable and quiet typing experience.
2. Setup
2.1 Connecting the Keyboard
- Unpack the A4tech FX60H keyboard and its USB cable.
- Locate an available USB port on your computer (PC or Laptop).
- Insert the USB connector of the keyboard's cable into the computer's USB port.
- The keyboard is Plug & Play, meaning it should be automatically recognized by your operating system (Windows, Mac) without requiring additional driver installation.
- Wait for your operating system to confirm the device installation. The keyboard is now ready for use.
Figure 2.1: Connecting the A4tech FX60H keyboard via USB.
3. Operating Instructions
3.1 Basic Keyboard Functions
The A4tech FX60H features a standard QWERTY layout for typing. All standard alphanumeric and symbol keys function as expected.
3.2 Multimedia Keys
The keyboard is equipped with 12 dedicated multimedia keys for quick access to various functions. These keys are typically located along the top row of the keyboard or integrated with function keys (F1-F12) and accessed via a 'Fn' key combination. Refer to the keycap legends for specific functions such as volume control, media playback, and web browser shortcuts.
3.3 LED Backlight Control
The A4tech FX60H features a multi-colored LED backlight. The intensity of the backlight can be adjusted, or it can be turned off completely. Specific keys or key combinations are used to cycle through brightness levels or toggle the backlight on/off. Consult the keyboard's keycap legends for the designated backlight control keys, often indicated by a sun or light bulb icon.
3.4 Integrated USB Ports
The keyboard includes two additional USB ports. These ports can be used to connect other low-power USB devices, such as a mouse, USB flash drive, or charging small accessories. Avoid connecting high-power devices to these ports to prevent potential issues.

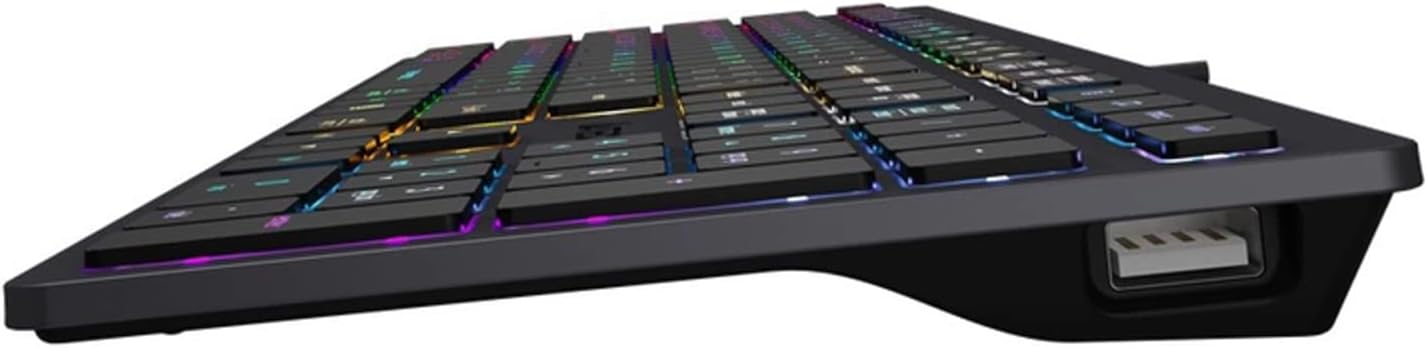

Figure 3.4: Integrated USB port on the A4tech FX60H keyboard.
4. Maintenance
4.1 Cleaning the Keyboard
To maintain the keyboard's appearance and functionality:
- Disconnect the keyboard from your computer before cleaning.
- Use a soft, lint-free cloth slightly dampened with water or a mild cleaning solution to wipe the keycaps and surface.
- Avoid using harsh chemicals, abrasive cleaners, or spraying liquids directly onto the keyboard.
- Use compressed air to remove dust and debris from between the keys.
4.2 Splash Protection
The A4tech FX60H keyboard features splash protection. While it is designed to withstand minor spills, it is not fully waterproof. In case of a liquid spill, immediately disconnect the keyboard, gently wipe away the liquid, and allow it to dry completely before reconnecting.
5. Troubleshooting
5.1 Keyboard Not Responding
- Ensure the USB cable is securely connected to both the keyboard and the computer.
- Try connecting the keyboard to a different USB port on your computer.
- Test the keyboard on another computer to determine if the issue is with the keyboard or the computer's USB port/drivers.
- Restart your computer.
5.2 Backlight Not Working
- Check if the backlight has been turned off or set to the lowest brightness level using the dedicated backlight control keys.
- Ensure the keyboard is properly connected and receiving power.
5.3 Multimedia Keys Not Functioning
- Ensure you are pressing the correct key combinations (e.g., 'Fn' key + F-key) if required for your specific multimedia functions.
- Verify that your operating system's media player or browser is active and supports the multimedia commands.
6. Specifications
| Feature | Description |
|---|---|
| Brand | A4tech |
| Model Name | FX60H |
| Connectivity Technology | USB (Wired) |
| Cable Length | 1.5 meters |
| Keyboard Type | QWERTY |
| Key Mechanism | X-structure (Scissor-Switch) |
| Key Stroke | Low profile (1.5 mm actuation point) |
| Number of Multimedia Keys | 12 |
| Backlight | Multi-colored LED (Neon Backlight), adjustable intensity |
| Integrated USB Ports | 2 x USB 2.0 |
| Compatibility | Windows, Mac |
| Special Features | Splash protection, "Chocolate" design, Laser engraved key markings |
| Material | Plastic |
7. Warranty Information
The A4tech FX60H QWERTY Gaming Keyboard comes with a 2-year manufacturer's warranty. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty documentation provided with your product or contact A4tech customer support.
8. Support
If you encounter issues not covered in this manual or require further assistance, please visit the official A4tech website for support resources, FAQs, and contact information for customer service.
