GUTSTARK 400W Jigsaw Instruction Manual

1. Introduction and Overview

This manual provides essential information for the safe and efficient operation of your GUTSTARK 400W Jigsaw. Please read it thoroughly before use and keep it for future reference. This jigsaw is designed for cutting various materials such as wood, soft steel, stainless steel, aluminum, and plastic, offering versatility for workshops and home use.

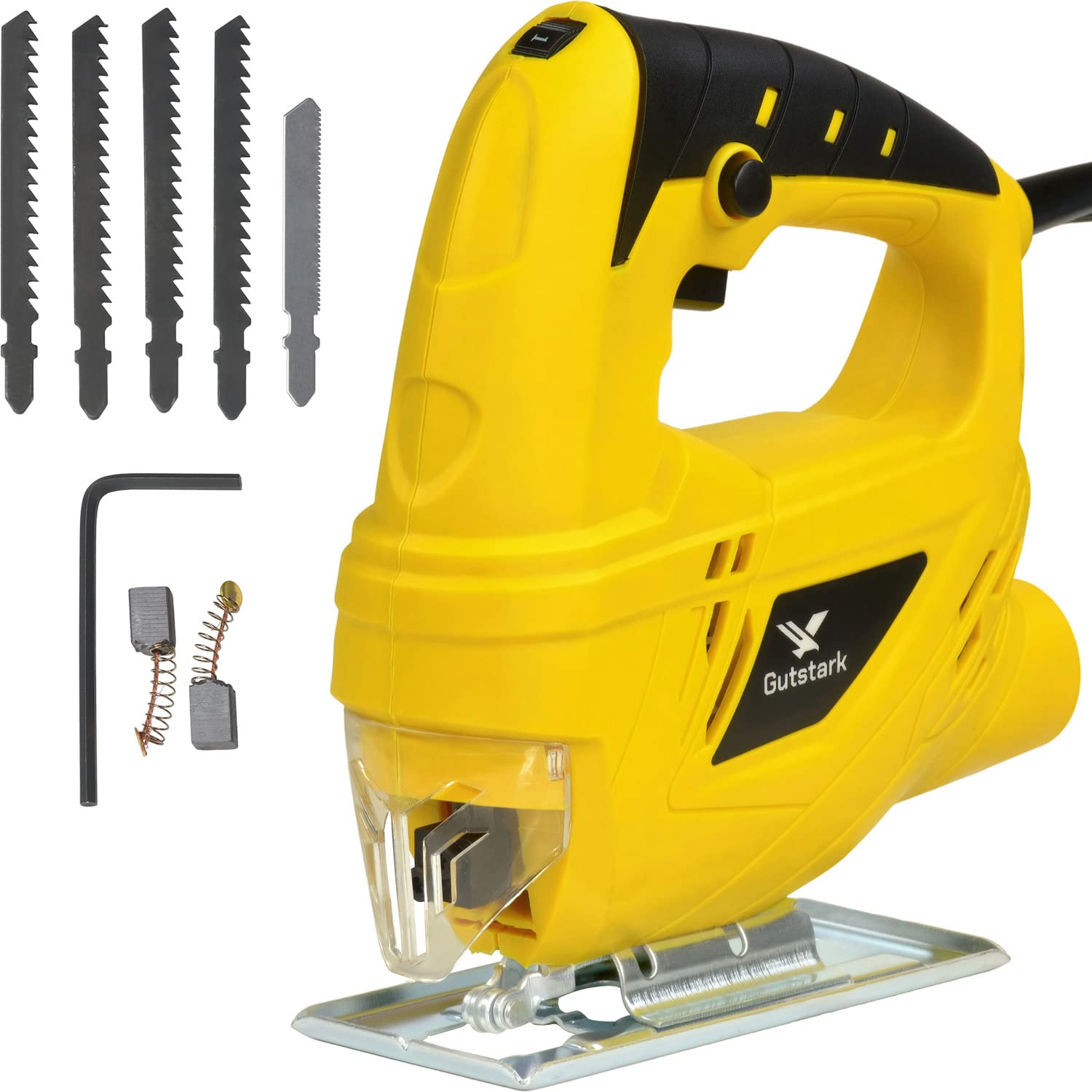

Image 1: GUTSTARK 400W Jigsaw. This image shows the overall design of the jigsaw, highlighting its yellow and black casing, handle, and base plate.

2. Safety Instructions

Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury.

• Personal Protective Equipment: Always wear appropriate personal protective equipment (PPE) such as safety glasses, hearing protection, and gloves.
• Work Area: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
• Electrical Safety: Do not expose power tools to rain or wet conditions. Avoid body contact with earthed or grounded surfaces.
• Secure Workpiece: Always clamp the workpiece securely to prevent movement during cutting.
• Blade Safety: Keep hands and fingers away from the cutting area and the blade. Disconnect the power plug from the power source before making any adjustments, changing accessories, or storing power tools.
• Ventilation: Ensure proper ventilation when operating the tool, especially when cutting materials that produce dust.

3. Package Contents

Verify that all items are present upon unpacking:

• 1 x GUTSTARK 400W Jigsaw
• 4 x Wood Saw Blades
• 1 x Metal Saw Blade
• 2 x Carbon Brushes
• 1 x Hex Wrench for Base Plate Adjustment

4. Product Features

The GUTSTARK 400W Jigsaw is equipped with features designed for precision and ease of use:

• Powerful Motor: 400W motor with 60Hz frequency for reliable performance.
• Variable Speed Control: 6 adjustable speeds, providing up to 3300 strokes per minute (GPM) for optimal cutting across different materials.
• Adjustable Base Plate: The sturdy metal base plate can be adjusted from 0° to 45° for precise bevel cuts.
• High Cutting Capacity: Maximum cutting depth of 55 mm for both wood and metal.
• Material Versatility: Capable of cutting wood, soft steel, stainless steel, aluminum, and plastic.
• Blade Compatibility: Uses standard T-shank 6mm saw blades.
• Enhanced Visibility: Integrated LED light for improved visibility of the cutting line.
• Continuous Operation: Features a safety button for continuous operation, reducing user fatigue.
• Ergonomic Design: Compact and lightweight for easy handling and transport.

5. Setup

5.1 Blade Installation

1. Ensure Safety: Always ensure the jigsaw is unplugged from the power source before installing or changing blades.
2. Locate Clamp: Identify the blade clamp mechanism at the front of the tool.
3. Insert Blade: Insert the T-shank end of the saw blade into the clamp opening. Push it firmly upwards until it clicks securely into place.
4. Verify Security: Gently pull on the blade to ensure it is properly seated and locked.

Image 2: Jigsaw with a blade installed. This image illustrates the front part of the jigsaw, showing how a T-shank blade is inserted into the blade holder.

5.2 Base Plate Adjustment (Bevel Cuts)

The base plate can be adjusted for angled cuts up to 45 degrees.

1. Unplug Tool: Disconnect the jigsaw from the power supply.
2. Loosen Screws: Use the provided hex wrench to loosen the screws that secure the base plate. These are typically located on the underside of the base plate.
3. Adjust Angle: Tilt the base plate to the desired angle (0-45°). Most base plates have angle markings for guidance.
4. Tighten Screws: Once the desired angle is set, securely tighten the base plate screws with the hex wrench.

6. Operating Instructions

6.1 Power On/Off and Speed Adjustment

1. Connect Power: Plug the jigsaw into a standard 110V power outlet.
2. Start Operation: Press the Start button (trigger) to begin operation.
3. Continuous Operation: For extended use, press the Safety button while the Start button is engaged to lock it in the 'on' position. Press the Start button again to release the lock.
4. Stop Operation: Release the Start button to stop the tool.
5. Adjust Speed: Rotate the 6-speed knob, typically located on the top or side of the handle, to select the appropriate cutting speed. Lower speeds are suitable for harder materials or intricate cuts, while higher speeds are for softer materials and faster cutting.

Image 3: Top view of the jigsaw. This image highlights the location of the speed adjustment knob on the top of the tool's body.

6.2 Cutting Techniques

• Preparation: Mark your cutting line clearly on the workpiece. Ensure the workpiece is stable and securely clamped.
• Starting a Cut: Place the front edge of the base plate flat on the workpiece, ensuring the blade is not touching the material. Start the jigsaw and allow the blade to reach full speed.
• Engaging Material: Gently guide the blade into the material along your marked line. Apply steady, even pressure. Do not force the tool, as this can damage the blade or motor.
• Following the Line: Maintain a firm grip on the tool and guide it smoothly along the cutting path. The integrated LED light will help illuminate the cutting area.
• Finishing a Cut: Once the cut is complete, release the Start button and wait for the blade to stop completely before lifting the tool from the workpiece.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your jigsaw.

• Cleaning: After each use, unplug the tool and clean any dust or debris from the ventilation slots and the blade area. Use a dry cloth; do not use solvents or abrasive cleaners.
• Blade Replacement: Replace dull or damaged blades promptly. Refer to Section 5.1 for blade installation instructions.
• Carbon Brush Replacement: Carbon brushes are wear items. If the tool experiences reduced power or intermittent operation, the carbon brushes may need replacement. Unplug the tool, locate the carbon brush covers (usually on the sides of the motor housing), remove them, and replace the worn brushes with new ones. Secure the covers.
• Cord Inspection: Regularly inspect the power cord for any signs of damage. Do not use the tool if the cord is damaged.
• Storage: Store the jigsaw in a dry, secure location, out of reach of children and away from direct sunlight or extreme temperatures.

8. Troubleshooting

Refer to this section for common issues and their solutions.

9. Specifications

Image 4: Jigsaw with dimensions. This image provides a visual representation of the jigsaw's length, width, and height measurements.

10. Warranty and Support

Warranty: This GUTSTARK 400W Jigsaw comes with a 90-day warranty against manufacturing defects from the date of purchase.

Support: For technical assistance, warranty claims, or any questions regarding your product, please contact GUTSTARK customer service. Please have your purchase receipt and product model information available when contacting support.
