WINIA KOS-62HW

Winia KOS-62HW 0.7 cu. ft. Microwave Oven User Manual

Model: KOS-62HW

1. Important Safety Instructions

When using electrical appliances, basic safety precautions should be followed, including the following:

  • Read all instructions before using the appliance.
  • Do not operate the oven if it is damaged.
  • Do not attempt to service or repair the oven yourself. Contact qualified service personnel.
  • Ensure proper grounding to reduce the risk of electric shock.
  • Do not heat liquids or other foods in sealed containers as they are liable to explode.
  • Do not use corrosive chemicals or vapors in this appliance.
  • Close supervision is necessary when the appliance is used by or near children. This microwave includes a child lock feature.
  • Do not use the oven for purposes other than heating food.

2. Product Overview

The Winia KOS-62HW microwave oven is designed for convenient and efficient food preparation. It features a compact design with a 0.7 cubic feet capacity, a glass door, and an intuitive button panel for easy operation.

Winia KOS-62HW Microwave Oven

Image: Front view of the Winia KOS-62HW microwave oven, showing the white cabinet, glass door, and control panel.

Key Features:

  • 0.7 Cubic Feet Capacity: Ideal for small to medium-sized dishes.
  • Glass Door: Provides a clear view of food during cooking.
  • Intuitive Button Panel: Easy-to-use controls for various functions.
  • Easy-Clean Cavity: Designed for simple cleaning and maintenance.
  • 10 Power Levels: Offers flexibility for different cooking needs.
  • Child Lock: Enhances safety by preventing unintended use.
  • 6 Automatic Menus: Pre-programmed settings for common foods.
  • DIAMOND COOKING System: Features 11 diamond-shaped reflectors for uniform heating and defrosting.
  • Clock Function: Displays current time.
  • Defrost by Type and Weight: Convenient defrosting options.
  • Quick Defrost Function: Speeds up the defrosting process.
  • Cook by Weight Function: Automatically calculates cooking time based on food weight.
  • Multi-Stage Cooking: Allows for cooking at different power levels and times in sequence.
  • Timer: Up to 99 minutes and 99 seconds.

3. Setup and Installation

Unpacking:

  1. Carefully remove the microwave oven and all packing materials from the carton.
  2. Check the oven for any damage, such as dents or a misaligned door. Do not operate if damaged.
  3. Remove any protective film from the cabinet surface.

Placement:

  • Place the oven on a flat, stable surface that can support its weight.
  • Ensure adequate ventilation by leaving at least 10 cm (4 inches) of space around the sides, back, and top of the oven.
  • Keep the oven away from heat sources, steam, or splashing liquids.
  • Do not block air vents.

Electrical Connection:

  • Plug the power cord into a properly grounded electrical outlet.
  • Ensure the voltage and frequency match the specifications on the rating label of the oven.
  • Do not use extension cords or adapters.

4. Operating Instructions

Setting the Clock:

  1. Press the CLOCK button once.
  2. Use the number pad to enter the current time (e.g., 12:30).
  3. Press the CLOCK button again to confirm.

Microwave Cooking:

  1. Place food in a microwave-safe container on the turntable.
  2. Close the oven door securely.
  3. Press the POWER LEVEL button repeatedly to select the desired power level (1-10).
  4. Use the number pad to enter the cooking time (up to 99 minutes and 99 seconds).
  5. Press the START/+30 SEC button to begin cooking.

Automatic Menus:

The oven features 6 pre-programmed automatic menus for common foods. Refer to the control panel for specific menu options (e.g., Popcorn, Potato, Pizza).

  1. Place food in the oven.
  2. Press the desired AUTO MENU button.
  3. Select the quantity or weight if prompted.
  4. Press START/+30 SEC.

Defrosting:

The oven offers defrosting by weight or time.

  • Defrost by Weight: Press DEFROST BY WEIGHT, enter the food weight using the number pad, then press START/+30 SEC.
  • Quick Defrost: Press QUICK DEFROST, enter the defrosting time, then press START/+30 SEC.

Child Lock:

To activate the child lock, press and hold the STOP/CANCEL button for 3 seconds. The lock indicator will appear. To deactivate, press and hold the STOP/CANCEL button again for 3 seconds.

5. Cleaning and Maintenance

Regular cleaning helps maintain the performance and longevity of your microwave oven.

Exterior Cleaning:

  • Wipe the exterior with a damp cloth and mild detergent.
  • Avoid abrasive cleaners or harsh chemicals.

Interior Cleaning:

  • Clean the oven cavity after each use to prevent food buildup.
  • For stubborn stains, place a bowl of water with lemon juice inside and heat for 2-3 minutes. The steam will loosen the residue, making it easier to wipe clean.
  • Remove the turntable and turntable ring for separate cleaning with warm, soapy water.

Door Seal:

  • Keep the door seals and adjacent parts clean.
  • Do not use harsh cleaners or scouring pads on the door seal.

6. Troubleshooting

If you encounter issues with your microwave oven, refer to the following common problems and solutions:

ProblemPossible CauseSolution
Oven does not startPower cord not plugged in; Door not closed properly; Fuse blown or circuit breaker tripped.Ensure plug is secure; Close door firmly; Check household fuse/circuit breaker.
Food not heatingIncorrect cooking time/power level; Food not microwave-safe.Adjust time/power; Use microwave-safe dishes.
Turntable not rotatingTurntable not properly placed; Obstruction under turntable.Re-position turntable and ring; Remove any obstructions.
Unusual noisesFood container touching oven walls; Turntable not seated correctly.Ensure proper clearance; Re-seat turntable.

If the problem persists after trying these solutions, please contact customer support.

7. Specifications

Detailed technical specifications for the Winia KOS-62HW Microwave Oven:

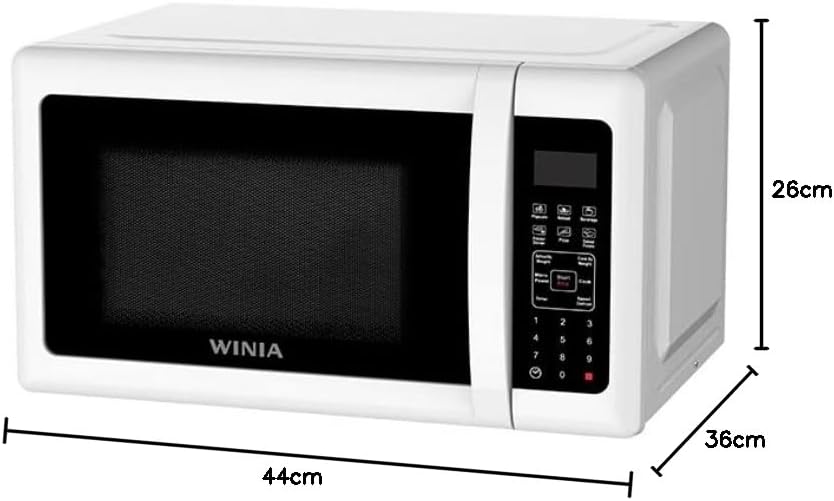

Winia KOS-62HW Microwave Oven with dimensions

Image: Winia KOS-62HW microwave oven with key dimensions labeled: 44cm width, 26cm height, 36cm depth.

  • Model Number: KOS-62HW
  • Brand: WINIA
  • Color: White
  • Capacity: 0.7 cubic feet
  • Product Dimensions (D x W x H): 36 x 44 x 26 cm (approximately 14.2 x 17.3 x 10.2 inches)
  • Weight: 8 kg (approximately 17.6 lbs)
  • Power Output: 700 watts
  • Material: Glass (door)
  • Special Features: Defrost, Child Lock, Diamond Cooking System, Auto Menus
  • Installation Type: Countertop
  • Controller Type: Mechanical Knob (Note: Product description mentions buttons, this might be a discrepancy in source data, referring to the main control panel as 'buttons' and specific functions as 'knob' if present, but the image shows a button panel.)
  • Included Components: Turntable Ring

8. Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official WINIA website. Keep your purchase receipt as proof of purchase.

For technical assistance, spare parts, or service inquiries, please contact WINIA customer support. Contact details can typically be found on the WINIA website or in your product packaging.

WINIA Customer Service: Please visit www.winia.com for regional contact information.
