Introduction
Thank you for choosing the Hisense 5 Series DH5S102BW 10KG Heatpump Tumble Dryer. This appliance is designed to provide efficient and gentle drying for your laundry, incorporating advanced features such as Heat Pump technology, Auto Dry, Steam Refresh, and Allergy Care. This manual provides essential information for the safe and effective installation, operation, and maintenance of your new tumble dryer. Please read it thoroughly before first use and keep it for future reference.
Front view of the Hisense 5 Series DH5S102BW Tumble Dryer.
Safety Information
Always adhere to the following safety precautions to prevent personal injury or damage to the appliance.
- Ensure the appliance is properly grounded and connected to a suitable power supply (220V).
- Do not install the dryer in an area where it may be exposed to water or excessive humidity.
- Keep the area around the dryer clear of obstructions and flammable materials.
- Always clean the lint filters after each use to maintain efficiency and prevent fire hazards.
- Do not dry items that have been soiled with cooking oil, flammable substances, or dry-cleaning fluids.
- Supervise children and individuals with reduced capabilities when the appliance is in use.
- Unplug the dryer from the power outlet before performing any maintenance or cleaning.
Setup and Installation
Unpacking
Carefully remove all packaging materials from the dryer. Inspect the appliance for any signs of damage during transit. The package includes:
- Dryer machine x 1
- User manuals x 1
- Energy label x 1
- PIS x 1
- Instructions for installing x 1
- Warranty card x 1
- Plastic plates for covering the transport holes in housing x 1
Placement
Place the dryer on a firm, level surface. Ensure there is adequate ventilation around the appliance. The dimensions of the dryer are approximately 84.5 cm (height) x 59.5 cm (width) x 64 cm (depth), with a weight of 54 kg.
Diagram showing the dimensions of the Hisense Tumble Dryer: 845mm height, 595mm width, 660mm depth.
Electrical Connection
Connect the dryer to a dedicated 220V power outlet. Do not use extension cords or adapters. Consult a qualified electrician if you are unsure about the electrical requirements.
Drainage Connection
The dryer collects condensed water in a removable water tank. For continuous drainage, you can connect the dryer directly to a drain hose. Refer to the detailed installation instructions provided in the separate "Instructions for installing" manual for specific steps on connecting to a drain.
Operating Instructions
Control Panel Overview
The control panel features a central dial for program selection, a digital display, and various touch buttons for additional functions.
Close-up view of the Hisense Tumble Dryer's control panel and door.
Program Selection
Turn the program dial to select one of the 17 available drying programs, including options for Cotton, Synthetics, Delicates, and specialized cycles.
Loading Laundry
Open the dryer door and load laundry into the drum. The dryer has a 10kg capacity. Do not overload the dryer, as this can affect drying performance and efficiency.
The Hisense Tumble Dryer with its door open, revealing the spacious drum.
Special Features
Ion Refresh
The Ion Refresh function uses sophisticated ion treatment to remove unpleasant odors from clothes, leaving them fresh in just 10 minutes. Ideal for refreshing items that don't require a full wash.
Illustration of the Ion Refresh feature, showing ions refreshing a polo shirt.
Auto Dry
Equipped with smart temperature and humidity sensors, the Auto Dry function automatically adjusts drying time to prevent over-drying or damp clothes, saving energy and protecting fabrics.
Diagram illustrating the smart temperature and humidity sensing of the Auto Dry feature on a shirt.
Quick Dry 30'
For small loads, the Quick Dry 30' program can dry up to three lightweight shirts in under half the time of regular programs, providing quick and satisfying results.
Visual representation of the Quick Dry 30' feature, showing a shirt drying in 30 minutes.
Anti Crease
To minimize wrinkles, the Anti Crease function intermittently tumbles the clothes without heat every 5 minutes after the cycle ends, preventing them from settling in one position.
Comparison showing a creased shirt next to a smooth shirt, illustrating the Anti Crease function.
Flex Rack
The Flex Rack provides a customized drying space for delicate items that should not be tumbled, such as shoes, plush toys, or cashmere fabrics, ensuring gentle drying.

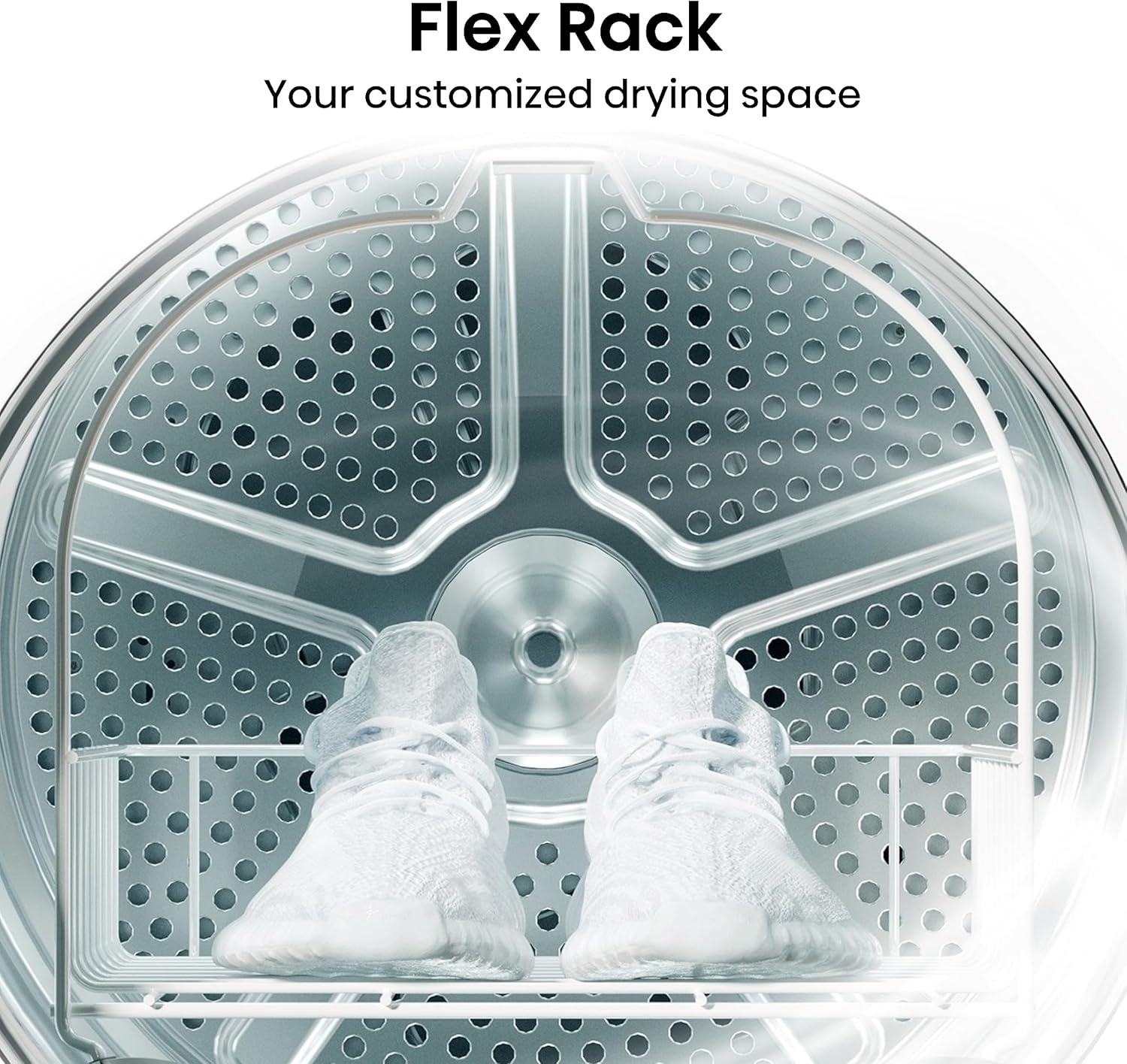

Inside view of the dryer drum showing the Flex Rack with a pair of shoes.
Allergy Care
The Allergy Care cycle uses high-temperature hot air to remove 99.9% of common bacteria like Escherichia coli and Staphylococcus aureus, providing an extra hygienic drying experience.
Graphic illustrating the Allergy Care feature, showing 99.9% bacteria removal from fabrics.
Delay Timer
Use the delay timer function to set the machine to start a drying cycle at a later time, up to 24 hours. This is useful for taking advantage of off-peak electricity tariffs or having laundry ready at a specific time.
WiFi Connectivity
The Hisense DH5S102BW dryer is WiFi enabled. Download the Hisense ConnectLife app to your smartphone to remotely monitor and control your dryer, receive notifications, and access additional features. Refer to the app's instructions for pairing your device.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your dryer. Always unplug the appliance before cleaning.
Cleaning Lint Filters
The dryer is equipped with two lint filters. Clean both filters after every drying cycle. Remove the filters from their housing and gently remove any accumulated lint. Rinse with water if necessary and ensure they are completely dry before reinserting.
Emptying Water Tank
If not connected to a drain, the condensed water collects in the water tank. Empty the water tank after each drying cycle. Pull out the water drawer, pour out the water, and reinsert the drawer firmly.
Cleaning Exterior
Wipe the exterior surfaces of the dryer with a soft, damp cloth. Do not use abrasive cleaners or solvents.
Drum Cleaning
Occasionally, wipe the inside of the drum with a damp cloth to remove any residue. For stubborn marks, a mild, non-abrasive cleaner can be used, followed by thorough rinsing.
Troubleshooting
Before contacting customer support, please refer to the following common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Dryer does not start | Power cord not plugged in; Door not closed properly; Program not selected. | Check power connection; Ensure door is securely latched; Select a drying program and press Start. |
| Clothes are not dry | Lint filters clogged; Water tank full; Overloaded drum; Incorrect program selected. | Clean lint filters; Empty water tank; Reduce load size; Select a more appropriate drying program. |
| Excessive noise | Dryer not level; Foreign objects in drum. | Adjust leveling feet; Check drum for loose items. |
| Water leaking | Water tank not inserted correctly; Drain hose kinked or disconnected. | Reinsert water tank firmly; Check drain hose for kinks or proper connection. |
Specifications
| Feature | Specification |
|---|---|
| Brand | Hisense |
| Model | DH5S102BW |
| Type | Heatpump Tumble Dryer |
| Capacity | 10 Kilograms |
| Dimensions (H x W x D) | 84.5 cm x 59.5 cm x 64 cm |
| Weight | 54 kg |
| Voltage | 220V |
| Energy Efficiency Rating | A+++ |
| Number of Programmes | 17 |
| Connectivity | WiFi Enabled |
| Material (Drum) | Stainless Steel |
| Color | White (body), Black (control panel) |
Warranty and Support
Your Hisense DH5S102BW Tumble Dryer comes with a manufacturer's warranty. Please refer to the included "Warranty card" for detailed terms and conditions, including warranty period and coverage.
For technical assistance, troubleshooting beyond this manual, or to arrange service, please contact Hisense Specialized Customer Support. Contact information can typically be found on the warranty card or on the official Hisense website.
Online Resources: For the latest information, FAQs, and support, visit the official Hisense website.
