ERAY Rechargeable LED Flashlight - Model 889S User Manual

Introduction

This manual provides detailed instructions for the safe and effective operation and maintenance of your ERAY Rechargeable LED Flashlight, Model 889S. Please read this manual thoroughly before using the product and retain it for future reference.

Package Contents

Verify that all items listed below are included in your package:

• 1 x ERAY LED Flashlight
• 1 x Adjustable Shoulder Strap
• 1 x USB Type-C Charging Cable
• 1 x User Manual
• 1 x Color Box (Packaging)

Product Overview

The ERAY Model 889S is a powerful, multi-functional rechargeable LED flashlight designed for various outdoor and emergency situations. It features multiple lighting modes, a durable and waterproof design, and a built-in power bank function.

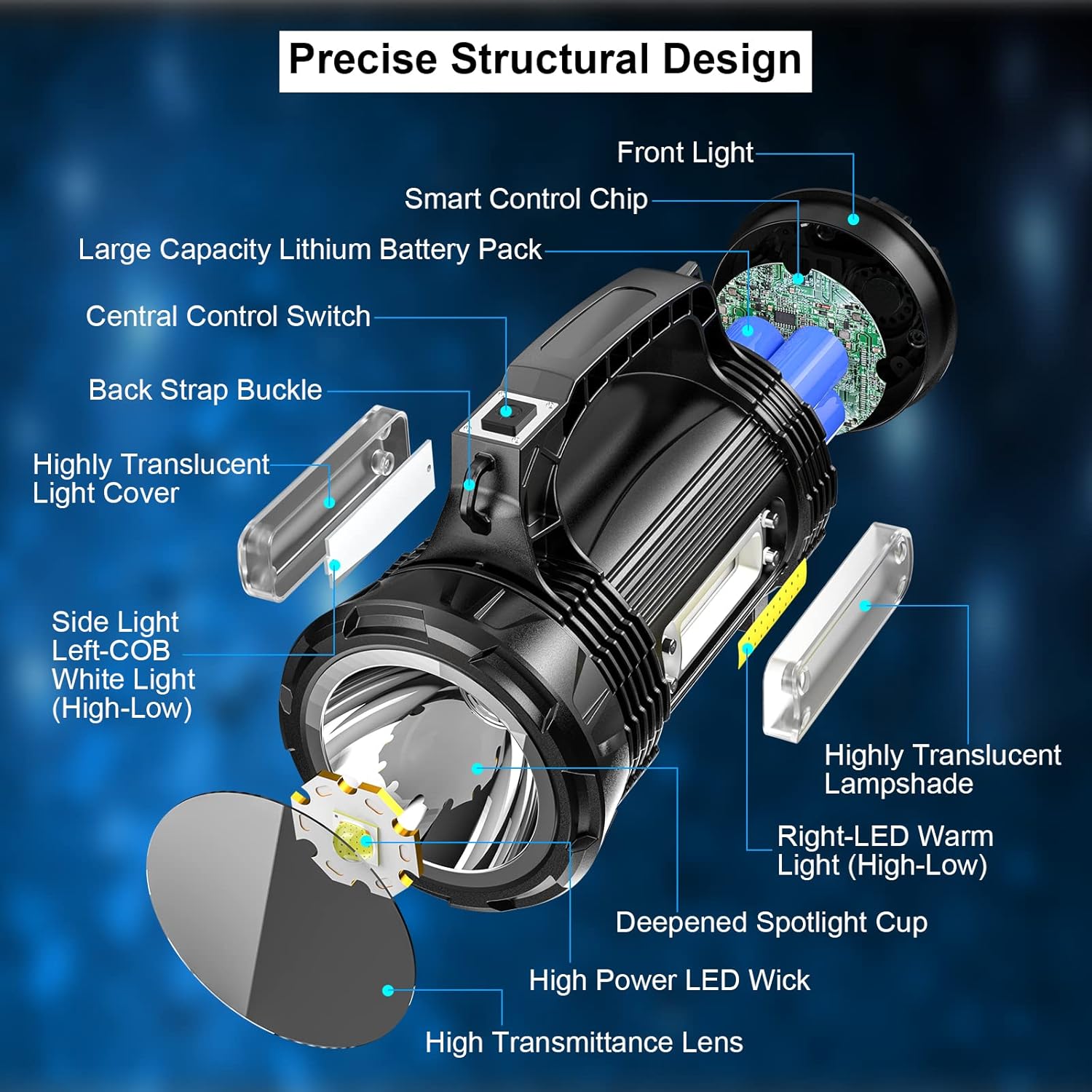

Image: Detailed diagram illustrating the various components of the ERAY 889S flashlight, including the front light, smart control chip, battery pack, central control switch, back strap buckle, light covers, side lights (COB white and LED warm), deepened spotlight cup, high power LED wick, and high transmittance lens.

Key features include:

• Front Light: Main spotlight with High, Low, and SOS modes.
• Side Lights: Left COB white light (High-Low) and Right LED warm light (High-Low) for area illumination.
• Warning Light: Rear red light with audible alarm for emergencies.
• Durable Construction: Made from ABS material, resistant to drops and impacts, with IP65 waterproofing.
• Power Bank Function: Integrated 5600mAh lithium battery can charge external devices via USB.
• Portability: Equipped with a comfortable handle and an adjustable, detachable shoulder strap.

Setup

Initial Charge

Before first use, fully charge the flashlight. Connect the provided USB Type-C cable to the charging port on the flashlight and to a compatible USB power adapter (not included). The battery indicator lights will show charging progress.

Image: The ERAY 889S flashlight connected to a charging cable, demonstrating its charging capability and the USB output port for power bank functionality. The warning light and indicator lights are also visible.

A full charge typically takes 4-5 hours. The working time on a full charge is approximately 8 hours, depending on the mode used.

Attaching the Shoulder Strap

Attach the adjustable shoulder strap to the designated buckles on the flashlight handle for convenient carrying.

Operating Instructions

Main Front Light (Spotlight)

The main front light offers three modes: High, Low, and SOS. Press the main power button on the handle to cycle through these modes:

1. First press: High brightness
2. Second press: Low brightness
3. Third press: SOS flashing mode
4. Fourth press: Turn off

Image: The ERAY 889S flashlight illuminating a dark area with its main front light, demonstrating its long-distance projection capability (up to 800m).

Side Lights (Lantern Mode)

The flashlight features two side lights for broader area illumination:

• Left COB White Light: Provides bright white light. Press the dedicated button on the side panel to switch between High and Low brightness.
• Right LED Warm Light: Provides a softer, warm light, ideal for eye protection in tents or close-range use. Press the dedicated button on the side panel to switch between High and Low brightness.

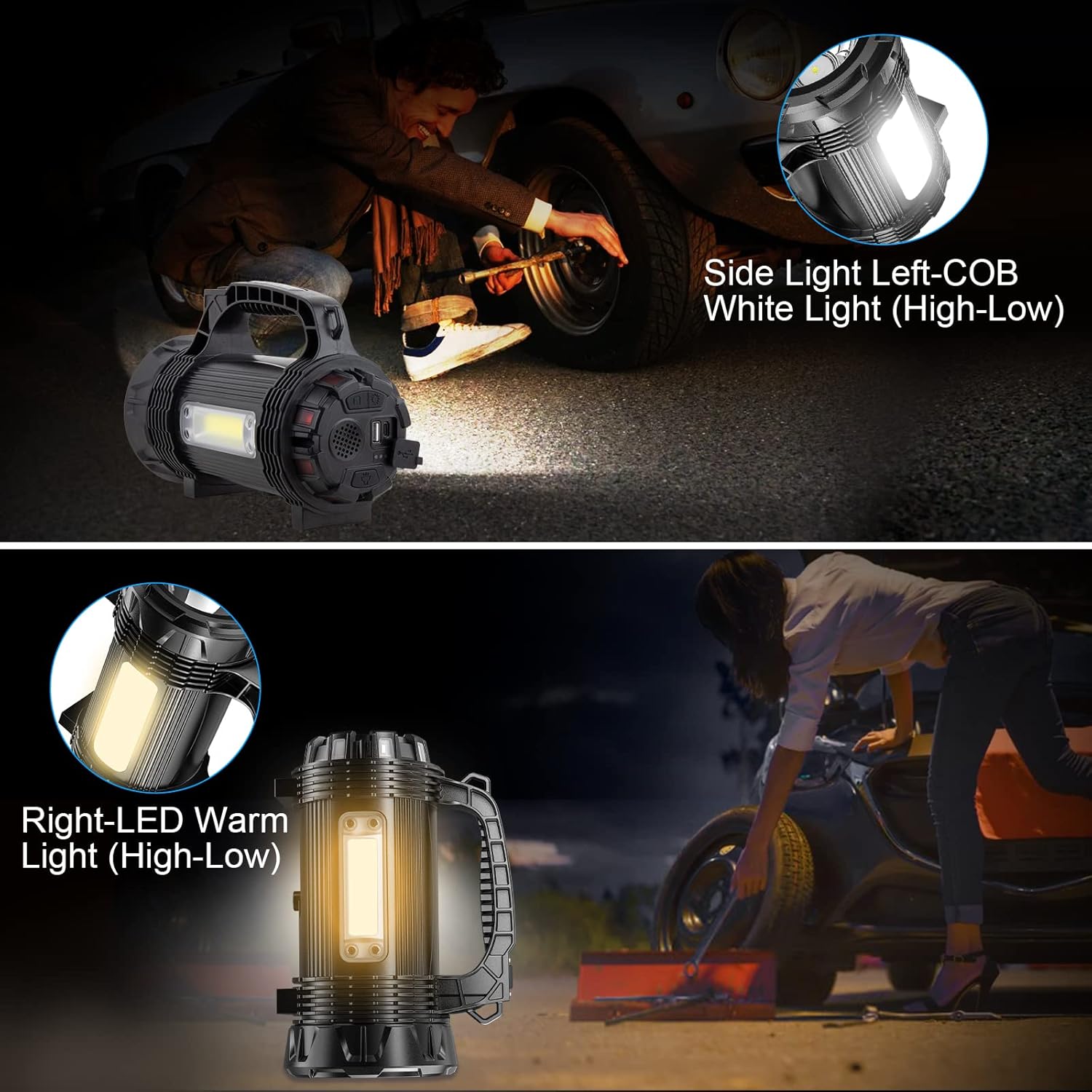

Image: The ERAY 889S flashlight demonstrating its side COB white light and LED warm light, suitable for tasks like changing a tire or general area lighting.

Warning Light and Alarm

The rear panel features a red warning light and an audible alarm for emergency signaling.

1. Press the warning light button to activate the red flashing light.
2. Press again to activate the audible alarm along with the red flashing light.
3. Press a third time to turn off.

Note: The warning light speaker is not water-resistant. Ensure the port cover is securely closed when exposed to moisture.

Image: Close-up of the ERAY 889S flashlight's rear panel, highlighting the warning light, speaker, USB output, and indicator lights.

Power Bank Function

The built-in 5600mAh battery can be used to charge other electronic devices.

1. Open the silicone cover on the rear panel to access the USB output port.
2. Connect your device's charging cable to the USB output port.
3. The flashlight will begin charging your device.
4. Close the silicone cover securely after use to maintain IP65 waterproofing.

Maintenance

• Cleaning: Wipe the flashlight with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Storage: Store the flashlight in a cool, dry place away from direct sunlight when not in use.
• Battery Care: To prolong battery life, fully charge the flashlight every 3-6 months, even if not in regular use. Avoid completely draining the battery before recharging.
• Water Resistance: Ensure all port covers are securely closed to maintain the IP65 waterproof rating. Do not submerge the flashlight in water.

Troubleshooting

Specifications

Safety Information

• Do not look directly into the LED light when it is on, as it may cause temporary vision impairment.
• Keep out of reach of children.
• Do not attempt to disassemble or modify the flashlight. This will void the warranty and may cause damage or injury.
• Use only the provided charging cable or a compatible USB Type-C cable for charging.
• Avoid exposing the flashlight to extreme temperatures or direct sunlight for prolonged periods.
• Ensure the charging port cover is securely closed to maintain water resistance, especially in wet conditions.
• Dispose of the battery and product according to local regulations. Do not dispose of in household waste.

Warranty and Support

ERAY products are designed for durability and performance. For warranty information, please refer to the documentation provided with your purchase or contact ERAY customer support through the retailer where the product was purchased.

For technical assistance or inquiries, please visit the official ERAY website or contact customer service.
