1. Introduction
Thank you for choosing the VGR V-452 Professional Salon Series Hair Dryer. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new hair dryer. Please read it thoroughly before first use and keep it for future reference.
2. Safety Information
WARNING: To reduce the risk of electric shock, fire, or injury, please observe the following safety precautions:
- Do not use this appliance near bathtubs, showers, basins, or other vessels containing water.
- Always unplug the appliance immediately after use.
- Do not use with a voltage converter.
- Keep the air inlet and outlet clear of obstructions during use.
- Do not operate if the cord or plug is damaged.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
3. Product Overview
3.1 Package Contents
- VGR V-452 Hair Dryer
- Concentrator Nozzle (1 or 2, based on typical inclusion)
- User Manual (this document)
3.2 Hair Dryer Components
Familiarize yourself with the main parts of your VGR V-452 Hair Dryer:
Figure 1: VGR V-452 Hair Dryer and accessories.
Figure 2: Detailed view of the hair dryer controls, including the Cool Shot button, 2 Speed Settings, and 3 Heat Settings.
- Air Inlet Grille: Located at the rear, allows air into the dryer.
- Air Outlet: Located at the front, where concentrated airflow exits.
- Handle: Ergonomically designed for comfortable grip.
- Speed Switch: Controls the fan speed (2 settings).
- Heat Switch: Controls the heat level (3 settings).
- Cool Shot Button: Provides a burst of cool air to set hairstyles.
- Power Cord: Durable 2.5-meter cord for flexible use.
- Concentrator Nozzle: Attachable accessory for precise airflow.
4. Setup
4.1 Unpacking
Carefully remove all components from the packaging. Retain the packaging for storage or future transport.
4.2 Attaching the Concentrator Nozzle
The concentrator nozzle helps direct airflow for precise styling. To attach, align the nozzle with the air outlet of the hair dryer and push it firmly into place until it clicks securely. To remove, gently pull the nozzle off.
Figure 3: Attaching the concentrator nozzle.
5. Operating Instructions
5.1 Powering On/Off
Plug the hair dryer into a suitable electrical outlet. Use the speed switch to turn the appliance on or off.
5.2 Speed Settings
The VGR V-452 offers 2 speed settings to control the airflow:
- Low Speed: For gentle drying or styling.
- High Speed: For fast drying.
5.3 Heat Settings
Select from 3 heat settings to suit your hair type and styling needs:
- Cool: For setting styles or gentle drying.
- Warm: For normal drying.
- Hot: For fast drying and initial styling.

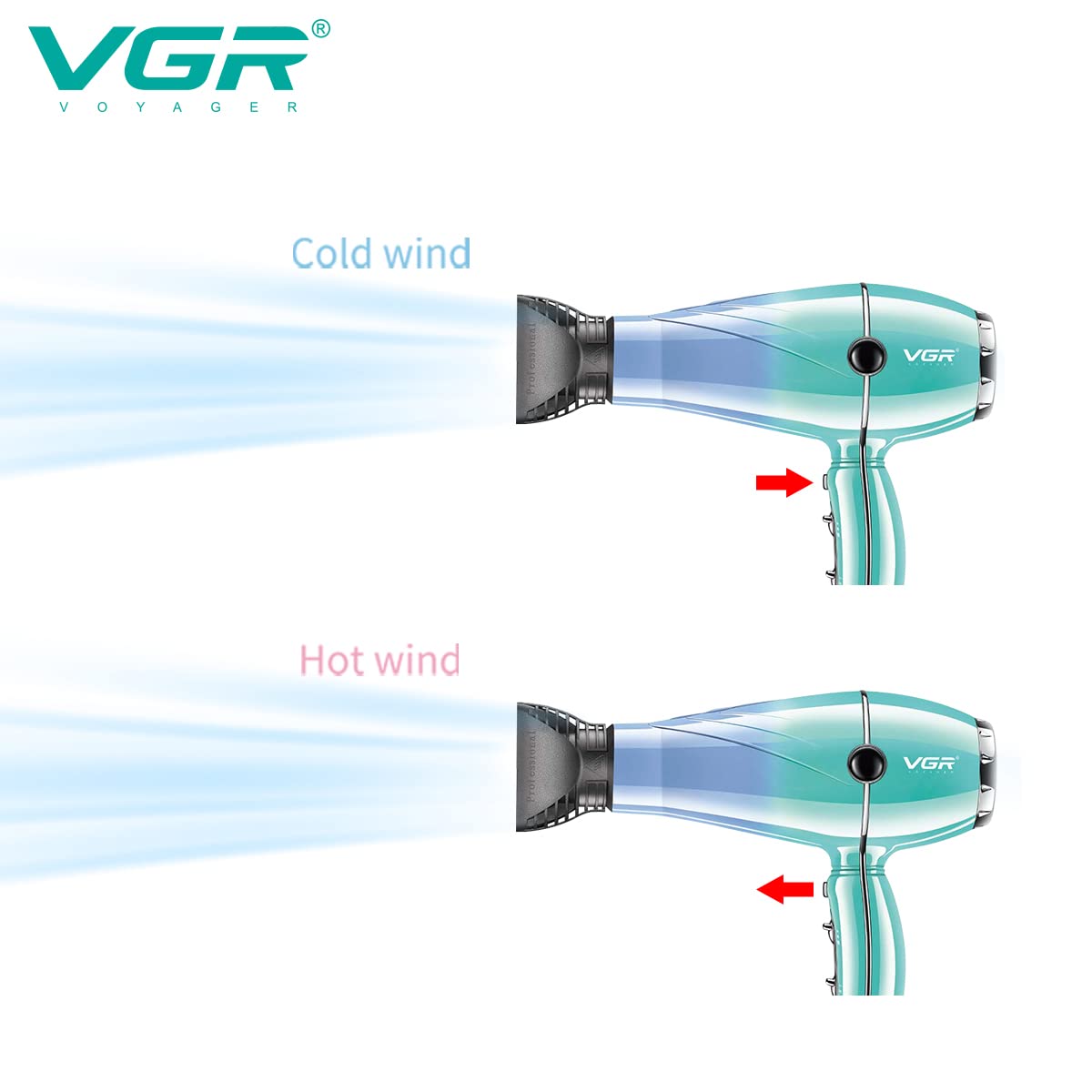

Figure 4: Visual representation of cold and hot wind settings.
5.4 Independent Cool Shot Function
Press and hold the independent cool shot button to instantly switch to cool air. This feature is ideal for setting your hairstyle after drying, helping to lock in shine and reduce frizz.
5.5 Turbo Function
The Turbo airflow boost button provides increased airflow for even faster drying when needed.
5.6 Product Demonstration Video
Video 1: An overview of the VGR V-452 Professional Salon Series Hair Dryer, highlighting its features and operation.
Video 2: A detailed look at the VGR V-452 Hair Dryer's functionalities, including speed and heat settings.
6. Maintenance and Care
6.1 Cleaning the Air Filter
Regular cleaning of the air filter is crucial for maintaining optimal performance and extending the life of your hair dryer. The V-452 features a detachable rear cover for easy access.
- Ensure the hair dryer is unplugged and completely cool.
- Gently twist or pull the detachable rear cover (air inlet grille) to remove it.
- Use a soft brush or cloth to remove any dust, lint, or hair accumulated on the filter screen.
- Reattach the rear cover by aligning it and pushing or twisting until it locks into place.
Figure 5: Rear view of the hair dryer, indicating the detachable air inlet grille for cleaning.
6.2 Storage
When not in use, store the hair dryer in a cool, dry place. Do not wrap the power cord tightly around the appliance, as this can damage the cord. Use the hanging loop for convenient storage.
7. Troubleshooting
If you encounter any issues with your VGR V-452 Hair Dryer, please refer to the table below for common problems and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Hair dryer does not turn on. | No power supply; power cord damaged; internal fault. | Check if plugged in correctly. Try a different outlet. Inspect power cord for damage. If damaged, do not use and contact customer support. |
| Weak airflow. | Blocked air inlet/outlet; dirty air filter. | Ensure air inlet/outlet are clear. Clean the air filter as described in Section 6.1. |
| Overheating and shutting off. | Overheating protection activated; blocked air vents. | Unplug the dryer and allow it to cool down for at least 10-15 minutes. Clean the air filter. Ensure proper ventilation during use. |
| Unusual noise. | Foreign object in fan; motor issue. | Unplug and check for any foreign objects in the air inlet. If the noise persists, discontinue use and contact customer support. |
8. Specifications
Key technical specifications for the VGR V-452 Professional Hair Dryer:
| Feature | Description |
|---|---|
| Model Number | V-452 |
| Power | 2000-2400W (AC Motor) |
| Heat Settings | 3 (Cool, Warm, Hot) |
| Speed Settings | 2 (Low, High) |
| Cool Shot | Independent button |
| Cord Length | 2.5 meters |
| Dimensions (LxWxH) | 28 x 20 x 9 cm |
| Weight | 970 g |
| Included Components | Concentrator Nozzle |
Figure 6: Product dimensions for the VGR V-452 Hair Dryer.
9. Warranty and Support
9.1 Warranty Information
The VGR V-452 Professional Hair Dryer comes with a 12-month quality warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your purchase receipt as proof of purchase.
The warranty does not cover damage caused by misuse, accident, unauthorized modification, or failure to follow the instructions in this manual.
9.2 Customer Support
If you have any questions, concerns, or require assistance with your VGR V-452 Hair Dryer, please contact VGR customer service. Our team is dedicated to providing satisfactory support.
For further information, you may also visit the official VGR store on Amazon: VGR Official Store
