1. Product Overview
This manual provides essential information for the safe and effective installation and maintenance of your ClimaTek Condenser Fan Blade, model LA01EW044. This fan blade is designed as a replacement for Carrier Part # LA01EW044 and features a 24-inch spinning diameter with a counter-clockwise (CCW) rotation.

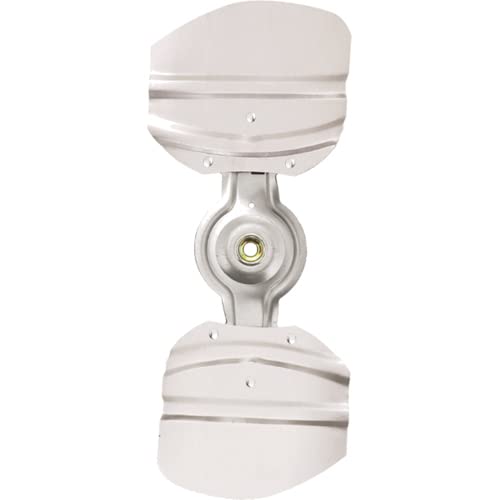

Figure 1: The ClimaTek Condenser Fan Blade, a two-bladed unit designed for efficient air movement in condenser units.
The ClimaTek Condenser Fan Blade is a critical component for maintaining optimal performance in HVAC condenser units by facilitating heat exchange. Proper installation and regular maintenance are crucial for its longevity and the efficiency of the overall system.
2. Safety Information
WARNING: Electrical shock hazard. Always disconnect power before servicing any HVAC equipment.
- Ensure all power to the condenser unit is disconnected at the main breaker before attempting installation or maintenance.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, during installation and handling.
- Fan blades can have sharp edges. Handle with care to prevent injury.
- Installation should only be performed by qualified personnel or a certified HVAC technician.
- Verify the correct rotation direction (CCW) and diameter (24 inches) before installation to ensure compatibility and proper operation.
- Do not operate the fan without the protective grille or housing securely in place.
3. Package Contents
Upon opening the package, verify that all components are present and undamaged:
- 1 x ClimaTek Condenser Fan Blade (Model LA01EW044)
If any items are missing or damaged, contact your supplier immediately.
4. Installation Instructions
This section outlines the general steps for replacing a condenser fan blade. Specific procedures may vary based on the condenser unit model. Refer to your unit's service manual for detailed instructions.
- Disconnect Power: Turn off all electrical power to the outdoor condenser unit at the main service panel. Confirm power is off using a voltage tester.
- Access Fan Compartment: Remove the top grille or access panel of the condenser unit to expose the fan motor and blade assembly. This typically involves unscrewing several fasteners.
- Remove Old Fan Blade: Loosen the set screw(s) on the fan hub that secure the blade to the motor shaft. Carefully slide the old fan blade off the motor shaft. Note the orientation and depth of the old blade on the shaft for proper installation of the new blade.
- Inspect Motor Shaft: Clean the motor shaft of any debris or corrosion.
- Install New Fan Blade: Slide the new ClimaTek Condenser Fan Blade onto the motor shaft. Ensure the blade is oriented correctly for counter-clockwise (CCW) rotation and positioned at the same depth as the original blade. The blade should be centered and balanced.
- Secure Fan Blade: Tighten the set screw(s) on the fan hub firmly against the flat part of the motor shaft (if applicable) to prevent slippage. Do not overtighten.
- Check for Clearance: Manually spin the fan blade to ensure it rotates freely without hitting any part of the condenser unit housing or wiring.
- Reassemble Unit: Replace the top grille or access panel, securing all fasteners.
- Restore Power: Restore electrical power to the condenser unit at the main service panel.
- Test Operation: Start the HVAC system and observe the fan operation. Ensure it spins smoothly, quietly, and in the correct direction.
For visual guidance, consult online resources or a professional HVAC technician.
5. Maintenance
Regular maintenance helps ensure the longevity and efficiency of your condenser fan blade and the overall HVAC system.
- Annual Inspection: At least once a year, typically before the cooling season, inspect the fan blade for any signs of damage, cracks, bends, or excessive wear.
- Cleaning: With power disconnected, gently clean any accumulated dirt, dust, or debris from the fan blades using a soft cloth or brush. Heavy buildup can unbalance the blade and reduce efficiency.
- Check for Balance: An unbalanced fan blade can cause excessive vibration and noise, leading to premature motor wear. If vibration is noted, inspect for debris or damage that might be causing imbalance.
- Motor Bearings: While not directly part of the fan blade, ensure the fan motor bearings are properly lubricated if your motor requires it (refer to motor manufacturer's guidelines).
6. Troubleshooting
This section addresses common issues related to condenser fan operation. Always disconnect power before inspecting the unit.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan not spinning | No power, faulty motor, seized bearings, capacitor failure. | Check power supply. Inspect motor and capacitor (requires professional). Ensure blade spins freely. |
| Excessive noise or vibration | Unbalanced blade, debris on blade, loose mounting, worn motor bearings. | Clean blades. Check for damage. Ensure blade is securely fastened to shaft. Inspect motor bearings. |
| Fan spinning slowly | Weak capacitor, motor issues, excessive resistance. | Inspect/replace capacitor. Check motor for signs of wear. Ensure no obstructions. |
If troubleshooting steps do not resolve the issue, contact a qualified HVAC technician.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | LA01EW044 |
| Brand | ClimaTek |
| Replacement For | Carrier Part # LA01EW044 |
| Blade Diameter | 24 inches |
| Number of Blades | 2 |
| Rotation Direction | Counter-Clockwise (CCW) |
| Product Dimensions | 24 x 24 x 6 inches |
| Product Weight | 6 Pounds |
| ASIN | B0BWSH9SXK |
8. Warranty and Support
For specific warranty information regarding your ClimaTek Condenser Fan Blade, please refer to the documentation provided at the time of purchase or contact your retailer. ClimaTek products are designed for reliability and performance.
For technical support or inquiries, please contact your authorized ClimaTek dealer or visit the ClimaTek website for contact information.
Note: Improper installation or use may void the product warranty.
