Introduction
Thank you for choosing the FORIOUS LED Kitchen Faucet, model BEKF45DN. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new kitchen faucet. Please read these instructions carefully before installation and retain them for future reference.

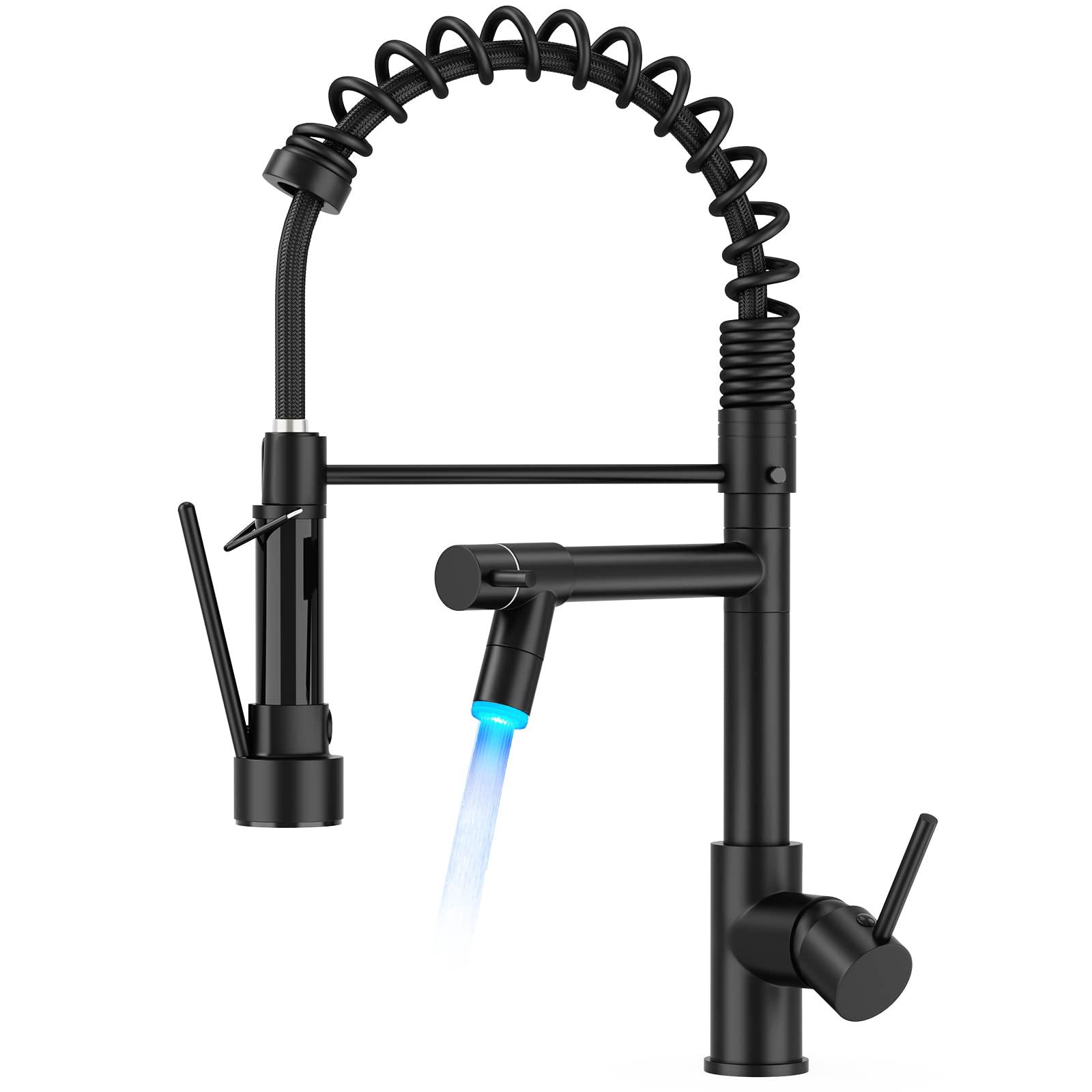

The FORIOUS LED Kitchen Faucet, model BEKF45DN, featuring a black matte finish, dual spray functions, and an LED temperature indicator.
Setup and Installation
This faucet is designed for single-hole installation. Ensure all necessary components are present before beginning. Professional installation is recommended.
Package Contents:
- FORIOUS LED Kitchen Faucet Assembly
- Mounting Hardware
- Hot and Cold Water Supply Lines (G3/8 Female)
- User Manual
Installation Steps:
- Prepare the Sink: Ensure the sink hole is clean and clear. The faucet is compatible with 1 or 3-hole installations (deck plate for 3-hole not included).
- Mount the Faucet: Insert the faucet body into the sink hole. Secure it from underneath the sink using the provided mounting hardware.
- Connect Water Lines: Attach the hot and cold water supply lines to the corresponding connections on the faucet and your home's water supply. Ensure connections are tight to prevent leaks.
- Test for Leaks: Slowly turn on the water supply and check all connections for any leaks.

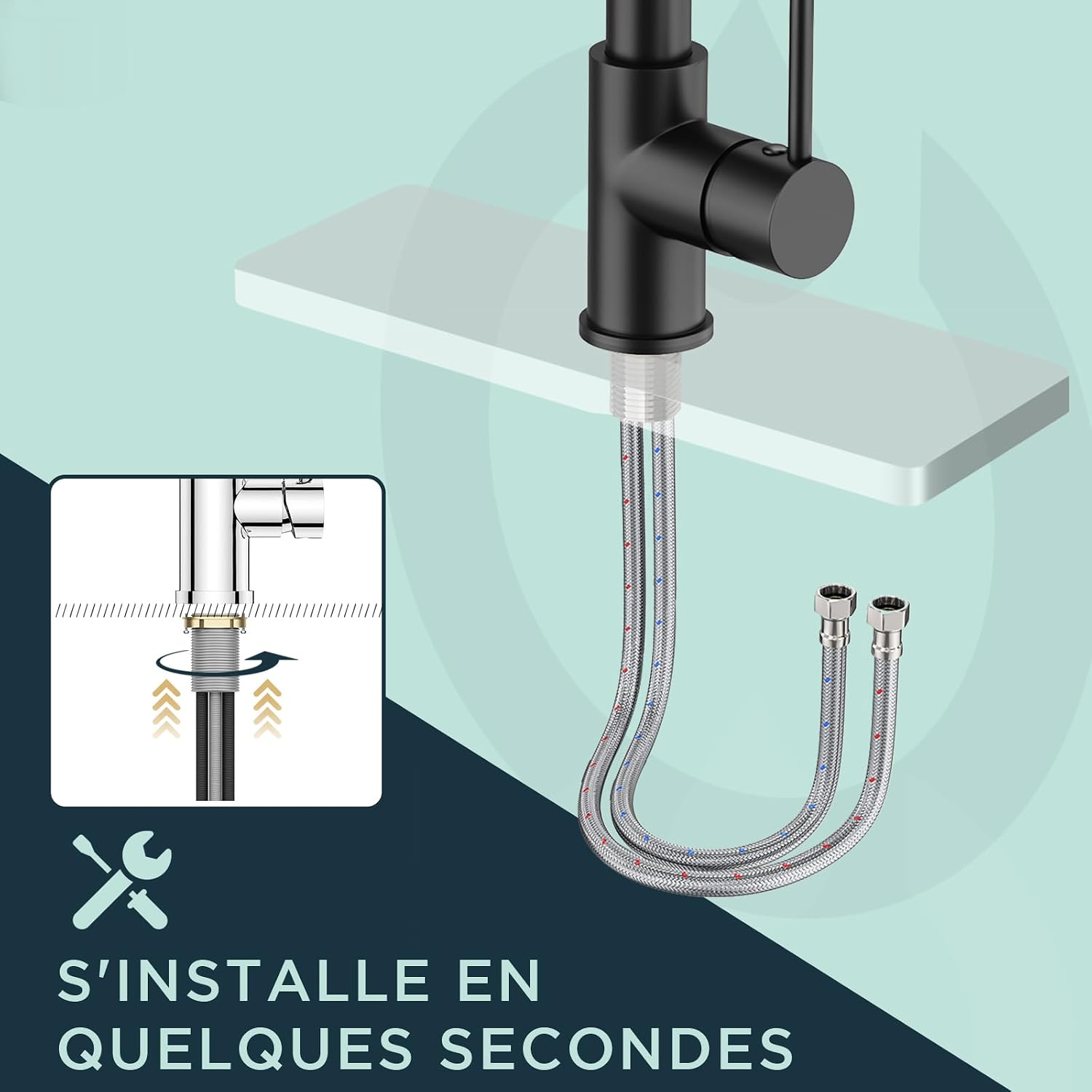

Installation diagram illustrating the faucet mounting process and water line connections.
Operating Instructions
The FORIOUS LED Kitchen Faucet offers versatile functionality for various kitchen tasks.
Water Flow and Temperature Control:
- Single Handle Control: The single lever handle controls both water flow volume and temperature. Move the handle up for increased flow and down for decreased flow. Move it left for hot water and right for cold water.
- LED Temperature Indicator: The faucet features an integrated LED light that changes color based on water temperature, providing a visual cue to prevent scalding or freezing. No batteries are required as the LED is powered by water flow.
The LED light changes color to indicate water temperature: blue for cold, green for warm, and red for hot, enhancing safety and convenience.
Dual Spray Functions:
- Two Separate Spray Heads: The faucet is equipped with two distinct spray heads, offering both a spray mode and a stream mode. These can be operated simultaneously for increased efficiency.
- Stream Mode: Ideal for filling pots and pans quickly.
- Spray Mode: Suitable for rinsing fruits, vegetables, and dishes with surface oil stains.
- Sprayer Lock Design: The sprayer features a lock mechanism, allowing continuous water flow in spray mode without needing to hold the button.
The dual spray heads allow for simultaneous operation, such as rinsing produce while filling a glass.
360° Swivel Functionality:
Both the main spout and the sprayer can swivel 360 degrees, providing full sink coverage and flexibility for various kitchen tasks, suitable for both single and double sinks.

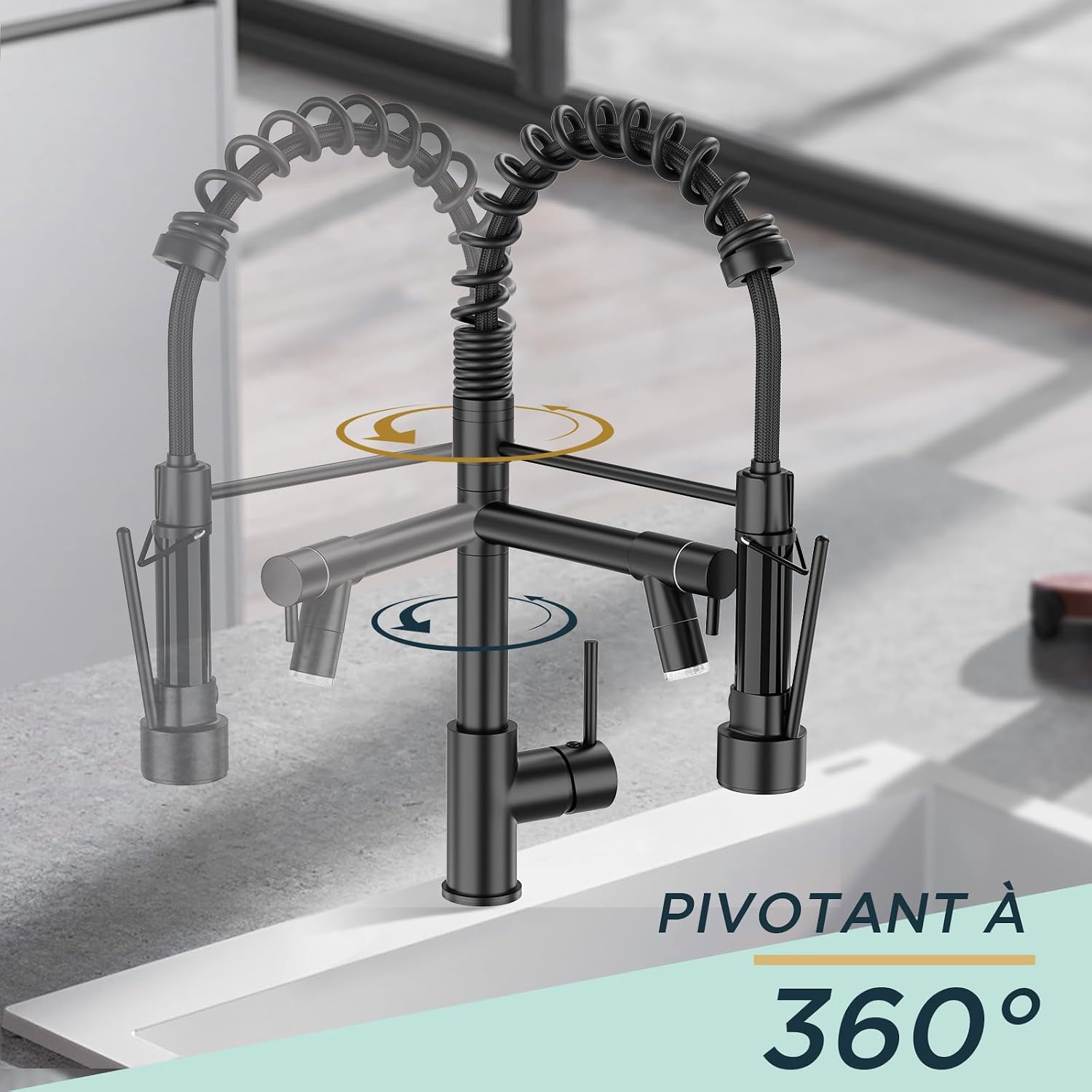

The faucet's 360° swivel feature allows for complete coverage of your sink area.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your FORIOUS kitchen faucet.
Cleaning:
- Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, steel wool, or harsh chemicals, as these can damage the finish.
- For the spray nozzles, gently rub the rubber nozzles to remove mineral buildup and maintain consistent spray patterns.
Tactile cleaning of the spray nozzles helps remove mineral deposits.
Internal Components:
- The faucet is equipped with a high-quality ceramic cartridge, tested for over 500,000 open and close cycles, designed to reduce leaks and ensure durability.
- The flexible hose is designed for superior quality, featuring resistance to tension and friction, ensuring long-term reliability.
The durable hose is designed for resistance to tension and friction, ensuring long-lasting performance.
Troubleshooting
If you encounter any issues with your faucet, please refer to the following common troubleshooting tips. For problems not listed here, contact customer support.
Common Issues:
- Low Water Flow: Check if the water supply valves are fully open. Inspect the aerator for mineral buildup and clean if necessary.
- Leaks from Connections: Ensure all water line connections are securely tightened. If leaks persist, check for damaged washers or O-rings.
- LED Light Not Working: The LED light is powered by water flow. Ensure sufficient water pressure. If the issue persists, contact customer support.
- Difficulty Switching Spray Modes: Clean the spray nozzles to remove any debris that might be obstructing the mechanism.
Specifications
| Feature | Detail |
|---|---|
| Model Number | BEKF45DN |
| Brand | FORIOUS |
| Material | High-quality 304 Stainless Steel |
| Finish | Black Matte |
| Dimensions (L x W x H) | 44.24 x 20.49 x 10.66 cm (17.42 x 8.07 x 4.2 inches) |
| Item Weight | 2.5 Kilograms |
| Number of Handles | 2 (Dual Handle) |
| Number of Holes Required | 1 |
| Special Features | LED Temperature Sensitive Design, 360° Swivel, Dual Separate Spray Nozzles |
| Flow Rate | 2.2 Liters per minute (Max) |
| Valve Type | Ceramic Disc Valve (500,000 cycle tested) |
| Certifications | ACS Food Safety, LFGB Food Code, REACH Chemical Regulation, RoHS Hazardous Substances Directive |
Detailed dimensions of the FORIOUS LED Kitchen Faucet.
The faucet complies with multiple international safety and environmental certifications.
Warranty Information
The FORIOUS LED Kitchen Faucet comes with a limited warranty. For specific terms and conditions of your warranty, please refer to the documentation included with your purchase or contact FORIOUS customer support.
- Warranty Type: Limited
- Warranty Service: 5 Years
Customer Support
For any questions, assistance, or technical support regarding your FORIOUS LED Kitchen Faucet, please contact our customer service team.
- Email Support: 24-hour assistance via email.
- Customer Service Hotline: 12-hour customer service availability.
FORIOUS offers comprehensive customer support and a 5-year warranty service.
