Alphasonik Dynamis DCP6 6.5-inch Shallow Mount Enclosed Subwoofer Instruction Manual

Introduction

Thank you for choosing the Alphasonik Dynamis DCP6 6.5-inch Shallow Mount Enclosed Subwoofer. This product is designed to provide enhanced bass performance in vehicles with limited space. This manual provides essential information for proper installation, operation, and maintenance to ensure optimal performance and longevity of your subwoofer.

Image: Front view of the Alphasonik Dynamis DCP6 6.5-inch shallow mount enclosed subwoofer.

Important Safety Information

• Always disconnect the vehicle's battery negative terminal before beginning any electrical work.
• Ensure all wiring is properly insulated and secured to prevent short circuits and damage.
• Do not install the subwoofer in a location that obstructs the driver's view or interferes with vehicle operation.
• Avoid exposing the subwoofer to excessive moisture or extreme temperatures.
• Use appropriate gauge wiring for power and speaker connections as recommended by your amplifier manufacturer.
• Consult a professional car audio installer if you are unsure about any installation steps.

Package Contents

Verify that all items are present in the package:

• 1x Alphasonik Dynamis DCP6 6.5" Passive Vented Shallow Enclosure
• 1x Owner's Manual

Key Features

• High power output and extension from a compact enclosure.
• Stamped steel basket for structural integrity and motor stability.
• Vented motor structure and bumped back plate for effective cooling.
• Pressed paper cone with inverted poly dust cap for lightweight rigidity.
• Computer-optimized bass reflex slot port design for enhanced low-frequency response.
• Flared port ends to maximize performance and reduce port noise.
• Internally cornered bracing to reduce standing waves.
• Pre-wired and ready for connection via spring-loaded nickel-plated terminals.
• Durable 5/8" MDF construction with high-grade black carpet finish.

Setup and Installation

The Alphasonik Dynamis DCP6 is a pre-enclosed subwoofer designed for straightforward installation. It requires connection to an external amplifier capable of driving a 4-Ohm load.

1. Choosing an Installation Location

Due to its shallow mount design, the DCP6 is suitable for tight spaces in cars and trucks. Common locations include under seats, behind truck seats, or in the trunk. Ensure the chosen location allows for adequate ventilation and does not obstruct any vehicle controls or safety features. Secure the enclosure firmly to prevent movement during vehicle operation.

2. Wiring Connections

The DCP6 features spring-loaded nickel-plated terminals for easy connection. Connect your amplifier's speaker output to these terminals. Ensure correct polarity (positive to positive, negative to negative) to avoid phase issues that can degrade bass performance.

• Amplifier Compatibility: This subwoofer has a 4-Ohm impedance. Ensure your amplifier is stable and designed to operate efficiently with a 4-Ohm load. Refer to your amplifier's manual for specific wiring diagrams and power ratings.
• Power Requirements: The subwoofer handles 200 Watts RMS and 600 Watts MAX power. Select an amplifier that provides sufficient power within these ratings for optimal performance without risking damage.

Image: Rear view of the Alphasonik DCP6 subwoofer enclosure, highlighting the spring-loaded nickel-plated speaker terminals for amplifier connection.

After connecting the speaker wires, ensure all connections are secure and free from potential shorts. Reconnect the vehicle's battery.

Operation

Once installed, the subwoofer's performance will be controlled by your external amplifier and head unit. Follow these general guidelines:

• Amplifier Gain Setting: Adjust the gain control on your amplifier carefully. Start with the gain at its minimum setting and slowly increase it until the desired bass level is achieved without distortion. Over-driving the amplifier can damage the subwoofer.
• Low-Pass Filter (LPF): Most amplifiers designed for subwoofers include a low-pass filter. Set this filter to allow only low frequencies to reach the subwoofer, typically between 80Hz and 120Hz, depending on your vehicle's acoustics and personal preference.
• Subsonic Filter: If your amplifier has a subsonic filter, it is recommended to set it slightly below the enclosure's tuning frequency (which is optimized for deep bass). This helps protect the subwoofer from playing frequencies too low for the enclosure, which can cause damage.
• Phase Control: Experiment with the phase switch (0° or 180°) on your amplifier or head unit to find the setting that provides the most cohesive bass response with your front speakers.
• Break-in Period: Allow a break-in period of several hours of moderate listening before operating the subwoofer at high volumes. This allows the suspension components to loosen and achieve optimal performance.

Maintenance

The Alphasonik DCP6 subwoofer enclosure requires minimal maintenance to ensure long-lasting performance:

• Cleaning: Use a soft, dry cloth to wipe down the enclosure's carpeted surface. For stubborn dirt, a slightly damp cloth can be used, but avoid excessive moisture. Do not use harsh chemicals or abrasive cleaners.
• Speaker Cone: Avoid touching the speaker cone directly. If dust accumulates, gently remove it with a soft brush or compressed air.
• Connections: Periodically check all wiring connections to ensure they remain secure and free from corrosion.
• Environment: Keep the subwoofer away from direct sunlight and extreme heat, which can degrade materials over time.

Troubleshooting

If you experience issues with your Alphasonik DCP6 subwoofer, consult the following table before seeking professional assistance:

Specifications

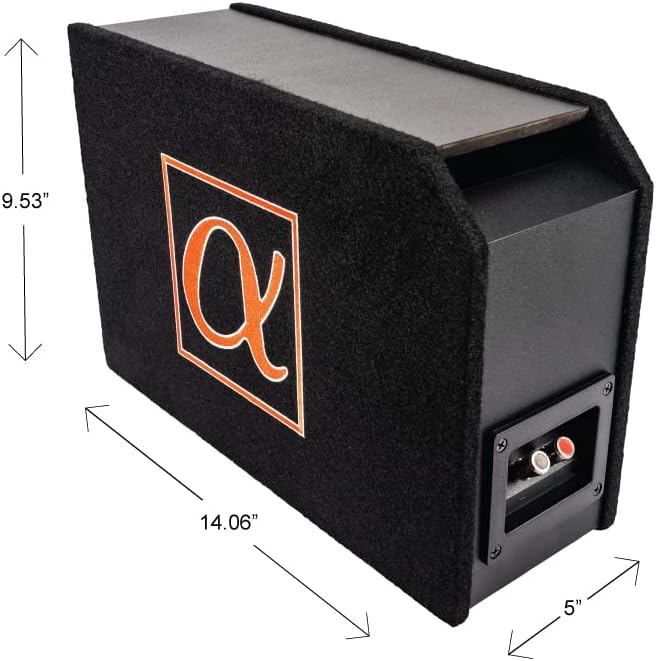

Image: Alphasonik DCP6 subwoofer enclosure with key dimensions (width, height, depth) indicated.

Warranty and Support

The Alphasonik Dynamis DCP6 subwoofer is covered by a limited warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration of coverage.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact Alphasonik customer service. Contact information can typically be found on the official Alphasonik website or on your product's packaging.
