SW-MOTECH Crash Bar Instruction Manual

1. Product Overview

The SW-MOTECH Crash Bar (Model SBL.06.593.10002/B) is a vehicle-specific protective accessory designed to safeguard the engine and surrounding components of your motorcycle from damage during falls or impacts. This crash bar is engineered for a precise fit and integrates seamlessly with the motorcycle's design.

1.1 Compatible Motorcycle Models:

• Yamaha MT-07 (2020-2023) Type RM33, RM34
• Yamaha MT-07 Tracer (2016-2019) Type RM14, RM15
• Yamaha MT-07 Tracer (2019-2023) Type RM30, RM31
• Yamaha Tracer 7 (2021-2023) Type RM30
• Yamaha Tracer 7 GT (2021-2023) Type RM30
• Yamaha Tracer 700 (2016-2019) Type RM14, RM15
• Yamaha Tracer 700 (2019-2023) Type RM30

2. Setup and Installation

Proper installation is crucial for the effectiveness and safety of the crash bar. It is highly recommended that installation be performed by a qualified motorcycle technician. If you choose to install it yourself, ensure you have the necessary tools and follow all steps carefully. Always refer to your motorcycle's service manual for specific torque values and procedures.

2.1 General Installation Steps:

1. Unpack Components: Carefully unpack all parts and verify against the included parts list (if provided). Ensure no components are missing or damaged.
2. Prepare Motorcycle: Park the motorcycle on a stable, level surface. Turn off the engine and allow it to cool. Disconnect the battery if required by specific vehicle instructions.
3. Identify Mounting Points: Locate the designated mounting points on your motorcycle's frame, typically near the engine or lower frame rails.
4. Attach Brackets (if applicable): If separate mounting brackets are provided, attach them loosely to the motorcycle frame using the specified hardware.
5. Position Crash Bar: Carefully position the crash bar onto the attached brackets or directly onto the frame mounting points. Insert all bolts but do not tighten them fully yet.
6. Align and Adjust: Ensure the crash bar is correctly aligned and does not interfere with any motorcycle components (e.g., exhaust, cables, hoses). Adjust as necessary.
7. Tighten Fasteners: Once aligned, progressively tighten all bolts to the manufacturer's specified torque values. Start with the main mounting bolts and then secondary fasteners. Use a torque wrench for accuracy.
8. Final Inspection: Double-check all fasteners for tightness. Ensure the crash bar is securely mounted and stable. Verify that no wires, hoses, or other components are pinched or obstructed.

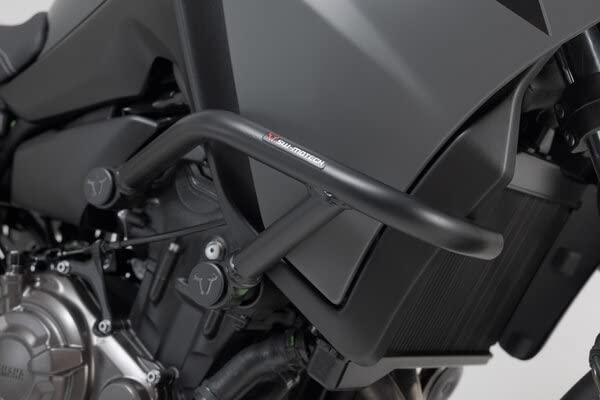

This image shows the SW-MOTECH crash bar, a protective frame designed to safeguard the motorcycle's engine and surrounding components. The black finish is visible, indicating the product's color.

Note: This product is a bolt-on type and is vehicle-specific. Always refer to the detailed installation instructions provided with the product packaging for your specific motorcycle model.

3. Operating and Safety Considerations

The SW-MOTECH Crash Bar functions as a passive safety device, providing a protective barrier for your motorcycle's engine and frame in the event of a tip-over or low-speed slide. While it significantly reduces the risk of severe damage, it does not guarantee complete protection against all types of impacts or accidents.

3.1 General Use:

• Once installed, the crash bar requires no special operation. It is a permanent fixture designed to offer continuous protection.
• Regularly inspect the crash bar for any signs of damage, corrosion, or loose fasteners, especially after riding on rough terrain or after any minor incident.

3.2 Safety Notes:

• The crash bar adds minimal weight (approximately 5.3 kg) to the motorcycle. This should not significantly alter handling characteristics, but riders should always be aware of any modifications to their vehicle.
• Ensure the crash bar does not interfere with your riding posture, leg clearance, or control operation.
• In the event of an accident, even if the crash bar appears intact, inspect it and its mounting points thoroughly for any hidden damage or stress fractures. Replace if structural integrity is compromised.

4. Maintenance

To ensure the longevity and continued effectiveness of your SW-MOTECH Crash Bar, regular maintenance is recommended.

4.1 Cleaning:

• Clean the crash bar regularly with mild soap and water to remove dirt, grime, and road salt.
• Avoid using abrasive cleaners or solvents that could damage the finish.
• Dry thoroughly after washing to prevent water spots and corrosion.

4.2 Inspection:

• Periodically check all mounting bolts and fasteners for tightness. Re-tighten to specified torque values if any are loose.
• Inspect the entire crash bar for cracks, bends, deep scratches, or any signs of structural fatigue.
• Check for rust or corrosion, especially in areas where the finish might be chipped or scratched. Address any corrosion promptly to prevent further spread.

4.3 Corrosion Protection:

• For minor scratches or chips in the finish, touch up with appropriate paint to prevent rust.
• Consider applying a protective wax or sealant to the crash bar, especially if riding in harsh weather conditions.

5. Troubleshooting

This section addresses common issues you might encounter with your crash bar.

5.1 Loose Fasteners:

• Symptom: Crash bar feels wobbly or rattles during operation.
• Solution: Inspect all mounting bolts. If any are loose, re-tighten them to the manufacturer's specified torque values. Do not overtighten.

5.2 Unusual Noises:

• Symptom: Clicking, rubbing, or grinding sounds coming from the crash bar area.
• Solution: Check for any contact points between the crash bar and other motorcycle components (e.g., fairings, exhaust, cables). Adjust the crash bar's position slightly if possible, or ensure all components are routed correctly. If the noise persists, consult a professional technician.

5.3 Damage After Impact:

• Symptom: Crash bar is bent, cracked, or severely scratched after a fall or impact.
• Solution: Even minor damage can compromise the structural integrity of the crash bar. For your safety, it is recommended to replace a damaged crash bar rather than attempting repairs. A compromised crash bar may not provide adequate protection in future incidents.

6. Specifications

7. Warranty Information

This product is covered by a limited warranty against initial defects only. The warranty period is limited to one week from the date of delivery. To claim warranty service, the original delivery note or proof of purchase is mandatory.

The warranty does not cover:

• Damage resulting from improper installation or maintenance.
• Damage caused by accidents, misuse, neglect, or unauthorized modifications.
• Normal wear and tear, cosmetic damage, or corrosion.

For warranty claims, please contact your point of purchase with your delivery note.

8. Support and Contact

If you encounter any issues not covered in this manual, or require further assistance with installation or product information, please refer to the following:

• Original Product Packaging: Check for additional documentation, specific installation guides, or contact information.
• SW-MOTECH Official Website: Visit the official SW-MOTECH website for product FAQs, detailed manuals, and support contact details.
• Authorized Dealer/Seller: Contact the dealer or seller from whom you purchased the product. They can provide specific guidance or facilitate warranty claims.
• Professional Motorcycle Technician: For complex installation issues or safety concerns, consult a certified motorcycle mechanic.
